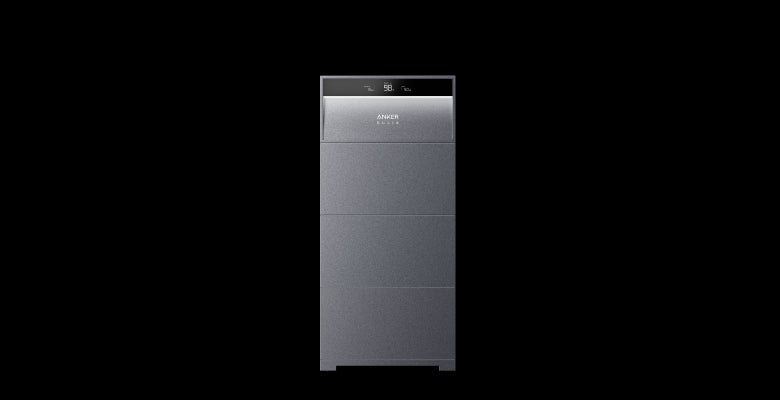

Anker SOLIX X1 Energy Storage System

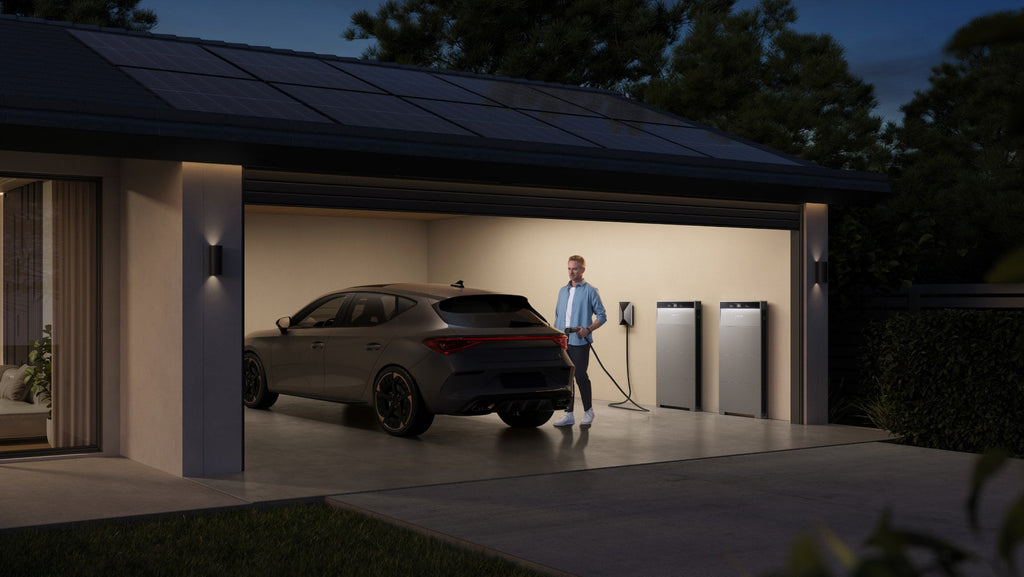

Discover the ultra slim Anker SOLIX X1, the ultimate energy storage system that lets you harness sustainable solar energy during the day and create energy independence 24/7 with a whopping 2350kWh and <20ms switchover.

EXTREME OFF-GRID PERFORMANCE

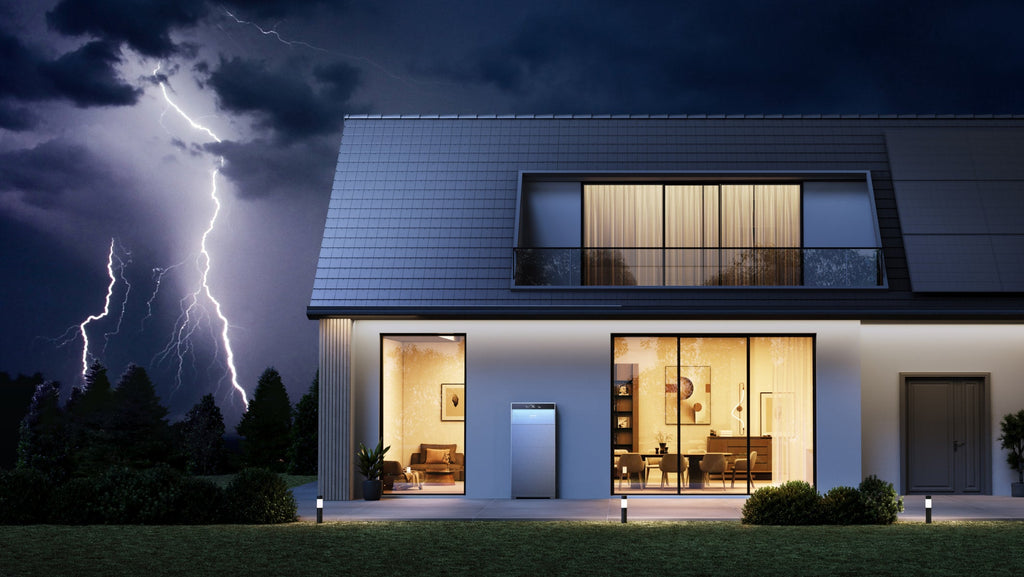

Designed to keep your energy needs supplied with unlimited power, SOLIX X1 protects across all 4 stages of an outage. Its four-grid module kickstarts long before the power interruption by activating storm guard mode as and when the National Weather Service issues a warning keeping you well prepped to handle upcoming outages.

Once the outage occurs in less than 20ms you experience a seamless transition that plays a crucial role in keeping your delicate gadgets up and running without any glitch. SOLIX X1's InfiniPower with its 1.1X rated power output ensures you have enough electricity to run high-energy and emergency appliances. Our energy storage system ensures you weather out extended outages in ultimate comfort.

SMART ENERGY MAX SAVINGS

X1 comes with 7 distinct energy modes - 3 for emergencies and 4 to switch interchangeably for optimal management of available energy. While you minimize grid electricity in self-consumption mode, bring your power bills down effectively with the Time-Of-Use mode. Combine the use of solar panels and X1 to activate off-grid power and manually switch to this mode for uninterrupted power supply. What more! You can make a profit from your power by selling solar generated power when prices shoot up.

POWER THAT SCALES

With the dedicated 3-36kW & 5-180kWh energy supply to take care of your needs, SOLIX X1 is a modular design that scales with your power needs to build a power system. Each of SOLIX X1 is packed with an innovative energy optimizer that allows for independent charging and discharging which means there is 0 energy loss while scaling output and capacity to match your needs.

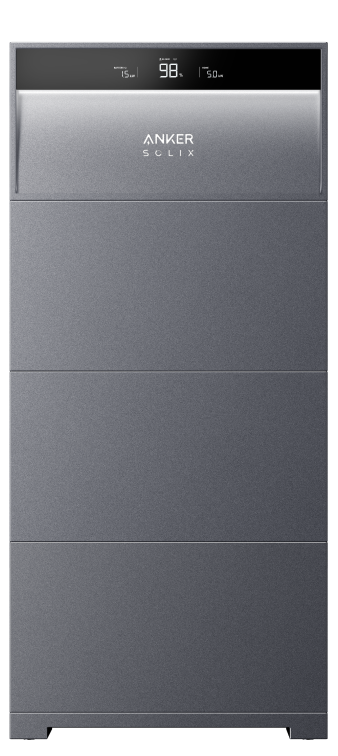

MINIMALIST DESIGN

A non-intrusive construction, SOLIX X1 is ultra-thin at just 5.9" yet packs a punch with 8.7W/Fft³ power density, the highest in industry. Its petite design allows it to be installed any desired nook that you prefer.

Highlights:

• Energy for every situation
• 100% Power from -4degree F ~ 131degree F
• InfiniPower 110% Rated Power
• <20ms seamless transition
• Innovative energy optimizer to hit 2350kWh power
• Real-time monitoring with app controls

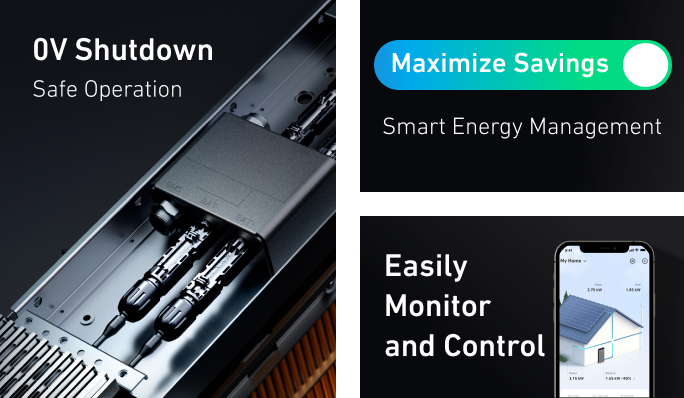

• Shock free 0V shutdown
• Auto isolates abnormal batteries
• Stable LiFePO4 Batteries

Specifications:

Energy Capacity: 15kWh Note: 5kWh 1 battery module

Switch Time: < 20ms (On-Grid to Off-Grid)

On-Grid Power: 6kW Note: 3kW with 1 battery module

Backup Power: 6.6kW Note: 3kW with 1 battery module 6kW with 2 battery modules

Scalability Per System: Up to 6 Battery Modules Note: Up to 6kW / 30kWh

Max Systems in Parallel: Up to 6 Systems Note: Up to 36kW / 180kWh

Round Trip Efficiency: Up to 90.2%

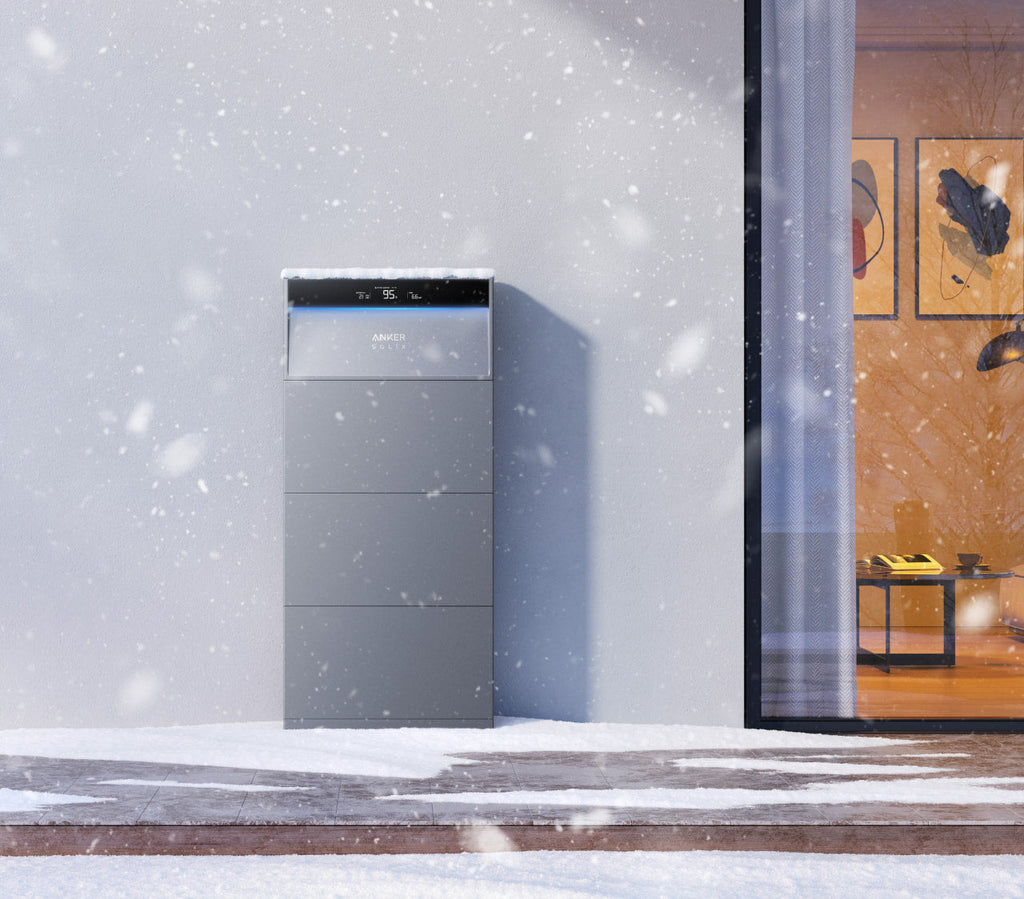

Mounting Options: Ground or Wall

Operation Temperature: -4 ℉ - 131 ℉

Noise: <35 dB (Ambient Temperature <104℉) <40 dB (Ambient Temperature >104℉)

Assembly Ingress Rating: NEMA Type 4

Warranty: 10 Years

Rated Output Grid Power: 6kW Note：3kw with 1 battery module

Max.Output Apparent Power: 6 kVA Note：3kVA with 1 battery module

Rated Output Voltage: 240VAC

Rated Frequency: 60Hz

Power Factor: ~1 (+/-0.8)

Rated Output Backup Power: 6.6 kW  Note: 3kW with 1 battery module 6kW with 2 battery modules

Peak Output Power (Duration): 12kW (10s) Note: 4.5kW (10s) with 1 battery module 9kW (10s) with 2 battery modules

Rated Output Voltage: 120/240VAC (Split-Phase)

Rated Frequency: 60Hz

Weight: 44.1 lbs

Round Trip Efficiency: Up to 90.2%

Operation Temperature: -4℉ - 131℉

Relative Humidity: 5% - 95%

Assembly Ingress Rating: NEMA Type 4

Max Operating Altitude: Up to 13,123 ft Note: Power Derates from 6,562 ft

What's in the Box:

1 x Power Module

1 x Battery Module

1 x Backup Controller

1 x User Manual
