Bluetti

D050S+3*PV200+B300

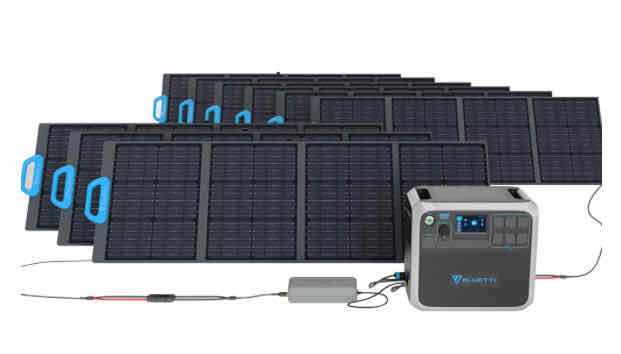

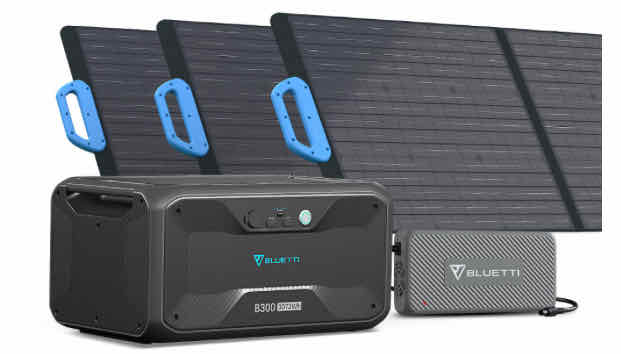

BLUETTI D050S + 3*PV200 + 1*B300 Solar Generator Kit

Cash Back Rewards: $75.90

Get 5% OFF TODAY with code USA5

Free shipping. Ships in 2-3 days


  • While we offer shipping for Bluetti products to Hawaii and Alaska, Bluetti does not provide after sales services in those regions. Therefore we kindly recommend buying a CPS Accidental Warranty when shipping to Hawaii or Alaska.

    D050S +3 x PV200+ 1 x B300 Solar Generator Kit

    With the help of our new DC Enhancer, you can now increase the overall capacity of previous BLUETTI models like the AC200/P by connecting the latest BLUETTI battery modules.
    Alternatively, you can even charge the EB240/EB150/B300/B230 via the 12V/24V cigarette lighter port in your car or lead-acid batteries.

    BLUETTI PV200 is a 200-Watt monocrystalline solar panel with a high conversion efficiency of up to 23.4%. With excellent 95% transparency, it performs better than polycrystalline solar panels in low-light conditions and much higher than the market's average.

    The Bluetti B300 Expansion Battery Module is equipped with a LiFePO4 battery with a capacity of 3072 Wh (3500 life cycles).
    If you want to increase the capacity of your Bluetti power station, it is possible to use this B300 Battery Module in combination with the AC300 Power Station (Max.4), the Bluetti AC200Max (max. 2), AC200P (max. 1) , EB200 (max.1) or the EP500 Pro (max.2).

    Wellbots BLUETTI D050S + 3*PV200 + 1*B230



    • 1x D050S
    • 1 x Solar Charging Cable (XT90-F to MC4)
    • 1 x Car Charging Cable (XT90-F to Cigarette Lighter Plug)
    • 1 x B300
    • 1 x PV Input Cable (MC4 - XT90)
    • 1 x Battery Expansion Cable (PO90A)
    • 3 x PV 200W Solar Panel
    • MC4 Connector + Cable (120")
    • 1x User Manual
    • 1X Warranty Card
    • x Certificate of QC PASS


  • D050S

    Ingress Protection LV
    IP20

    DC Input
    12-60 VDC, 10A MAX

    DC Output
    15-58.8 VDC, 8.2A MAX, 500W MAX

    Environmental Requirements
    Working temperature: -10-40°C (14-104°F)
    Storage Temperature: -20-40°C (-4-104°F)


    PV200:

    Peak Power:

    200W

    Solar Cell lamination:
    ETFE

    Cell Efficiency:
    Up to 23.4%

    Voltage at Max Power:
    20.5V

    Current at Max Power:
    9.7A

    Open Circuit Voltage:
    26.1V

    Short Circuit Current:
    10.3A

    Operation Temperature:
    -10°C to 65°C

    Best Working Temperature:
    25°C

    Folding Number:
    4

    Dimensions Unfolded:
    23.2 x 89.2 inch

    Dimensions Folded:
    23.2 x 24.8 inch


    B300:


    BATTERY INFO

    Capacity:
    3072Wh

    Cell Chemistry:
    Lithium Iron Phosphate(LiFePO4)

    Lifecycle:
    3500+(to 80%),6000+(to 50%)

    Shelf-Life
    Charge Every 3-6 Months


    PORTS

    AC Input:
    500W

    Solar Input:
    200W(12-60V),10A

    AC+ Solar Input:
    12/24V,8.2A

    DC Output:
    1*12V/10A Cigarette Lighter Port

    USB Output:
    1*18W USB-A
    1*100W USB-C


    Environmental Requirements:
    Storate Temperature: 20-40℃(-4-104℉)
    Charge Temperature: 0-40℃ (32-104℉)
    Discharge Temperature:-20-40℃(-4-104℉)


    GENERAL

    Weight:
    79.6lbs(36.1Kg)

    Dimensions (LxWxD):
    20.5*12.5*10.5 inch

    Operating Usage Temperature:
    0-40°C/32°F-104°F

    Certification:
    CEC, DOE, FCC, QC3.0, CA Prop 65

    Warranty:
    24 Months


    SKU:
    D050S+3PV200+B230

    UPC:
    193022000254
    6970991290336
    6970991290411
