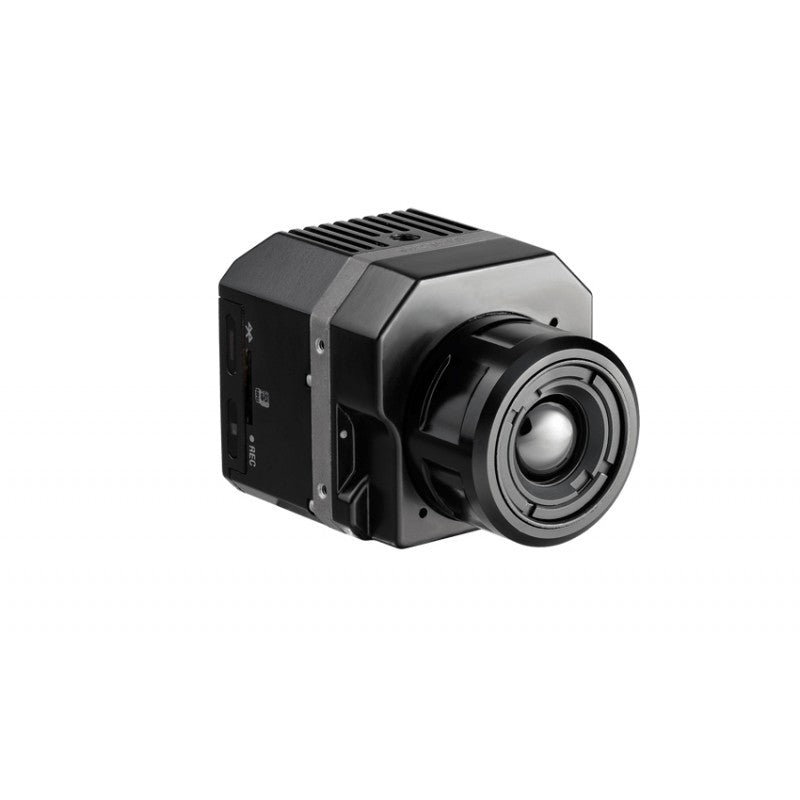

FLIR Systems VUE PRO

You Save 1% ($25.00)

Variants

Enjoy $20 OFF TODAY with code NEW20

Free shipping over $100. Ships in 4-5 business days


  • FLIR Systems VUE PRO



    Thermal Imaging reaches new levels with the VUE PRO. High Quality, made simple, paying only for the functionality you use.

    The FLIR Vue Pro Fast Frame Rate Thermal Camera is developed specifically to meet the needs of professional drone operators and of Small Unmanned Aircraft System (sUAS) operations and services. Vue Pro records digital video and still imagery to a removable micro-SD card so you won’t lose any of your data to transmission loss. Vue Pro provides thermal drone experts with accurate 8-bit digital thermal videos in MJPEG and 14-bit still images and is adaptable  to the latest technology in advanced image stitching and drone-mapping for surveys, agriculture applications, and more. Vue Pro adds fully radiometric data-gathering to sUAS applications like building and roof inspections, power grid inspections, infrastructure analysis, precision agriculture, and public safety.

    Designed for professional use, FLIR Vue Pro is more than a thermal camera, it is a thermal measurement instrument and data recorder that adds tremendous value to your sUAS operations and services.

    Main Features

    HIGH ZOOM

    The camera has an e-zoom that extends its digital zoom reach to up to 8x, thus making it very useful for aerial surveys and operations.


    MAVLink INTEGRATION & CAMERA CONTROL
    Vue Pro R’s Accessory Port connection gives you access to MAVLink commands camera controls over PWM commands, so you can select color palettes, start and stop recording, or trigger the camera’s e-zoom in-flight from your radio controller.

    RECORDING AVAILABLE AND ACCESSIBLE
    Vue Pro records digital video and still imagery to a removable micro-SD card so you won’t lose any of your data to transmission loss.

    EASY CONFIGURATION

    Easy configuration with the FLIR UAS app lets pilots set color palettes, image optimization features, configure PWM inputs without lugging a computer to the field.

    4D GEO MAPPING

    FLIR Vue Pro is that is fully compatible with the Pix4Dmapper desktop software, which is capable of creating impressive and highly precise 2D maps and 3D models out of still images that is captured.  It also automatically georeferences the 4D output and tags it with real-world map coordinates.

    EASY CONTROL WITH AN APP

    Download the mobile app onto your smartphone and setup, configure, and adjust your camera settings conveniently before each flight.

    PULSE WIDTH MODULATION

    Users have wireless control of up to two functions through Pulse Width Modulation (PWM) while the camera is in flight. The PWM commands give users freedom to start and stop camera recording, select different color palettes, set image optimization features, or zoom in or out in-flight.

    • 1 x FLIR VUE Pro
    • 1 x 32GB microSD Card
    • 1 x Power cable
    • 1 x Accessory Cable
    • 1 x Camera Mount
    • 1 x Limited 1-Year Warranty

  • Precision Mounting Holes
    Two M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on top
    Size
    2.26" x 1.75" (including lens)
    Spectral Band
    7.5 - 13.5 µm
    Thermal Imager
    Uncooled VOx Microbolometer
    Weight
    3.25 - 4 oz (Configuration Dependant)
    Zoom
    Yes – Adjustable in App and via PWM
    Analog Video Output
    Yes
    Non-Operating Temperature Range
    -55°C to +95°C
    Operating Temperature Range
    -20°C to +50°C
    Operational Altitude
    +40,000 feet
    Color palettes
    Yes – Adjustable in App and via PWM
    Full Frame Rate
    30 Hz (NTSC); 25 Hz (PAL)
    Image Optimization for sUAS
    Yes
    Invertable Image
    Yes – Adjustable in App
    Lens Options
    6.8 mm; 45° × 35°
    Scene Presets & Image Processing
    Yes – Adjustable in App
    Sensor Resolution
    336 x 256
    Lens Options [FOV for NTSC Analog Output]
    6.8 mm; 44° × 33°
    HDMI Output
    1280x720 @ 50hz, 60hz
    Input Power Range
    5 VDC – 28 VDC
    Reverse Polarity Protection
    Yes
    Input Voltage
    4.8 - 6.0 VDC
    Power Dissipation [peak]
    2.1 W (3.9 W)
