Geneinno Titan Underwater Gripper Robotic Arm

Notify me when this product is available:


  • Geneinno Titan Underwater Gripper Robotic Arm

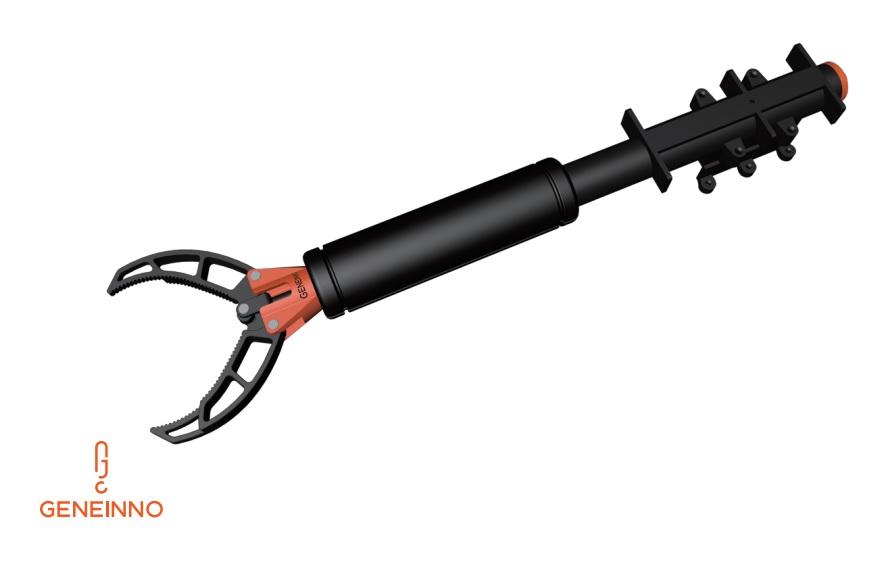

    The Geneinno Titan Underwater Gripper is an underwater robotic gripper arm designed for your Titan underwater drone. It easily mounts to the undercarriage of your Titan providing you the ability to pick up and carry items at depths to 492'. With a maximum gripping diameter of 2.36 inches and a gripping force of up to 13.2 pounds the Titan Underwater Gripper makes an excellent accessory for exploring the depths and bringing back what you find.

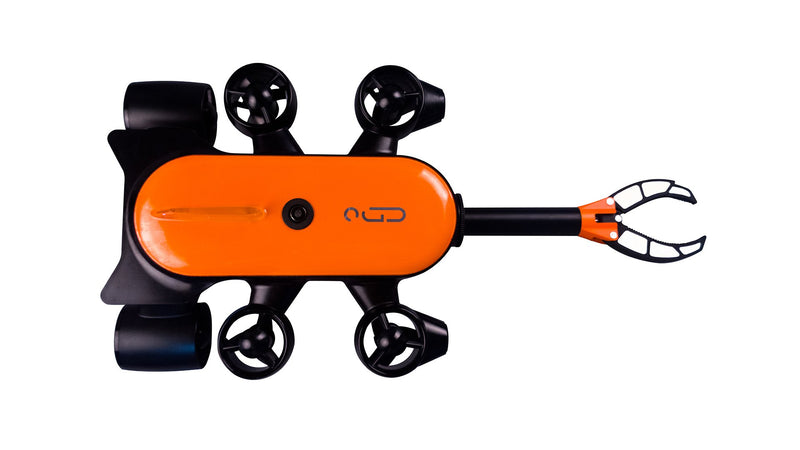

    The arm mounts onto your Titan drone and a flexible cable connects to the drone's 8-pin interface to provide power to the arm, as well as control signals. You can control the arm with the same app that you use to control the drone itself. The arm is removable once mounted and has no significant impact on the buoyancy of your drone.




    • Robotic Arm
  • Max gripping force
    13.2 lbs

    Max gripper open range
    2.36in

    Voltage
    9-12.6V DC

    Total length
    24.5in

    Diameter
    1.42in

    Weight in air
    1.71 lbs

    Weight in water
    ~0.09 lbs

    Max depth
    492ft

    Connector
    8-pin Geneinno adaptable interface

    Cable diameter
    0.16in

    Compatibility
    Geneinno T1 only (for now)

    SKU
    T6T-1-ROBOT_ARM

    UPC
    00850008168055
