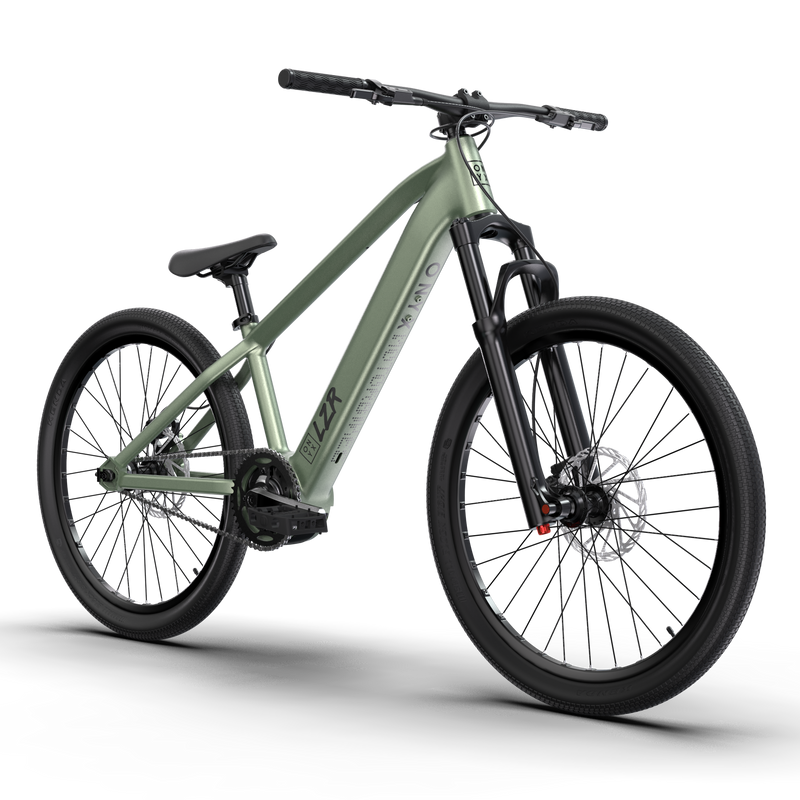

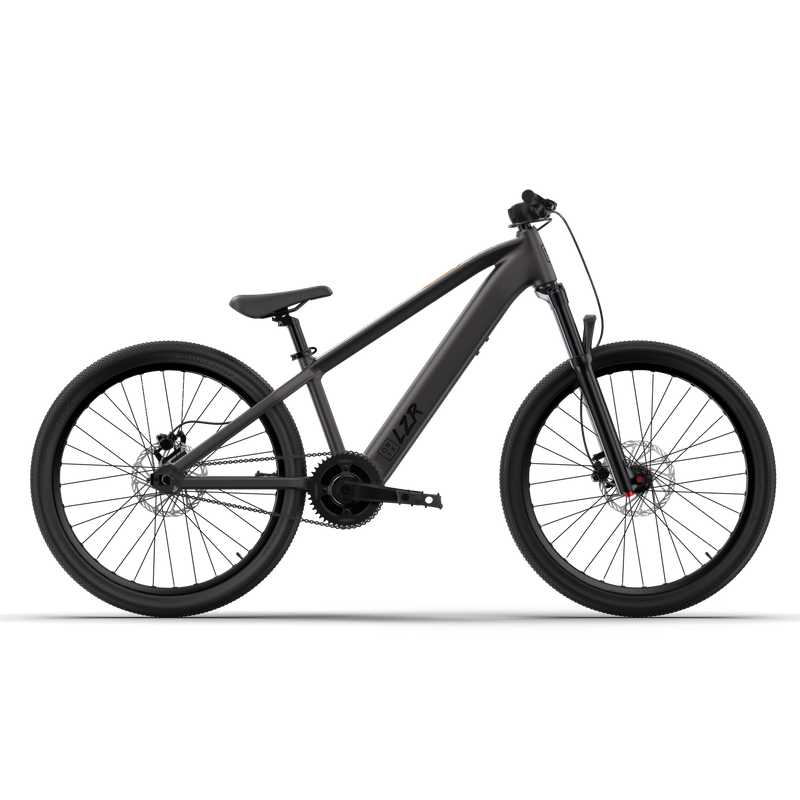

ONYX LZR EBike
With the two LZR performance tuned, power enhanced, and hyper balanced mid-drive powertrains, shred the entire city and tackle those wilderness trails. You may comfortably freeride and freestyle anytime, wherever, all day long without restrictions thanks to the carefully built core frame that was inspired by dirt jumpers. The LZR offers the greatest performance control and stability in two highly hard-charging flexible eBike models, whether you want challenging adventures or simply want to make your commute the most enjoyable part of your day.
Effortless High Performance -Always
Switch through modes and keep tabs on the battery life effortlessly using the all-in-one intuitive interface. Choose from a 500W or a 900W powertrain depending upon your riding style and needs.
A portable dirt jump frame for all-around freestyle and street riding is offered by the LZR 500W. With 95 Nm of torque, this electric combination is more than capable of conquering the trickiest urban obstacles and hitting the largest jumps in the park without even breaking a sweat.
The perfectly balanced dirt jump geometry of the LZR PRO 900W frame elevates performance to new heights, making leveled-out large airs effortless. The pro is built sturdy and equipped to handle everything you throw at it. More tricks and even greater leaps may be performed in far less time thanks to the 120 Nm torque of this frame and motor combo.
Killer Looks and Build Quality
Ever wonder why the majority of eBike welds are so bad? It's because they don't employ SWAT, or Smooth Weld Additive Technology, which was developed by ONYX. Built for the most demanding professional athletes in the world, the LZR features a precision tube matching design and our ultra smooth additive "not subtractive" weld technology.
5 Levels of Pedal Assist
- Range: 30-70 Miles (Mode Dependent)
- Max Power Output (500W Motor): 500W (Peak 615W for 30 Seconds)
- Max Power Output (900W Motor): 500W (Peak 1050W for 30 Seconds)
- Max Torque (500W Motor): 95 Nm
- Max Torque (900W Motor): 120 Nm
- Max Pedal Assist Speed: 28 MPH
Battery Type: 18650 Lithium-ion Tube Pack
Battery Capacity: 504Wh
- Battery Voltage: 36 V
- Battery Charge Time: 7 Hours at 2 Amps
- Front Suspension: 100mm Adjustable w/Lock Out
- Brakes: Tektro HD-M285 Hydraulic Disc Brake
- Motor (500W): 500 W ONYX Dark Matter Mid-Drive
- Motor (900W): 900 W Bafang M600 Mid-Drive
Chainring: 44 Billion
- Crank: 170mm
- Chain: KMC 710
- Frame: 6061 T6 Aluminum
Welds: SWAT (Smooth Weld Additive Technology)
- Handlebars: Aluminum
- Tires: 26" Kenda Small Block Eight Dirt Jump Tire
- Hubs: BMX Dirt Jump Hub
- Cable Routing: Internal
Curb Weight (500W/900W): 45lbs / 47lbs)
- Max Rider Weight: 300lbs
All bikes ship with a Manufacturer's Certificate of Origin (MCO).
Onyx builds each bike by hand at their only facility in CA. We are now estimating bikes to ship within 3 days or less from the date of order! This 3-day time frame is based on our output in the past and is in constant development making it more efficient, effective, expedient, and high quality. It is far more likely to ship sooner. We have been working tirelessly to cut down our lead time enabling our riders to get on their bikes faster.
Please retain the original packing shall you wish to send the product back. ONYX assures the legitimacy of our products to be of high quality and destined for their recommended purpose with no problems with manufacturing process or craftsmanship.
In case of any issue with our product, kindly inform us through our request form before returning to cut off charges for posting an item. For items bought through our website submit a warranty request below to inform our reps of your issue.
The warranty on each component on the bike is limited to 30 days from the date of delivery and is limited to the original buyer. For example: if a drive train part for some reason would malfunction, that whole part will be replaced. The warranty does not cover against damages caused by normal wear and tear. The warranty does not apply in the event of abuse, neglect, carelessness, using the product in any way other than intended, replacement with any part or accessory other than original ONYX parts and products, attempt of reparation or modification unless expressly permitted in writing by ONYX.
ONYX waives all responsibility for any third party for consequences that might result from the use or handling of any ONYX product by any legal or natural person.
