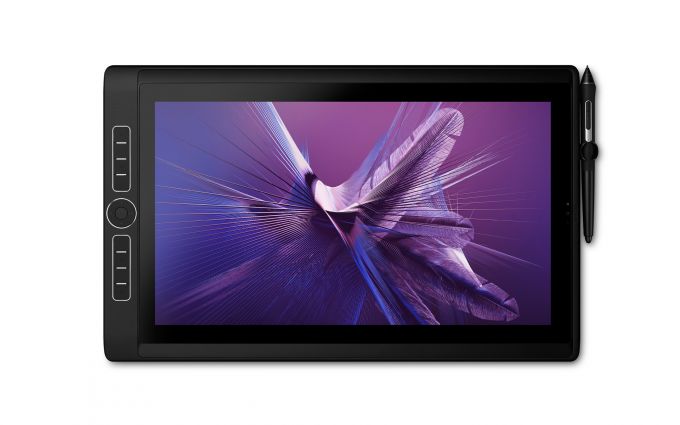

Wacom MobileStudio Pro 16 Digital Drawing Tablet

Wacom MobileStudio Pro 16 Digital Drawing Tablet

The Wacom MobileStudio Pro16 is a powerful portable drawing device designed for creative professionals. With an awesome display, a precise and powerful pen, enhanced computing power with leading creative software, and a long-lasting battery that lets you create without interruption anywhere and everywhere, the MobileStudio Pro16 brings your projects to life without any hassle.

With a host of features like fast data processing and quick data transfer powered by an i7 Intel® chip, 16 GB system memory, 512 GB SSD, and Thunderbolt connectivity, High-resolution 4k (3840 x 2160) display, and superior color quality with 85% Adobe RGB coverage (CIE1931), high-performance 2D, 3D, video and CAD applications with high-performance graphics card NVIDIA® Quadro®, and Multi-touch, customizable ExpressKeys™, Radial Menus and one-touch shortcuts for better productivity, the Pro16 stands apart in aesthetics and functionality.

Wacom MobileStudio Pro 16 comes with a cutting-edge creative pen, Wacom Pro Pen 2. Every stroke and move of your hand is tracked with unmatched accuracy thanks to 8,192 levels of pressure sensitivity and unsurpassed tilt recognition. The Wacom stand provides three working angles for convenience and the ‘Backdoor’ feature makes it easy for you to replace or upgrade the SSD and DDR Memory.

With a whole studio of creative tools on your hands, and access to limited software apps like Boris FX Suite, Adobe, and Sculptron, get set to rock the world of digital creation with the Wacom MobileStudio Pro16.

SPECIFICATIONS:

Display

Screen size: 15.6” (39.62 cm)

Aspect Ratio: 16:9

Resolution: UHD 3840 x 2160

Active Area: 13.6 x 7.6" (345.6 x 194.4 mm)

Number of Pixels: 8,294,400

Supported Resolutios: 3840 x 2160, 2560 x 2048, 2560 x 1600, 2560 x 1440, 2048 x 1536, 2048 x 1152, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1152 x 864, 1024 x 768, 800 x 600

Pixel Pitch (H x V): 0.09 x 0.09 mm

Viewing Angle (H x V): 178° (89°/89°) / (89°/89°)

Contrast Ratio: 1000:1

Color Gamut: 94% Adobe RGB

Preset: Adobe RGB, 6500K white point default: DCI, REC 709, SRGB

Brightness: 150 cd/m²

Display Color: 16.7 million colors

Response Time: 25 ms

Touch Screen:

Touch Technology: Projected capacitive

Multi-Touch: Yes

Resolution: 0.025 mm/point

Accuracy: +/- 1 mm (center)

Report Rate: 100 points/sec max

Hardware:

Operating System: Windows 10 Pro

Processor: 3.3 GHz Intel Core i7-6567U Dual-Core

Graphics: NVIDIA Quadro M1000M with 4 GB of GDDR5 VRAM

RAM: 16 GB

USB Ports: 3 x USB Type-C

Audio & Video Recording: 5 MP Front Camera; 8 MP Rear Camera; 1 x Audio-Combo; 2 x Speakers; 3D Intel RealSense R200 (3D scanning rear camera)

Wireless: 802.11ac Wi-Fi

Bluetooth: Bluetooth 4.1

Sensors: GPS, electronic compass, accelerometer, ambient light, gyro

Hotkeys: 8 customizable keys for application specific features or shortcuts; 4-way Rocker with default functions supporting the Touch Ring and a home button

Battery:

Type: Lithium-ion polymer (LiPo)

Capacity: 9260 mAh

Power: 7.6 V, 70 Wh

Life Expectancy: Up to 5 hrs

Charge Time: Up to 2.5 hrs

Stylus:

Pressure Levels: 8192 levels- pen and eraser

Tilt: +/- 60° / +/- 60°

Resolution: 5080 lpi

Accuracy: 0 mm from cover plate

Reading Height: 5 mm or more (center)

Grip: Latex-free silicone rubber

Technology: Patented Electromagnetic Resonance (EMR)

Power Specifications:

Input Voltage: 100 to 240 VAC, 50 / 60 Hz

Output Voltage: 5 V / 3 A (15 W), 20 V / 5 A (100 W)

Power Consumption: Maximum: 96 W, 0.9 W when asleep, 0.6 W or less when off

Environmental Specifications:

Operating Temperature: 41 to 95°F (5 to 35°C)

Operating Humidity: 20 - 80% RH (non-condensing)

Storage Temperature: 14 to 140°F (-10 to 60°C); Maximum storage temperature is 107.6°F (42°C) at a humidity of 90%.

Storage Humidity: 20-90% RH (non-condensing); Maximum storage humidity is 38% at a temperature of 140°F (60°C)

General:

Certifications and Compliances: VCCI Class B, FCC Part 15, Subpart B (class B) and C, CE, KC, BSMI, C-tick, CB, CCC, EAC, China RoHS, Korean RoHS, EU RoHS, BIS, SII, NOM, CEL, IC, ENERGY STAR, CEC-BCS, Energy Label Law

Windows: Stand-alone; Mac: Compatible when plugged in using optional Wacom Link

System Requirements: With optional Wacom Link: Windows 7 or later, Mac OS X 10.10 or later, USB-C port (or Mini DisplayPort and USB port)

Security: Kensington Security Slot; Fingerprint Sensor

Dimensions: With Grip Pad: 16.45 x 10.3 x 0.75" (417.95 x 261.6 x 19.15 mm)

Weight: 4.85 lb (2.2 kg)

WHAT’S IN THE BOX:

1x Wacom MobileStudio Pro 16

1x Wacom Pro Pen 2

1x Pen case with 3 replacement nibs, color rings, and nib removal tool

1x Pen holder

1x Wacom Stand

1x AC Power Adapter + power cable

1x Quick Start Guide

1x Cleaning cloth

1x Regulation sheet
