Description
-

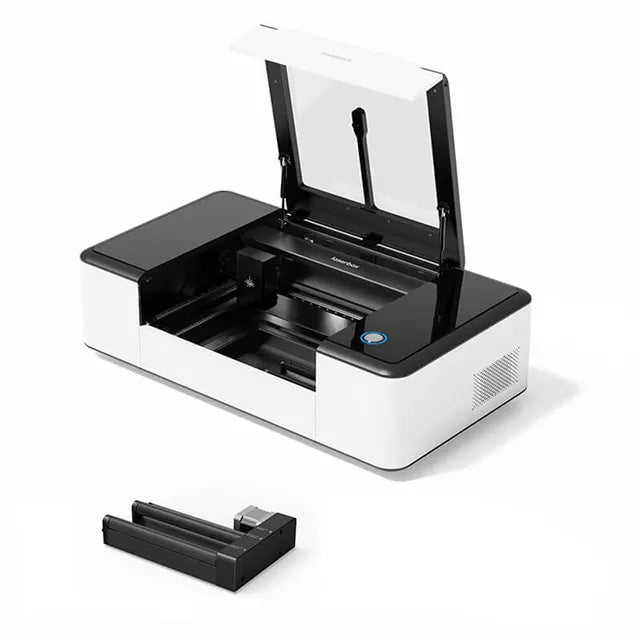

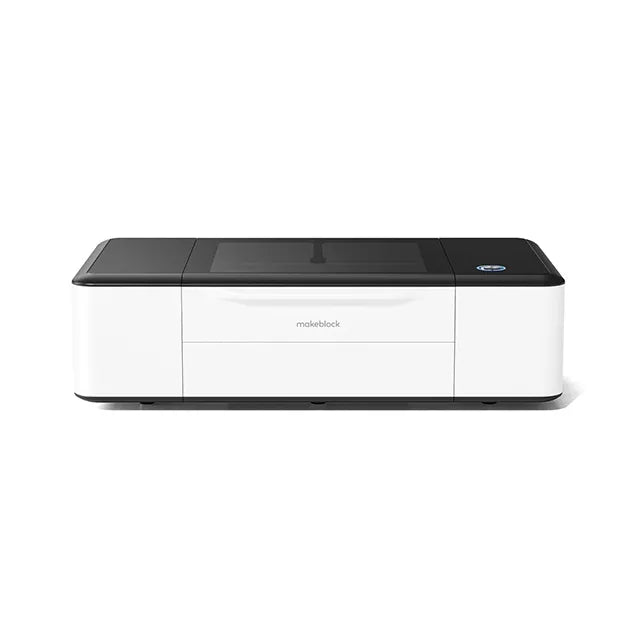

xTool Laserbox Rotary 40W Laser Cutter & Engraver
It is the best 3D laser cutter for small businesses, hobbyists, designers, DIY-Makers, and professionals. Specifically designed for learning and creativity, the Laserbox uses and redefines laser performance. The Laserbox uses a high-resolution ultra-wide-angle camera and an AI visual algorithm to turn your idea into reality.
Main features:
- Live Camera Preview
- Material Recognition
- AL Auto-Focus
- Smart Path Planning
- Set up in Minutes
- Image Extraction
- Check Progress Easier
- No Internet required
- Easy Share like a printer
- Powerful CO2 Laser tube
Engrave on Cylindrical Objects
Rotary EngravingThe rotary accessory attachment unlocks 360° engraving for cylinders from 3mm to 70mm in diameter. Customize a wide range of cylindrical materials with the rotary accessory attachment.
Unlock Creativity with your kids
Design with a PenYou can draw any design you want to on paper or directly on Laserbox materials, and get identically beautiful prints. xTool Laserbox recognizes a thick 3mm red color line for cutting and black for engraving automatically.

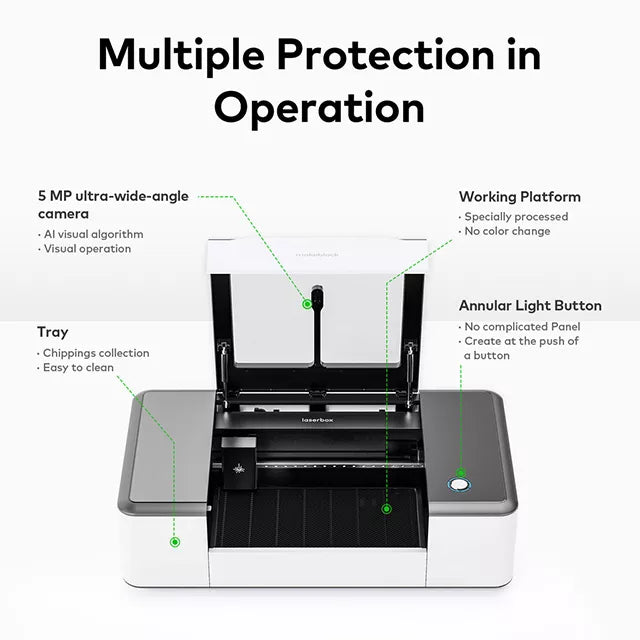

Safe and Eco-friendly
Laserbox is completely safe to use for children, as it stops working at the same time you open the lid.
Early-warning System
Monitored in real time by collective high-performance sensors, Laserbox has multiple safety notifications, that immediately alert you to issues like overheating and water cooling.

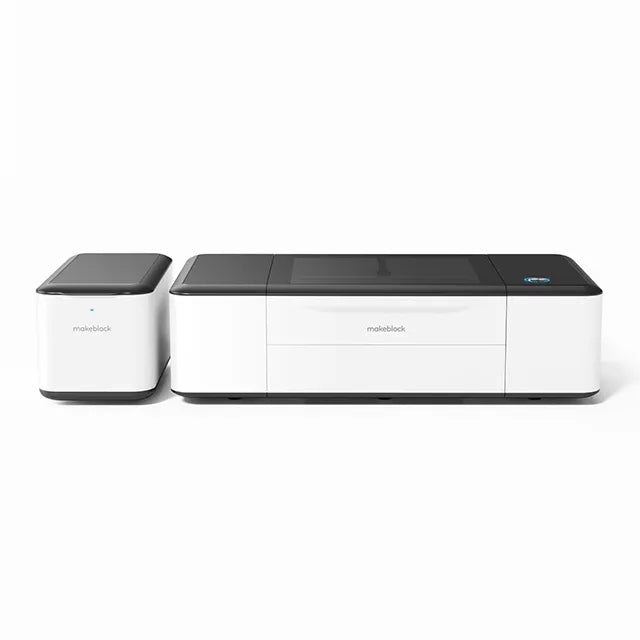

Smart Smoke Purifier
The smart smoke purifier automatically opens, and adjusts the volume according to the working status of Laserbox, which ensures eco-friendly ventilation. The filter for smoke purifier could be easily replaced.
- Live Camera Preview
-
-

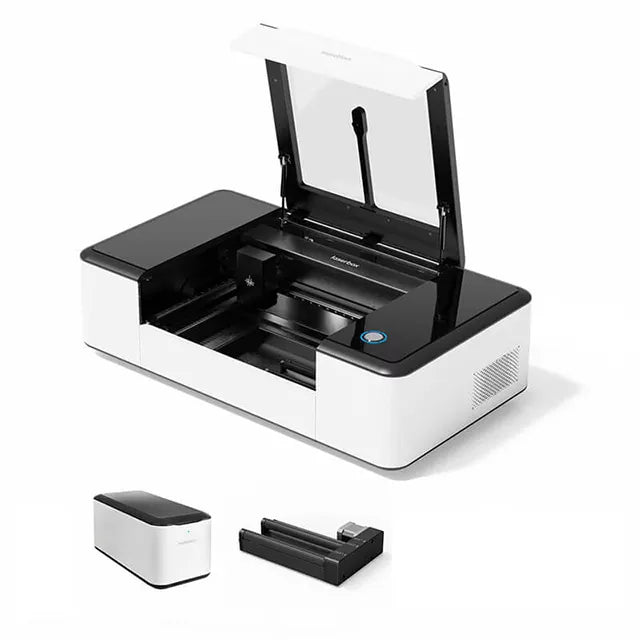

1 * Laserbox Rotary
1 * Rotary Attachment
1 * Smoke Exhaust Pipe
1 * Pipe Clamp
1 * Power Cord
1 * USB Cable
1 * L-Type Wrench
2 * Circular Barcode Sticker
2 * Screw
5 * 3mm Basswood
1 * User Manual
-
1 * Laserbox Rotary
-
Laser System Laser Power 40W Laser Source CO₂ Glass Laser Tube Lifespan 6000~8000h Safety Guard Class I (FDA Certified) Materials Processing Max. Cutting Depth 0.59'' Basswood Max. Carving Speed 350mm/s Carving Precision 0.05mm Noise Rating ≤70dB Rotary Device Rotary engraving diameter 3-70mm(0.12''-2.76'') Rotatable engraving pattern types Image / Line / Text Work Area Work Table Area 19.69'' x 11.81'' Max. Workpiece Height(with honeycomb tray) 0.87'' Max. Workpiece Height(without honeycomb tray) 3.54'' Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration) AI Camera Information Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF Camera High-resolution Ultra-wide Camera Number of Pixels (Effective) 5MP Visible Area 19.29'' x 11.42'' Image Resolution 1000DPI Positioning AI Visual Positioning (Error range ≤ 5mm) Working Mode Cooling Closed-loop self-contained internal liquid cooling system Air Assist Internal air assist with no external compressor hookup required Connection / Transmission Wi-Fi, USB, Ethernet Appearance Overview Operation Panel Push Button + Circular LED Indicator Light Frame Materials V0 Flame Retardant ABS / PC Connecting Interfaces USB cable/Ethernet cable/Power cable/Aviation Connector Outlet Diameter 63.5mm Software Requirements Operating Systems Windows/macOS Control Software Laserbox Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc. Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. Software System Requirements Operating Systems 64-bit Windows 7 or later/macOS Mojave10.13 or later Processor Core i3 or AMD A6 2.4Ghz Memory Space 4GB RAM Storage Space 5GB Environmental Requirements Power 110VAC Work Consumption (without fan) 350W Nonoperating Temperature 0~45°C Relative Humidity 5~90°C Operating Ambient Temperature 0~35°C Size and Weight Product Weight 48kg Product Size (L x W x H) 37.72'' x 20.79'' x 10.55'' Supported Accessories Smart Smoke Purifier √ Exhaust Fan √ Rotary Attachment √ VS Glowforge
Laserbox
RotaryGlowforge Pro Laser Power 40W 45W Size 958mm x 528mm x 268mm 965mm x 527mm x 210mm Working Area 500mm x 300mm 495mm x 279mm Rotary Support Yes No Self-defined Material Yes No Software Windows/macOS PC-based（offline） Cloud-based Software Price Free Subscribe Cooling System 1.5L (longer continuous working hours) 0.6L Air Purified System Smart Fume Extracting Traditional Air Filtering Mechanical Rail_X Axis Industrial Steel Linear Guide
(longer service life)Aluminum Linear Guide Mechanical Rail_Y Axis 10mm Timing Belt 6mm Timing Belt Price $4,699 $6,990 Applicable Materials
Material Engraving Cutting Wood √ √ Acrylic √ √ Kraft Paper √ √ Corrugated Paper √ √ Cardboard √ √ Bamboo √ √ Felt √ √ Leather √ √ Fabric √ √ Plastic √ √ PVC √ √ MDF √ √ Glass √ ╳ Ceramic √ ╳ Jade √ ╳ Marble √ ╳ Shale √ ╳ Cement √ ╳ Brick √ ╳ Coated Metal √ ╳ Electroplated Metal √ ╳ Painted Metal √ ╳
