120W ShadowFlux™ Anti-Shading N-Type Solar Panel

120W ShadowFlux™ Anti-Shading N-Type Solar Panel

Power your dreams anytime, anywhere with Renogy's 120W ShadowFlux Anti-Shading N-Type Solar Panel, a breakthrough in the solar energy tech which uses 10 times more bypass diodes combined with dynamic current distribution for optimal power output even in partial shade.

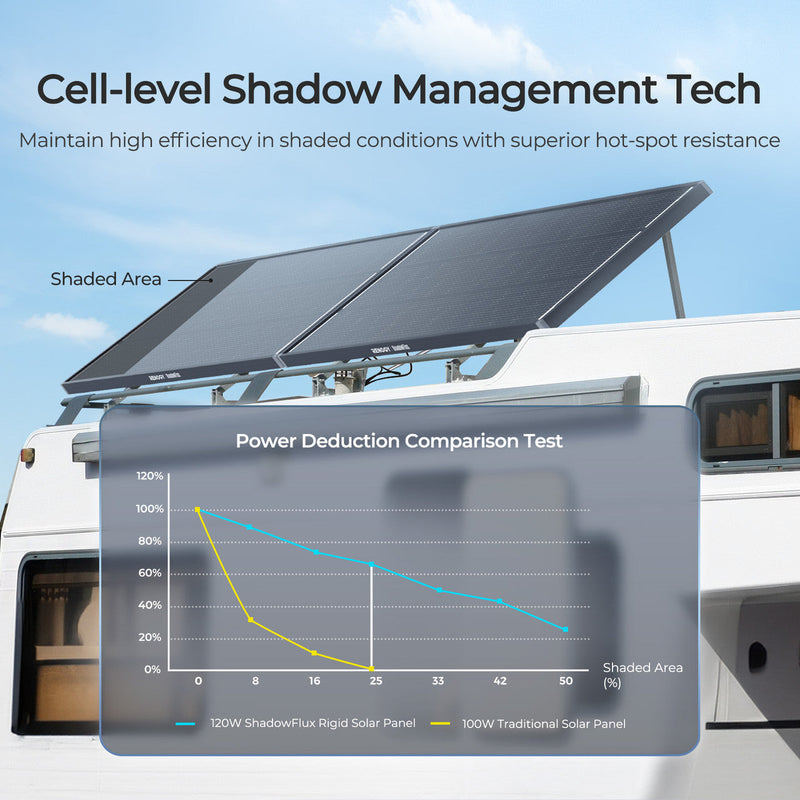

Boasting of multi-stage bypass diode array, these anti-shading N-Type solar panels deliver 65% output even in 25% shaded areas thanks to Innvo. ShadowFlux, a trademark feature of Renogy tech. It deploys smart current routing design with 0.01s instant path switching which bypasses and isolates shaded zones with adaptive zoned power supply.

ShadowFlux allows Renogy 120W solar panels to sustain optimal power output under partially shade with linear power loss bringing down the loss% significantly. Featuring hot spot resistance, this tech shuts down the shaded cells to effectively avoid local overheating.

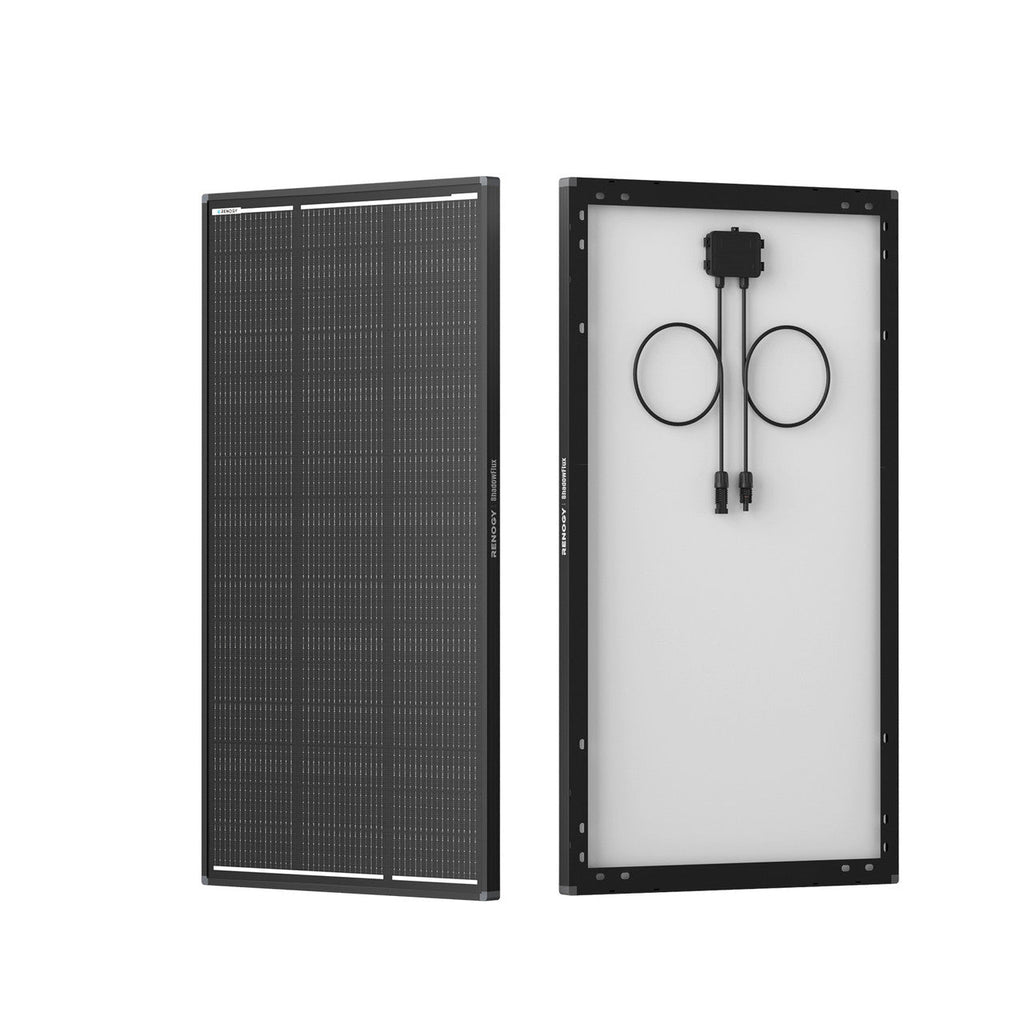

This weather-resistant is an all-black, sleek module that offers seamless roof-rack compatibility. Designed for the great outdoors, it is 7% smaller yet delivers efficient performance.

Highlights:

• Anti-shading ShadowFlux tech
• Excellent hot spot resistance
• Designed for RVs, Boats, Roofs

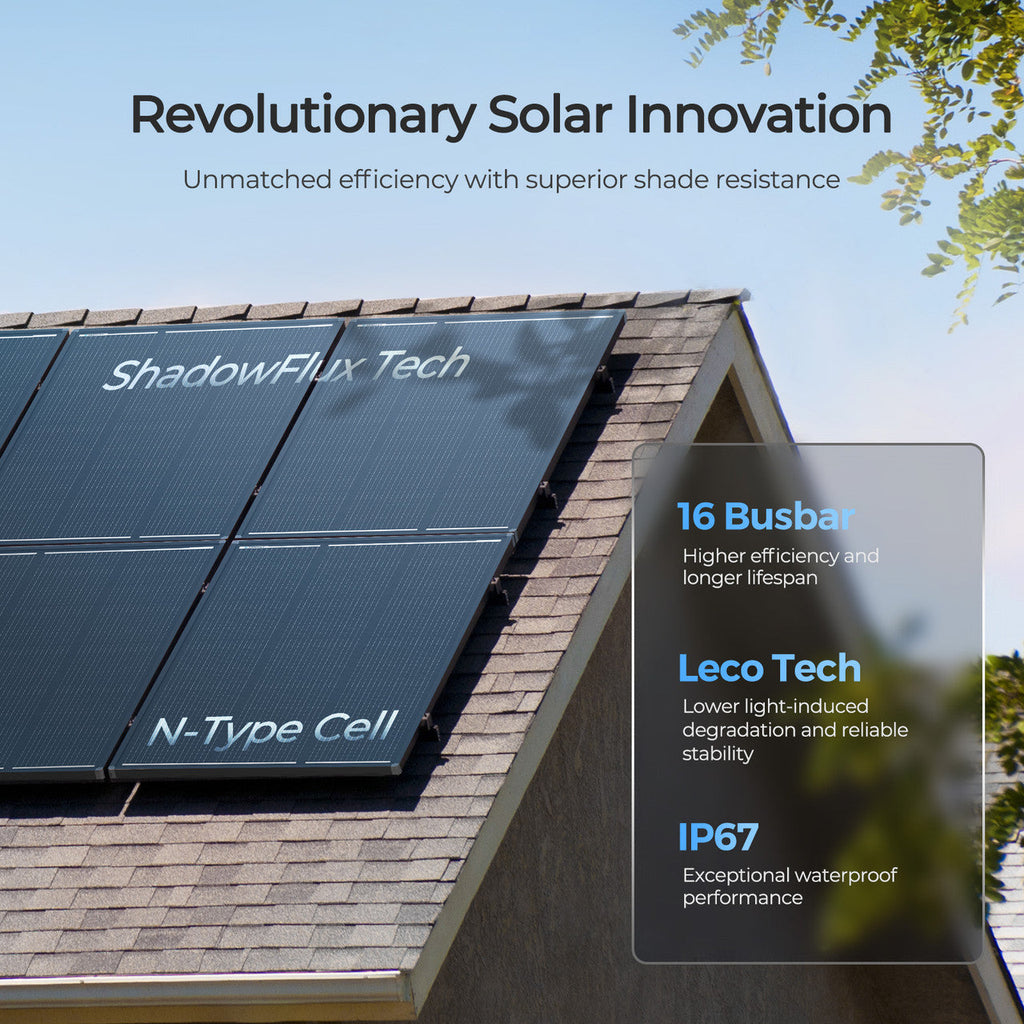

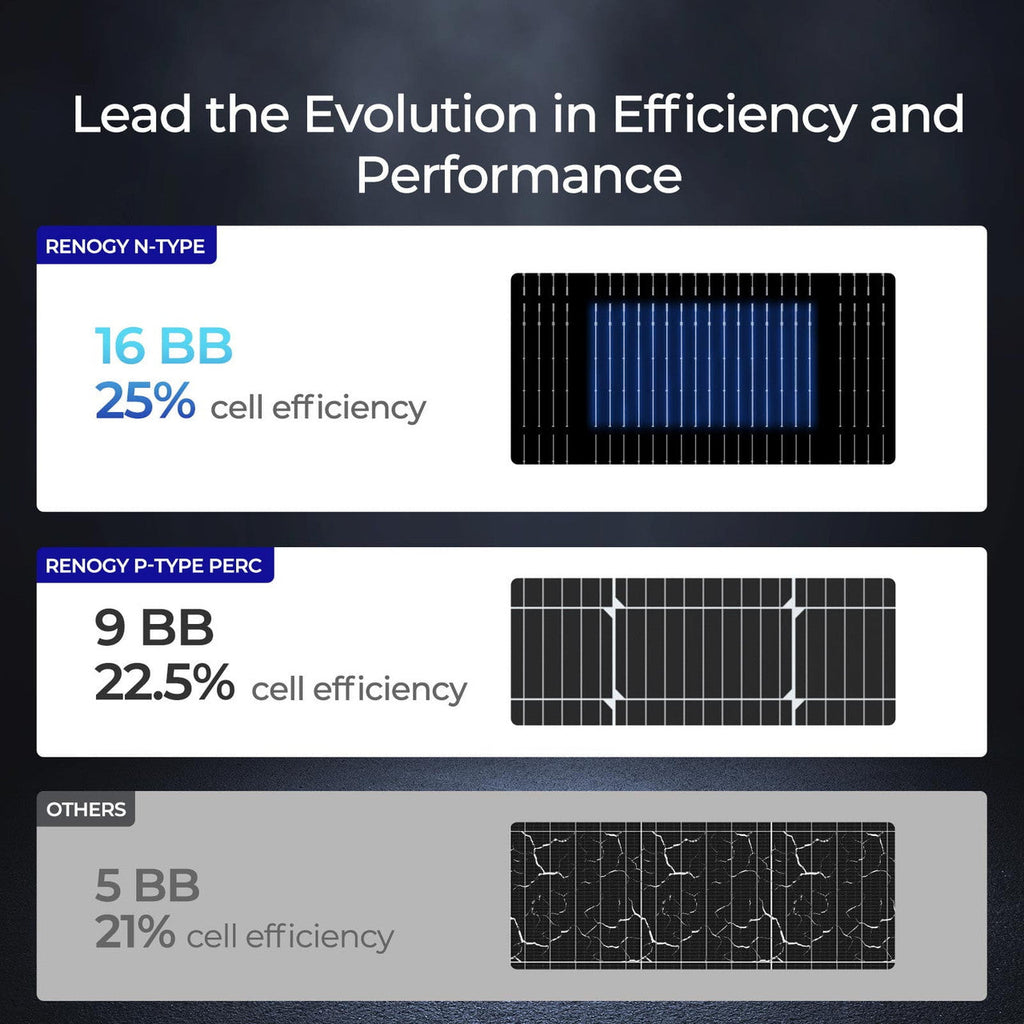

• 16BB cell design
• Weather resistant with 2400Pa wind load and 5400Pa snow load
• IP67 waterproof and dustproof
• Eye-catching style for off-grid adventures

Specifications:

Panel Type: Rigid

Watts: 200W

1/4 Area Shaded: 134W output

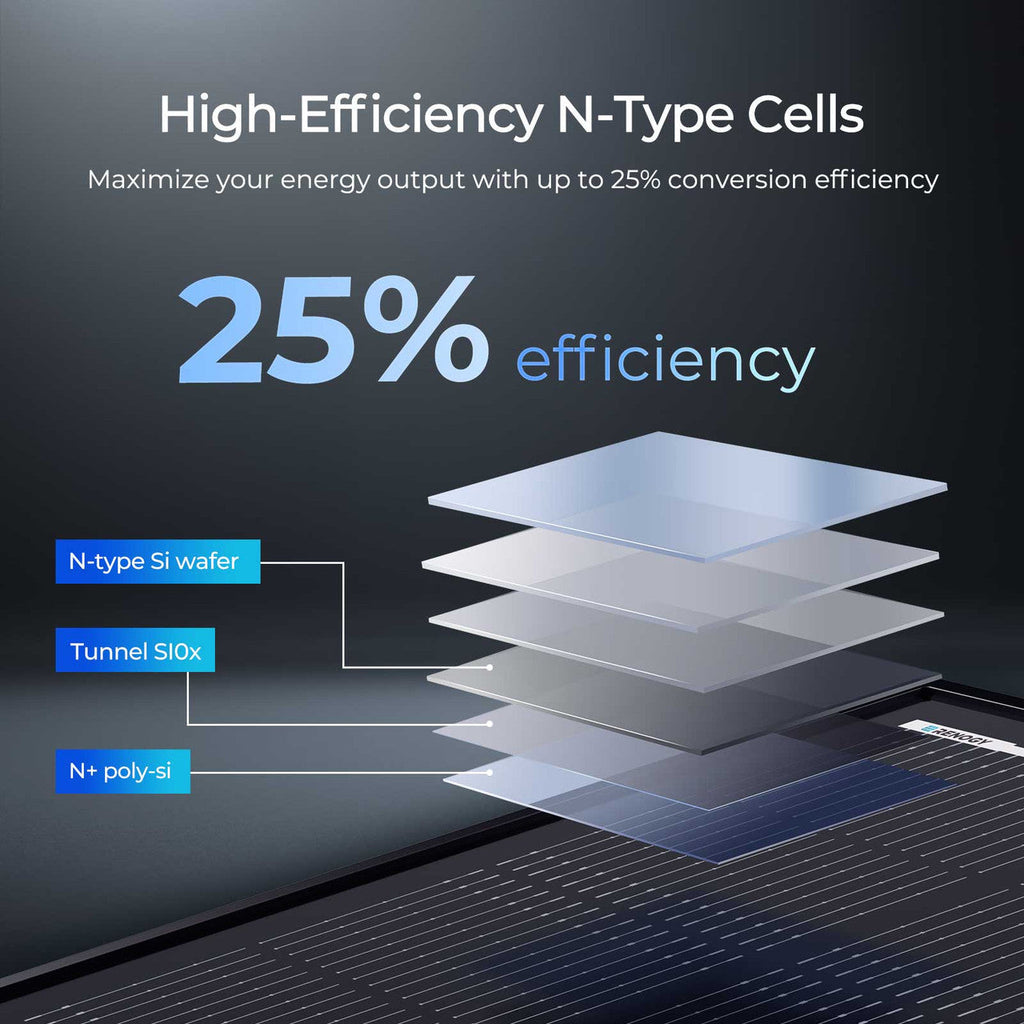

Cell Type: ShadowFlux N-Type

Max Power at STC: 120W

Open Circuit Voltage: 33.69V

Short Circuit Current: 4.57 A

Optimum Operating Voltage: 28.89V

Optimum Operating Current: 4.21A

Maximum System Voltage: 1000VDC

Maximum Series Fuse Rating: 15A

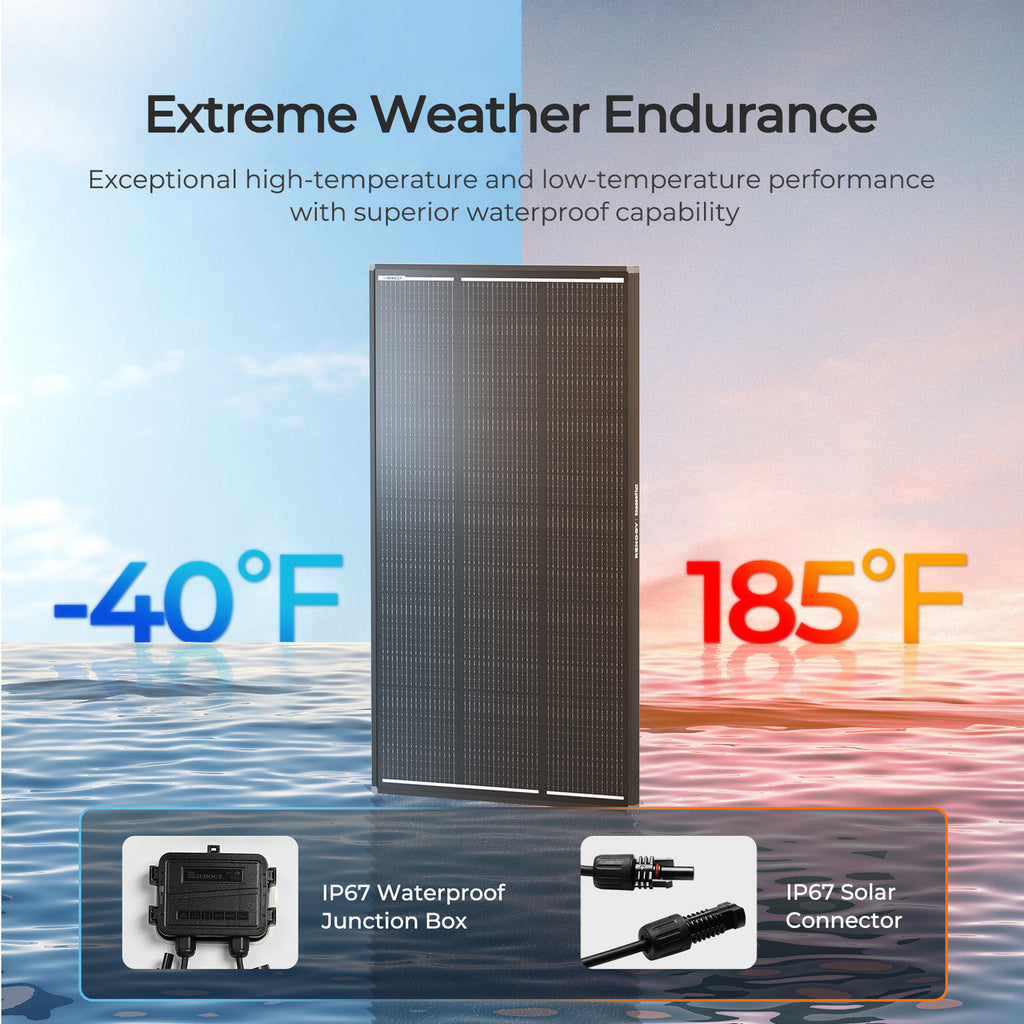

Operating Temperature: -40°F~185°F / -40℃~85℃

Material and workmanship warranty: 5-year warranty

Performance Warranty: 25-year 80% output warranty

Weight: 6.80kg/15.87lb

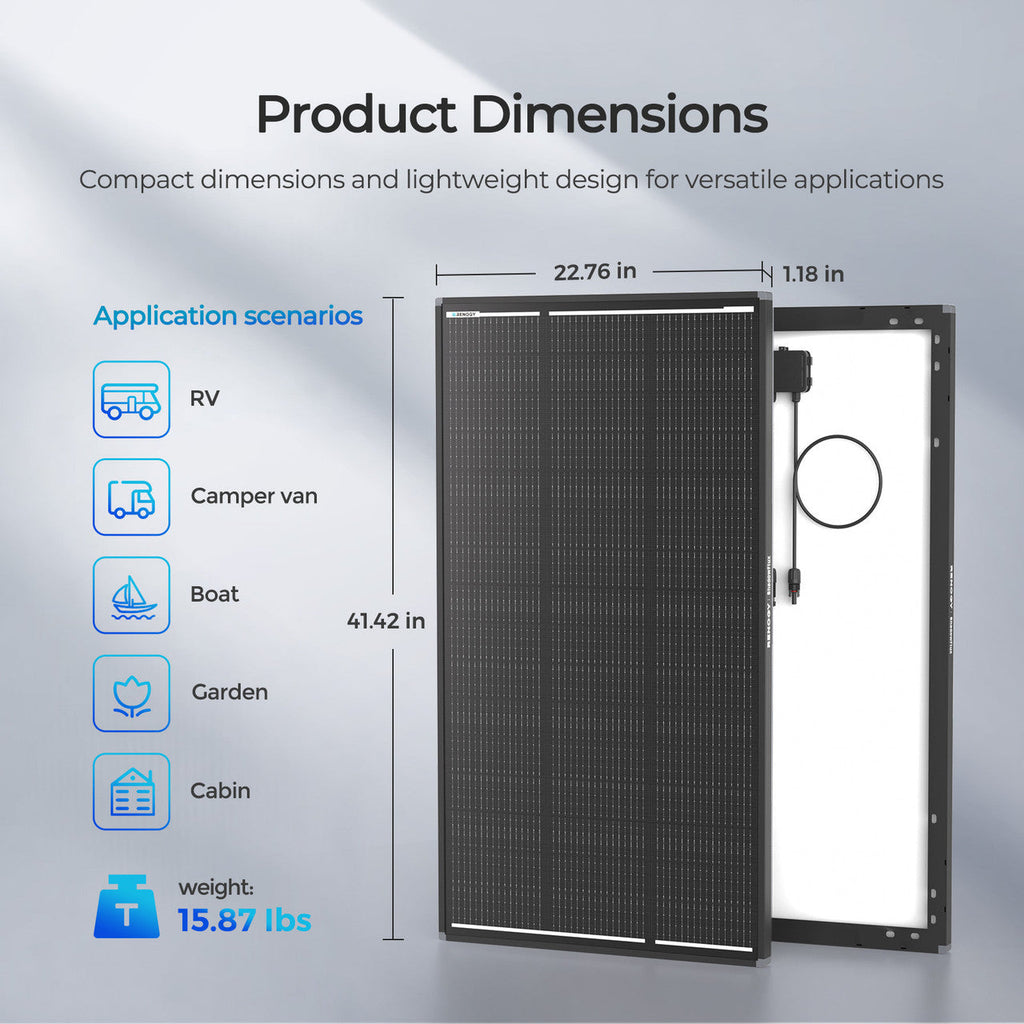

Dimensions: 1052*578*30mm/41.42*22.76*1.18inch

What's in the Box:

1 x 120W ShadowFlux™ Anti-Shading N-Type Solar Panel
