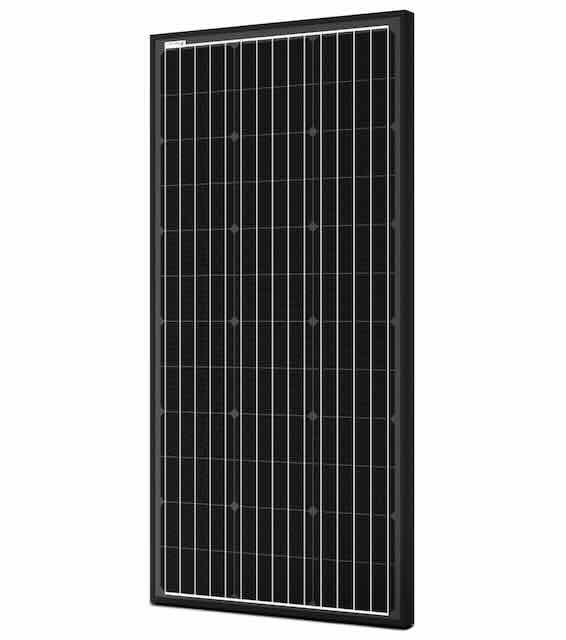

ACOPOWER 200 Watts Mono Solar Panel, HY200-12MB
The 200W 12V Monocrystalline Solar Panel (HY200-12MB) is designed to deliver reliable and efficient power generation for off-grid and mobile energy systems. Built with high-efficiency monocrystalline solar cells, it provides strong performance even in low-light conditions, making it a dependable solution for a wide range of applications.
Its durable aluminum frame and weather-resistant construction ensure long-term outdoor use. This panel is ideal for RVs, boats, cabins, remote installations, and backup power systems where stable solar energy is required.
Technical Specifications
| Feature |
Specification |
| Maximum Power (Pmax) |
200W |
| Nominal Voltage |
12V |
| Cell Type |
Monocrystalline (high efficiency) |
| Open-Circuit Voltage (Voc) |
≈ 22.1V |
| Optimum Operating Voltage (Vmp) |
≈ 18.7V |
| Short-Circuit Current (Isc) |
≈ 11.3A |
| Operating Current at Max Power (Imp) |
≈ 10.7A |
| Cell Efficiency |
~23% |
| Maximum System Voltage |
600V DC |
| Junction Box Rating |
IP65 (weather-resistant) |
| Operating Temperature Range |
-40°C to +85°C |

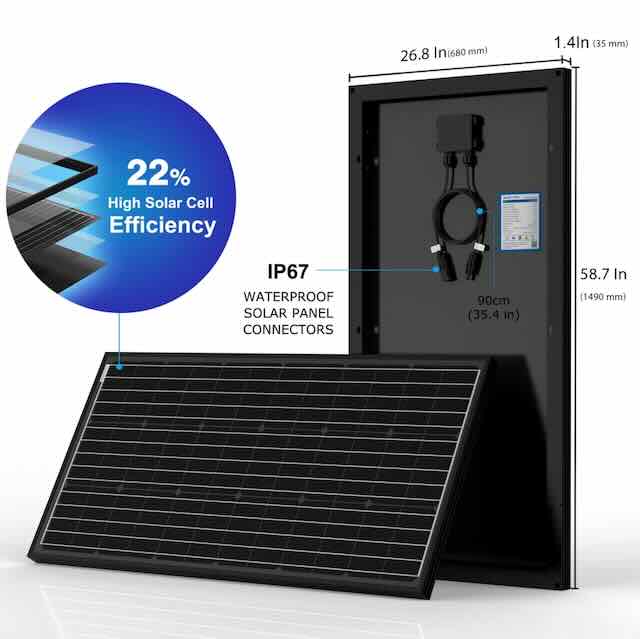

| Dimensions |
≈ 1496 × 705 × 35 mm |
| Weight |
≈ 11.2 kg |
| Output Cable |
Pre-installed 12 AWG cable |
What’s in the Box
- 1 × 200W 12V Monocrystalline Solar Panel (HY200-12MB)
- Pre-installed output cables
- Integrated weatherproof junction box
- (Depending on supplier) basic mounting accessories or connectors
