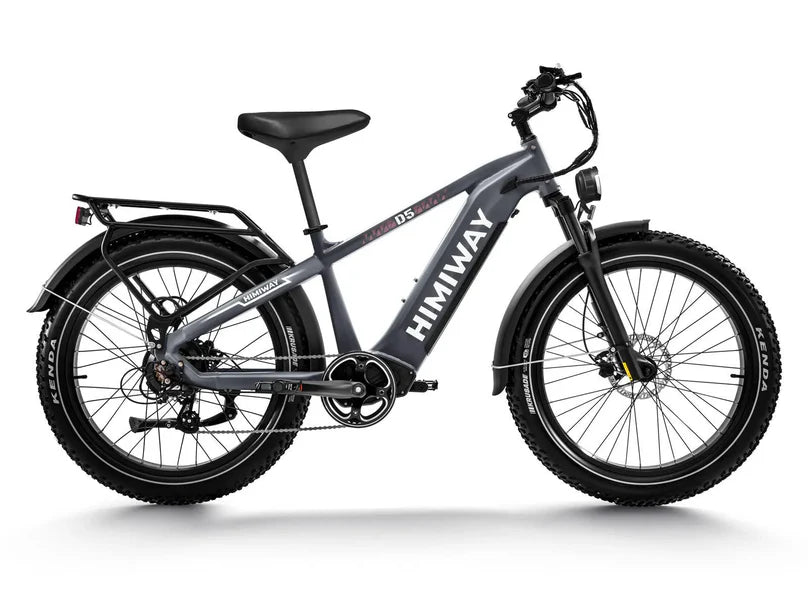

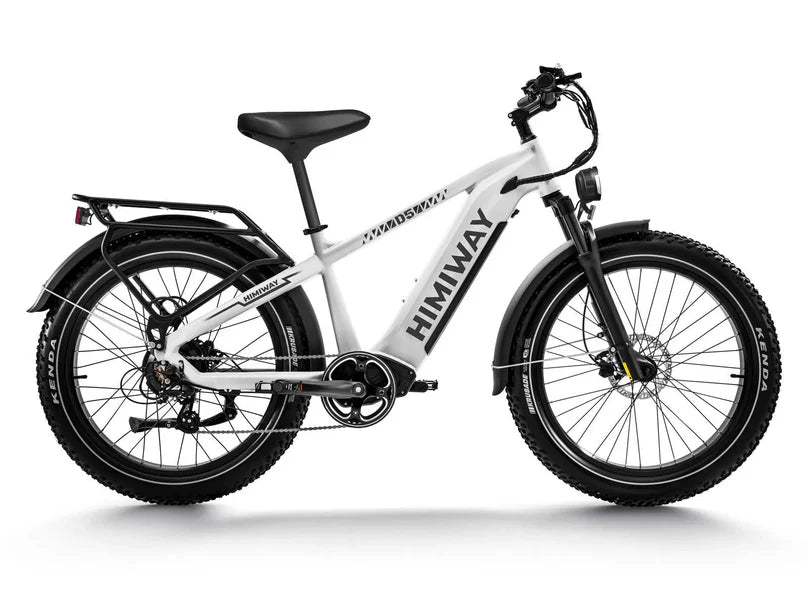

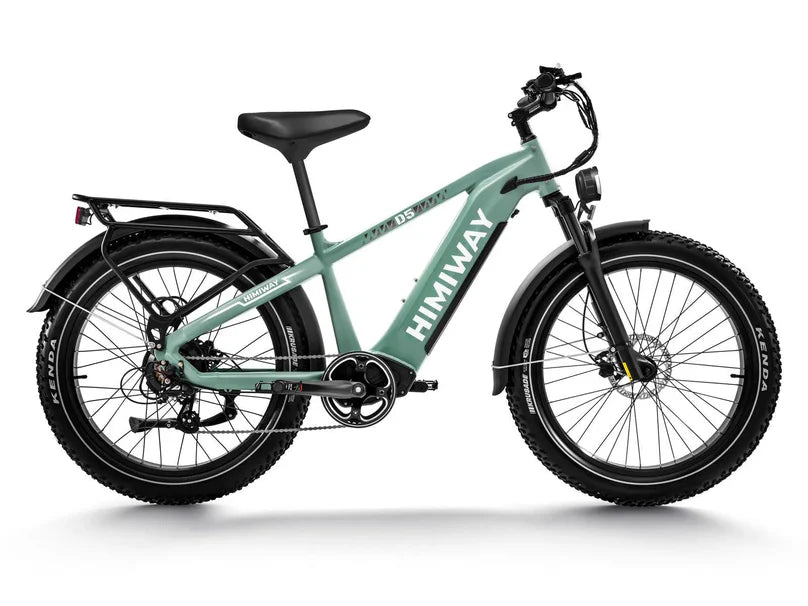

Himiway D5 (Zebra) / All-terrain Electric Fat Bike
Dominate every trail with the Himiway D5, engineered for mountain warriors. This 750W fat tire e-bike is designed to conquer rocks, snow, sand, and mud while delivering reliable, long-range performance.
960Wh Samsung/LG Lithium-ion Battery
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
400 lb. Payload With 2X Thicker Frame
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
Fast Acceleration & Good Gradeability & Longer Lifespan
750W Upgraded Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
Why Mountain Riders Choose D5
-
Conquer Technical Terrain: 4.0" Kenda fat tires + 95mm suspension handle rocky and uneven trails
-
80-Mile Range: 48V Samsung battery lasts 3X longer than standard mountain e-bikes
-
Winter Warrior Ready: Dominates snow-packed forests, sandy beaches, and muddy mountain passes
-
Pro-Grade Components: Shimano Altus 7-Speed, Tektro hydraulic brakes with 180mm rotors, torque sensor for instant 85Nm power
- Rider Friendly: 5′3″ to 6′5″
Specifications
Frame: 6061 Aluminum frame
Headset: Neco H156EM 28.644-5630
Fork: TRAMA 26" FAT34-26-HLO, 95mm travel, 9135mm quick release
Front Wheel: Rim: MD-147 264.0"36H12G A/V | Spoke: 12G 255/256L stainless | Hub: MB015-92 M912G135145W
Rear Wheel: Rim: MD-147 264.0"36H12G A/V | Spoke: 12G 214L stainless | Hub: 48V 750W Himiway hub motor
Tires: Kenda 264.0
Battery: Samsung/LG 48V 20Ah
Motor: 750W brushless gear motor
Display: LCD display with USB charger
Throttle: Thumb throttle
Sensors: Torque sensor | Speed sensor | Brake sensor
Crankset: Crankarm: Prowheel EB-01-242A-S1 170mm | Chainring: 44T BCD104
Freewheel: Shimano MF-TZ500-7 14–28T
Chain: Anti-Rust KMC Z8.3 EPT 120L
Groupset: Shimano Altus M310 7 speed
Front Brake: Tektro HD-E3520 hydraulic brake
Rear Brake: Tektro HD-E3520 hydraulic brake
Rotors: F:180mm R:180mm
Stem: Zoom TDS-C269-8FOV 31.890mm
Handlebar: Promax HB-3188 22.231.8700mm
Seatpost: Himiway Seatpost
Saddle: Himiway Saddle
Pedal: Aluminum pedal
Lights: 48V LED light
Kickstand: Heavy-duty aluminum kickstand
Range: 60–80 miles
Controller: 48V/22A
Charger: U.S. standard 3.0 A fast charger
Rider Height: 5′3″ ~ 6′5″
Weight: 79 lb. (with battery)
Max Payload Capacity: 400 lb.
What's In The Box
- E-bike
- Protection Fender Kit
- Rear Rack
- 16 in 1 Repair Tool
- Charger
- Manual
