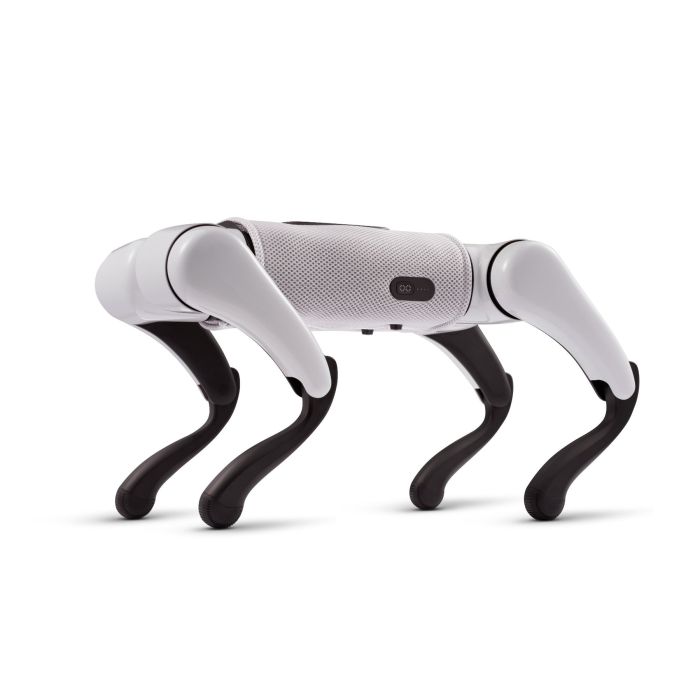

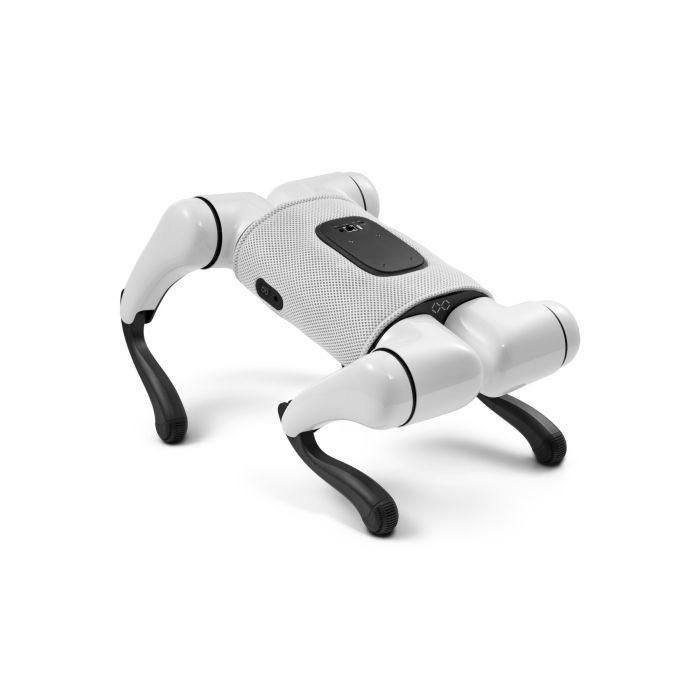

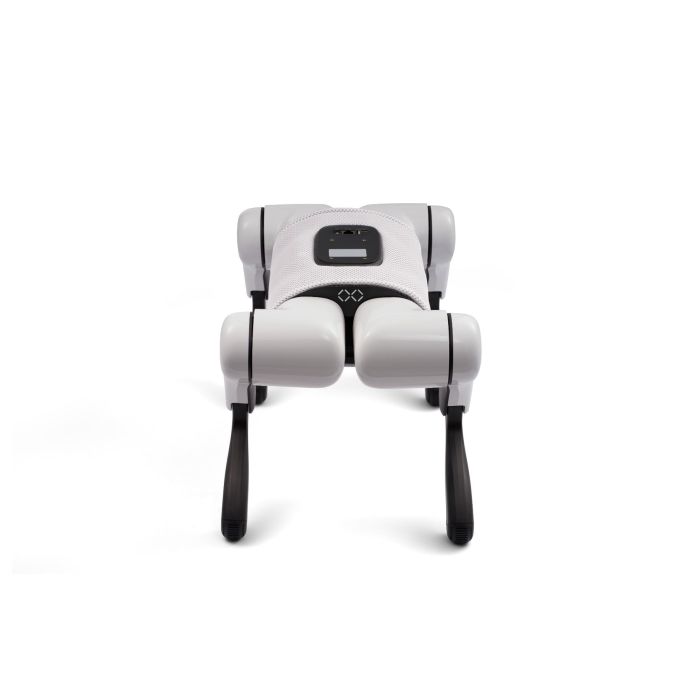

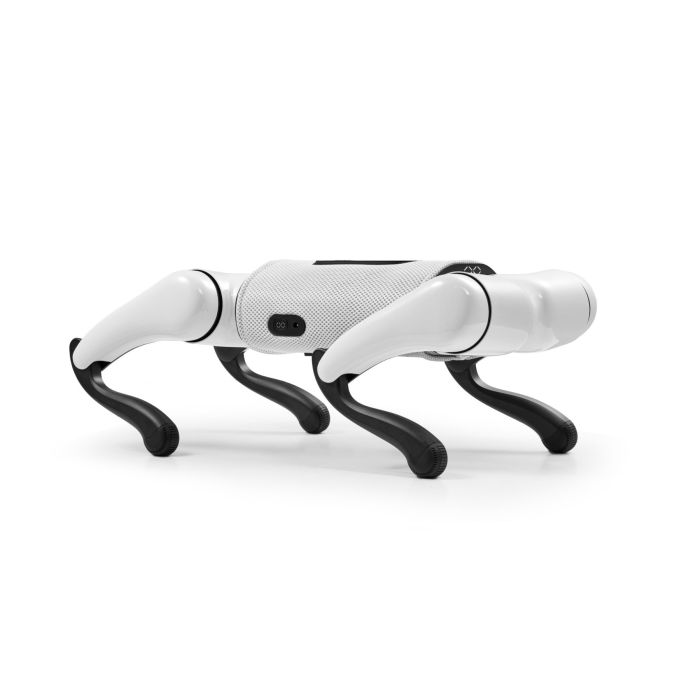

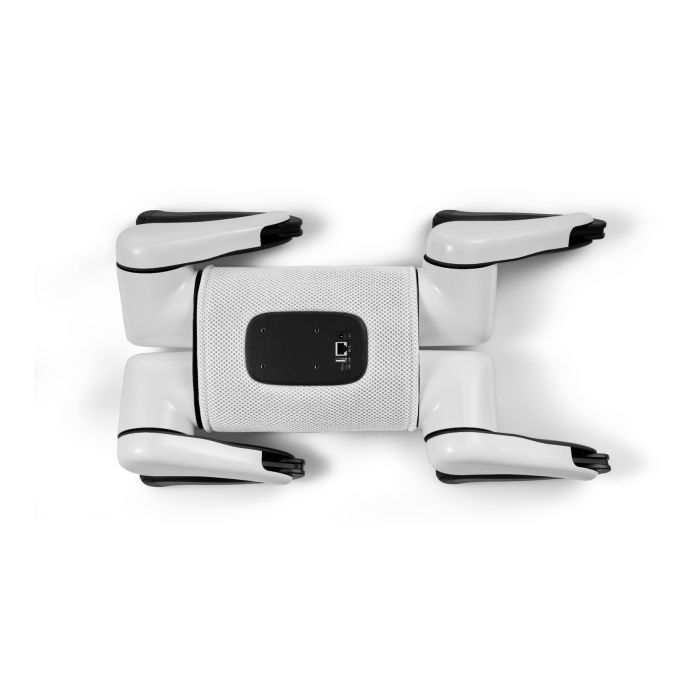

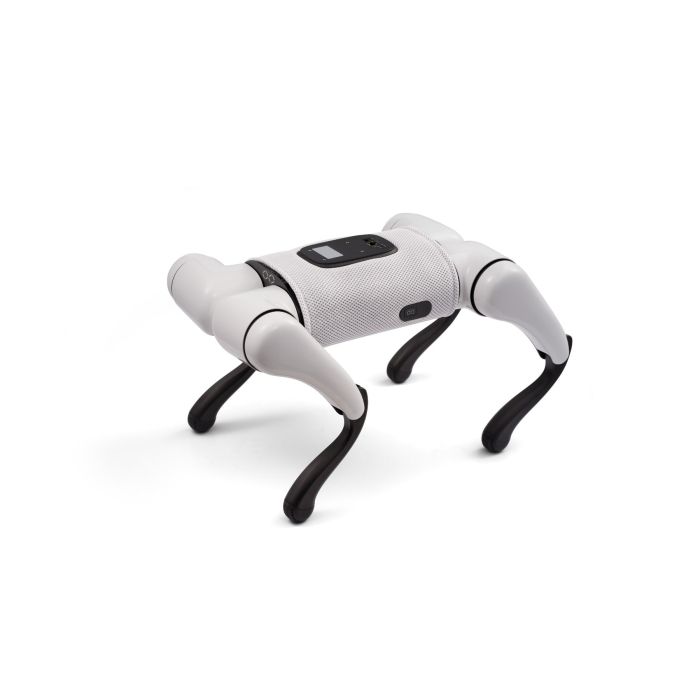

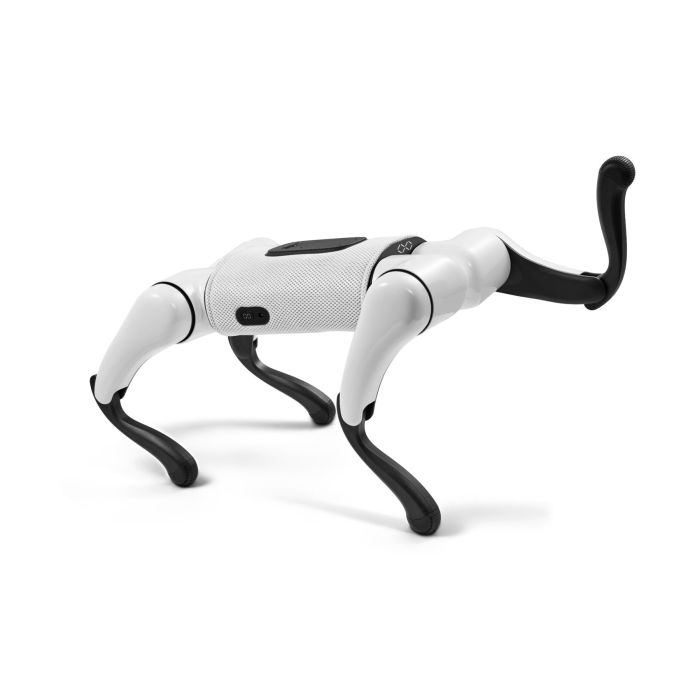

Faraday Future NAVI
Compact Embodied-AI Quadruped Robot
FX Navi is a compact embodied-AI quadruped robot designed for young creators, education, research, coding exploration, and hands-on robotics development. It provides an accessible platform for learners to build, personalize, program, and experiment with robotics projects.
Dynamic 12-DOF Movement
Navi features a 12-DOF motion structure powered by 12 joint motors, with dynamic gait balancing and adjustable motion parameters. It can reach speeds of up to 2 m/s and rotate at up to 360° per second, supporting agile movement during robotics experimentation.
Obstacle Clearance & Runtime
Designed primarily for indoor, flat-ground use, Navi can clear obstacles up to 34 cm. Its built-in lithium battery provides approximately two hours of continuous operation, while direct charging is supported with a US-spec plug.
Open Development Ecosystem
Navi provides open development interfaces and a range of tools for exploring robotics and AI. Depending on the development setup, users can access visual programming, SDK/API integration, Brain Blocks, Create Studio, EAI Soul, EAI Scribe, EAI Studio, and a Python SDK.
Motion, Perception & Hardware APIs
The platform provides low-level interfaces for motion control and perception, along with APIs for hardware expansion. OTA updates further support ongoing feature development and platform improvements.
AI & Smartphone-Connected Features
Navi supports app connectivity, remote control, and smartphone-assisted capabilities. These can include access to a camera, microphone, display, LLM, and VLM functions, expanding opportunities for interactive AI and robotics projects.
Creative & Personalized Learning
With its neutral chassis and soft bionic body wrap, Navi can be customized with creative skins and 3D-printed head modules. Users can also explore personality design and other hands-on projects while learning robotics, coding, and AI concepts.
Education & STEM Applications
FX Navi is designed for project-based STEM learning across classrooms and independent learning environments. Its development ecosystem can also support language and arts projects, robotics exploration, and AI-tutor-style interactive experiences.
Specifications
General Specifications
| Specification |
Details |
| Brand |
Faraday Future |
| Model |
NAVI |
| Robot Type |
Quadruped |
| Robot Use |
Companion, Education, Research |
Physical Specifications
| Specification |
Details |
| Height |
51.5 cm |
| Length |
11.2 cm |
| Width |
29.8 cm |
| Weight |
≈8 kg |
Mobility & Performance
| Specification |
Details |
| Total Degrees of Freedom |
12 DOF |
| Active Joints |
12 |
| Maximum Speed |
2 m/s |
| Maximum Payload |
Light payload |
| Terrain / Obstacle Clearance |
Indoor flat ground; dynamic gait balance; max. obstacle clearance height 34 cm (≈13.4 in) |
| Maximum Rotation |
360°/s |
Connectivity & I/O
| Specification |
Details |
| Connectivity |
4G, 5G, Bluetooth, Wi-Fi |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| 4G/5G Module |
Yes |
| Power Outputs |
5V / 12V + USB |
Software & Development
| Specification |
Details |
| Operating System |
Linux + localized UI/UX (FF-developed) |
| Secondary Development |
Supported |
| OTA Updates |
Yes |
| Mobile App |
Yes |
| Development Platforms |
Brain Blocks, Create Studio, EAI Soul, EAI Scribe, EAI Studio, SDK/API |
| Development Interfaces |
Open low-level interface + Python SDK for motion control, perception, and hardware-expansion APIs |
Battery & Power
| Specification |
Details |
| Runtime |
Up to 2 hours |
| Battery Capacity |
≈0.2–0.3 kWh |
| Battery Type |
Lithium |
| Input Voltage |
Compatible with US household power using a compliant plug |
| Battery Safety |
Over-current, over-voltage, and over-temperature protection |
AI, Voice & Perception
| Specification |
Details |
| Conversation / Voice Features |
US-local LLM/VLM stack; multilingual voice interaction via phone; supports 50 languages |
| Voice & Personality |
Customizable voice, personality, hobbies, and localized profiles |
| Wake Word |
Wake-word-free interaction supported |
| Camera |
Onboard perception via paired smartphone camera |
| Audio |
Voice and audio interaction via smartphone and app |
| Display / Lighting |
Display and expression via smartphone and app |
| Other Sensors |
Perception via paired smartphone camera, microphone, and display; expansion ports for external sensors or hardware |
Autonomy & OTA
| Specification |
Details |
| Autonomy |
Command-driven autonomy |
| OTA Roadmap |
Future upgrades, basic learning through OTA upgrades, and OTA/version management supported |
Controller & Accessories
| Specification |
Details |
| Controller / Teleoperation |
Mobile app + remote controller |
| Included Accessories |
Robot, charger, remote controller |
Skill Packages
| Specification |
Details |
| Standard Skills |
Standard skill package included |
| Optional Skills |
Premium Skills, Curriculum Skill, and add-on dog-head package listed by source |
What's in the Box
1 x Faraday Future FX Navi Quadruped Robot
1 x Battery Charger
1 x Remote Controller
1 x Split Ferrite Core (Snap-on Type)
