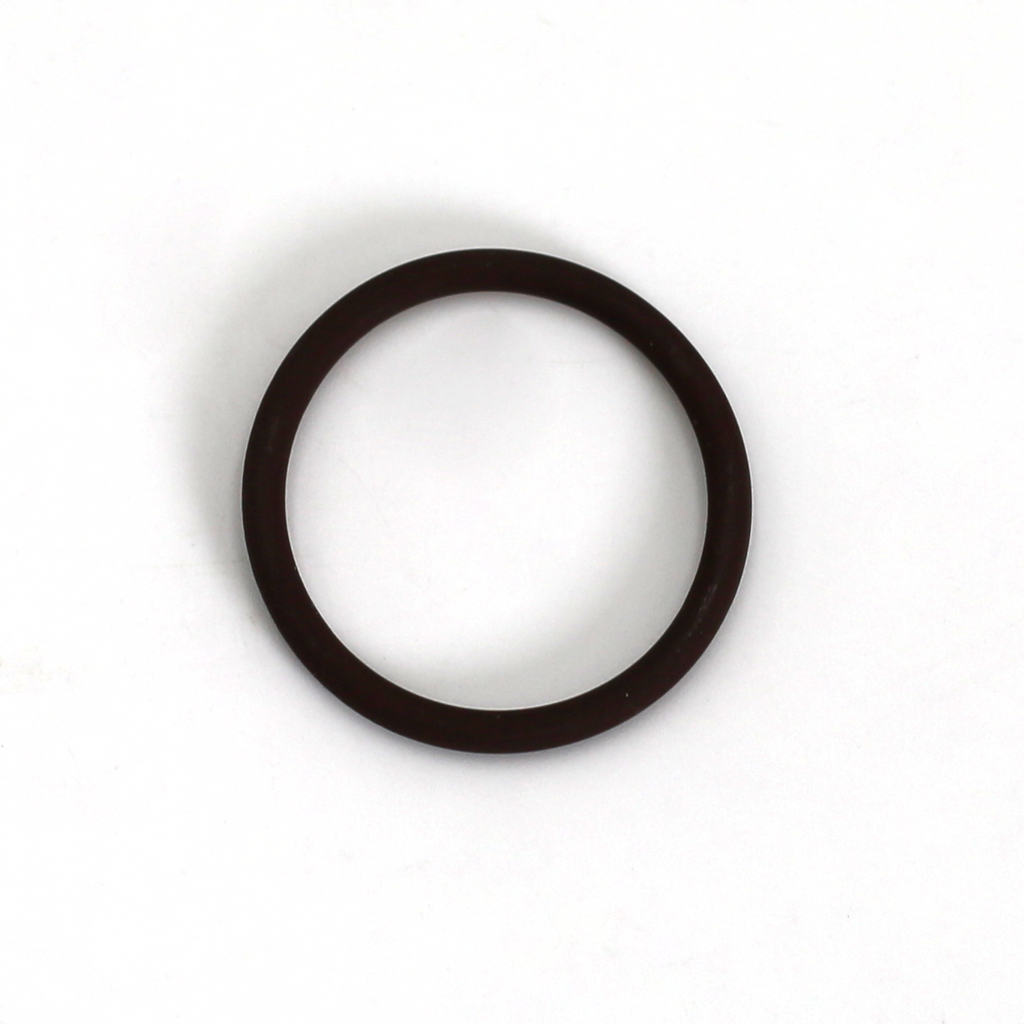

FKM 75 - O-Ring 2.65mm CS x 26mm ID - V7501N

The FKM 75 O-Ring (V7501N), with a 2.65mm cross-section (CS) and a 26mm inner diameter (ID), is a precision-engineered sealing solution designed for rotary valves in liquid piston filler machines. This O-ring ensures effective sealing within the rotary valve mechanism, preventing leaks and maintaining the proper flow of liquids during filling operations.

Key Features:

• Material: Constructed from FKM 75 (fluoroelastomer), offering high resistance to extreme temperatures, chemicals, and wear. Its robust material properties make it ideal for environments with aggressive liquids or varying temperature ranges.

• 2.65mm Cross-Section (CS): The O-ring’s 2.65mm CS delivers precise compression for a tight, leak-proof seal, ensuring that the rotary valve functions smoothly under pressure without allowing liquid or gas escape.

• 26mm Inner Diameter (ID): The 26mm ID is designed to fit perfectly within the rotary valve, creating a seamless seal around the valve’s moving components, preventing leakage and enhancing overall machine efficiency.

Performance Benefits:

• Heat Resistance: With its ability to withstand temperatures up to 200°C (392°F), this O-ring is suitable for both heated liquid applications and standard operating environments where temperature control is crucial.

• Chemical Resistance: The FKM 75 material provides exceptional resistance to a wide range of chemicals, including oils, solvents, and corrosive substances, making this O-ring suitable for industries handling diverse liquids.

• Durability and Wear Resistance: Engineered for use in rotary valves that experience continuous movement, this O-ring is built to resist mechanical wear and tear, reducing maintenance and ensuring long service life.

Applications:

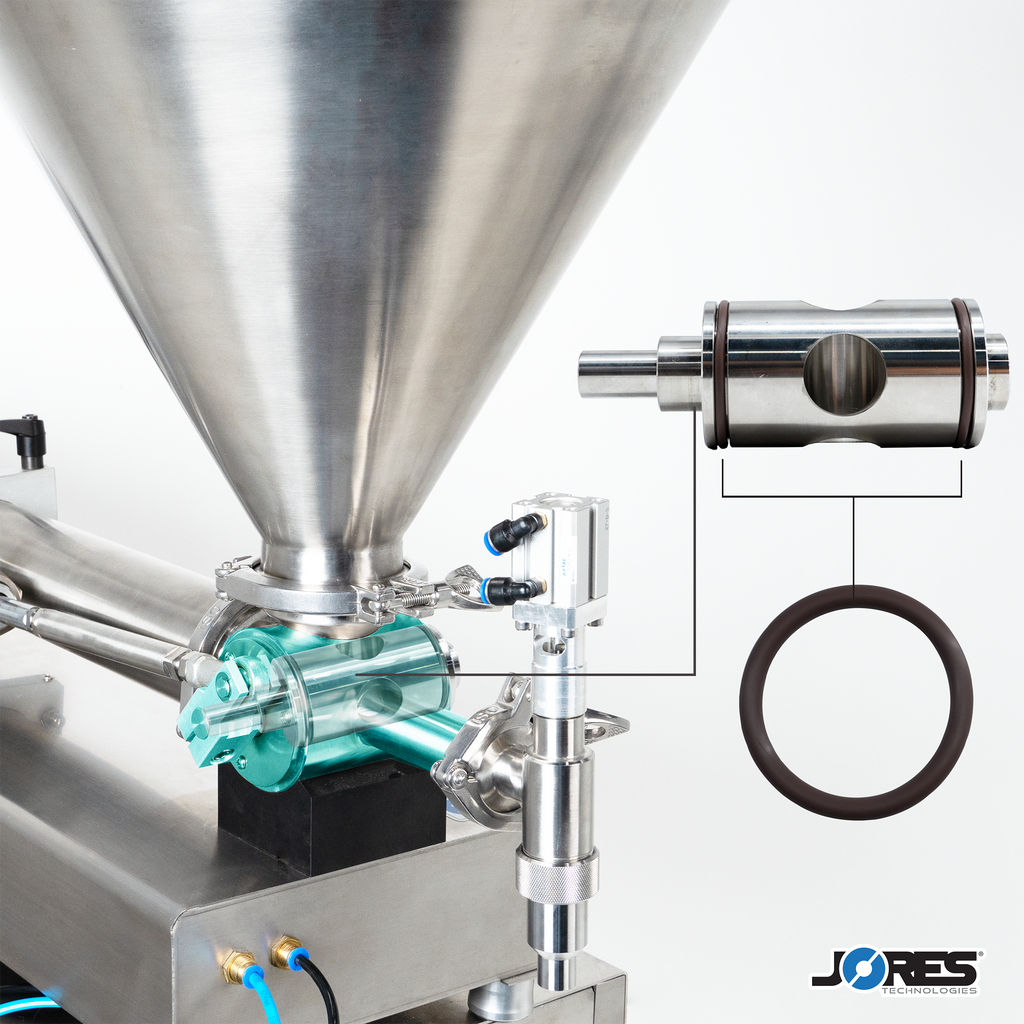

The FKM 75 O-Ring is specifically designed for use in rotary valves of various liquid piston fillers, ensuring precise liquid control during the filling process. It is used across multiple industries, including:

• Pharmaceuticals: For filling medical solutions and low-viscosity pharmaceutical products.
• Food and Beverage: Suitable for valves handling liquids like juices, oils, and sauces.
• Cosmetics and Chemicals: Effective for applications involving creams, lotions, and industrial chemicals that require accurate dispensing.

Conclusion:

The FKM 75 - O-Ring 2.65mm CS x 26mm ID - V7501N is a vital sealing component for rotary valves in liquid piston fillers. Its heat and chemical resistance, combined with its precise dimensions, make it a reliable choice for industries requiring durable, high-performance seals in demanding liquid filling applications.

Compatible With:

• E-FP-50-D
• E-FP-100-D
