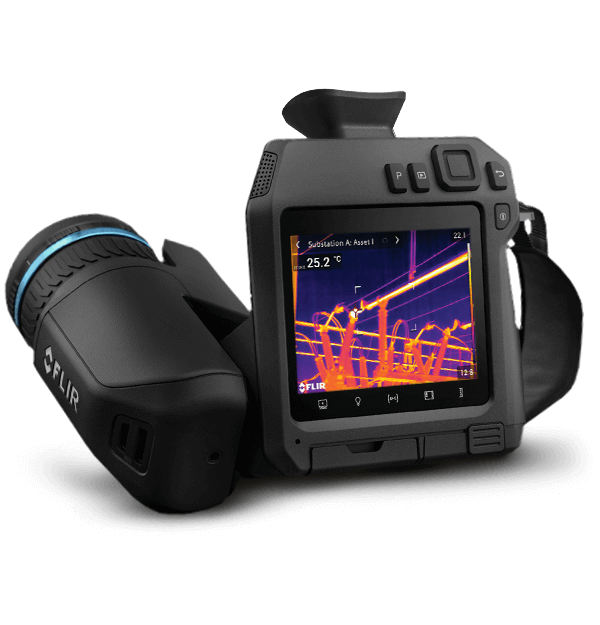

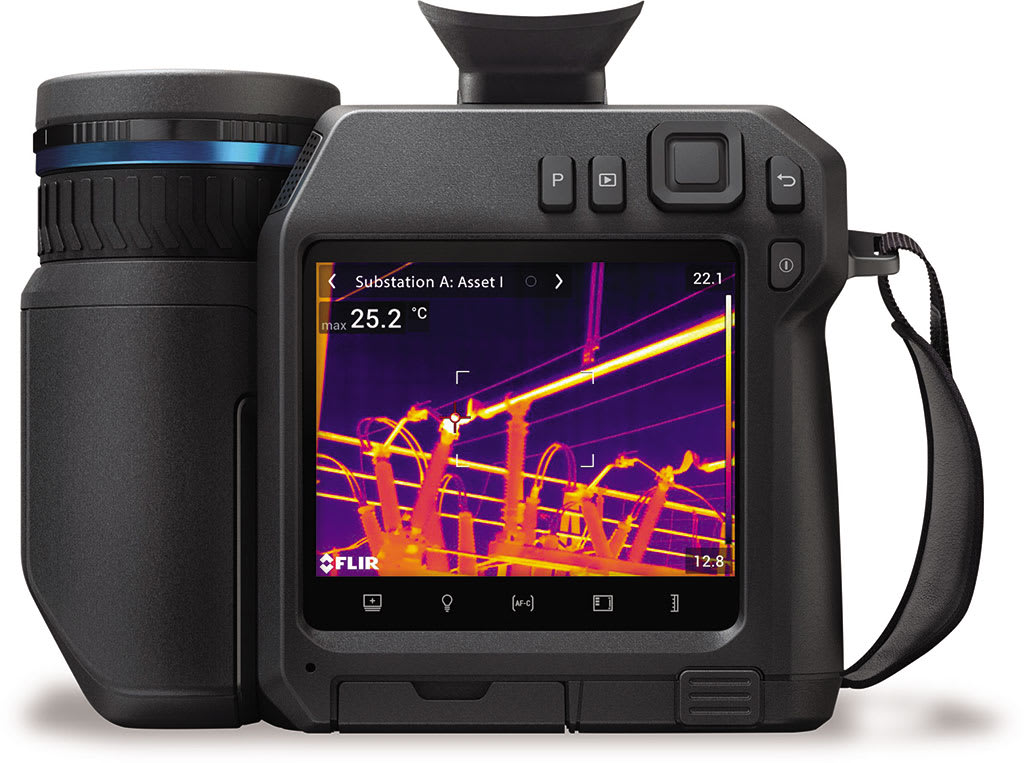

FLIR T865 High-Performance Thermal Camera w/24° + 42° Lens, 640x480 Resolution/30Hz, -40°C to +2000°C, w/NIST Calibration

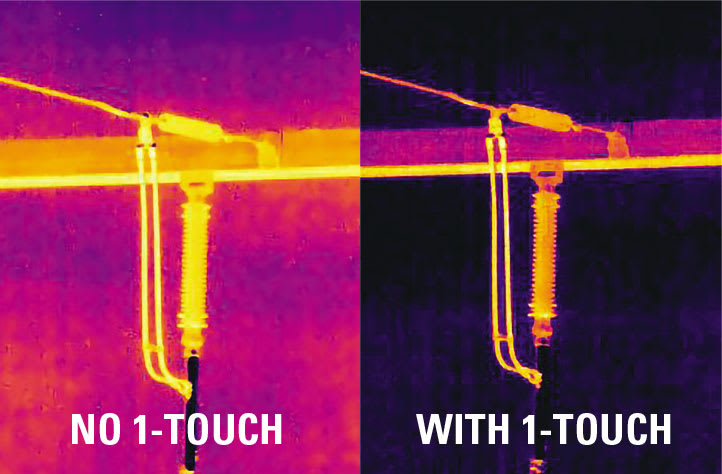

FLIR T865 thermal imaging cameras provide a non-contact inspection method with a tilting optic design, making it easy to safely and comfortably assess the condition of critical electrical and mechanical equipment. Advanced features such as 1-Touch Level/Span contrast enhancement and sharp laser-assisted auto focus ensure the camera takes accurate temperature measurements every time. Plus, the T865 offers temperature measurement accuracy as good as ±1°C / ±1% to help professionals make decisions quickly.
The T865 camera is compatible with FLIR AutoCal interchangeable lenses, for simplified transition from scanning wide areas with the 42° lens to inspecting distant targets with the 6° telephoto lens. Adding a FLIR T865 camera to a condition monitoring/predictive maintenance program can help reduce maintenance costs, improve system efficiency and reliability, and prevent lost production and downtime due to outages.
Improve Workflow Efficiencies
Collect and manage critical data quickly and easily
Work Safely and Comfortably
Assess the state of equipment from a safe distance, at any angle, or in any lighting condition
Make Critical Decisions Quickly
Save time and share data faster to increase in-field efficiency
Specifications:
| IR Resolution |
640 × 480 pixels |
| Thermal Sensitivity/NETD |
<30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
| Accuracy |
±2°C (±3.6°F) or ±2% of reading |
| Field of view (FOV) |
80° × 63° |
| Digital Camera |
5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use |
| Display |
4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Storage Media |
Removable SD card |
What's in the Box:
- 1 x Infrared camera with lens
- 1 x Extra 42° Lens
- 1 x Small viewfinder eye cup
- 2 x rechargeable batteries
- 1 x Battery charger
- 1 x Hard transport case
- 1 x Lanyards
- 1 x Front lens cap
- 1 x Power supplies
- 1 x Printed documentation
- 1 x SD card (8 GB)
- 1 x Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
