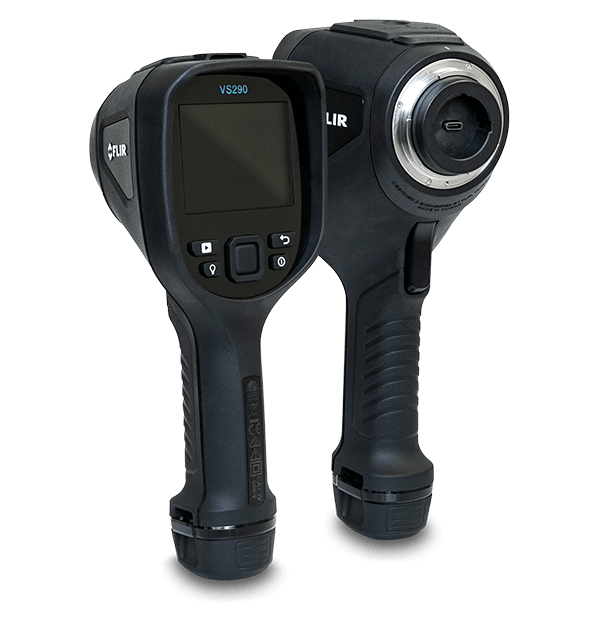

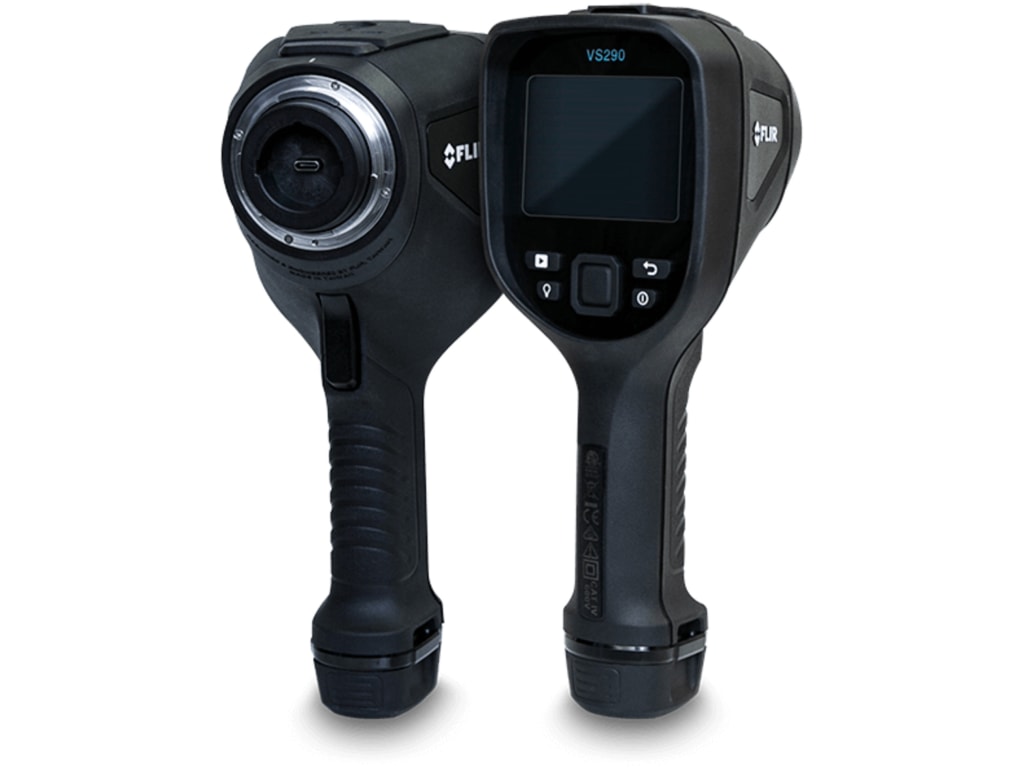

FLIR VS290 Thermal MSX VideoScope (Main Unit, without Camera)
The FLIR VS290 is designed to help professionals in utility, building inspection, and manufacturing improve safety, productivity, and reduce diagnostic time. Use the VS290-00 accessory with a compatible camera probe to easily target hidden problems in difficult-to-access locations.
Specifications:
| Display resolution |
320 × 240 pixels |
| Surface brightness (cd/m2) |
1000 |
| Screen size |
3.5" |
| Viewing angle |
70 ° |
| Color depth (bits) |
18-bit (262,144 color) |
| Aspect ratio |
4:3 |
| Display technology |
TFT |
| USB |
USB Type-C: data transfer/power |
| Wi-Fi |
Peer to peer (ad hoc) or infrastructure (network) |
| Battery type |
Rechargeable Li ion battery |
| Battery voltage |
3.65 V, 5.7 Ah, 21 Wh |
| Battery operating time |
>5 hours (full LCD brightness and worklight on) |
| Charging system |
In camera or two-bay charger |
| Charging time (using two-bay charger) |
2.5 hours to 90% capacity with charging status indicated by LEDs |
| Power management |
Adjustable: off, 5 minutes, 15 minutes, 30 minutes |
| Weight (including battery) |
0.64 kg (1.41 lbs) |
| Size (L × W × H) |
26.4 x 11 x 11 cm (10.4 x 4.3 x 4.3 in) |
What's in the box:
- 1 x Videoscope display
- 1 x Rechargeable battery
