Freefly LR1 Thermal Upgrade
Freefly LR1 Thermal Upgrade transforms the LR1 Payload into a dual-purpose imaging system, adding radiometric longwave infrared (LWIR) thermal capability to the Astro and Astro Max platforms. Built around the FLIR Boson 640R sensor, this add-on module provides 640 × 512 resolution thermal imagery with geotagging, spot metering, and temperature data capture for industrial, inspection, and public safety missions.
Advanced thermal integration for enterprise operations

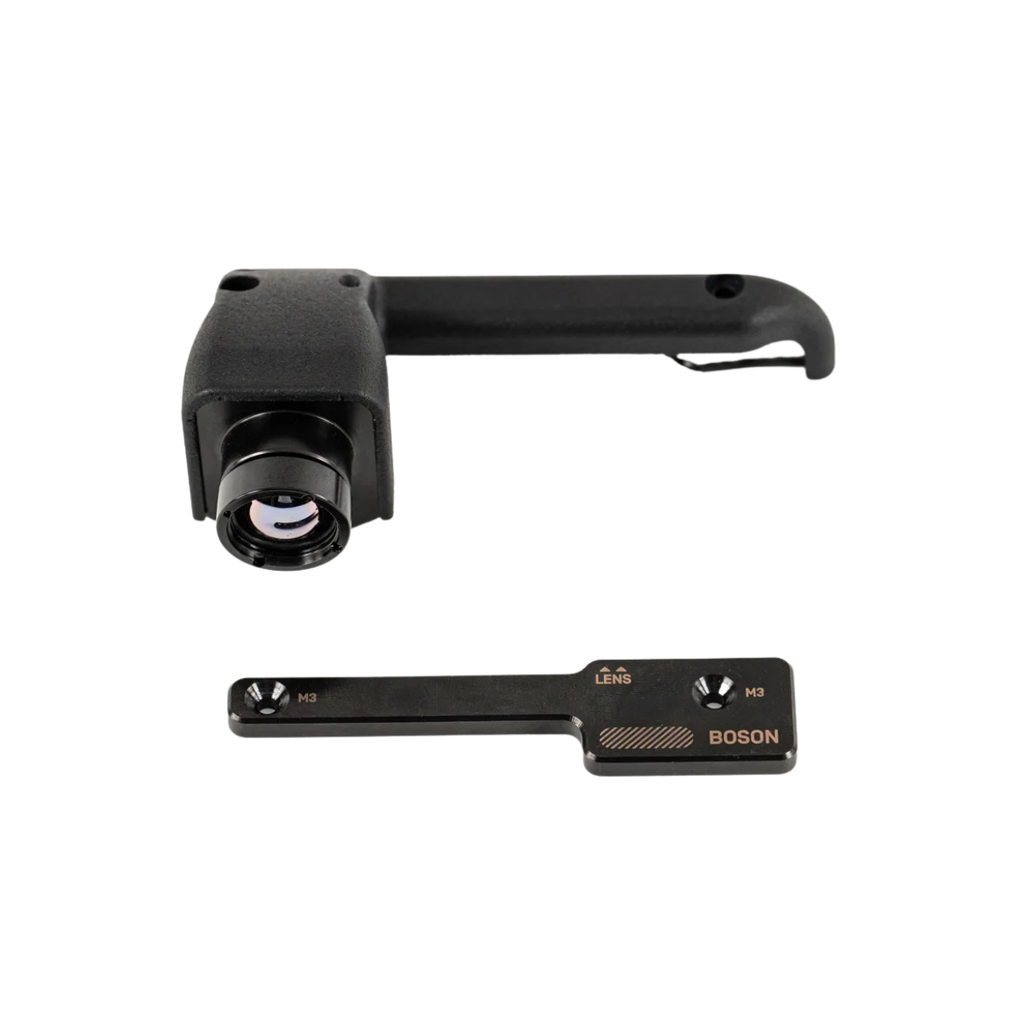

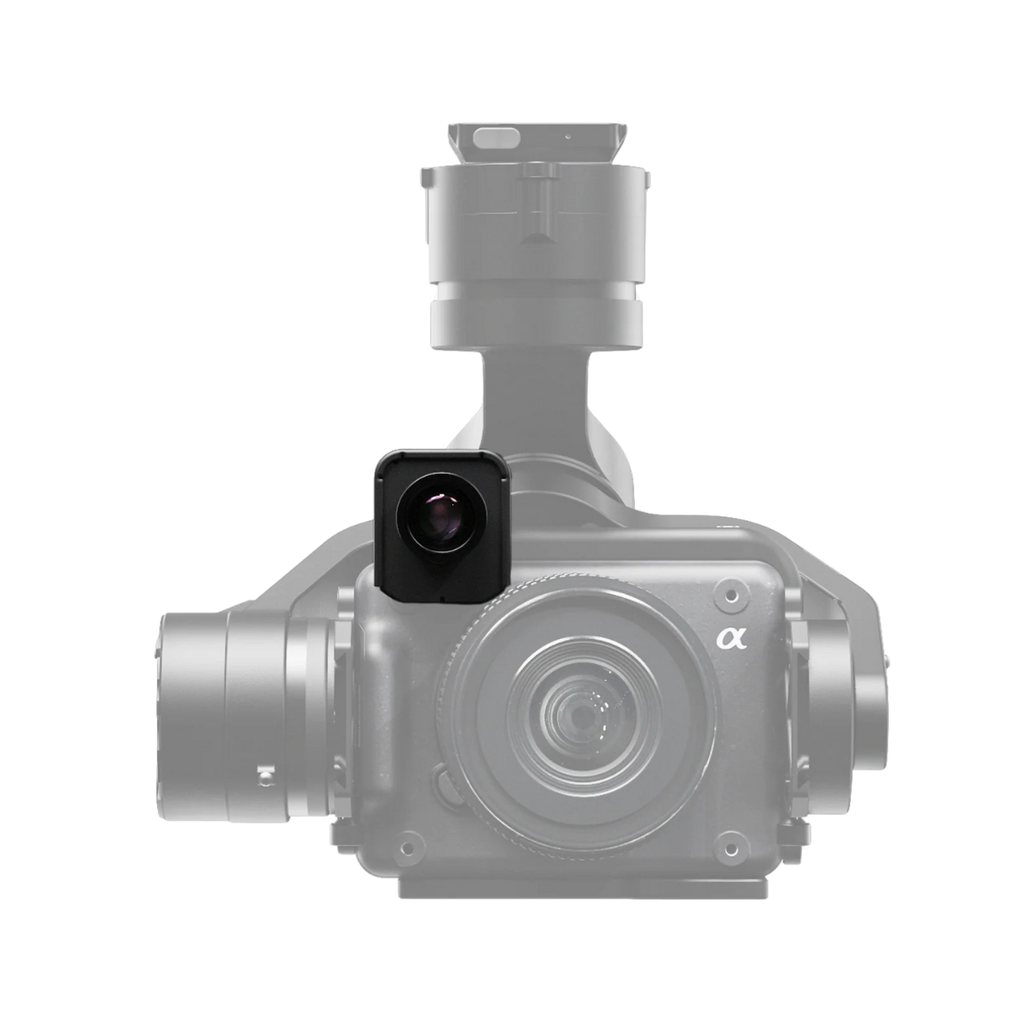

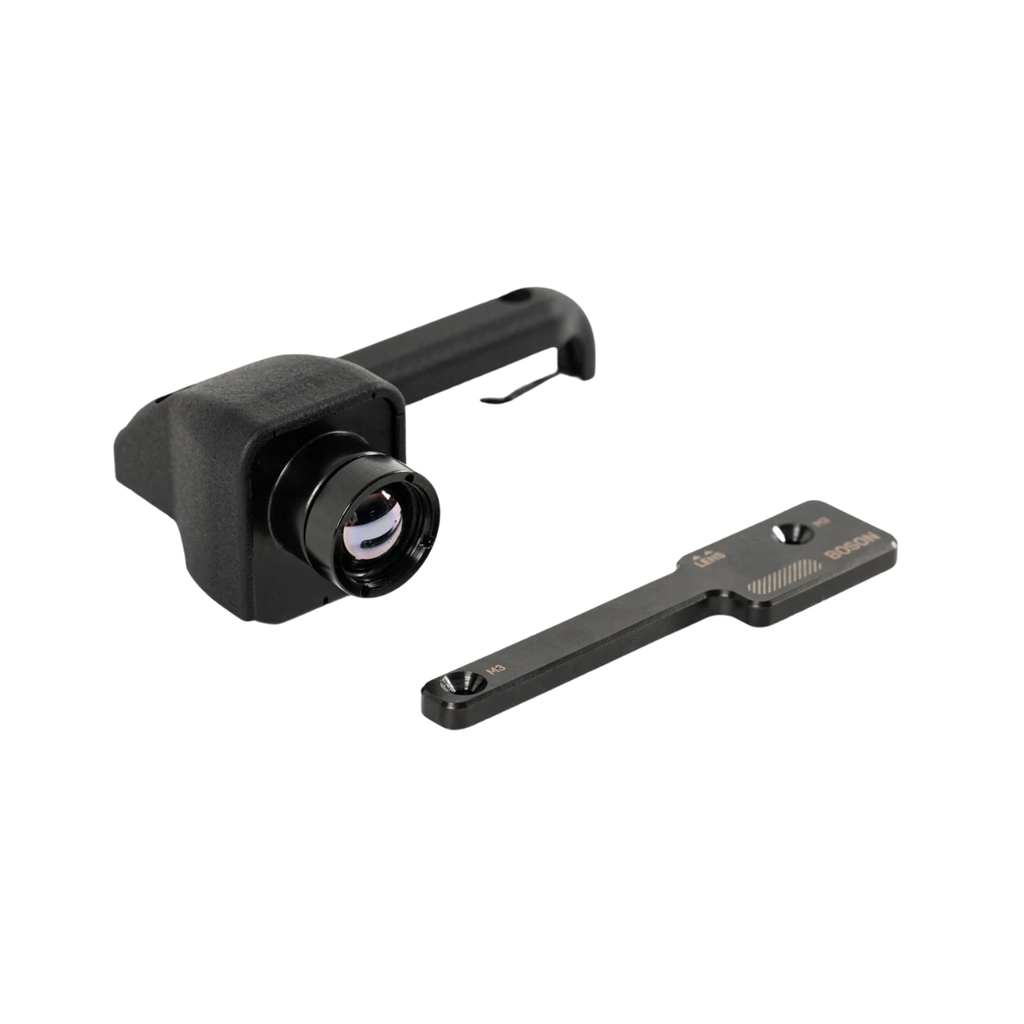

Designed for seamless compatibility with the Freefly LR1 Payload, this user-installable module mounts directly using four camera screws and three counterweight screws, plugging into the LR1 expansion port for power and data. Once installed, operators can switch between the LR1's RGB camera and the thermal view via Astro's live video feed. The 13.6 mm (63 mm full-frame equivalent) lens provides accurate field coverage for aerial thermography, while the 92 g installed weight preserves optimal flight balance.
Real-time temperature intelligence and mapping
The FLIR Boson 640R delivers radiometric imaging that allows operators to measure temperature variation across any surface in frame. Each image is geotagged for seamless integration with mapping software, enabling thermal overlays and analytics. When combined with the optional LR1 Laser Range Finder Upgrade, users can achieve precise distance and temperature correlation within the same payload setup, expanding the Astro's mission capability into powerline, infrastructure, and environmental monitoring.
Key Features and Benefits
- FLIR Boson 640R sensor: 640 × 512 radiometric LWIR resolution
- Adds thermal imaging capability to the LR1 Payload system
- 13.6 mm lens (63 mm full-frame equivalent) for accurate coverage
- 92 g installed weight maintains Astro's balance and performance
- User-installable module: mounts with 4 + 3 screws to LR1 payload
- Connects to LR1 expansion port for plug-and-play setup
- Supports geotagged thermal imagery for mapping integration
- Spot metering provides precise surface temperature readings
- Switch between RGB and thermal feeds in Astro live view
- Compatible with LR1 Laser Range Finder Upgrade for dual operation
Specifications:
-
FLIR Boson 640
Resolution: 640 × 512 pixels
Type: Radiometric LWIR (Long-Wave Infrared) camera
Lens: 13.6 mm (63 mm full-frame equivalent)
- Installed Weight: 92 g
- Geotagged Images: Supported
- Spot Metering: Supported
What's in the Box:
1 x Counter-clockwise (CCW) Astro Max replacement propeller
1 x Clockwise (CW) Astro Max replacement propeller
8 x M3x6 SHCS
