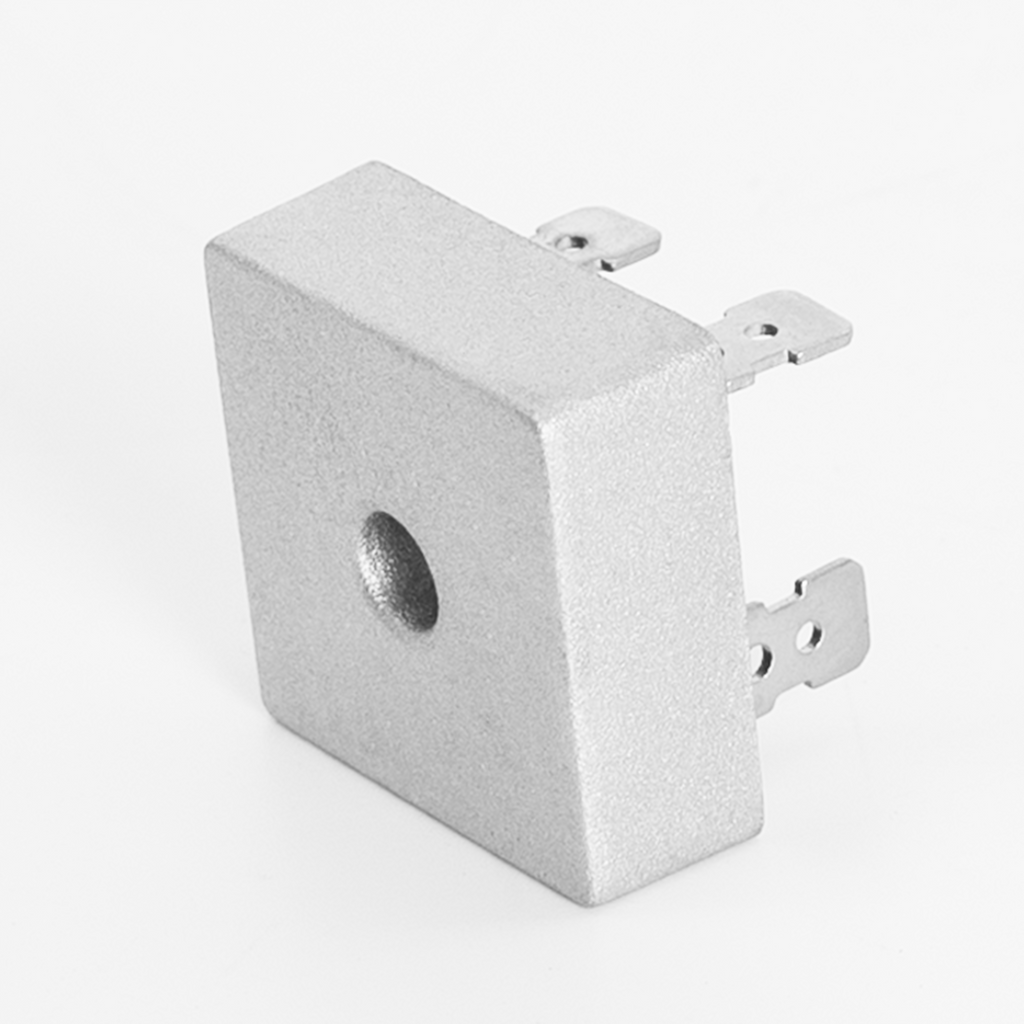

GUERTE Bridge Rectifier - KBPC3510

The GUERTE KBPC3510 Bridge Rectifier is a high-performance rectifying component designed to efficiently convert AC input to DC output in manual induction sealing equipment. Engineered for reliability in high-voltage, high-temperature industrial applications, this compact rectifier plays a vital role in stabilizing current for induction heating processes.

Key Features:

• High Current Capacity: Rated at 35 Amps, capable of handling demanding power loads with minimal voltage drop.

• Voltage Rating: Supports up to 1000V reverse voltage, ideal for robust AC-to-DC conversion.

• Durable Housing: Solid metal enclosure enhances heat dissipation and ensures long service life in industrial environments.

• Quick Connect Terminals: Four convenient fast-on tabs allow for easy integration into electrical systems with reliable connections.

• Compact Form Factor: Space-saving square body design fits snugly within the control compartment of manual induction sealers.

Electrical Specifications:

• Model: KBPC3510

• Manufacturer: GUERTE

• Rated Voltage: 1000V (VRRM)

• Rated Current: 35A

• Surge Current: Up to 400A (8.3ms single half-sine-wave)

• Mounting: Center-mount hole for bolt-down heat sink installation

• Terminals: 4 x fast-on 0.25" (AC, AC, +DC, -DC)

Applications:

• Converts alternating current from power source to direct current for induction coil energizing.

• Used in manual induction sealing machines to power control boards and heating elements.

• Suitable for repair or OEM replacement in JORES, YOU, and other compatible induction sealer brands.

Benefits:

• Enhances performance and reliability of induction sealing systems.

• Minimizes ripple and ensures stable DC output for sensitive components.

• Reduces machine downtime with easy installation and maintenance.
