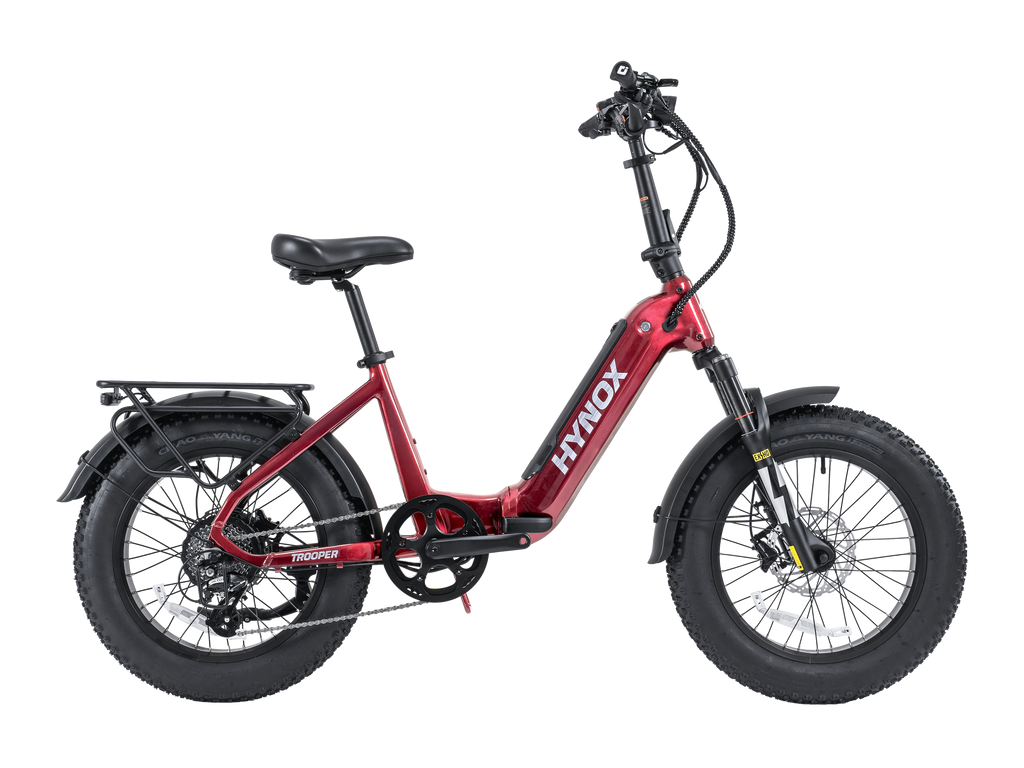

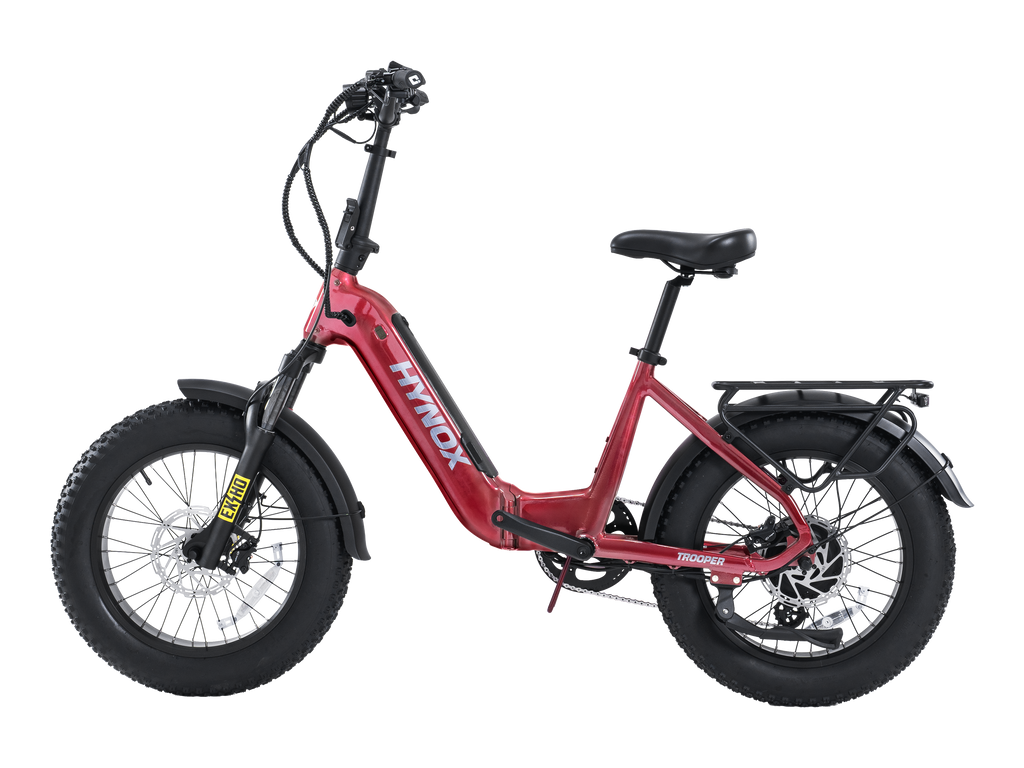

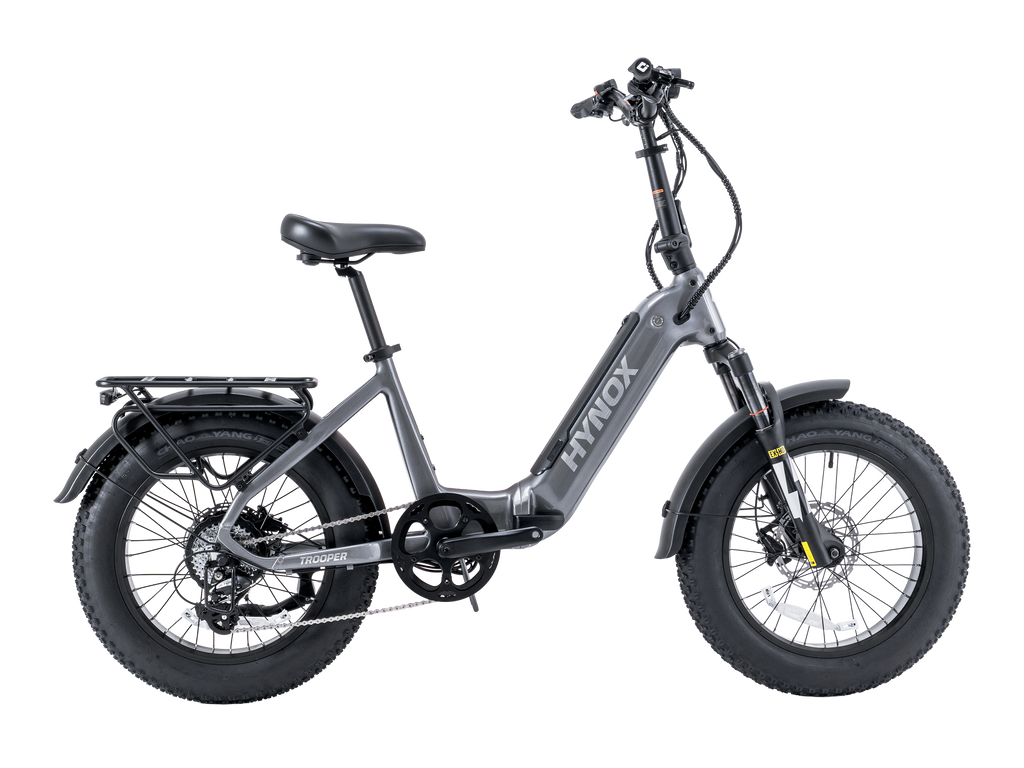

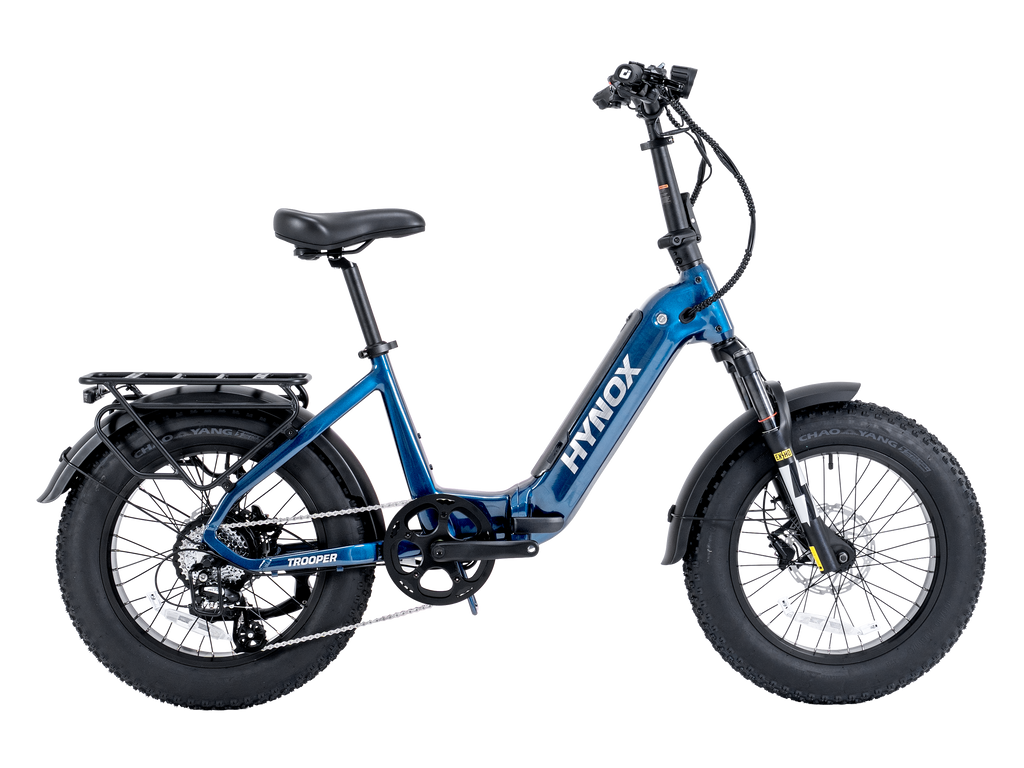

Hynox Trooper 1400W Foldable Fat Tire Ebike
A rugged folding fat-tire eBike, the Hynox Trooper is built tough for powerful performance and long-range capability yet engineered to deliver a smooth and effortless ride from city streets to weekend escapes. This versatile e-bike combines 85Nm of raw torque with an advanced front-suspension system to deliver a highly capable and comfortable ride. Designed for thrill-seekers and daily riders alike, the Trooper ensures an adrenaline-fueled journey across diverse terrains with reliable control and effortless handling.
Stable, Nimble, and Upright
The Trooper features refined frame geometry engineered to conquer varied environments with confidence. A relaxed 68° head tube angle and extended 1167mm wheelbase provide outstanding stability, while the CHAOYANG 20""x 4.0"" puncture-resistant fat tires deliver relentless grip. Its low 420mm step-thru frame promotes a naturally upright, strain-free riding position for riders of varying sizes.
Superior Braking Power
Featuring LOGAN hydraulic disc brakes with dual-piston calipers, this e-bike is built for consistent control. The heavy-duty 180mm x 2.3mm rotors provide exceptional durability and heat dissipation, ensuring reliable, consistent braking performance even under the maximum load of 440 lbs.
EXSHO Hydraulic Suspension
Crush both city streets and brutal off-road trails with the EXSHO 80mm hydraulic front suspension. Engineered for high-impact shock absorption, it delivers rock-solid stability on any surface. From jagged potholes to rugged dirt tracks, this heavy-duty system provides the ultimate balance of comfort and control, creating a highly responsive ride.

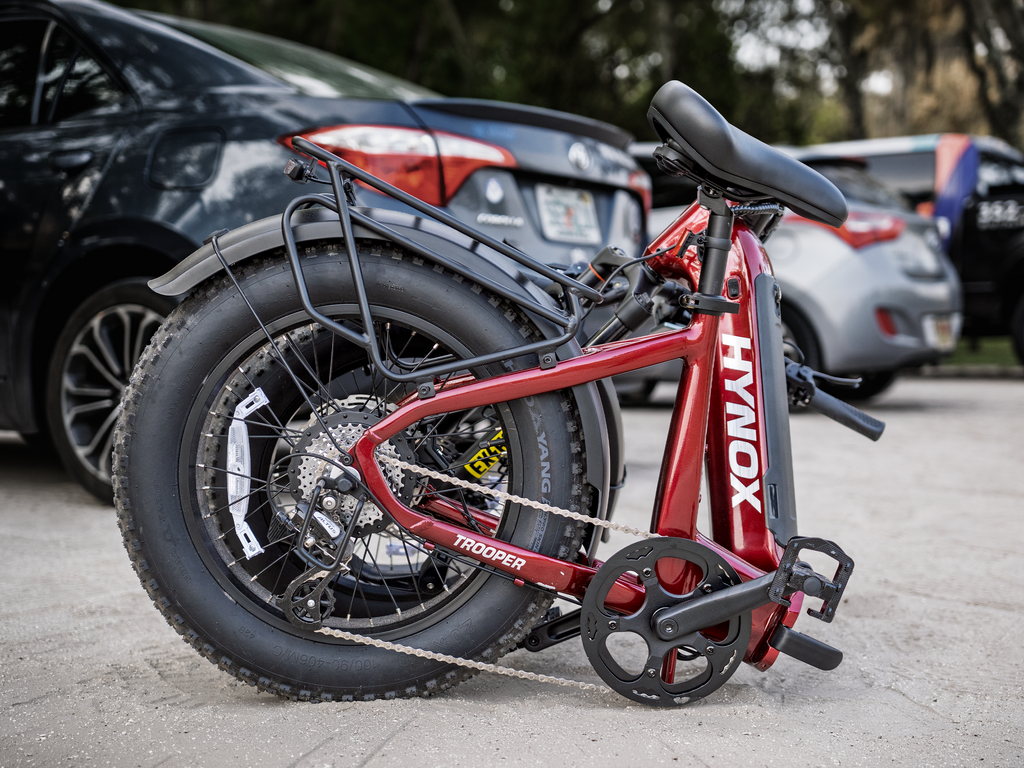

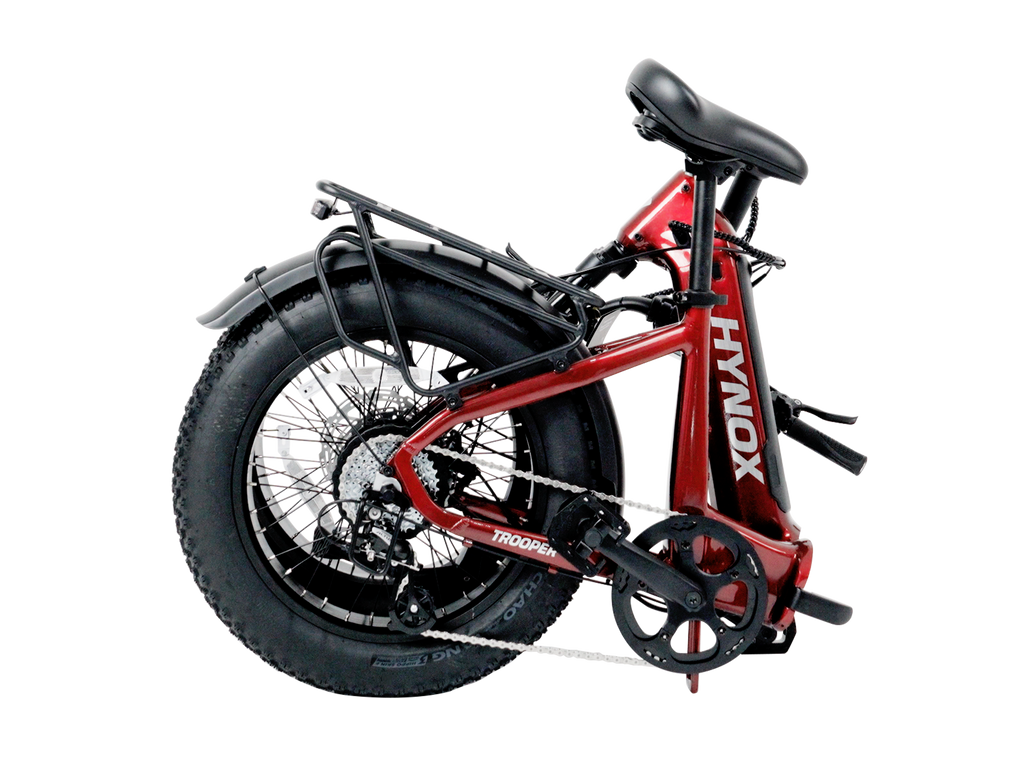

Compact Folding for Effortless Transport
The perfect blend of full-sized power and go-anywhere portability. Folded to a compact 41” x 22” x 29”, this bike fits seamlessly into car trunks for road trips and tucks away for space-saving home storage.
Smart Connectivity
Connect your ride with the HYNOX App for total control via Bluetooth. Use the mobile app to seamlessly power your bike on or off, toggle lights, and precision-tune your performance by setting custom speed limits for each Pedal Assist (PAS) level and the throttle. With automatic ride tracking and OTA firmware updates, your Trooper stays smarter and more optimized with every sync.
Advanced Lighting System
Navigate your path safely with a powerful 130 Lux headlight featuring a dedicated High/Low Beam switch. Instantly toggle between a focused, glare-free low beam for city riding and a high-penetration long beam for dark stretches. Paired with a high-brightness taillight and integrated turn signals, it ensures you see further while remaining highly visible to others.
Specifications:
Bike Size: One Size
User Height Range：5'1" ~ 6'5''
Bike Folded: 41" x 22" x 29"
Frame: 6061 Aluminum Alloy
Fork: EXSHO 80mm Travel Hydraulic Suspension with Lock-out
Motor: 48V, 750W(Peak 1400W), 85Nm
Battery: Removable 48V 15Ah, 720Wh, IPX6
Cell: 21700 5000mAh Cell
Charger: 48V, 2.0A Fast Charger

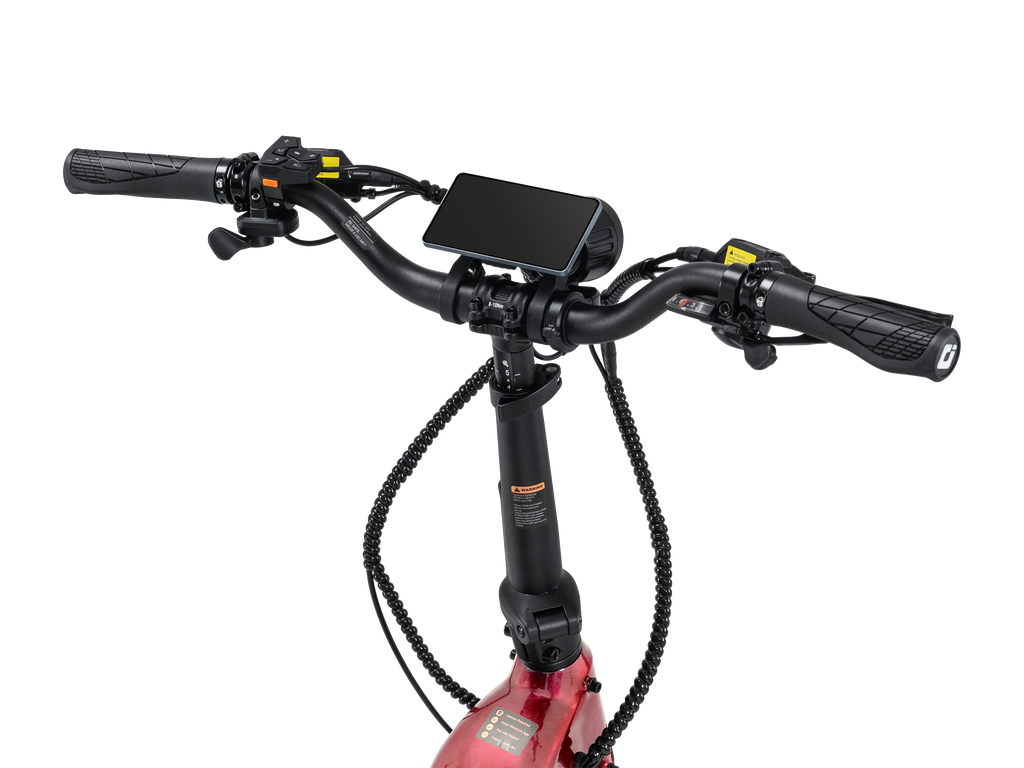

Display: 4.0" Full color, High Brightness, Bluetooth, Adjustable Angle
Sensor: Torque Sensor
USB Port: USB Type-C Phone Charge
Throttle Assist: Trigger-Control, Removable
Pedal Assist: 5 PAS Levels
Walk Mode: 2.9 MPH
Headlight: 12V/6.5W 130Lux Integrated LED, High/Low Beam, Adjustable Angle
Taillight: Braking Highlight, Turn Signal
Top Speed (Default): 20 MPH
Top Speed (Unlocked): 28 MPH
Class: 1/2/3
Throttle Range: 50 Miles
Pedal Assist Range: 65 Miles (A 188 lbs rider using PAS 1 on flat roads.)
Chainrings: 48T
Crankset: Aluminum Alloy, 170mm
Freewheel: 8-Speed, 11-32T
Chain: KMC 8-Speed
Rear Derailleur: SHIMANO Altus 8-Speed
Shift Lever: SHIMANO Altus 8-Speed
Brake: LOGAN Hydraulic Disc Brakes
Rotors: 180mm Diameter, 2.3mm Thickness (F/R)
Brake Levers: Aluminum Alloy, with Power Cutoff
Calipers: Dual-piston brake calipers
Rims: Aluminum Alloy
Front Hub: Aluminum Alloy, Nutted
Tire: 20x4.0" CHAOYANG eBike Puncture Resistant Tires
Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
Grips: ODI Ergonomic Lock-On Grips

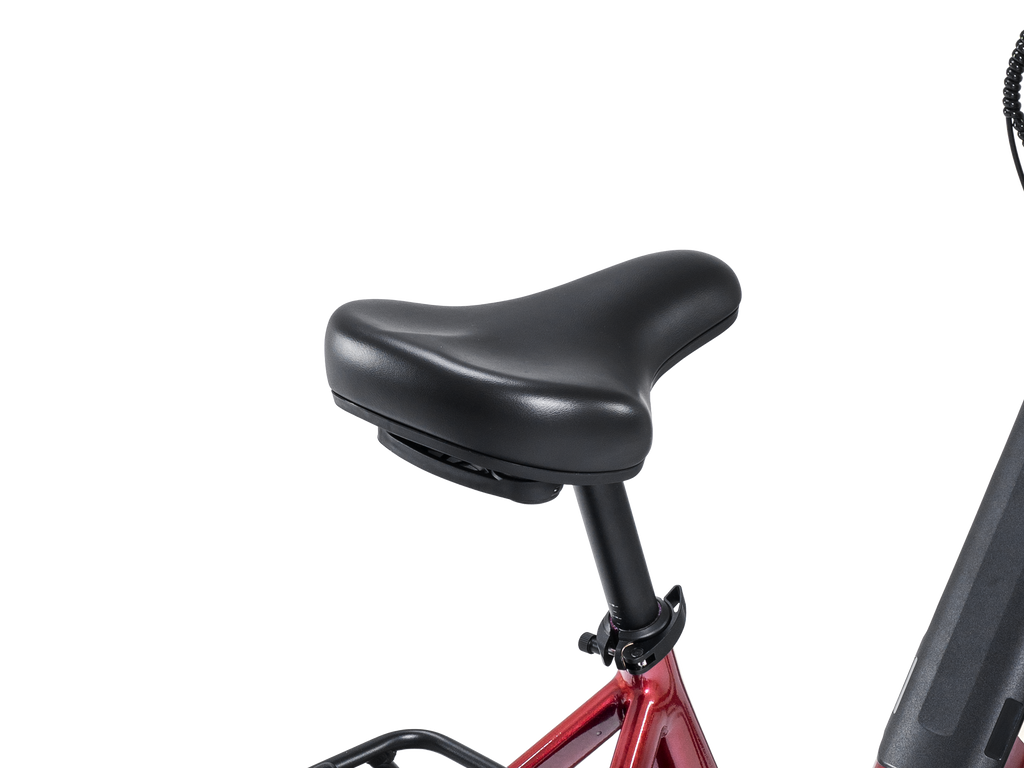

Saddle: 8.6" Wide Ergonomic Saddle with High-density Memory Foam.
Seatpost: Aluminum Alloy, Φ30.9mm, 370mm
Clamp: Aluminum Alloy, Quick Release
Fenders: Plastic, Front and Rear Full Coverage
Rear Rack: Aluminum Alloy
Pedals: Aluminum, Foldable
Kickstand: Aluminum Alloy, included, Rear Mount
Bike Weight: 72lbs
Max Bike Load: 440lbs
Rear Rack Load: 66lbs
What's in the Box:
1 x Trooper
1 x Battery
1 x Charger
1 x Pedals
1 x Front & Rear Reflectors
1 x Bell
1 x Tool Kits
1 x Digital User Manual
