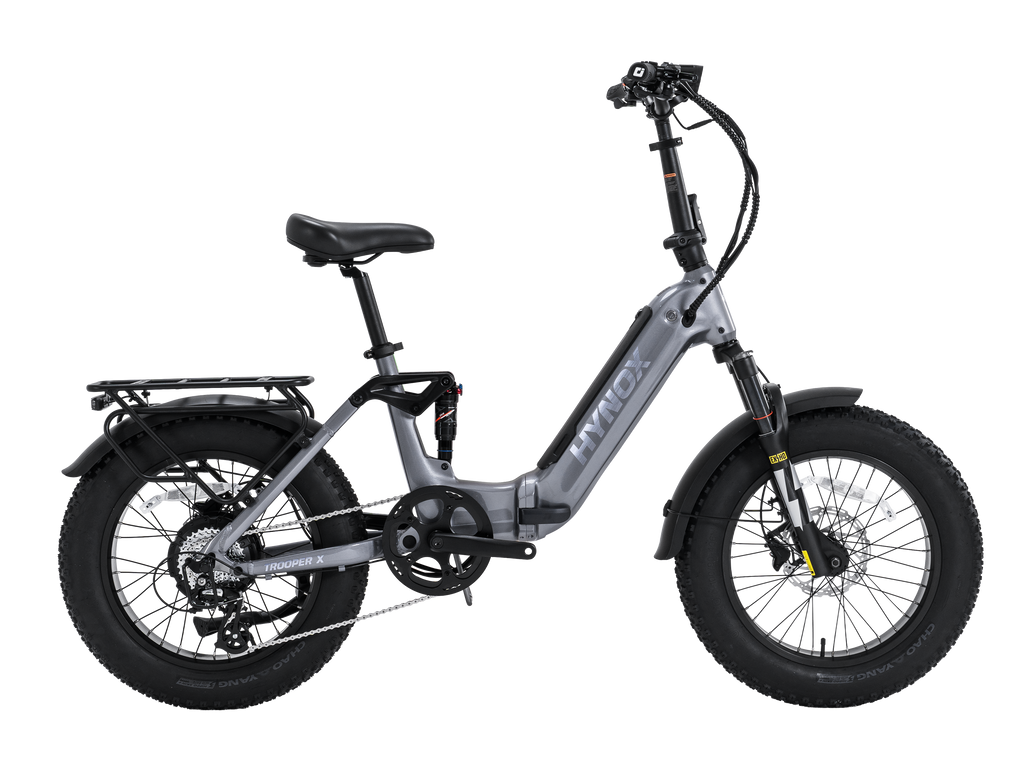

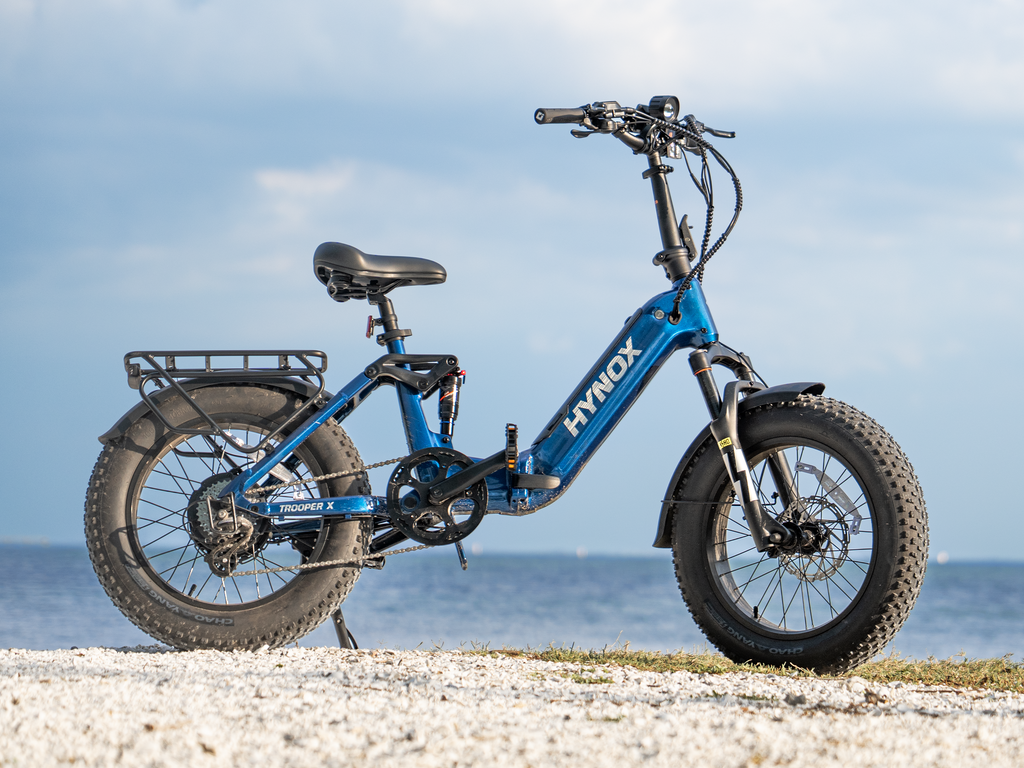

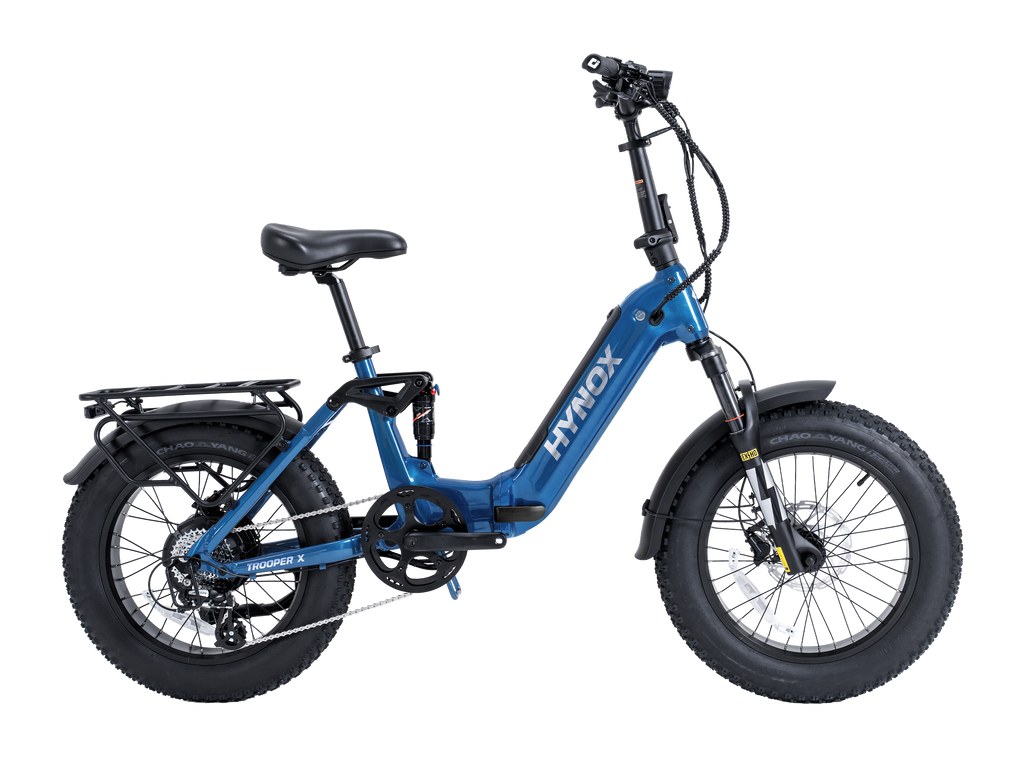

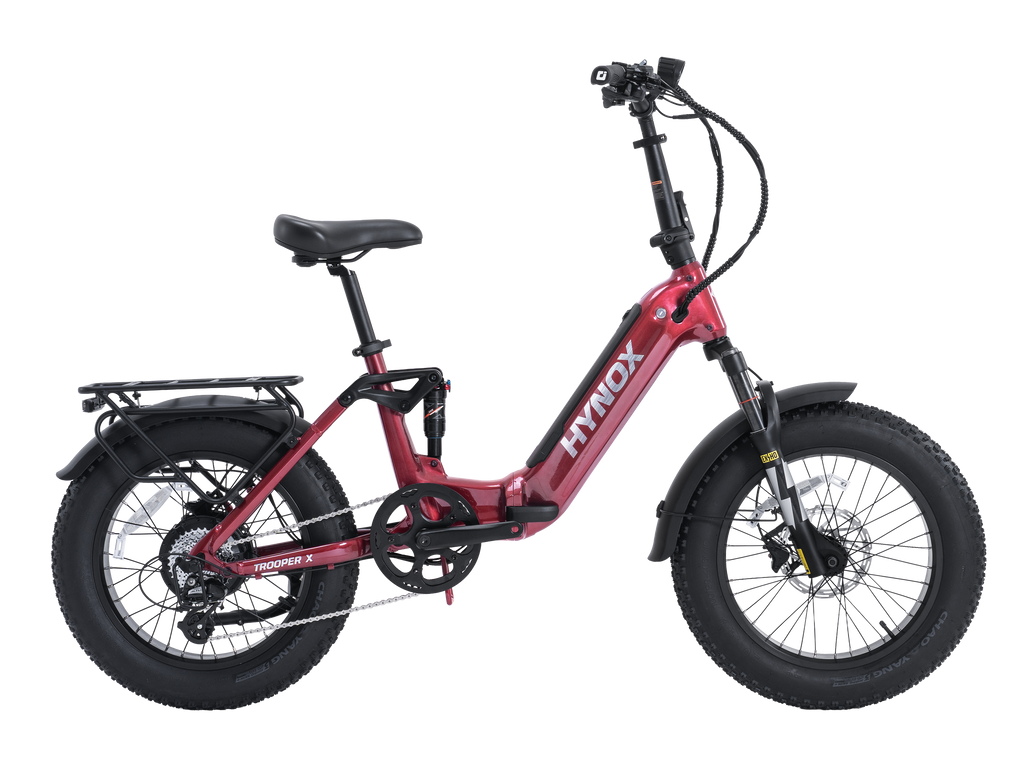

Hynox Trooper X 1600W Full Suspension Foldable Fat Tire Ebike
Unleash a new level of off-road and urban performance with the Hynox Trooper X. This beast of an e-bike combines 100Nm of raw torque with a state-of-the-art dual-suspension system to deliver an exceptionally powerful and comfortable ride. Designed for thrill-seekers and daily commuters alike, the Trooper X ensures an adrenaline-pumping yet smooth journey across diverse terrains with maximum control and effortless handling.
Engineered for All-Terrain Mastery
The Trooper X features a four-bar Horst-link rear suspension and refined frame geometry engineered to conquer diverse terrains with confidence. A relaxed 69° head tube angle and long wheelbase provide outstanding stability, while the CHAOYANG 20""x 4.0"" puncture-resistant fat tires deliver relentless grip. Its low step-thru design ensures a comfortable, upright riding posture for riders of varying sizes.
Superior Braking Power
Equipped with LOGAN hydraulic disc brakes and heavy-duty 180mm x 2.3mm rotors, this e-bike is built for ultimate control. The dual-piston calipers and extra-thick rotors provide exceptional heat dissipation, ensuring silent, fade-free, and reliable stopping power on the steepest all-terrain descents or busy city streets.

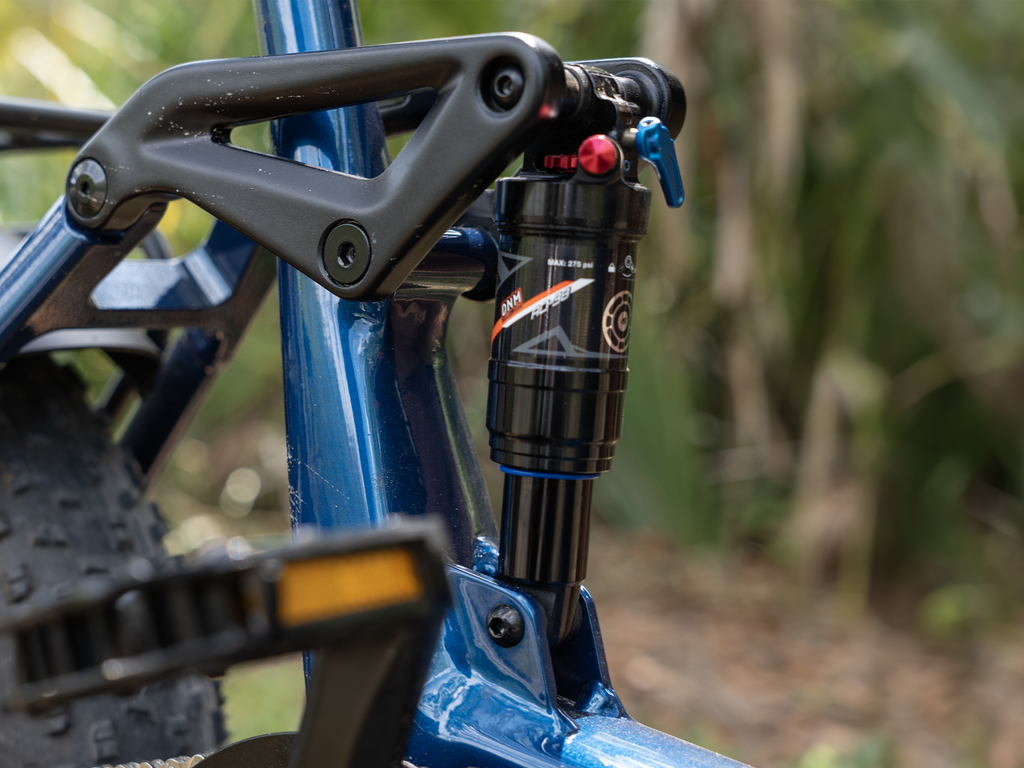

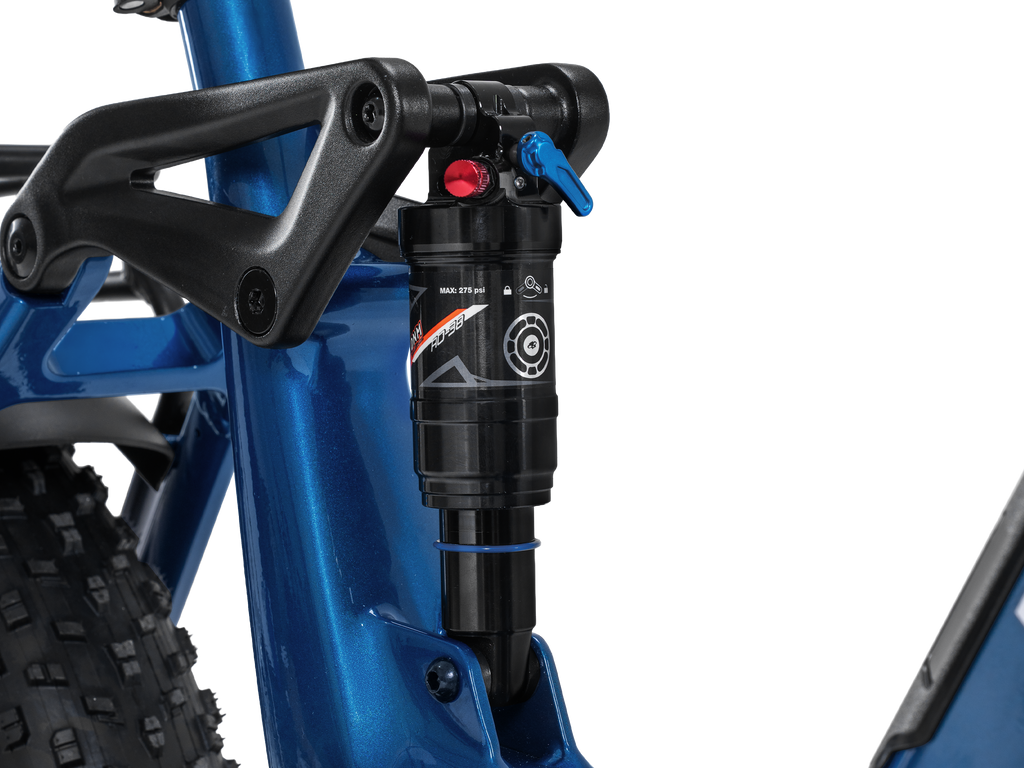

DNM Air Shock & Pro-Grade Control
Experience elite handling with the DNM 35mm air shock providing 80mm of rear wheel travel. This 3-way adjustable setup lets you fine-tune rebound damping and customize air preload to your unique riding style. Combined with the EXSHO 80mm hydraulic front suspension, it creates a high-performance system built for a plush, rock-solid, and highly responsive ride.
Smart Connectivity
Connect your ride with the HYNOX App for total control via Bluetooth. Use the mobile app to seamlessly power your bike on or off, monitor ride data, and precision-tune your performance by setting custom speed limits for each Pedal Assist (PAS) level and the throttle. With automatic ride tracking and OTA firmware updates, your Trooper X stays optimized with every sync.
Advanced Lighting System
Navigate your path safely with a powerful 130 Lux headlight featuring a dedicated High/Low Beam switch. Instantly toggle between a focused, glare-free low beam for city riding and a high-penetration beam for dark stretches. Paired with a high-brightness taillight and integrated turn signals, it ensures you see further while remaining highly visible to others.
Specifications:
User Height Range：5'1" ~ 6'5''

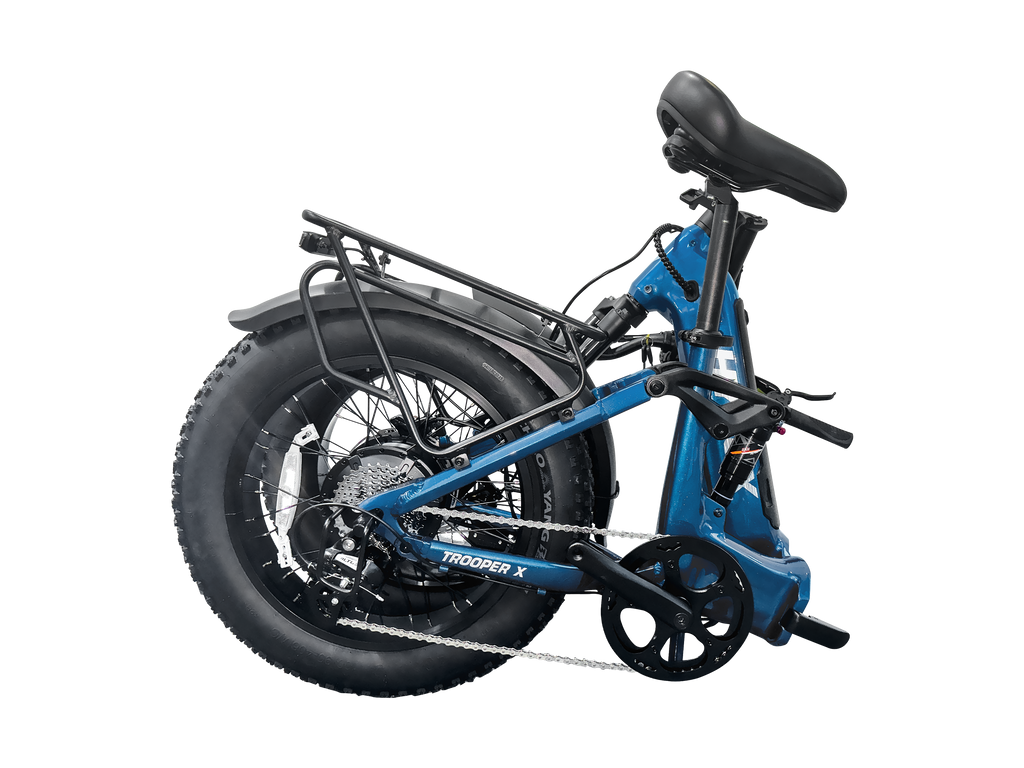

Bike Folded: 41" x 22" x 29"
Frame: 6061 Aluminum Alloy
Fork: EXSHO 80mm Travel Hydraulic Suspension with Lock-out
Rear: DNM 165 x 35 mm AO-38RC 3-Way Air Shock, 80mm Wheel Travel
Motor Hub: 48V, 750W(Peak 1600W), 100Nm
Battery: Removable 48V, 15Ah, 720Wh, IPX6
Cell: 21700 5000mAh Cell
Charger: 48V, 3.0A Fast Charger
Display: 4.0" Full Color, High Brightness, Bluetooth, Adjustable Angle
Sensor: Torque Sensor
USB Port: USB Type-C Phone Charge
Throttle Assist: Trigger-Control, Removable
Pedal Assist: 5 PAS Levels
Walk Mode: 2.9 MPH
Headlight: 12V/6.5W 130Lux Integrated LED, High/Low Beam, Adjustable Angle
Taillight: Braking Highlight, Turn Signal
Top Speed (Default): 20 MPH
Top Speed (Unlocked): 28 MPH
Class: 1/2/3
Throttle Range: 50 Miles
Pedal Assist Range: 65 Miles
(A 188 lbs rider using PAS 1 on flat roads.)
Chainrings: 48T
Crankset: Aluminum Alloy, 170mm
Freewheel: 8-Speed, 11-32T
Chain: KMC 8-Speed
Rear Derailleur: SHIMANO Altus 8-Speed
Shift Lever: SHIMANO Altus 8-Speed
Brake: LOGAN Hydraulic Disc Brakes
Rotors: 180mm Diameter, 2.3mm Thickness (F/R)
Brake Levers: Aluminum Alloy, with Power Cutoff
Calipers: Dual-piston brake calipers
Rims: Aluminum Alloy
Front Hub: Aluminum Alloy, Nutted
Tire: 20x4.0" CHAOYANG eBike Puncture Resistant Tires
Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
Grips: ODI Ergonomic Lock-On Grips
Saddle: 8.6" Wide Ergonomic Saddle with High-density Memory Foam.
Seat post: Aluminum Alloy, Φ30.9mm, 370mm
Clamp: Aluminum Alloy, Quick Release
Fenders: Plastic, Front and Rear Full Coverage
Rear Rack: Aluminum Alloy
Pedals: Aluminum, Foldable
Kickstand: Aluminum Alloy, Included, Rear Mount
Bike Weight: 77lbs
Max Bike Load: 400lbs
Rear Rack Load: 66lbs
What's in the Box:
1 x Trooper X Blue
1 x Battery
1 x Front & Rear Reflectors
1 x Charger
1 x Pedals
1 x Bell
1 x Tool Kits
1 x Digital User Manual
