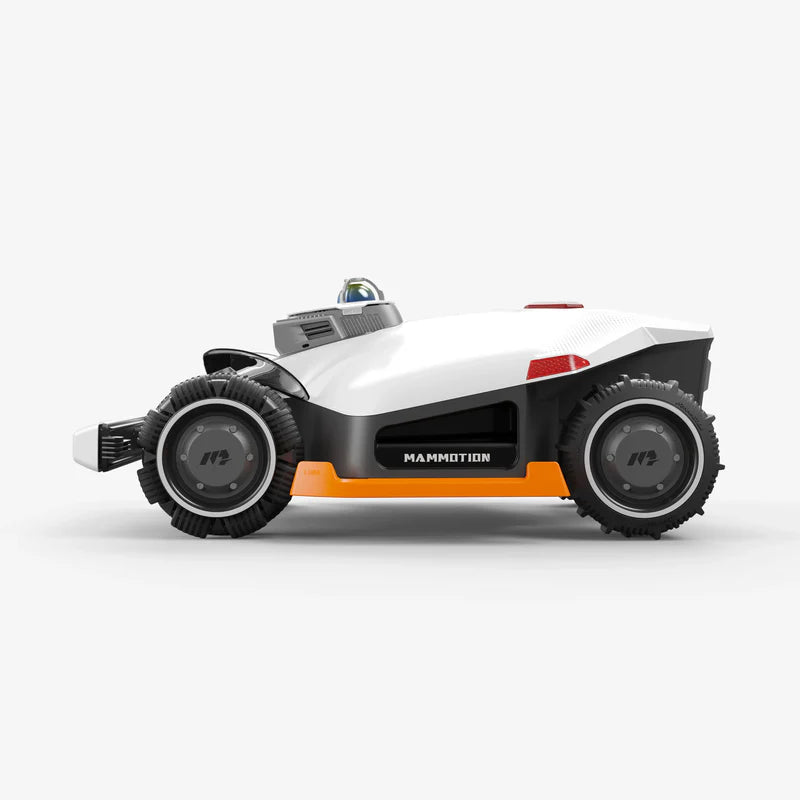

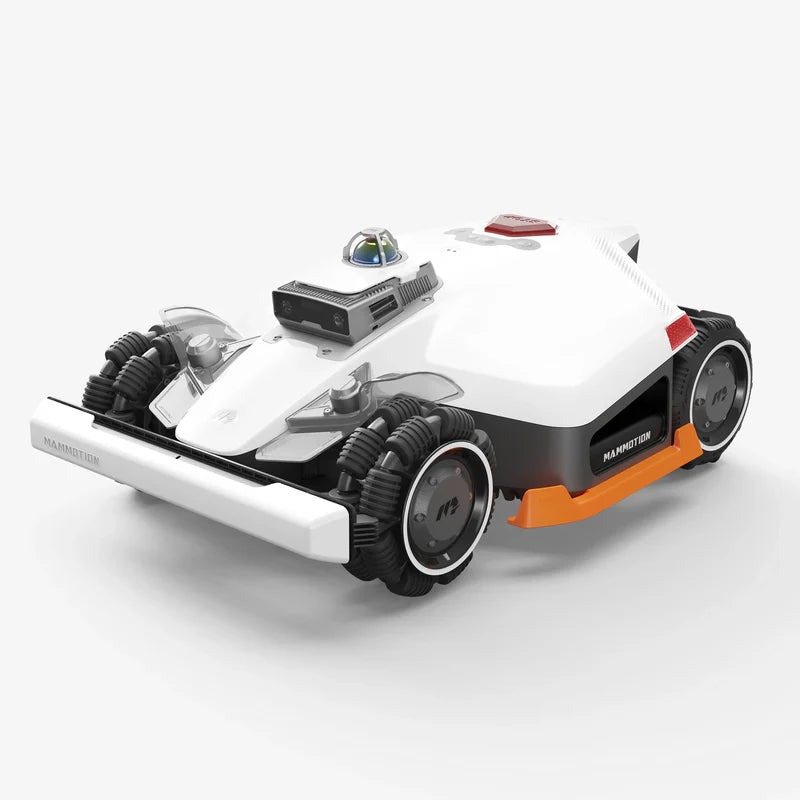

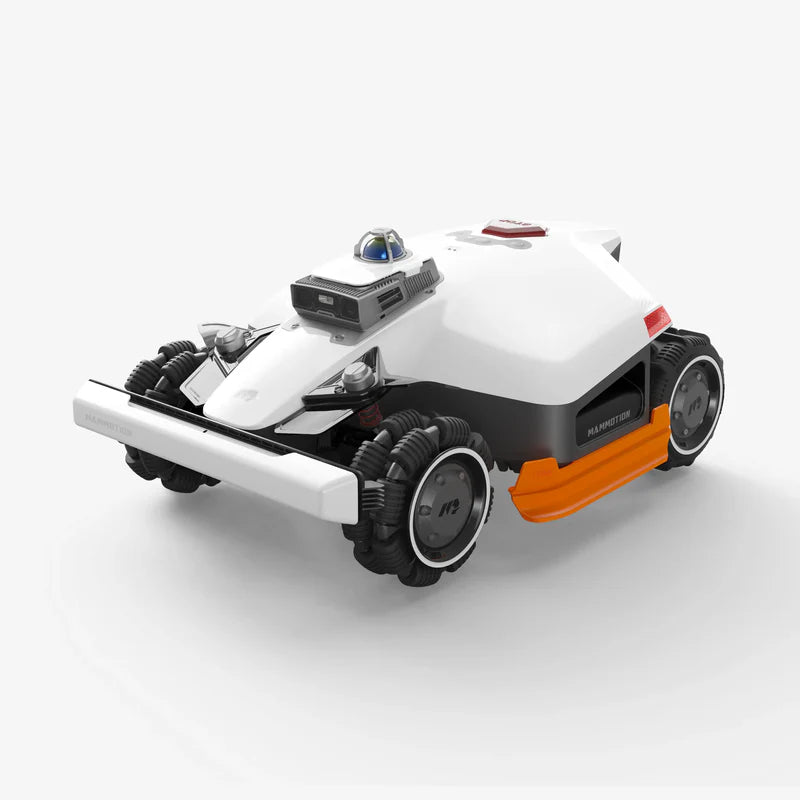

Mammotion Luba 3 AWD Robotic Lawn Mower
Developed by Mammotion Atlas Lab, it is the world’s first solution to integrate 360° LiDAR, NetRTK, and Vision for unmatched precision, adaptability, and stability. By using 360° LiDAR for navigation, Vision for rapid object recognition, and NetRTK for corrections, it delivers precision within ±1 cm, intelligent sensor switching, and seamless navigation across any lawn or terrain.
Twice The Brainpower, Twice The Awareness
With 10 trillion operations per second, the upgraded AI processor doubles LUBA 3 AWD’s perception and decision-making speed, allowing it to swiftly detect objects, analyze environments, and respond intelligently to any situation.
Adaptive Cutting, Optimized Performance
Two high-torque 165W motors with 6-blade discs work with LUBA 3’s AI vision to automatically adjust speed and power based on grass density, maximizing cutting performance and energy efficiency.
Notable Features:
• World's First Tri-Fusion Positioning powered by 360° LiDAR, RTK, and AI Vision.
• All-Wheel Drive for slopes up to 80% (38.6°).
• Dual 165W motors deliver high cutting efficiency of up to 5400 sq.ft/h.
• Advanced 10-Trillion-Ops AI with 300+ obstacle avoidance and Smart Cliff Shield.
• Adjustable cutting height tailored to multiple grass types.
• Smart app control for up to 50 mowing zones.
• DropMow for instant mowing with no setup required.
Specifications
Lawn Coverage
Small Model: Up to 0.37 acre
Mid Model: Up to 0.75 acre
Large Model: Up to 1.25 acres
Positioning & Navigation
Small Model
System: 360° LiDAR + Dual-Camera AI Vision
LiDAR Range: Up to 230 ft (80% reflectivity), 130 ft (10% reflectivity)
LiDAR FOV: 360° × 59°
4G: Free module with 3-year data
Mid Model
System: 360° LiDAR + RTK + Dual-Camera AI Vision
LiDAR Range: Up to 230 ft (80% reflectivity), 130 ft (10% reflectivity)
LiDAR FOV: 360° × 59°
4G: Free module with 3-year data
Large Model
System: 360° LiDAR + RTK + Dual-Camera AI Vision
LiDAR Range: Up to 230 ft (80% reflectivity), 130 ft (10% reflectivity)
LiDAR FOV: 360° × 59°
4G: Free module with 3-year data
Capability
Small Model
Max Multi-zone: 15
Climbing Ability: 80% (38.6°)
Drive: AWD (Four-Wheel Drive)
Battery: 9.4 Ah
Mid Model
Max Multi-zone: 30
Climbing Ability: 80% (38.6°)
Drive: AWD (Four-Wheel Drive)
Battery: 12 Ah
Large Model
Max Multi-zone: 50
Climbing Ability: 80% (38.6°)
Drive: AWD (Four-Wheel Drive)
Battery: 15 Ah
Cutting System (All Models)
Cutting Width: 15.7 in
Cutting Height:
• S Version: 1.0 – 2.7 in
• H Version: 2.2 – 4.0 in

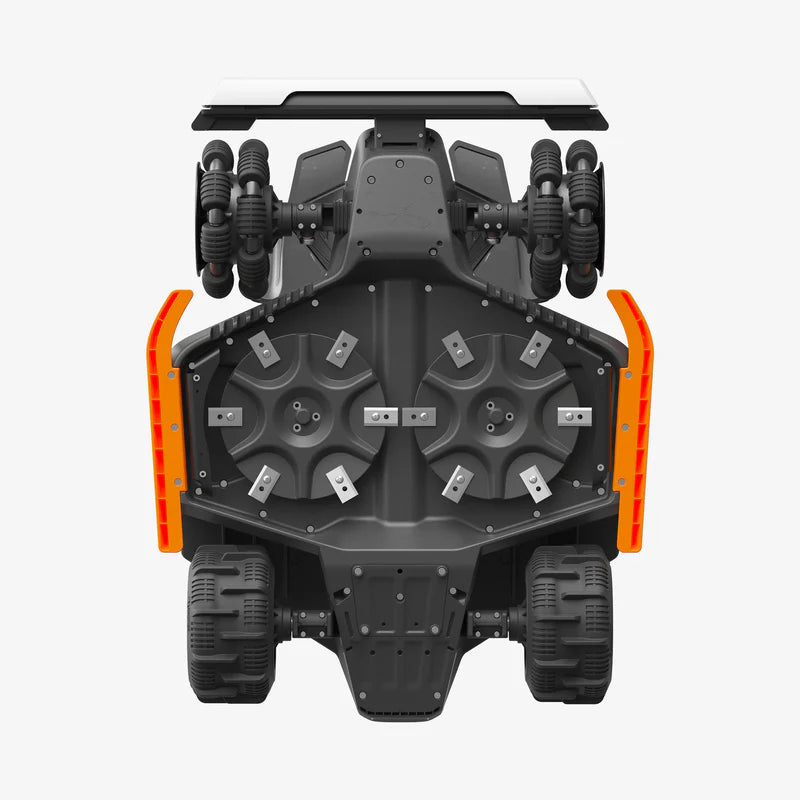

Cutting Discs: 2
Blades: 6 pivoting razor blades per disc
Motor Power
Small Model: 88W
Mid Model: 165W
Large Model: 165W
Efficiency
Small Model
Mowing Speed: 4,300 sq.ft/h
Coverage per Charge: 0.2 acre
Charging Time: 90 min
Runtime: 135 min
Mid Model
Mowing Speed: 5,400 sq.ft/h
Coverage per Charge: 0.37 acre
Charging Time: 120 min
Runtime: 175 min
Large Model
Mowing Speed: 5,400 sq.ft/h
Coverage per Charge: 0.37 acre
Charging Time: 145 min
Runtime: 215 min
Sweeper Kit (All Models)
Max Sweeping Zones: Not supported
Sweeping Bag Capacity: Not supported
Size & Weight (All Models)
Dimensions (L × W × H):
• S Version: 27.2 × 21 × 11 in
• H Version: 27.2 × 20.8 × 12.8 in
Weight: 41 lbs

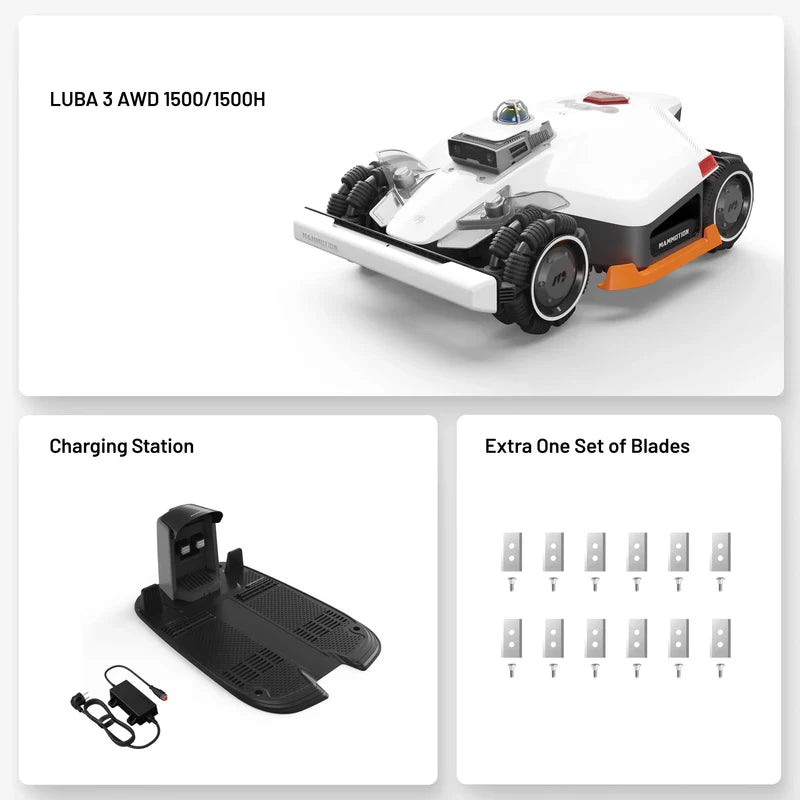

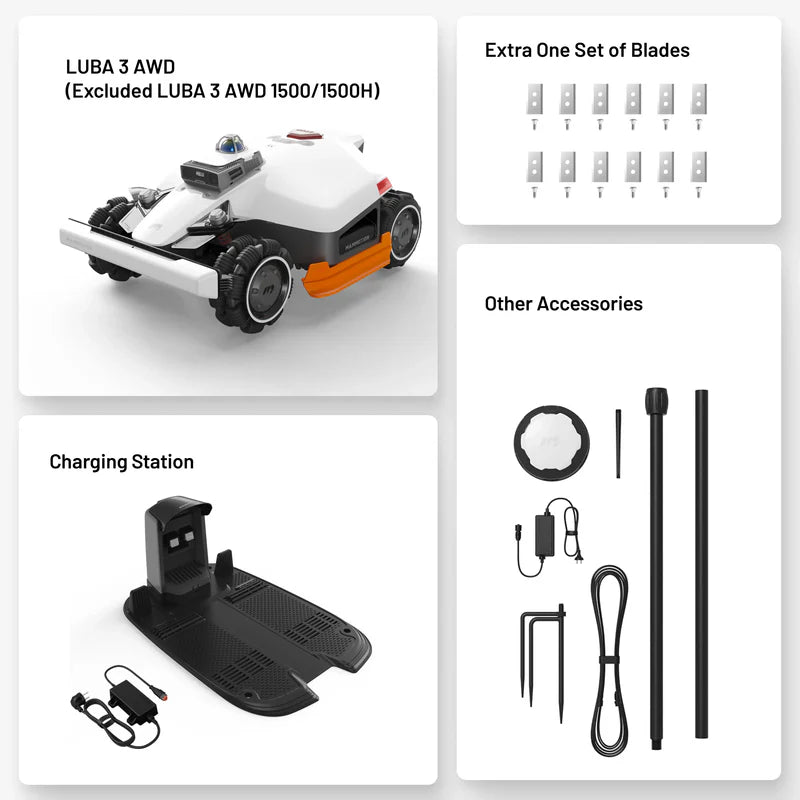

What’s in the Box
1 x LUBA 3 AWD
1 x Extra Set of Blades
1 x Charging Station
1 x Charging Station Power Supply
1 x RTK Reference Station
1 x RTK Antenna
1 x RTK Power Supply
1 x RTK Extension Cable (10m)
1 x Ground Pile
Note: LUBA 3 AWD 1500 / 1500H does not include the RTK Reference Station, RTK Antenna, RTK Extension Cable, or RTK Power Supply.
