Power Switch LW26GS-20 for E-STR-2000 Series

The Power Switch LW26GS-20 is a high-quality rotary isolator switch designed specifically for the E-STR-2000 Series pallet stretch wrappers. Featuring a robust and ergonomic design, this switch provides reliable and secure disconnection of power during maintenance or emergency stops, ensuring optimal safety in industrial environments.

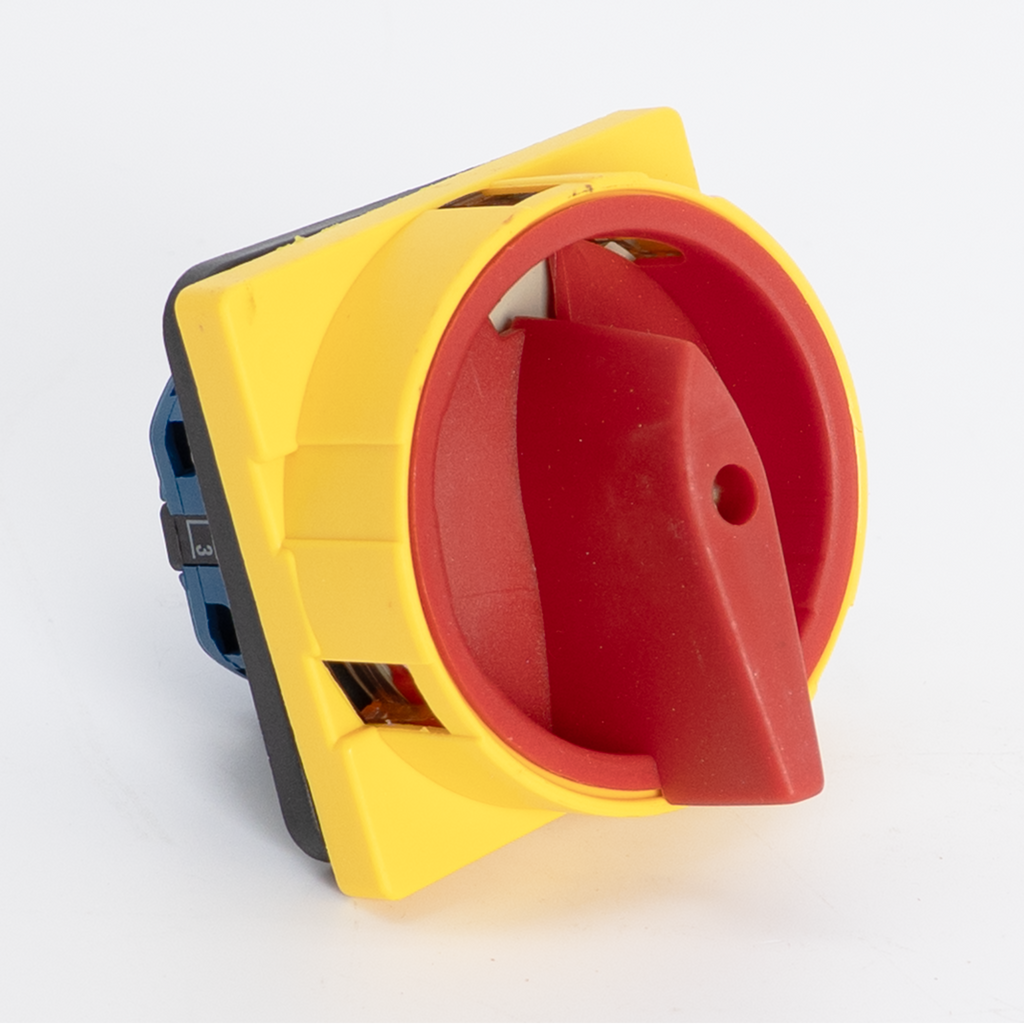

With a red rotary handle and yellow housing, the LW26GS-20 offers clear visual indication of operational status. The switch is mounted directly onto the control panel of the stretch wrapper and integrates seamlessly into the machine’s electrical safety system.

Key Features:

• Rated Current: 20A – Suitable for medium-load power control applications.

• Visual Safety Design: Red rotary knob with lockout capability and bright yellow base enhance visibility and prevent accidental reactivation.

• Durable Construction: Built with industrial-grade plastic and metal contacts to withstand heavy use.

• Easy Operation: Smooth rotary motion with a solid detent for OFF/ON positions.

• Compact Form Factor: Designed to fit standard panel openings with minimal intrusion.

• Screw Terminals: Ensures secure wire connections for consistent performance.

Technical Specifications:

• Model: LW26GS-20

• Current Rating: 20 Amps

• Switch Type: Rotary Isolator

• Mounting: Panel Mount

• Poles: 3

• Operating Positions: OFF / ON

• Build Material: Flame-retardant ABS plastic housing with durable internal contacts

• Locking Function: Yes – lockout/tagout compatible

• Application Voltage: 690V AC max (as per general LW26 series standards)

Applications:

• Primary power disconnect for E-STR-2000 Series pallet stretch wrappers

• Electrical isolation during machine maintenance

• Emergency stop or service switch for packaging line equipment

• Any industrial machinery requiring safe disconnection of 3-phase power

Benefits:

• Enhances operator safety by ensuring the machine cannot be powered during service.

• Reduces downtime with quick and simple panel access for power isolation.

• Long service life in rugged industrial environments.

Compatibility:

• Fully compatible with:

  • E-STR-2000 Series

  • Other industrial pallet wrapping equipment using 20A rated switches

Upgrade your E-STR-2000 stretch wrapper with the LW26GS-20 Power Switch for dependable performance and superior operational safety.
