PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the gray Move SE SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom from PTZOptics.
The Move SE camera captures resolutions up to 1080p60 via IP, HDMI, USB-C, and 3G-SDI, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. It features wide dynamic range, 3D noise reduction, and superior low-light performance.
The built-in zoom lens has an optical zoom range of 12x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.
The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
Highlights:
- Capture up to 1080p60, Auto-Tracking
- 12x Optical Zoom, 16x Digital Zoom
- HDMI 1.3, 3G-SDI, USB-C & IP Output
- Includes NDI|HX Support
- 255 Presets, 3.5mm Stereo Audio In/Out
- 6.9 to 72.5° Angle of View
- High Performance in Low Light
- RS-232, RS-485 & IP Control Support
- Supports H.265/H.264/MJPEG Compression
- DC & PoE Support
Specifications:
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Effective Sensor Resolution |
2.07 Megapixel
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus
|
Exposure Control
| Shutter Speed |
1/10000 to 1/30 Seconds
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
Lens
| Focal Length |
4.1 to 49.2mm
|
| Max Optical Zoom |
12x
|
| Max Digital Zoom |
16x
|
| Field of View |
Horizontal: 72.5 to 6.9°
Vertical: 44.8 to 3.9°
|
| Maximum Aperture |
f/1.8 to 2.68
|
Video Capture
| Video Output |
via RJ45 / USB / HDMI
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1280 x 720 at 59.94/60.00/50 fps
via SDI/BNC
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1280 x 720 at 59.94/60.00/50 fps
|
| Internal Recording |
No
|
| Audio Recording |
AAC Audio
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/H.265/MJPEG via ONVIF/RTMP/RTMPS/RTSP/SRT/TCP/UDP
320 x 240 to 1920 x 1080 at 60p (Simultaneous Multi-Stream: 0.03 to 102.4 Mb/s)
|
Control
| Presets |
255
|
| Pan/Tilt |
Tilt: 120° (-30 to 90°) at 1.7 to 100°/s
Pan: 340° (-170 to 170°) at 1.7 to 69.9°/s
|
| Tally Light |
Yes
|
Networking
| Wireless |
IR
|
| Wireless Range |
29.5' / 9 m (IR)
|
| Max Cable Length |
98.4' / 30 m (RS-232)
3937' / 1200 m (RS-485)
|

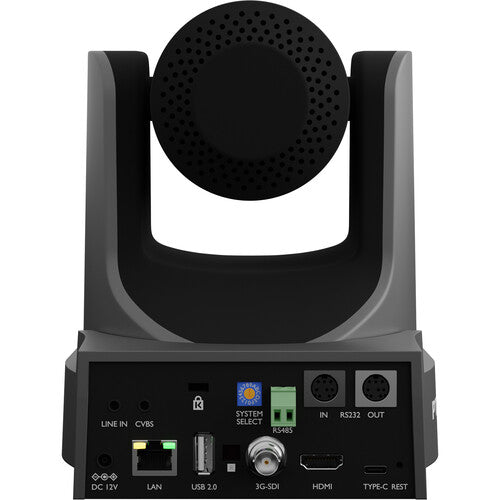

Interface
| Video I/O |
1x HDMI 1.4 Output
1x BNC (3G-SDI) Output
1x RJ45 Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output
|
| Other I/O |
1x D-Sub 8-Pin (RS-232) Control Input
1x D-Sub 8-Pin (RS-232) Control Output
1x Block 2-Pin (RS-485) Control Input/Output
1x USB-A (Firmware)
1x RJ45 (Lens Control)
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
Power
| PoE Support |
Yes: PoE 802.3af
|
| Power I/O |
1x DC (12VDC) Input
|
| Power Consumption |
Device: 2 A (12 W)
|
Environmental
| Operating Conditions |
14 to 104°F / -10 to 40°C at 10 to 80% Humidity
|
| Storage Conditions |
-40 to 140°F / -40 to 60°C
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General
| Mounting |
1x 1/4"-20 Female
1x M3 Female
|
| Materials |
Aluminum, Plastic
|
| Certifications |
FCC Part 15 Class A
|
| OS Compatibility |
Windows 7 or Later / macOS / Linux
|
| Security Lock Support |
Kensington Lock Slot
|
| Dimensions (W x H x D) |
6.7 x 6.5 x 5.6" / 169 x 164 x 142 mm (With Tilt Up)
|
| Weight |
3.24 lb / 1.47 kg (Body Only)
|
Packaging Info
| Package Weight |
6.7 lb
|
| Box Dimensions (LxWxH) |
10.4 x 9.9 x 9.8"
|
What's in the Box:
1 x PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
1 x 12 VDC Power Adapter
1 x IR Remote Control
1 x USB-A to USB-A Cable
1 x RS-232 Cable
2 x AA Battery
Limited 5-Year Manufacturer Warranty
