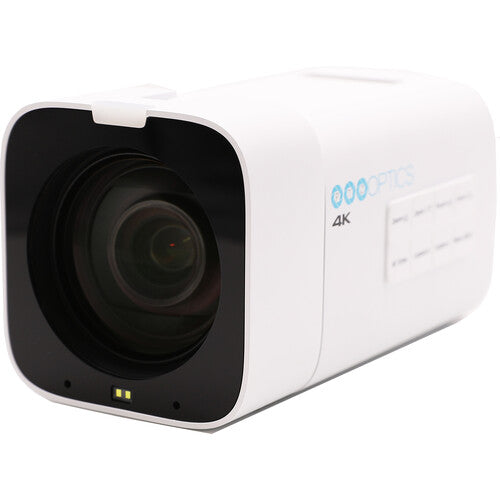

PTZOptics Studio 4K Camera with 12x Optical Zoom (White)
Capture UHD 4K60 resolution video with this Studio 4K Camera with 12x Optical Zoom from PTZOptics. The Studio 4K features a 12x zoom lens with a 72.5° angle of view as well as a 16x digital zoom to get even closer to your subjects. The camera allows you to stream live on a network using NDI|HX2, SRT, RTMP/RTSP using H.264/H.265 video formats. Control options include IP and RS-485 using the built-in terminal connector.

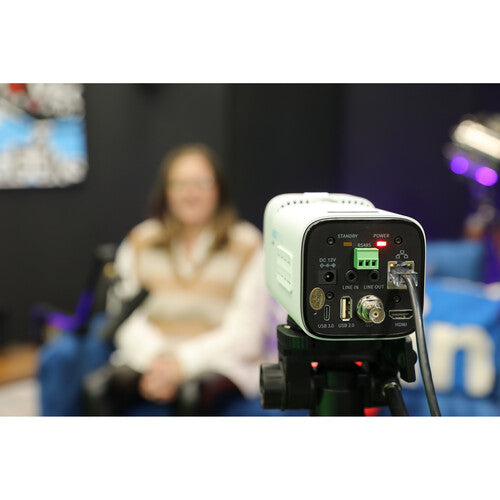

Other connectivity options include USB-C and SDI outputs with a maximum resolution of 1080p60, and an HDMI output with support for up to UHD 4K60. You can power the camera using a power adapter or via PoE+ (Power over Ethernet), so the camera can be powered and connect to the network using a single Ethernet cable.
4K Video Capture
The Studio 4K can be used as a standalone box camera or as an addition to a larger studio setup. Its high-resolution sensor provides crystal-clear 4K resolution, 12x optical zoom, and it is conveniently Hive-Linked to the easy-to-use PTZOptics online platform, Hive Studio, delivering connectivity and control from anywhere.
Multiple Connections
The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI|HX2 support, allowing seamless integration into various video production setups. It can connect directly to a live production switcher, streams over a network, or records through an SDI interface. Built-in connectivity links to the online Hive Studio platform automatically.
Powerful Zoom

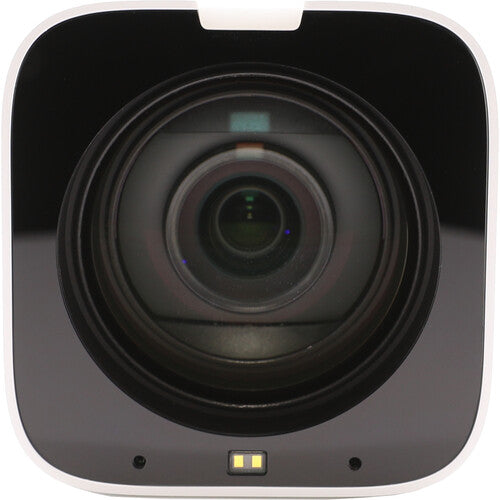

Capture a head-and-shoulders shot of your subject from up to 90' away with 12x optical zoom, and even closer with 16x digital zoom, making it ideal for medium or large spaces. It features a maximum 72.5° wide field of view.
Applications
The Studio 4K fits right into a Move SE or Move 4K multi-camera setup, enhancing your production capabilities. Its high-quality construction and discreet profile makes it a great choice for streaming meetings, worship services, courtrooms, sports, and security applications.
Specifications:
Resolution: Up to UHD 4K (3840×2160) @ 60fps
Image Sensor: ~1/2.8" CMOS, ~8MP
Optical Zoom: 12x
Digital Zoom: 16x
Field of View: ~72.5° (wide)
Lens & Imaging
Focal length: ~4.1mm – 49.2mm
Aperture: approx. f/1.8 – f/2.68
Horizontal FOV: ~6.9° – 72.5°
Designed for clear 4K video + medium/large room coverage
Streaming & Formats
Protocols supported: NDI|HX2 SRT RTMP / RTSP
Compression: H.264 / H.265
Ideal for live streaming + broadcast setups
Connectivity

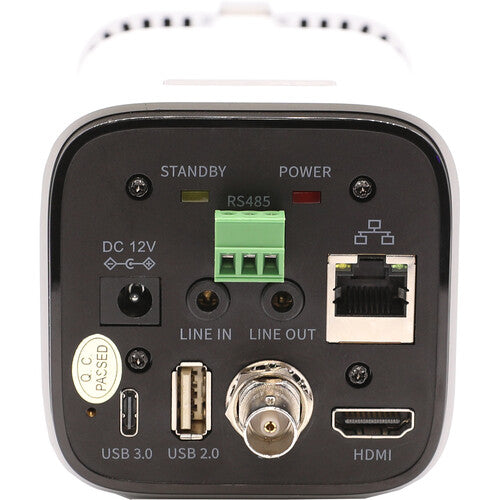

Video Outputs: HDMI (up to 4K60) 3G-SDI (up to 1080p60) USB-C
IP streaming
Control Options: IP control RS-485 control
Power
Power options: DC adapter PoE+ (Power over Ethernet)
Features
Hive-linked (remote control via PTZOptics platform)
Works with OBS + other streaming tools
Suitable for: Studios Worship spaces Classrooms Corporate streaming
Physical Specs
Dimensions: ~145 × 76 × 78.5 mm
Weight: ~680 g
Color: White
What's in the Box:
1 x PTZOptics Studio 4K Camera with 12x Optical Zoom (White)
1 x Power Supply

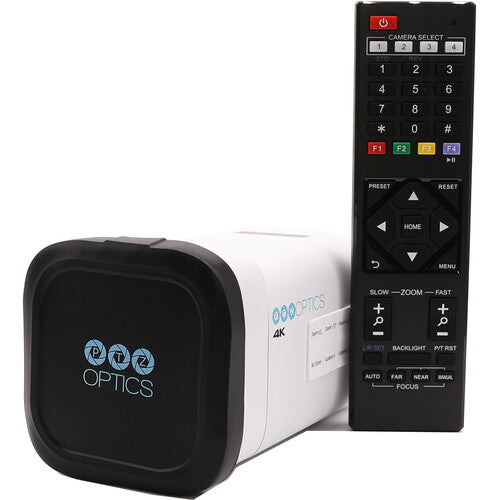

1 x IR Remote Control
2 x AA Battery (Remote)
1 x USB-C to USB-A Cable
1 x Camera Lens Cap
Limited 5-Year Manufacturer Warranty
