PTZOptics UHD 4K Move and Studio Camera Bundle with SuperJoy Controller

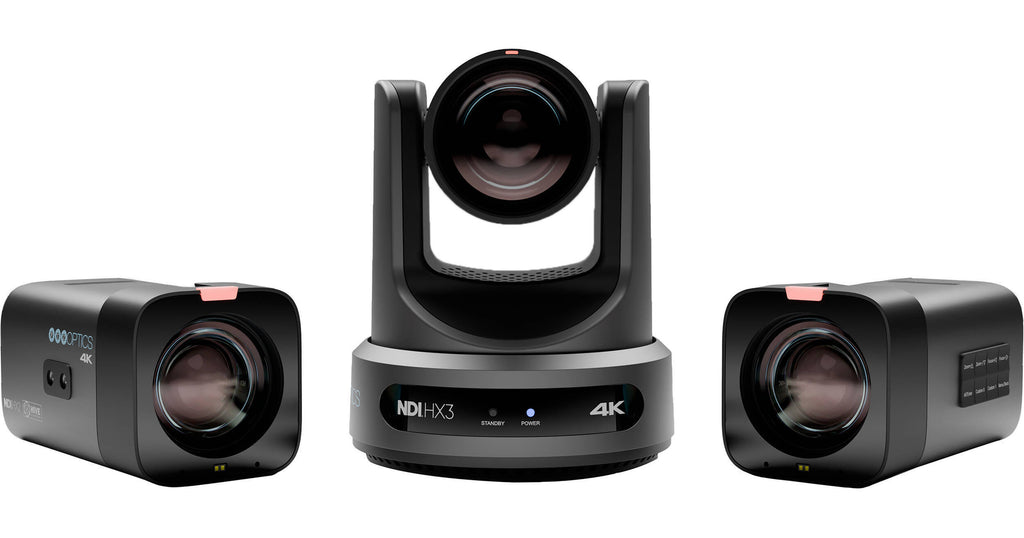

Add high-resolution video streaming to your classroom, house of worship, or conference room using the UHD 4K Move and Studio Camera Bundle with SuperJoy Controller from PTZOptics. This bundle comprises one Move 4K camera with PTZ control and auto-tracking, two box-style Studio cameras, and one SuperJoy camera controller.

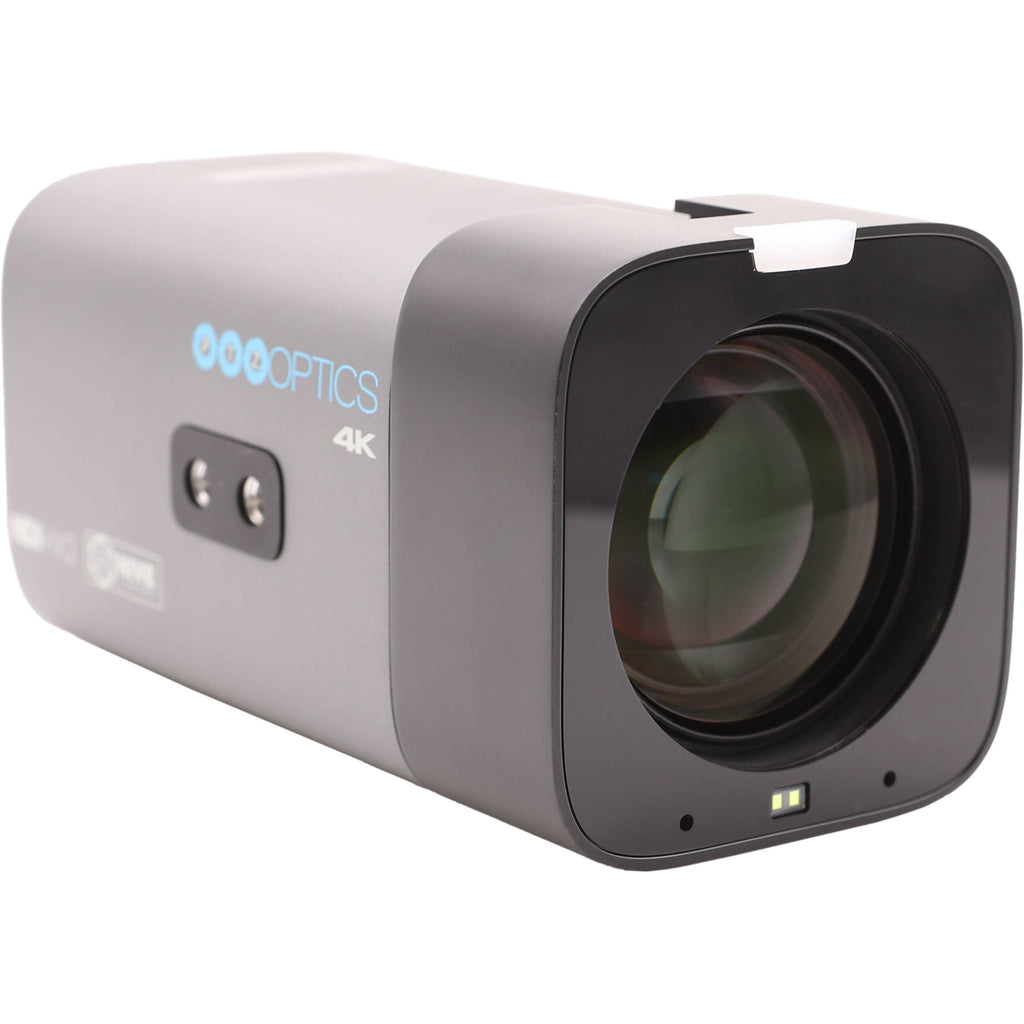

Capture UHD 4K60 resolution video with this Studio 4K Camera with 12x Optical Zoom from PTZOptics. The Studio 4K features a 12x zoom lens with a 72.5? angle of view as well as a 16x digital zoom to get even closer to your subjects. The camera allows you to stream live on a network using NDI|HX2, SRT, RTMP/RTSP using H.264/H.265 video formats. Control options include IP and RS-485 using the built-in terminal connector.
Other connectivity options include USB-C and SDI outputs with a maximum resolution of 1080p60, and an HDMI output with support for up to UHD 4K60. You can power the camera using a power adapter or via PoE+ (Power over Ethernet), so the camera can be powered and connect to the network using a single Ethernet cable.
4K Video Capture
The Studio 4K can be used as a standalone box camera or as an addition to a larger studio setup. Its high-resolution sensor provides crystal-clear 4K resolution, 12x optical zoom, and it is conveniently Hive-Linked to the easy-to-use PTZOptics online platform, Hive Studio, delivering connectivity and control from anywhere.
Multiple Connections
The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI|HX2 support, allowing seamless integration into various video production setups. It can connect directly to a live production switcher, streams over a network, or records through an SDI interface. Built-in connectivity links to the online Hive Studio platform automatically.
Powerful Zoom
Capture a head-and-shoulders shot of your subject from up to 90' away with 12x optical zoom, and even closer with 16x digital zoom, making it ideal for medium or large spaces. It features a maximum 72.5? wide field of view.
Applications
The Studio 4K fits right into a Move SE or Move 4K multi-camera setup, enhancing your production capabilities. Its high-quality construction and discreet profile makes it a great choice for streaming meetings, worship services, courtrooms, sports, and security applications.
Key Features:

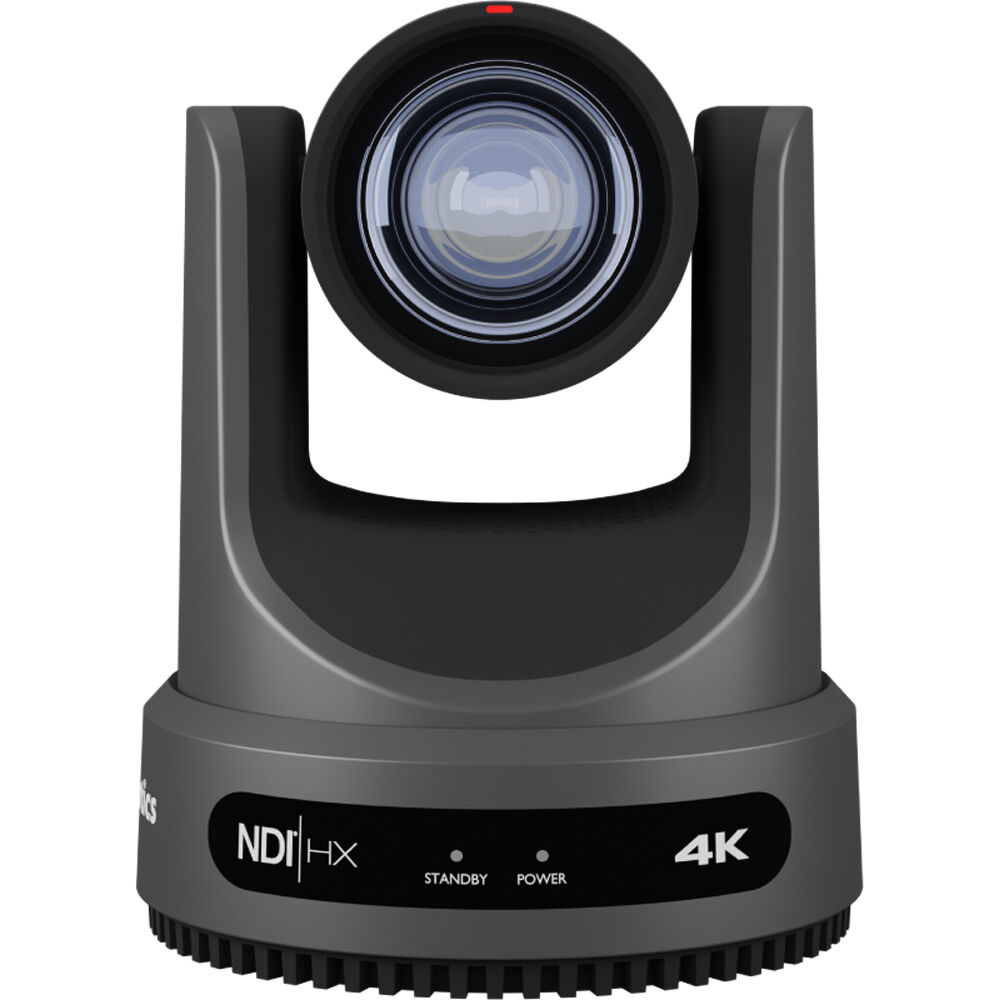

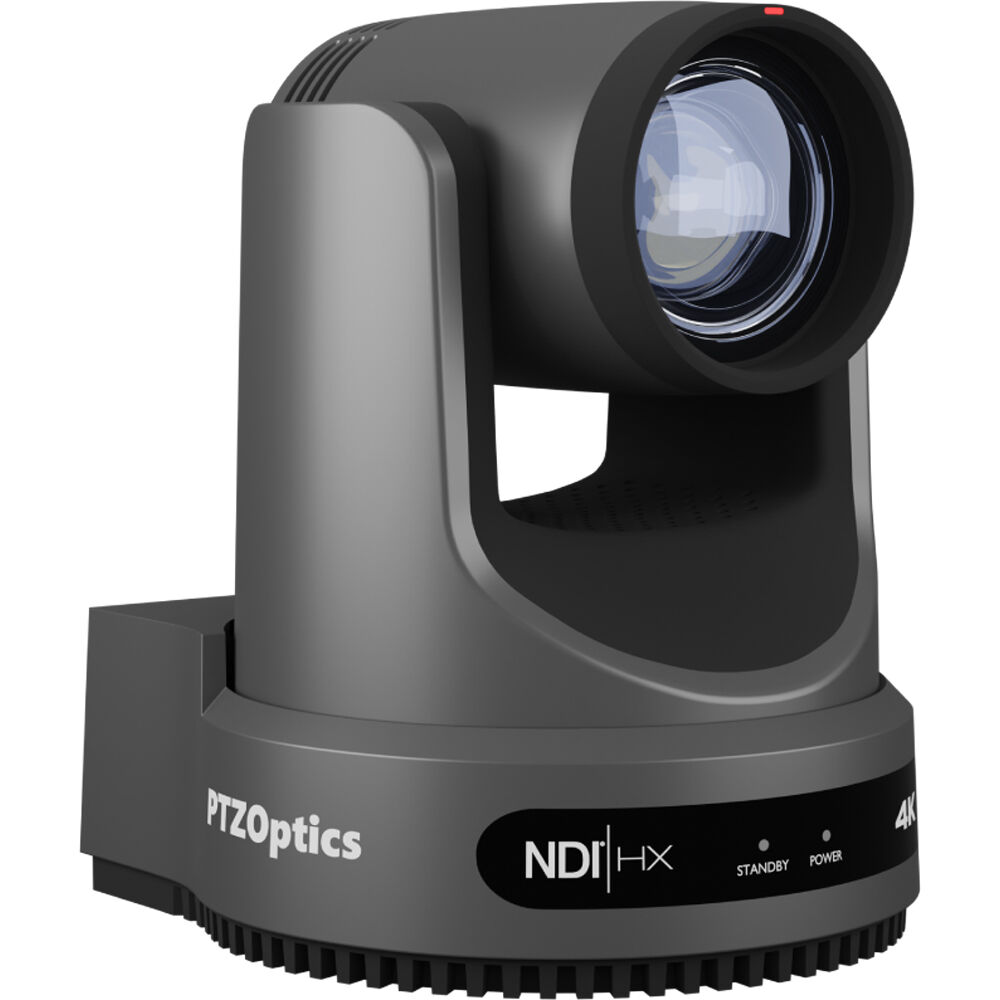

- One Move Auto-Tracking UHD 4K Camera
- Two Studio Box-Style UHD 4K Cameras
- One SuperJoy PTZ Control Surface
- Capture up to UHD 4K60 Resolution
- 12x Optical Zoom with 16x Digital Zoom
- NDI|HX2/SRT/RTSP/RTMP Streaming
- SDI, HDMI & USB-C Outputs
- Audio Input and Output
- RS-485 Control, PoE+ Support
Specifications:
Camera:
| Image Sensor |
1/2.5"-Type
|
| Effective Sensor Resolution |
8.51 Megapixel (3840 x 2160)
|
| Shutter Speed |
1/10000 to 1/30 Seconds
|
| Max Optical Zoom |
12x
|
| Max Digital Zoom |
16x
|
| Max Video Output |
via RJ45 / USB / HDMI
Up to UHD 4K at 25/29.97/50/59.94/60.00 fps
via SDI/BNC
Up to 1080p at 25/29.97/50/59.94/60.00 fps
|
| Max Recording Modes |
No
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/H.265/MJPEG via HTTP/NDI/NDI HX/NDI HX3/ONVIF/RTMP/RTMPS/RTSP/SRT/UDP
320 x 240 to 3840 x 2160 (32.00 Kb/s)
|
| Wireless |
IR
|
| PoE Support |
Yes: PoE+ 802.3at
|
| Mounting |
1x 1/4"-20 Female
|
Imaging
| Image Sensor |
1/2.5"-Type CMOS
|
| Effective Sensor Resolution |
8.51 Megapixel (3840 x 2160)
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus
|
Exposure Control
| Shutter Speed |
1/10000 to 1/30 Seconds
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 2500 to 8000K
Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR
|
Lens
| Focal Length |
6.25 to 125mm
|
| Max Optical Zoom |
12x
|
| Max Digital Zoom |
16x
|
| Field of View |
Horizontal: 72.5 to 6.9°
Vertical: 44.8 to 3.9°
|
| Maximum Aperture |
f/1.58
|
Video Capture
| Video Output |
via RJ45 / USB / HDMI
3840 x 2160 at 25/29.97/50/59.94/60.00 fps
1920 x 1080p at 59.94/60.00/25/29.97/50 fps
1920 x 1080i at 59.94/60.00/50 fps
1280 x 720 at 59.94/60.00 fps
via SDI/BNC
1920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 59.94/60.00/50 fps
1280 x 720 at 59.94/60.00 fps
|
| Embedded Audio |
HDMI/LAN (RJ45)/USB/BNC Output
|
| Internal Recording |
No
|
| Audio Recording |
AAC Audio
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/H.265/MJPEG via HTTP/NDI/NDI HX/NDI HX3/ONVIF/RTMP/RTMPS/RTSP/SRT/UDP
320 x 240 to 3840 x 2160 (32.00 Kb/s)
|
Control
| Presets |
255
|
| Pan/Tilt |
Tilt: 120° (-30 to 90°) at 1.7 to 100°/s
|
| Tally Light |
Yes
|
Networking
| Wireless |
IR
|
| Wireless Range |
30' / 9.1 m
|
| Max Cable Length |
3937' / 1200 m (RS-485)
98.5' / 30 m (RS-232)
|

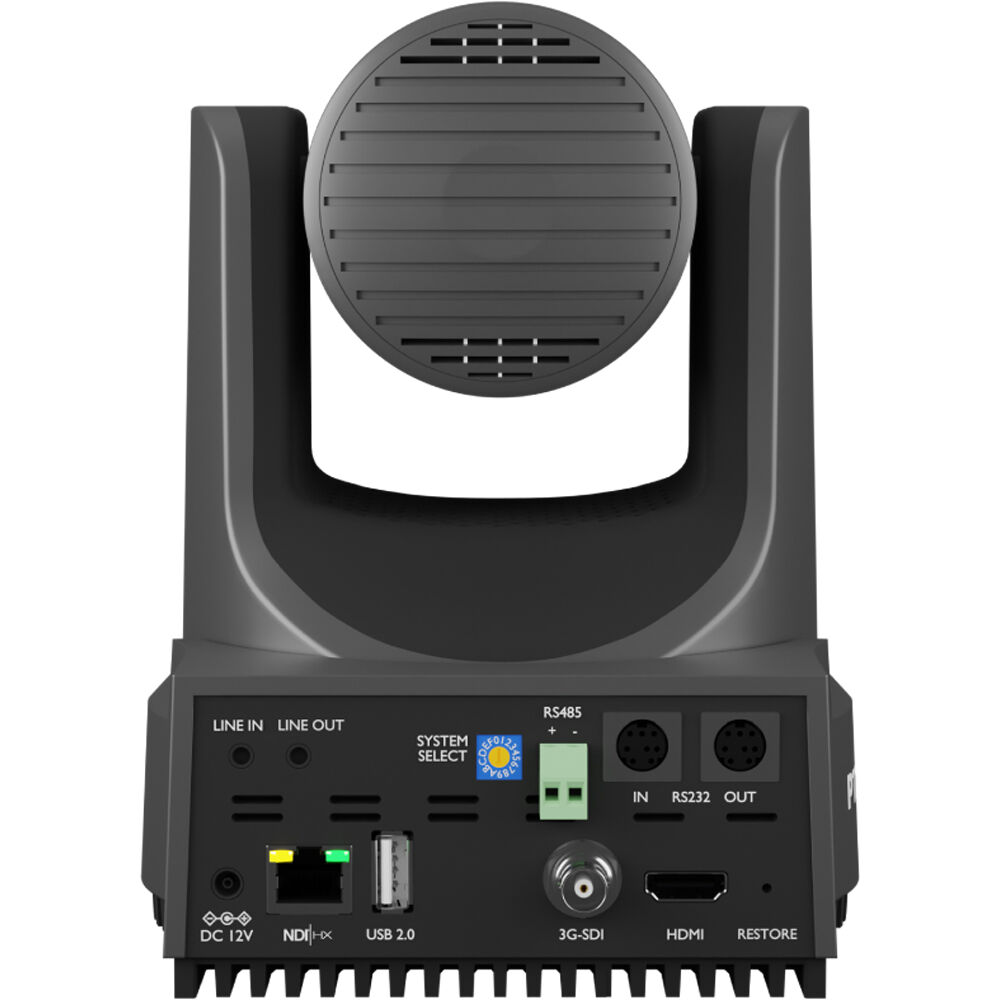

Interface
| Video I/O |
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output
1x RJ45 (NDI) Output
1x USB-A 2.0 Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output
|
| Other I/O |
1x D-Sub 8-Pin (RS-232) Control Input
1x D-Sub 8-Pin (RS-232) Control Output
1x Block 2-Pin (RS-485) Control Input/Output
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
Power
| PoE Support |
Yes: PoE+ 802.3at
|
| Power I/O |
1x DC (12VDC) Input
|
| Power Consumption |
Device: 12 VDC at 2 A (12 W)
|
Environmental
| Operating Conditions |
22 to 72°F / -10 to 40°C at 10 to 80% Humidity
|
| Storage Conditions |
-40 to 140°F / -40 to 60°C
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General
| Mounting |
1x 1/4"-20 Female
|
| Materials |
Aluminum, Plastic
|
| OS Compatibility |
Computer: Windows 7 to 11 / macOS / Linux
Mobile: Android Only
|
| Dimensions (W x H x D) |
6.6 x 6.5 x 5.6" / 168.4 x 164.5 x 141.5 mm
|
| Weight |
3.24 lb / 1.47 kg (Body Only)
|
Packaging Info
| Package Weight |
6.3 lb
|
| Box Dimensions (LxWxH) |
10.8 x 9.9 x 9.1"
|

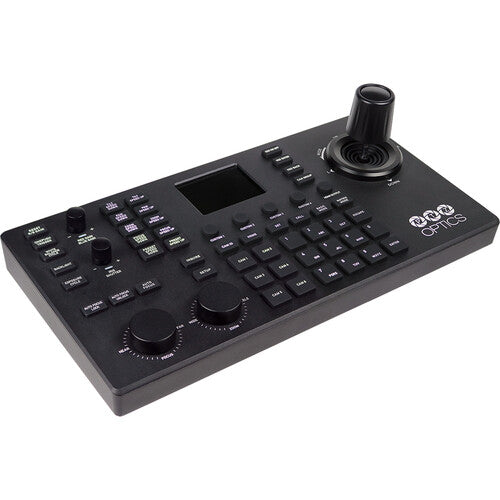

Joystick Controller
| Number of Supported Cameras |
4 Channels via IP (7 Per Group)
4 Channels via Serial (7 Per Group)
|
| Supported Control Protocols |
IP
Pelco-D
Pelco-P
RS-232
RS-422
RS-485
VISCA
|
| Control I/O |
1x RJ45 (LAN)
1x Block (RS-422, RS-485) Output
1x DE-15/DB-15 (Pelco-D, Pelco-P, RS-232, VISCA) Output
|
| Other I/O |
1x USB-A Input
|
| Video I/O |
1x HDMI (Loop Output)
|
| Controls |
1x Pan/Tilt, Zoom Joystick
|
| Presets |
255 via IP, RS-232, VISCA
|
Power
| PoE Support |
Yes: PoE 802.3af
|
| Power Connectors |
1x Barrel / Coaxial
|
| Power Consumption |
6 W
|
| Input Power |
12 VDC
|
Physical
| Operating Conditions |
14 to 122°F / -10 to 50°C at 10 to 90% Humidity
|
| Security Lock Support |
No
|
| Dimensions |
14.6 x 7.1 x 4" / 37 x 18 x 10.1 cm
|
| Weight |
3.7 lb / 1.7 kg
|
Packaging Info
| Package Weight |
5.42 lb
|
| Box Dimensions (LxWxH) |
15 x 8.6 x 5"
|
What's in the Box:
2 x PTZOptics Studio 4K Camera with 12x Optical Zoom (Gray)
1 x Power Supply
1 x IR Remote Control
2 x AA Battery (Remote)
1 x USB-C to USB-A Cable
1 x Camera Lens Cap
Limited 5-Year Manufacturer Warranty
1 x PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
1 x IR Remote Control
1 x 12 VDC Power Adapter
1 x USB-A to USB-A Cable
1 x RS-232 Cable
2 x AA Battery
Limited 5-Year Manufacturer Warranty
1 x PTZOptics SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller
1 x 12 VDC Power Adapter
1 x RS-232C Cable (8')
Limited 2-Year Manufacturer Warranty
