PVC Plastic Panel Decal for E-CBS-1010I-TIJ

Overview

The PVC Plastic Panel Decal for E-CBS-1010I-TIJ is a precision-cut overlay designed to enhance the interface, usability, and durability of the E-CBS-1010I-TIJ thermal inkjet coding system. This professionally printed decal serves as both a functional and aesthetic front panel upgrade, offering visual guidance for operators while protecting underlying components from wear, moisture, and contaminants.

Key Features

• Custom Fit: Tailored exclusively for the E-CBS-1010I-TIJ control panel layout, ensuring a precise alignment with control buttons, indicators, and display cutouts.

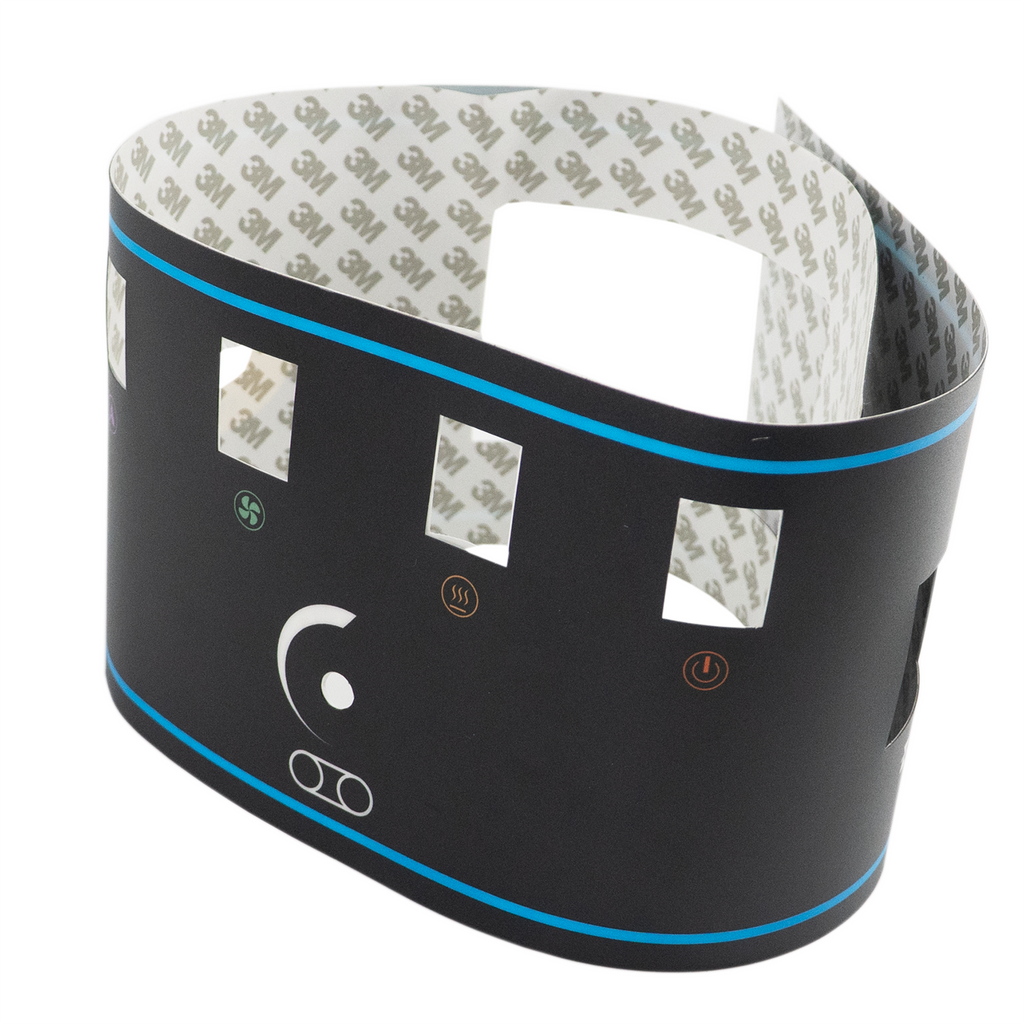

• Material: High-grade, flexible polyvinyl chloride (PVC) with durable adhesive backing.

• Surface Finish: Matte anti-glare surface with a protective laminate for scratch and chemical resistance.

• Color Scheme: Black base with blue border accents and high-contrast icons for easy readability in low-light conditions.

• Tactile Markings: Clearly printed indicators for control buttons, emergency stop, and functional icons (e.g., power, start, stop, ink levels).

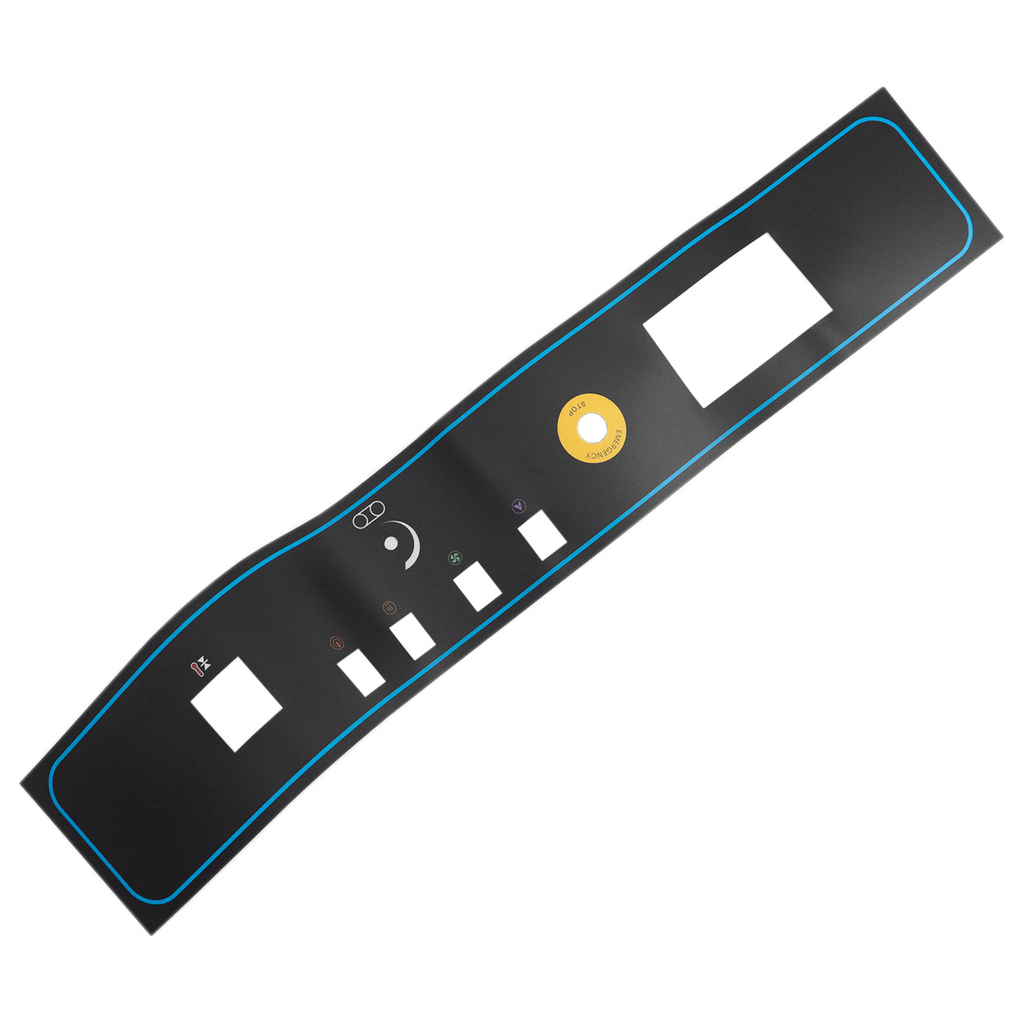

Design and Layout

• Cutouts:

  • 2 Large Rectangular Windows: For display and primary screen visibility.

  • 1 Emergency Stop Cutout: Clearly marked with a yellow printed circle and “EMERGENCY STOP” label.

  • 4 Square Control Button Cutouts: Aligned with operational keys (Start, Stop, Reset, etc.).

  • 1 Rotary Switch Guide: Semi-circular icon for selector knob orientation.

• Printing: UV-stable, wear-resistant inks for prolonged outdoor or industrial exposure.

• Legend Symbols: Color-coded function icons for intuitive operation:

  • Orange (Start)

  • Green (Run)

  • Purple (Utility)

  • Blue (Stop)
