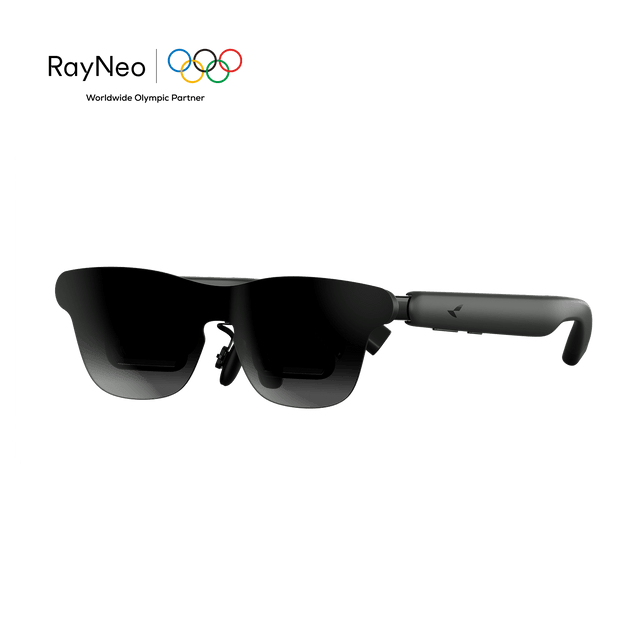

RayNeo GT Max M: A Personal Cinema with a Wider View
Enjoy movies and games on an adjustable virtual screen with a wide 59° field of view. RayNeo GT Max combines Micro-OLED visuals, native 3DoF tracking, and quad speakers co-tuned with Bang & Olufsen in a 78 g design. This M bundle includes a lens shade.

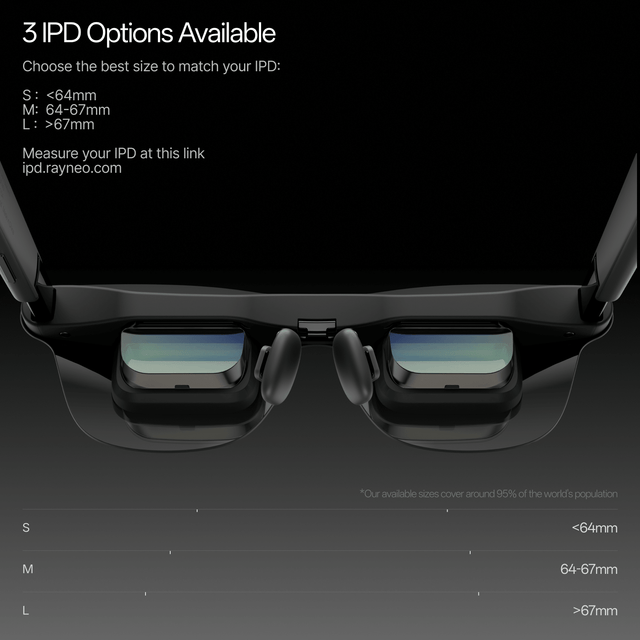

Choose your fit: Size M is designed for an interpupillary distance (IPD), the distance between your pupils, of 64–67 mm. The M and L versions offer the same display features with different frame sizing.
Key Features
- 227", 267", or 307" equivalent virtual screens at 6 m.
- Up to 120Hz refresh rate, with 98% DCI-P3 color coverage.
- Pinned, Follow, and Steady modes let you choose how the screen responds to head movement.
- Head-tracked spatial audio and Whisper Mode for quieter listening.
- Dolby Vision playback requires a compatible RayNeo Pocket TV player and Dolby Vision content; the player is sold separately.
Compatibility & Setup
Connect to a compatible video source using USB-C with DisplayPort video output. A USB-C charging port alone does not guarantee video compatibility. HDMI devices and game consoles may require a compatible adapter or dock, sold separately. Available resolution, refresh rate, and viewing features depend on the source device and content.
Specifications
| Specification |
Details |
| Product Type |
AR Smart Glasses with Lens Shade |
| Model |
RayNeo GT Max M |
| IPD Size |
M: 64–67 mm |
| Virtual Display Size |
227" / 267" / 307" equivalent at 6 m |
| Field of View (FOV) |
59° |
| Display Panel |
0.6" SeeYa Micro-OLED |

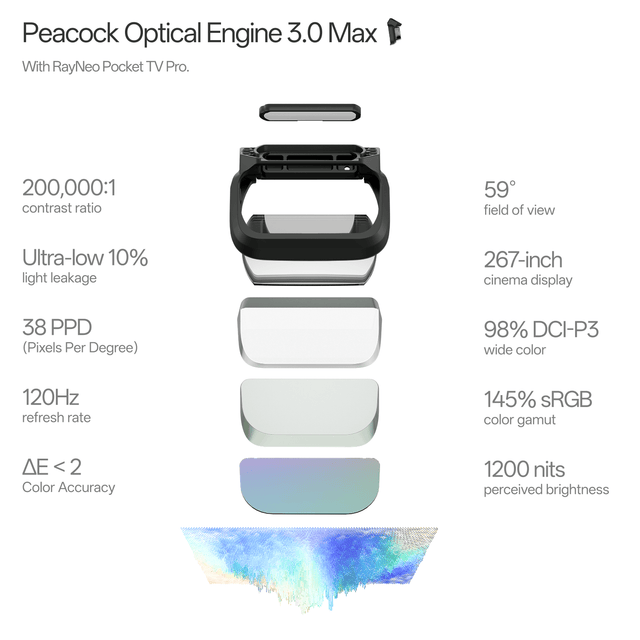

| Optical Engine |
Peacock Optical Engine 3.0 Max |
| Resolution |
1920 × 1080 (2D) / 3840 × 1080 (3D) |
| Refresh Rate |
120Hz (2D) / 60Hz (3D) |
| Pixels Per Degree (PPD) |
38 |
| Brightness |
Up to 1,200 nits; 336 nits in Pinned Mode |
| Contrast Ratio |
200,000:1 |
| Color Gamut |
98% DCI-P3 / 145% sRGB |
| Color Accuracy |
ΔE < 2 |
| HDR |
AI HDR |
| Dolby Vision |
Requires a compatible RayNeo Pocket TV player and Dolby Vision content |
| 3DoF Tracking |
Native 3DoF via Zone 360 chip |
| 3DoF Modes |
Steady, Follow, Pinned |
| Display Chip |
Vision 4000 |
| Audio |
Bang & Olufsen-tuned quad speakers |
| Spatial Audio |
Immersive spatial sound with head tracking |
| Private Listening |
Whisper Mode |
| Dimming |
3840Hz high-frequency dimming |
| Connectivity |
USB-C with DisplayPort compatibility |
| Compatible Devices |
Smartphones, tablets, laptops, PCs, handheld consoles and HDMI devices via adapter |
| 3D Support |
Native 3D + AI 2D-to-3D conversion |
| Prescription Support |
Yes |

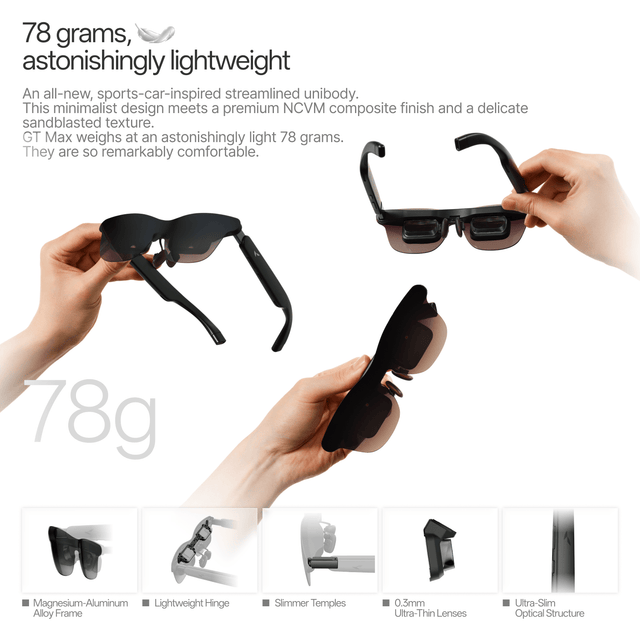

| Weight |
78 g |
| Nose Pads |
Adjustable; 3 IPD sizes available across GT Max range |

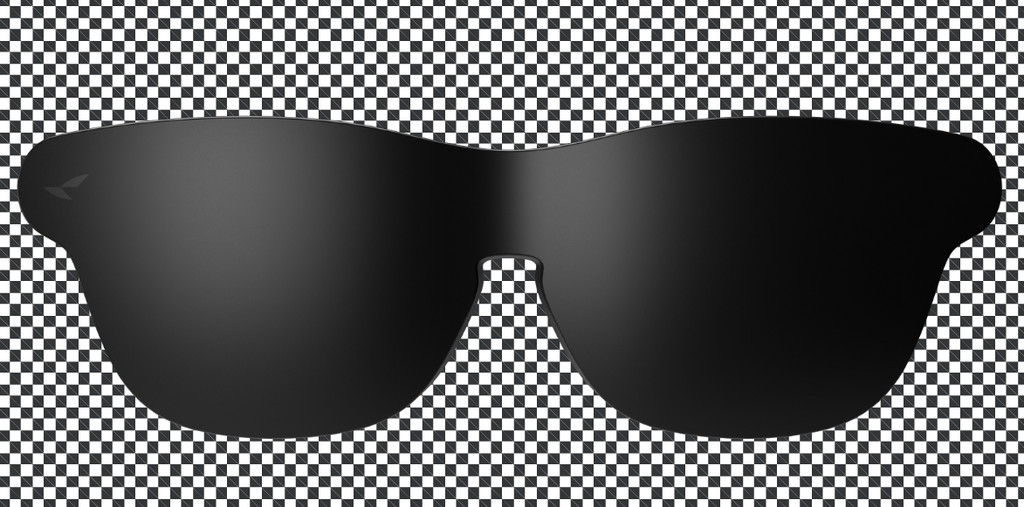

| Lens Shade |
Included |
| Companion App |
RayNeo XR App |
What's in the Box
1 × RayNeo GT MAX M AR Glasses
1 × Carry Case
1 × USB-C to USB-C Cable
3 × Nose Pads
1 × Prescription Lens Sample
1 × Glasses Cleaning Cloth
1 × User Manual
1 × Charging Guide
1 × Warranty / After-Sales Service Card
1 × Lens Shade
2 × Anti-Slip Temple Strips
