Renogy 16BB N-Type 100 Watt Solar Panel

Renogy 16BB N-Type 100 Watt Solar Panel

A petite 100W solar panel perfected for your mini-van off-grid life, Renogy's 16BB N-Type is a space-saving energy house powered and sized just right to power your long-haul adventures.

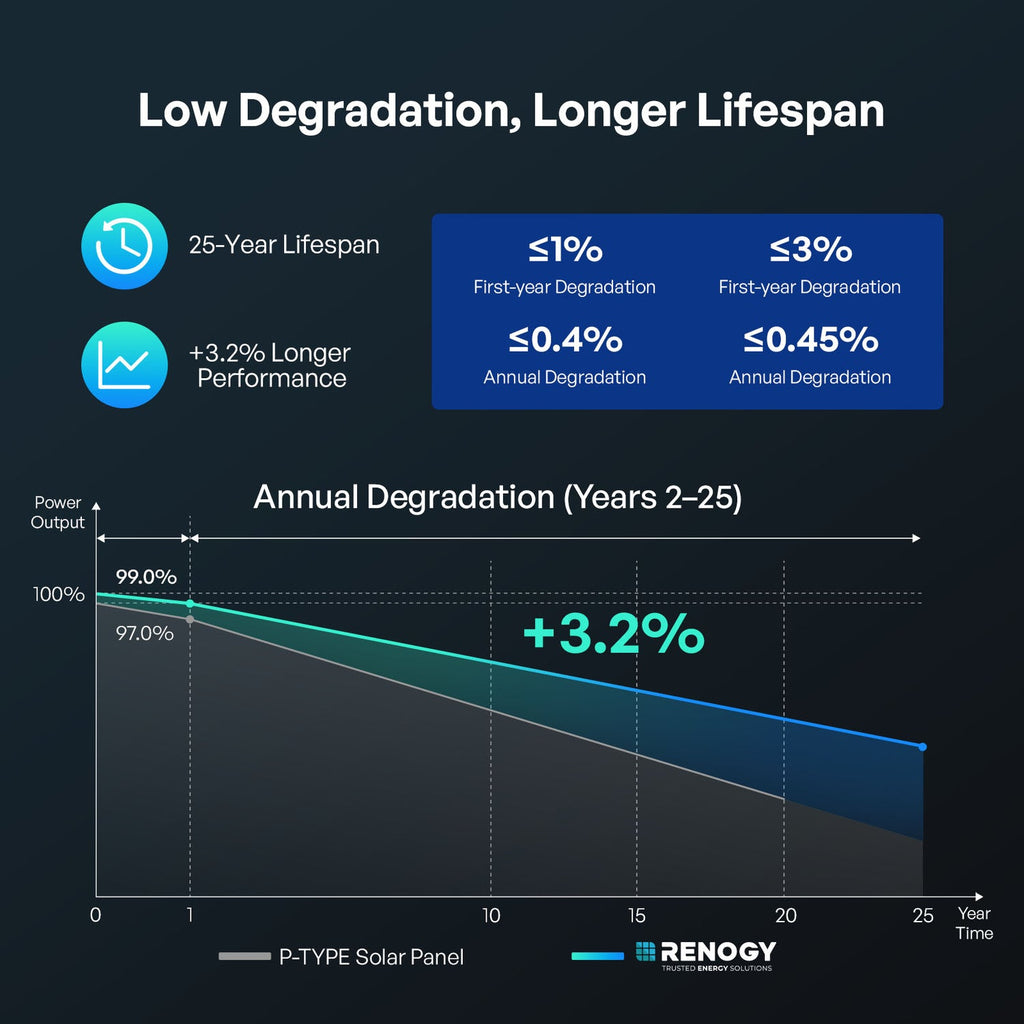

Switch your energy solution to a futuristic module with this N-Type 16BB solar panel from Renogy that delivers 25% more cell efficiency, 17.4% higher energy conversion even at 85-degree C temperatures with guaranteed 0.5-1% more power generation even on over-cast days, Renogy panels manage to retain 3.2% more power for over 25 years that any regular PERC panel.

Designed to power your wildest adventures, each 100W Renogy solar panel features low-iron tempered glass, POE film, EVA film, N-Type solar cell, TPT back sheet and a robust aluminum frame. Both the panel and its Junction Box (IP65) and solar connectors (IP67) are built to endure 2400Pa wind and 5400Pa snow loads, so you are always well-supplied with reliable energy for emergencies and entertainment off-road.

Highlights:

• Durable structure with aluminum frame and enhanced corner protection
• 10 -year warranty with 25 years power warranty
• 11% smaller, 8% lighter delivers 25% more efficiency
• Seamless, edge-to-edge fit with zero wasted space on your mini-van
• All-weather energy powerhouse
• Built for tough road conditions
• Easy to install, easier to use

Specifications:

Max Power at STC: 100W

Module Efficiency: 20%

Open Circuit Voltage: 22.79V

Short Circuit Current: 5.31A

Optimum Operating Voltage: 19.97V

Optimum Operating Current: 5.01A

Maximum System Voltage: 600VDC

Maximum Series Fuse Rating: 15A

Max Power at STC: 100W

Module Efficiency: 20%

Operating Temperature: -40°F~194°F / -40℃~90℃

Dimensions: 865x578x30mm/34.1x22.8x1.2in

Weight: 5.9kg/13.0lbs

Material and workmanship warranty: 10 Years

Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty

What's in the Box:

1 x Renogy 16BB N-Type 100 Watt Solar Panel
