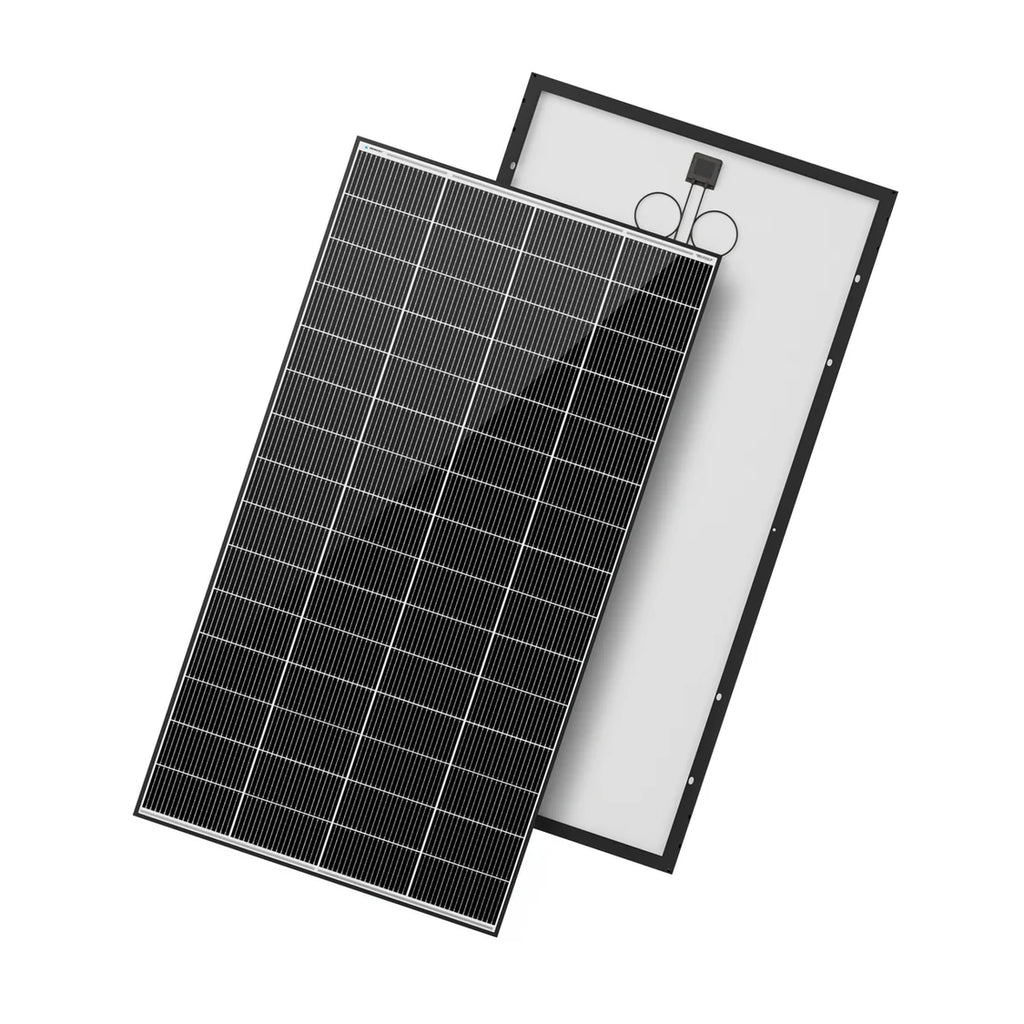

Renogy N-Type 320-Watt Monocrystalline Solar Panel

Renogy N-Type 32-Watt Monocrystalline Solar Panel

Renogy’s 320W N-Type Monocrystalline Solar Panel offers next-level solar performance in a smaller, lighter package—ideal for RVs, tiny homes, and compact off-grid systems. Featuring advanced N-Type cell technology with 18 busbars and an impressive 22.2% module efficiency, this panel is optimized to deliver more power with less space, even in harsh weather or high-heat conditions. Whether you're exploring the open road or powering a remote cabin, this panel is engineered for high performance, durable reliability, and versatile installation.

Space-Saving with Big Output

At just 32.9 lbs and 13.5% smaller than traditional panels, this 320W solar panel packs more power into a compact form. Two panels can replace six 100W panels, saving space and reducing wiring complexity—perfect for RVs, vans, and tight rooftop setups.

Advanced N-Type Cells for Superior Efficiency

Built with 25% efficient N-Type cells and 18 busbars, this panel minimizes electron loss and degradation, ensuring better long-term performance—especially in high-temperature environments where standard panels struggle.

Tough Enough for Harsh Weather

Withstands 5400Pa of snow load (equivalent to 1.5 meters of snow) and 2400Pa of wind pressure, making it dependable in winter storms, strong winds, and rugged travel. Plus, the IP68 rating ensures protection from rain, dirt, and debris.

Flexible, Hassle-Free Installation

Pre-drilled mounting holes make it easy to install flat, tilted, or on a pole. It supports both series and parallel connections, letting you scale your system safely and customize your setup to meet changing power needs.

Built to Last, Backed by Warranty

Designed with durability in mind, this panel comes with a 10-year product warranty and a 25-year power output warranty (guaranteeing 80% output after 25 years)—delivering consistent solar energy for decades to come.

Specifications

• Max Power at STC: 320W

• Open Circuit Voltage: 43.82V

• Short Circuit Current: 8.92A

• Optimum Operating Voltage: 37.85V

• Optimum Operating Current: 8.46A

• Maximum System Voltage: 1000VDC

• Maximum Series Fuse Rating: 20A

• Module Efficiency: 22.2%

• Operating Temperature: -40°F to 185°F (-40℃ to 85℃)

• Dimensions: 64.6 × 34.7 × 1.4 in (1640 × 880 × 35 mm)

• Weight: 32.9 lbs (14.9 kg)

What’s in the Box

1 x 320W N-Type Monocrystalline Solar Panel
