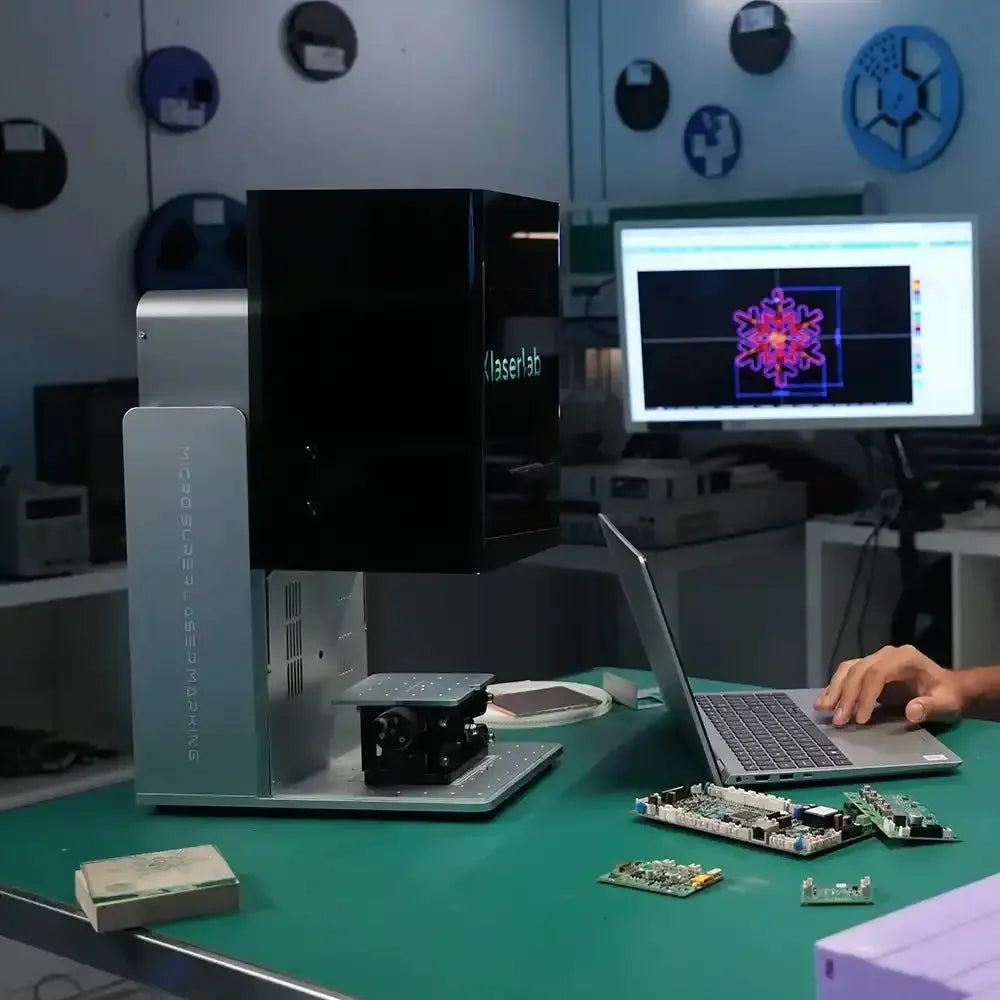

XLaserlab E3 10W UV Laser Engraver
The E3 Ultrafast 10W engraves up to 4x faster and 2x deeper than standard 5W machines. With an upgraded air cooling system, it runs full power for long sessions - compact yet pro-grade for studios, workshops, or home businesses.
Preview your design directly on the material with the HD camera, so placement is always exact - what you see is where it engraves.
Simply place your material, and the smart camera handles the rest. It auto-detects shapes, and aligns them for reliable, consistent batch production
10W UV Laser: Laser Engrave any material, from glass to all metals, with zero scorching or burns.
16K Ultra-HD Resolution: Capture microscopic details and true-to-life textures for perfect, high-end laser engraving results.
10,000 mm/s Professional Speed: Maximize your production efficiency with an industrial-grade engraving speed.
Smart AI-Powered Workflow: Instantly turn words into 3D designs, auto-detect colors, and model curved surfaces with our advanced AI suite.
200+ Colors & 3D Relief: Go beyond engraving—create vibrant color art on metal and stunning 3D relief on glass, stone, and wood.
Specifications
| Specification |
XLaserlab E3 (10W) |
| Laser Type |
UV Solid-State DPSS (355nm) — Cold Photochemical Process |
| Laser Power |
10W (7W variant also available) |
| Wavelength |
355 nm (Ultraviolet) |
| Spot Size |
0.005 mm (5 microns) |
| Max Engraving Resolution |
16K |
| Max Engraving Speed |
10,000 mm/s |
| Working Area (Surface) |
150 × 150 mm (standard flat-field lens) |
| Crystal Inner Engraving Area |
50 × 50 × 70 mm (telecentric lens) |
| Extended Length (Conveyor) |
Up to 800 mm (optional accessory) |
| Cutting Capability |
1mm metal · 3mm glass · 3mm acrylic · 5mm wood |
| Color Engraving |
200+ colors on stainless steel & titanium |
| Crystal Engraving Depth |
Up to 80–100 mm subsurface |
| Focus System |
Dual-point focus with TOF distance sensing |
| Camera System |
Integrated HD camera for positioning, batch detection & session recording |
| Enclosure |
Fully enclosed, light-proof — Class 1 laser safety rating |
| Machine Weight |
14 kg |
| Software |
Edone (proprietary); partial LightBurn compatibility |
| AI Features |
Color recognition, 3D design generation, curve modeling, batch alignment |
| Accessories |
Optional rotary attachment · Optional conveyor belt |
What's In The Box
1 x XLaserlab E3 10W UV Laser Engraver
