Supports wireless HDMI transmission of signals up to 1080p
2 to 1 Split Screen Display
WIFI display support
Supported Channels are 128 & 132 on a 5 Ghz Wireless Band
Wireless connectivity in up to 100ft (30 meters) (L.O.S)

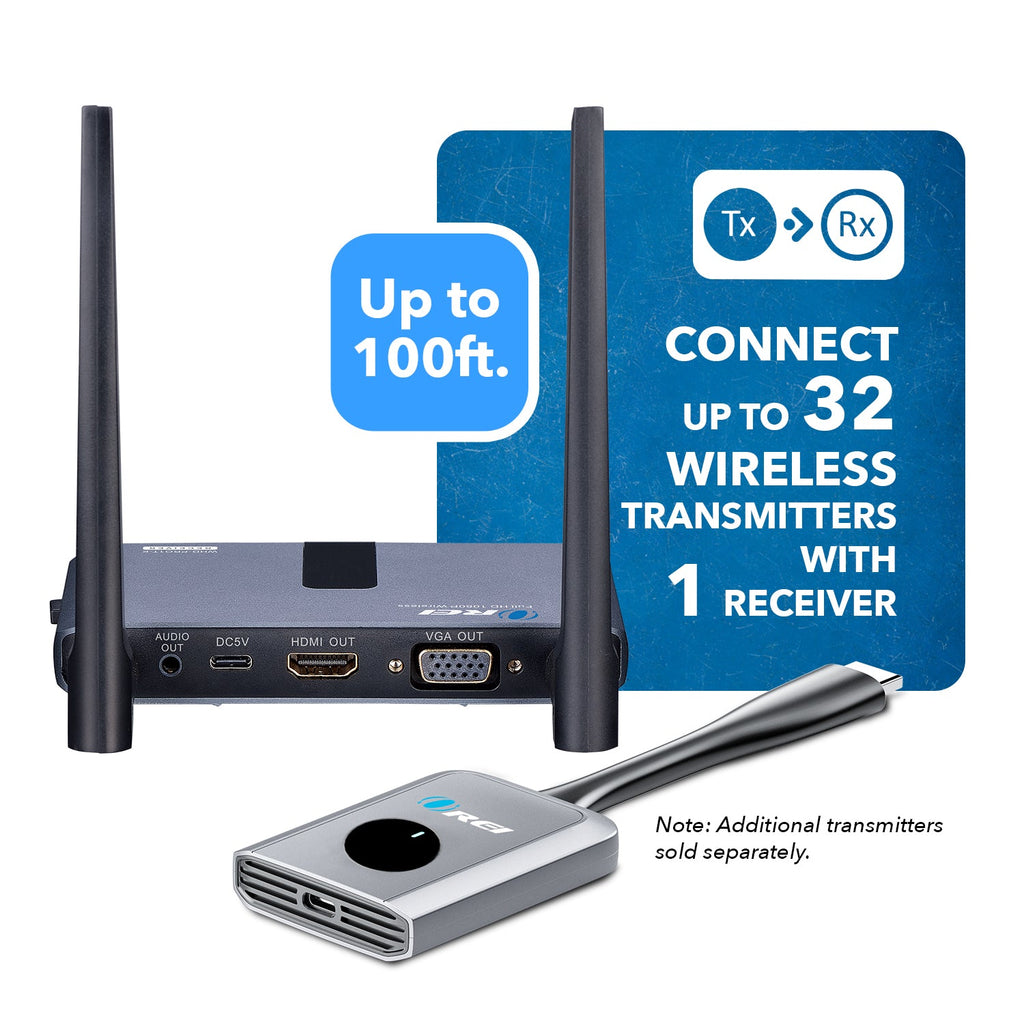

Up to 32 wireless transmitters with one receiver (Additional Transmitters Sold Separately)
Latency: 200ms max
Quick click to cast wirelessly
Supports iOS, Android, MAC, Windows system for notebooks, tablets and smart phones
Plug and Play Setup, no app is required
Few sample applications:
WHD-PRO2T-K is an ideal solution for Bring Your Own Device (BYOD) meeting. It supports multiple platforms including iOS, Android, Mac, and Windows operating systems for productive and flexible presentations and collaboration from individual devices.
It also enables powerful 2-way split-screen sharing, making it useful and for ideas sharing and on-screen comparisons.
A wireless connection to a shared display from participants’ seats will also remove the need for complex configuring and cabling.
You can share BYOD content effortlessly with just one click in huddle rooms and many other types of meeting spaces. Connect the wireless HDMI transmitter to an HDMI camera and the receiver to an HDMI monitor. Power the transmitter with a Micro USB cable to the laptop or even a power bank.

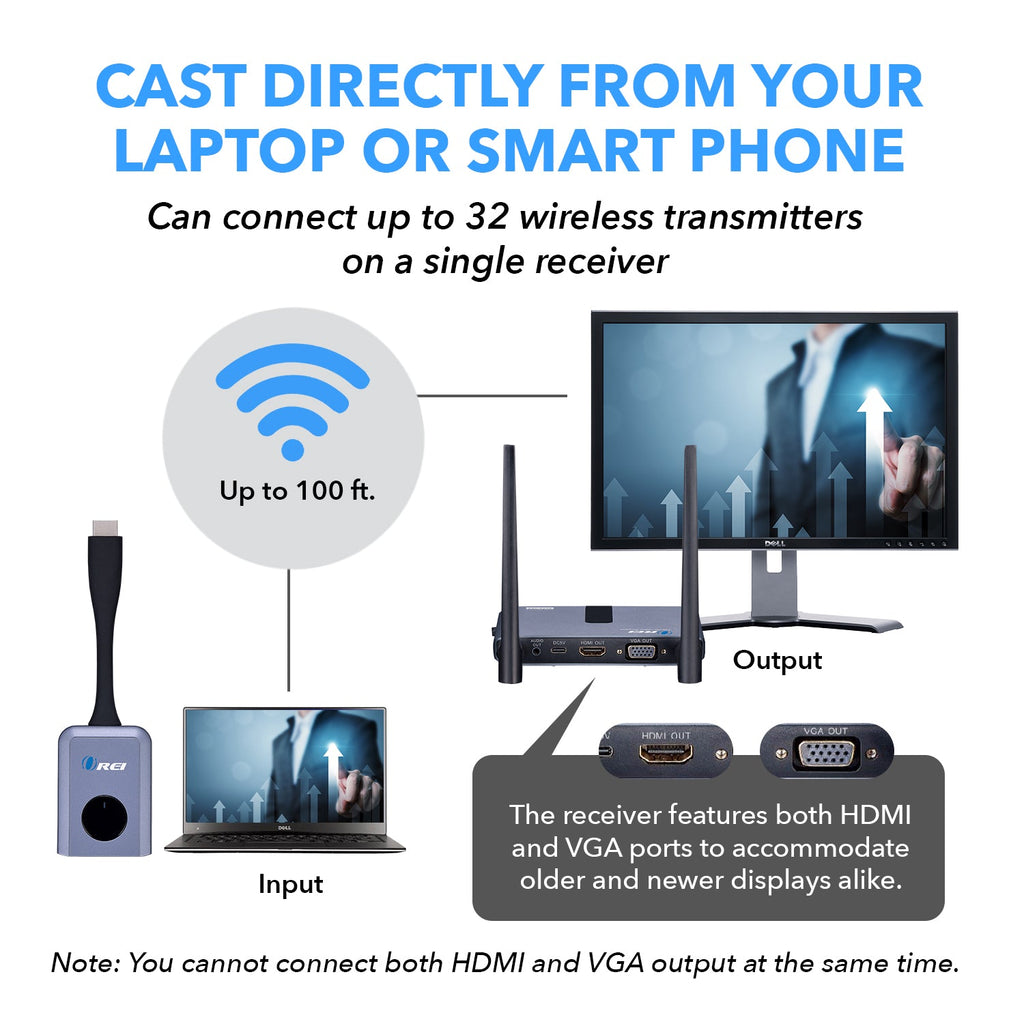

Connect up to 32 Wireless Transmitters with one receiver (Additional Transmitters Sold Separately).
Plug & Play wireless HDMI setup without any Software Installation.
[tab]

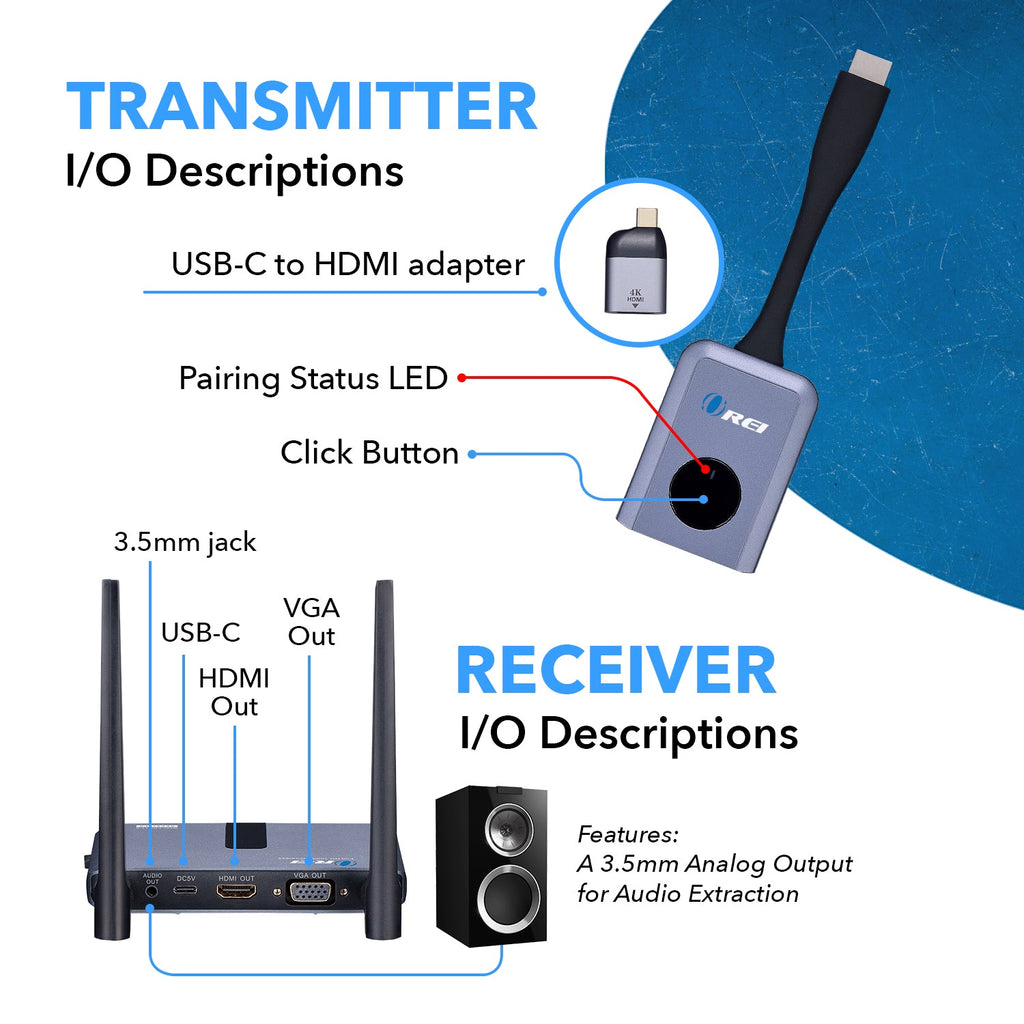

AUDIO AND VIDEO
Transmitter:
INPUT PORTS
1x HDMI Type-A 19 Pin Female
1x USB Type-A Male
Receiver:
OUTPUT PORTS:
1x HDMI Type-A 19 Pin Female
1x USB Type-A Female
1x Ethernet port
COMPLIANCES
HDMI Compliance
HDMI 1.3a
HDCP Compliance
HDCP 1.3
EXTENDING DISTANCE
1080p@60Hz:
30M/ 100 feet (L.O.S)
VIDEO OUTPUT
Video Bandwidth:
165MHZ
Video Resolutions:
1080p/60Hz
Color Space:
YCbCr 4:2:0
Color Depth:
8bit
AUDIO OUTPUT
HDMI Audio Formats:
PCM 2ch
DIMENSIONS & WEIGHT
Transmitter:
Height:
23mm
Width:
76.2mm
Depth:
79.6mm
Weight:
2x 71g
Receiver:
Height:
25.4mm
Width:
118.8mm
Depth:
80mm
Weight:
120g
PROTECTION
Operation Temperature:
0~45℃
Storage temperature:
-10~60℃
Relative Humidity:
10%~80%
POWER
Power Consumption (Max):
Transmitter:
4.5W (5V/0.9A) max.
Receiver:
10W (5V/2.0A) max.
Receiver:
Input:
AC 100~240V
Output:
5V/2A For RX
PHYSICAL PROPERTIES
Color:
Black & Gray
Housing:
Plastic
PACKAGE CONTENTS

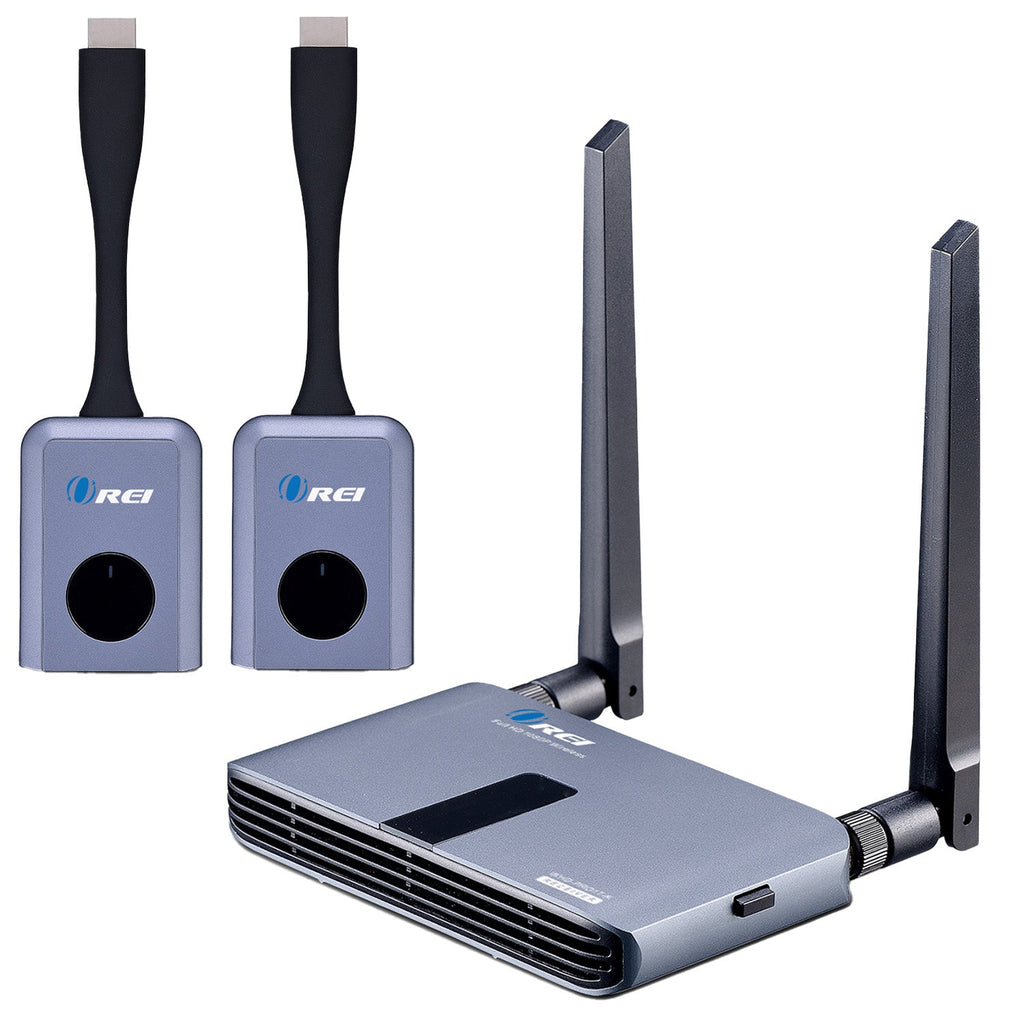

2x Transmitter
1x Receiver
2x HDMI A-A cable
1x DC 5V/2A Power Adaptor
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[shortdes]
Wireless 2x1 HDMI Presentation System - 1080p up to 100 feet
Latency: 200ms max
Plug and Play Setup - No App required, quick click to cast wirelessly
[/shortdes]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
Please try replacing your current HDMI cables with High-Quality HDMI cables.Please make sure that you dont have any other wireless devices such as wifi router nearby this extender.If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you can implement the daisy chain method.
We recommend you to use High-Quality HDMI cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[/tab1]
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The OREI WHD-PRO2T-K supports wireless connectivity up to 100ft (30 meters) with a clear line of sight (L.O.S).
Yes, the OREI WHD-PRO2T-K supports a 2 to 1 split-screen display, allowing for two sources to be shown at once.
The OREI WHD-PRO2T-K supports iOS, Android, MAC, and Windows systems for notebooks, tablets, and smartphones.
No, the OREI WHD-PRO2T-K features a Plug and Play setup and does not require any app.
