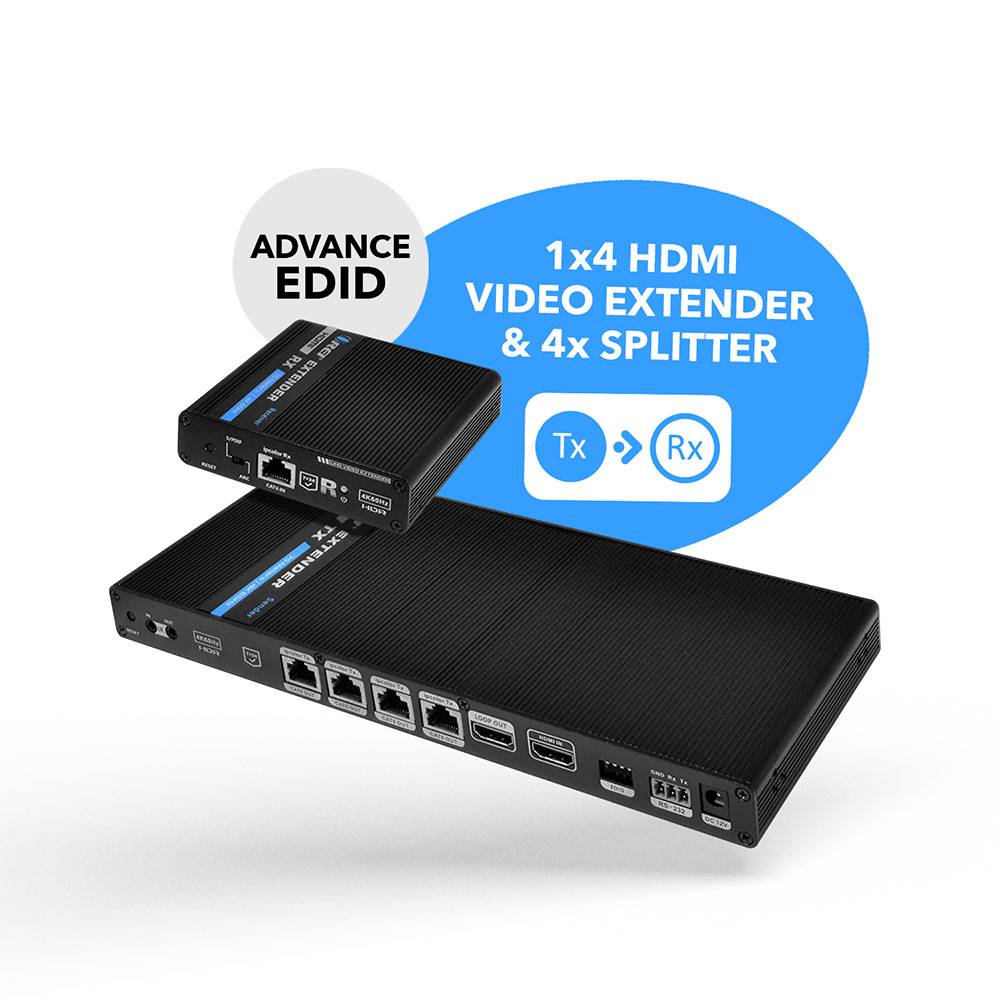

UHD14-IPC230-K is 1 Input 4 Outputs Extender Splitter Kit, which integrates the functions of distribution and extension. You can enjoy seamless videos with zero latency.

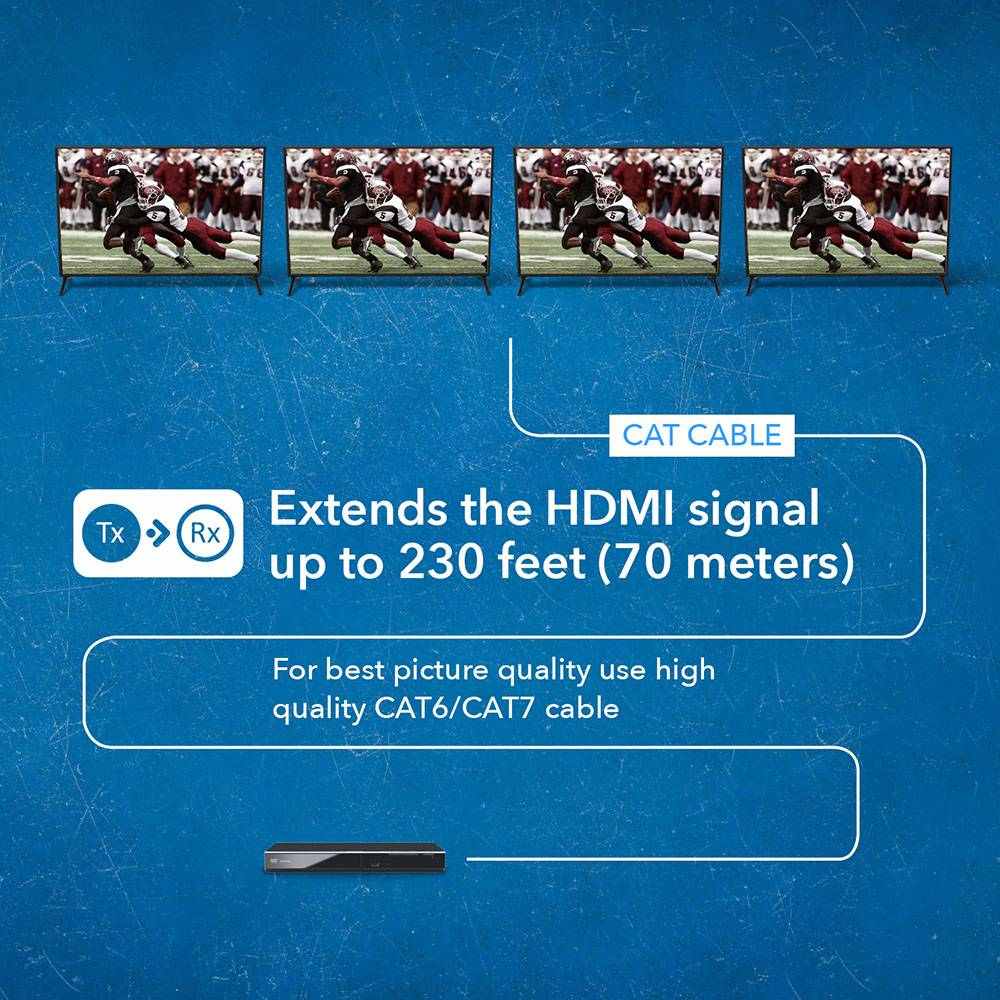

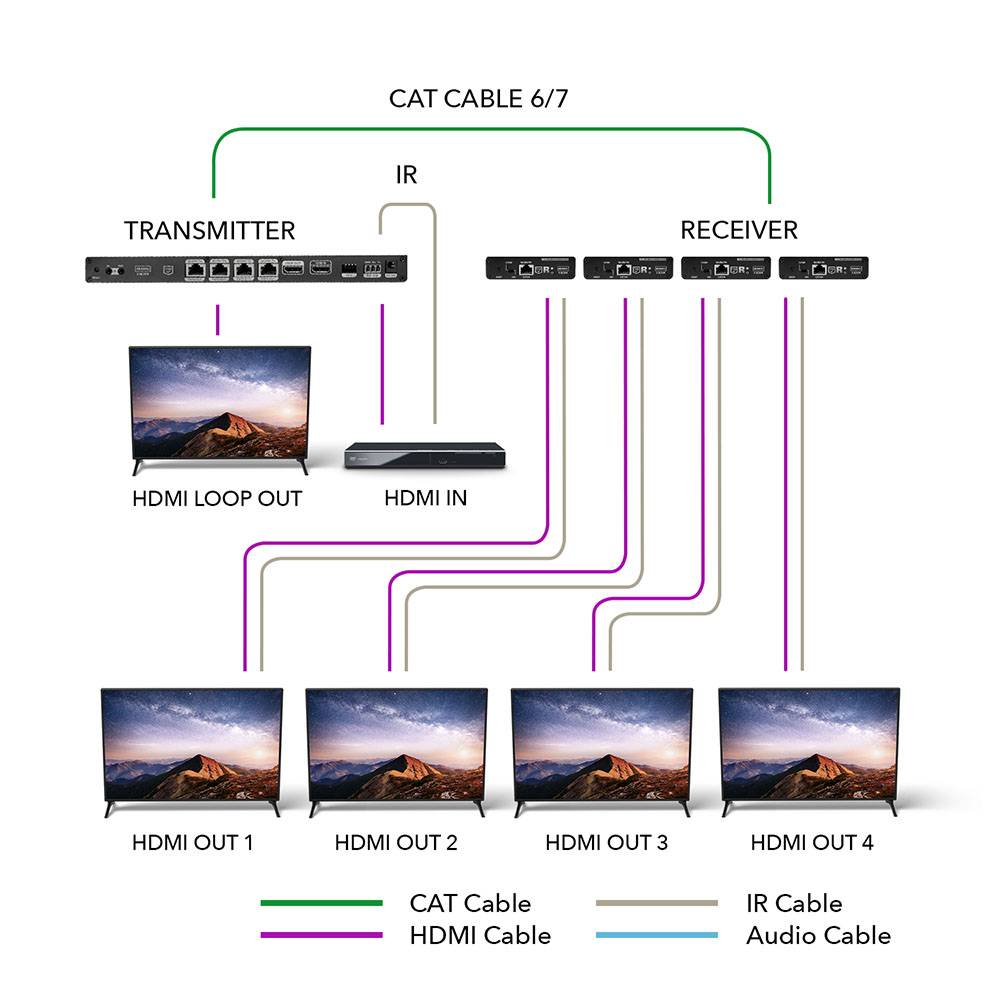

It distributes 1 HDMI input signal to 4 identical signal outputs, extends these signals up to 230 feet, and supports 18 Gbps video bandwidth 4K@60Hz resolution with ipcolor technology.
It also supports bi-directional IR pass back, RS-232 control and advance EDID control settings.
This product has an HDMI loop out port so that you can connect a local display to the transmitter & enjoy the video.
It is suitable for studios, multimedia classrooms, rail transit, etc.
We recommend you using shielded CAT6 cables & high-quality HDMI cables for optimum performance.
[shortdes]
Supports ipcolor technology
Supports 18Gbps video bandwidth
Supports Bi-directional IR, RS-232 Control & Advance EDID
[/shortdes]
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI INPUT
OUTPUT PORTS:
4x RJ45 OUTPUT
1x HDMI OUTPUT
Receiver:
INPUT PORTS:
1x RJ45 INTPUT
OUTPUT PORTS:
1x HDMI OUTPUT
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
Transmission Protocol:
Ipcolor
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
Up to 230 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@60Hz
Color Space:
RGB YCbCr4::4:4 YCbCr4::4:2 YCbCr4::2:0
Color Depth:
8bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
Yes
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
Bi-Directional IR
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
SWITCHES
EDID Management:
Supports Advance EDID Management Control
ARC:
Supports ARC from the TV (receiver end)
S/PDIF:
Supports from the source device
AUDIO OUTPUT
HDMI Audio Formats:
LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
SPDIF/Optical Audio Formats:
Up to 5.1Ch
SIGNALS
TMDS Signals:
0.7~1.2Vp-p
DDC Signals:
5Vp-p

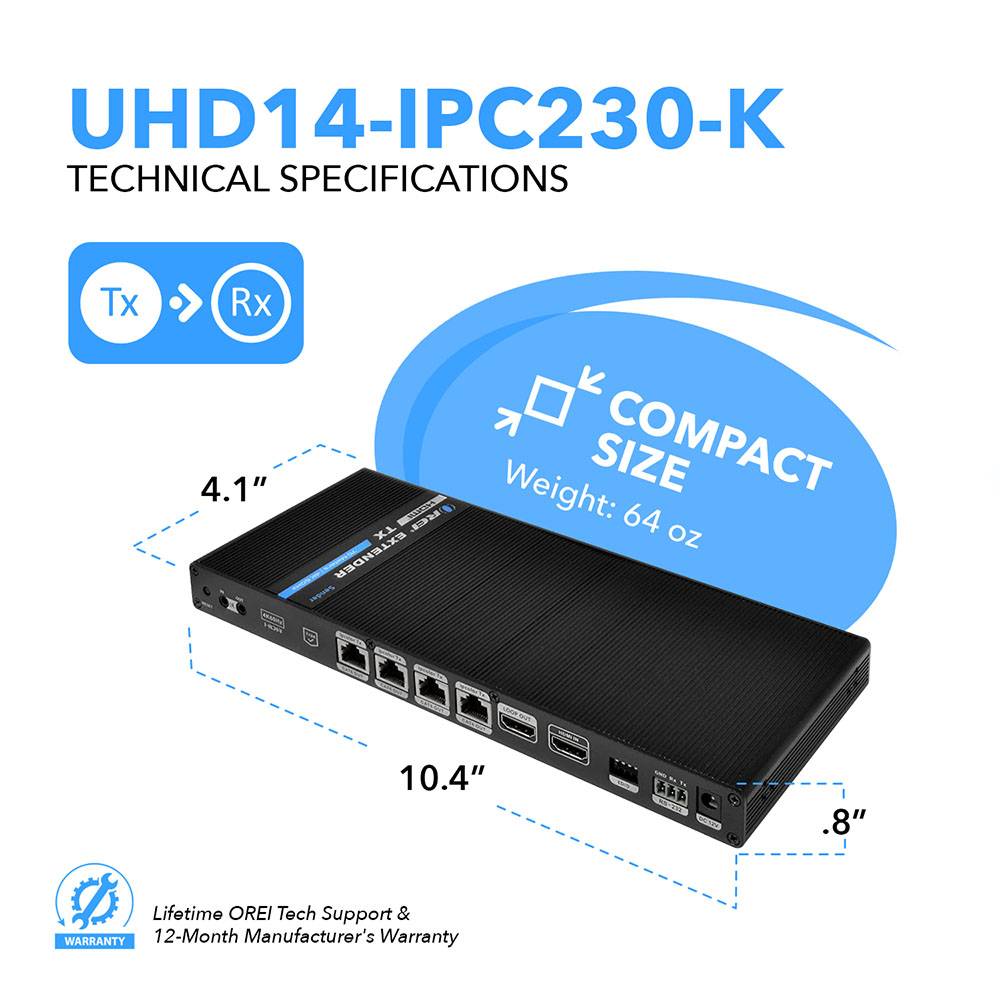

DIMENSIONS & WEIGHT
Transmitter:
Height:
23.5mm
Width:
104mm
Depth:
264mm
Weight:
640g
Receiver:
Height:
26.2mm
Width:
99mm
Depth:
106mm
Weight:
210g
PROTECTION
Operation Temperature:
-20 - 60°C
Storage temperature:
-30 - 70°C
Relative Humidity:
0 - 90% RH
ESD Protection:
1a Contact discharge level 3, 1b Air discharge level 3, implementation of the standard: IEC61000-4-2
Electrostatic Protection of the whole Machine:
IEC61000-4-2
Lightning Protection:
Yes
Surge Protection:
Yes
RJ-45 CONNECTOR Type
8P8C connector
POWER
Power Consumption (Max)
Transmitter:
13W
Receiver:
4W
Power Supply
Input:
DC 12V/2A
Output:
DC 5V/2A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Aluminium Alloy Material + Crystal Panel
Processing Technology:
Ipcolor transmission technology
Finishing:
Grit blast
PACKAGE CONTENTS

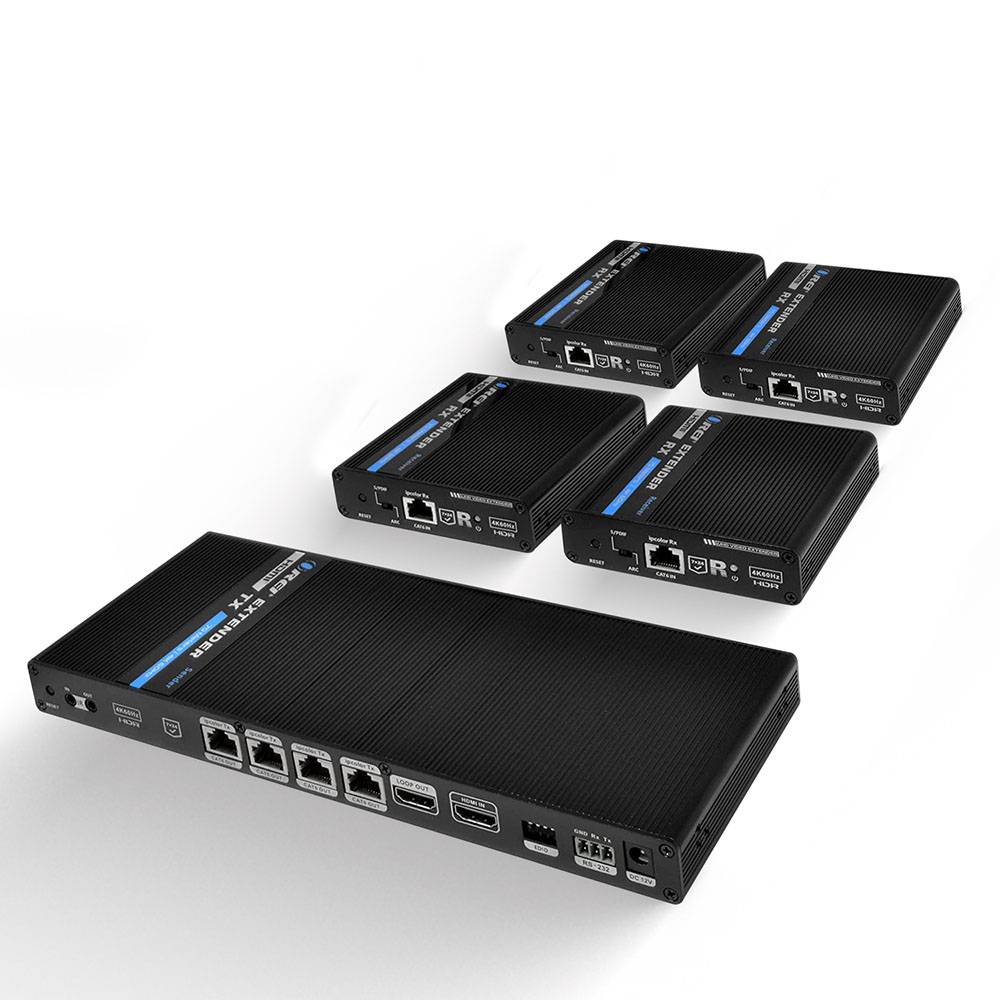

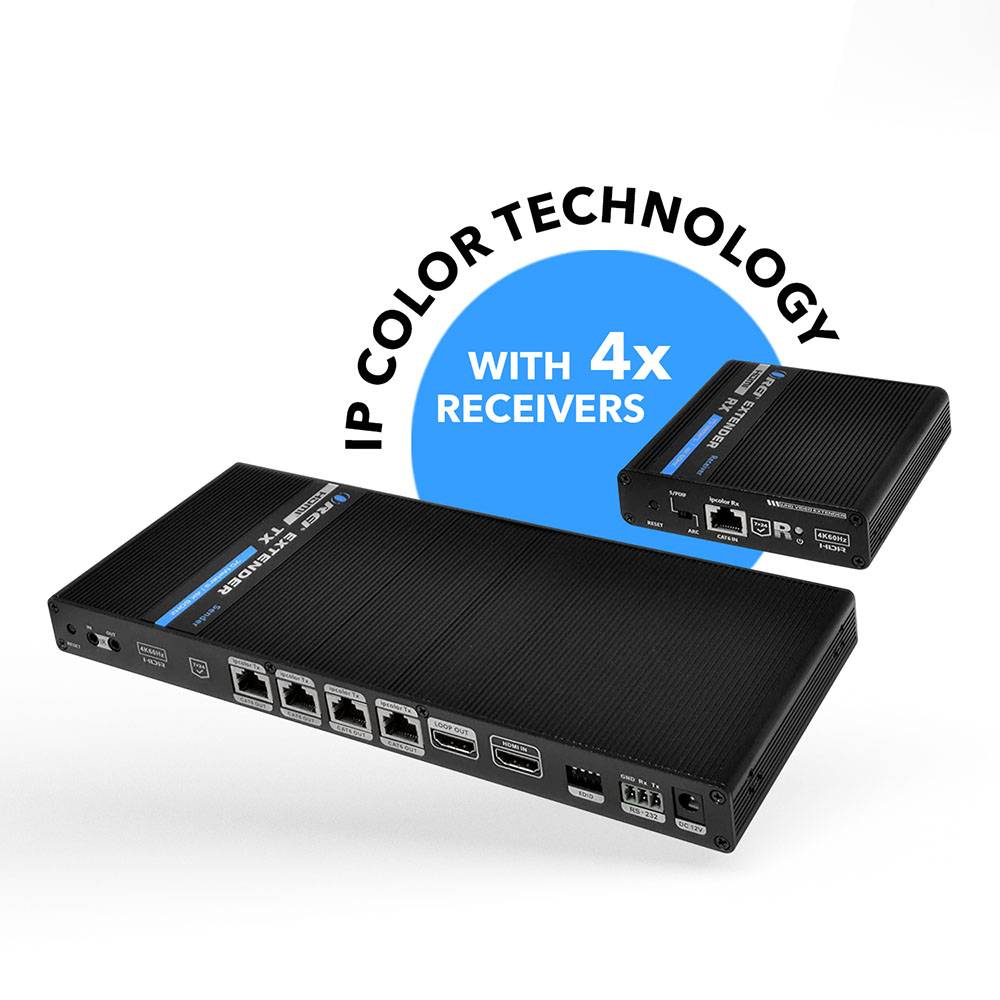

1x HDMI Transmitter
4x HDMI Receivers
1x DC 12V/2A Power Adapter
4x DC 5V/2A Power Adapter
1x Terminal Block (RS-232)
1x IR Blaster Extension Cable
4x IR Receiver Extension Cable
20x Mounting Brackets
40x Screw
WARRANTY
1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
[/tab1]
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The UHD14-IPC230-K extends HDMI signals up to 230 feet using shielded CAT6 or CAT7 cables with zero latency.
Yes, the UHD14-IPC230-K distributes one HDMI input to four identical HDMI outputs, allowing one source to feed up to four displays at the same resolution and quality.
Yes, it supports 4K resolution at 60Hz refresh rate with 18 Gbps bandwidth via ipcolor technology.
The unit supports bi-directional IR control, RS-232 command protocol, and advanced EDID control settings for compatibility and remote operation.
Yes, the receiver unit includes an S/PDIF digital audio output port for audio extraction from TV or source devices.
