Name: 1x8 HDMI Extender Splitter Over CAT6/7 Upto 165 Ft- Loop-out, IR Control & EDID (HD18-EX165-K)
Brand: OREI
SKU: HD18-EX165-K
Price: 229.99 USD
Availability: InStock

1x8 HDMI Extender Splitter Over CAT6/7 Upto 165 Ft- Loop-out, IR Control & EDID (HD18-EX165-K)

Roll over image to zoom in Click on image to zoom

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

HD18-EX165-K: 1x8 HDMI Extender Splitter over CAT6 up to 165 feet(70m)

Key Features:

HDMI 1.4 and HDCP 1.4 compliant
Video resolutions up to 4K@30Hz and 1080p@60Hz
10.2Gbps video bandwidth
Extend audio/video signals up to 130 feet at 4K@30Hz and up to 230 feet at 1080p@60Hz
Audio formats: LPCM 7.1, Dolby True HD and DTS-HD Master Audio
Unidirectional IR control from the Receivers to the Transmitter

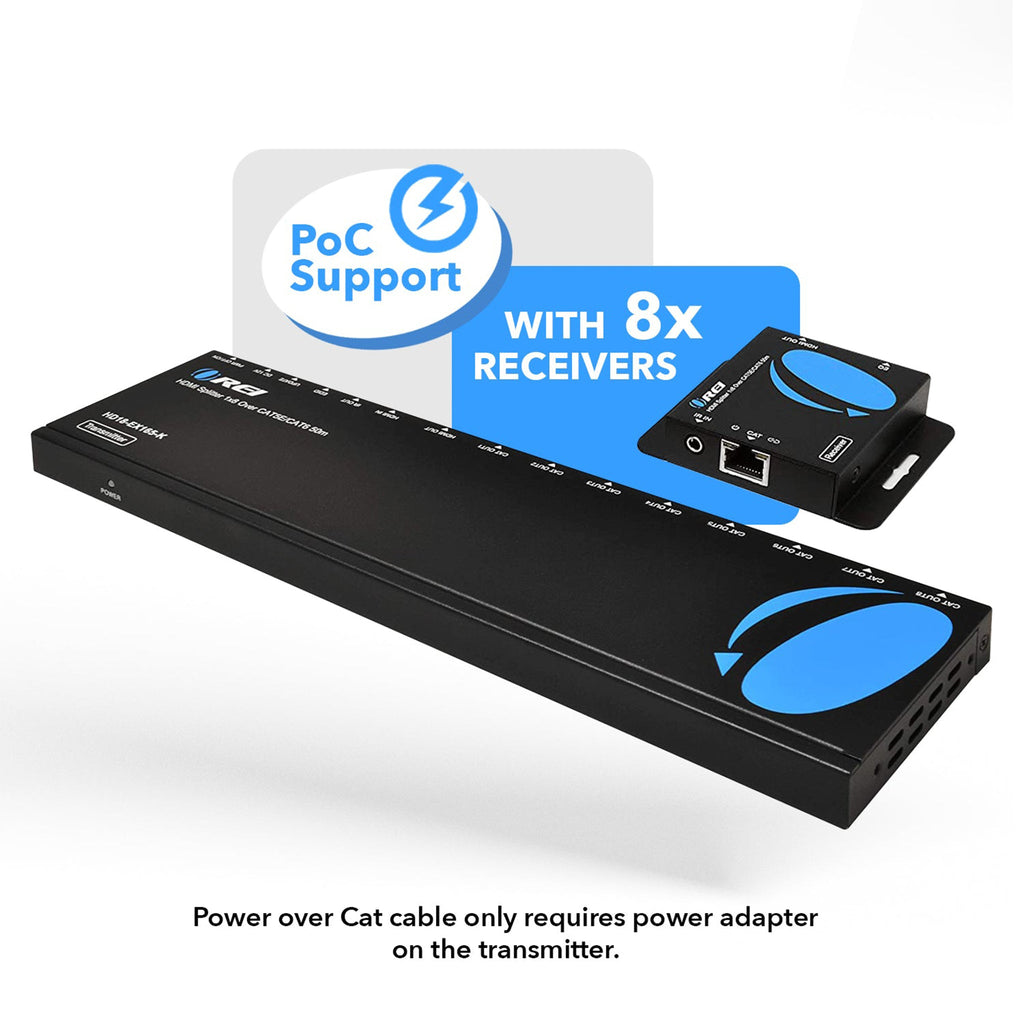

PoC support requiring only one power adapter
HDMI loop out to connect a display near the source
Advanced EDID management
Robust metal build and plug and play setup

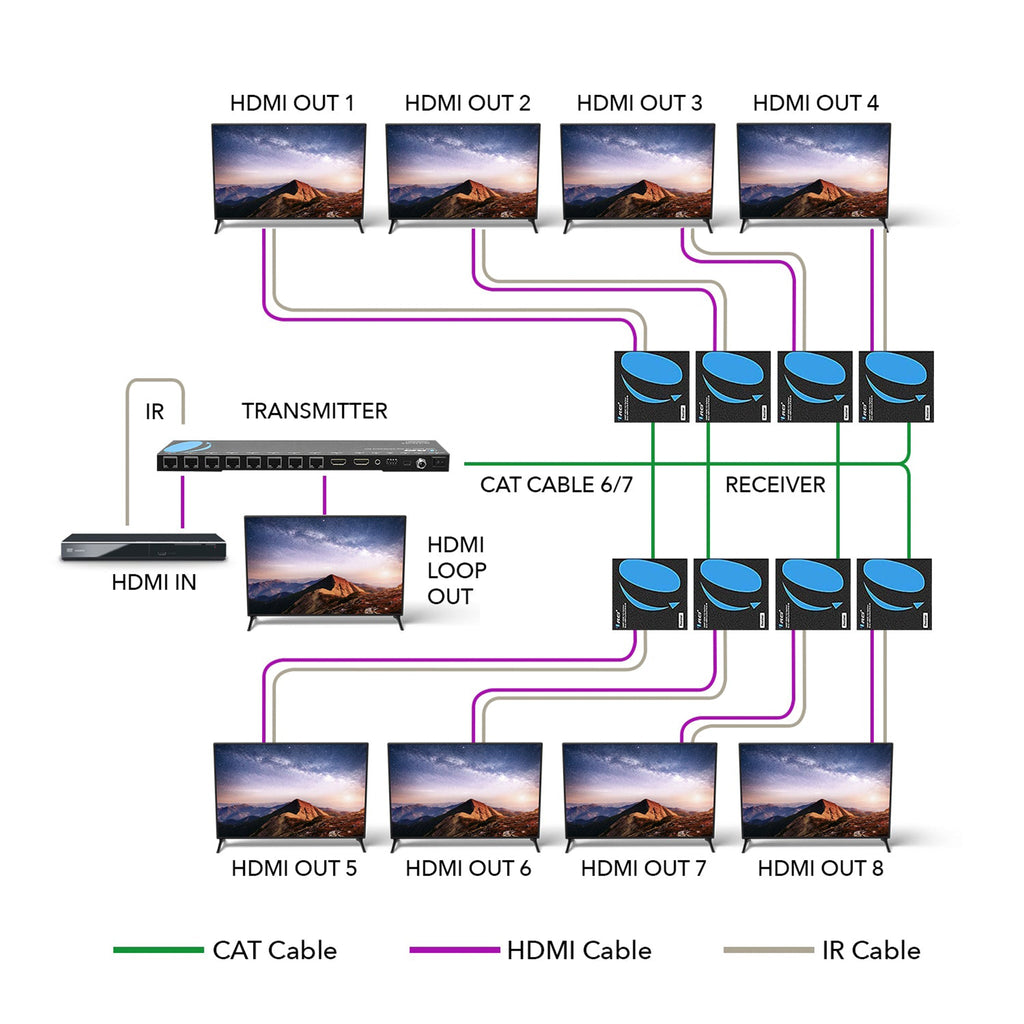

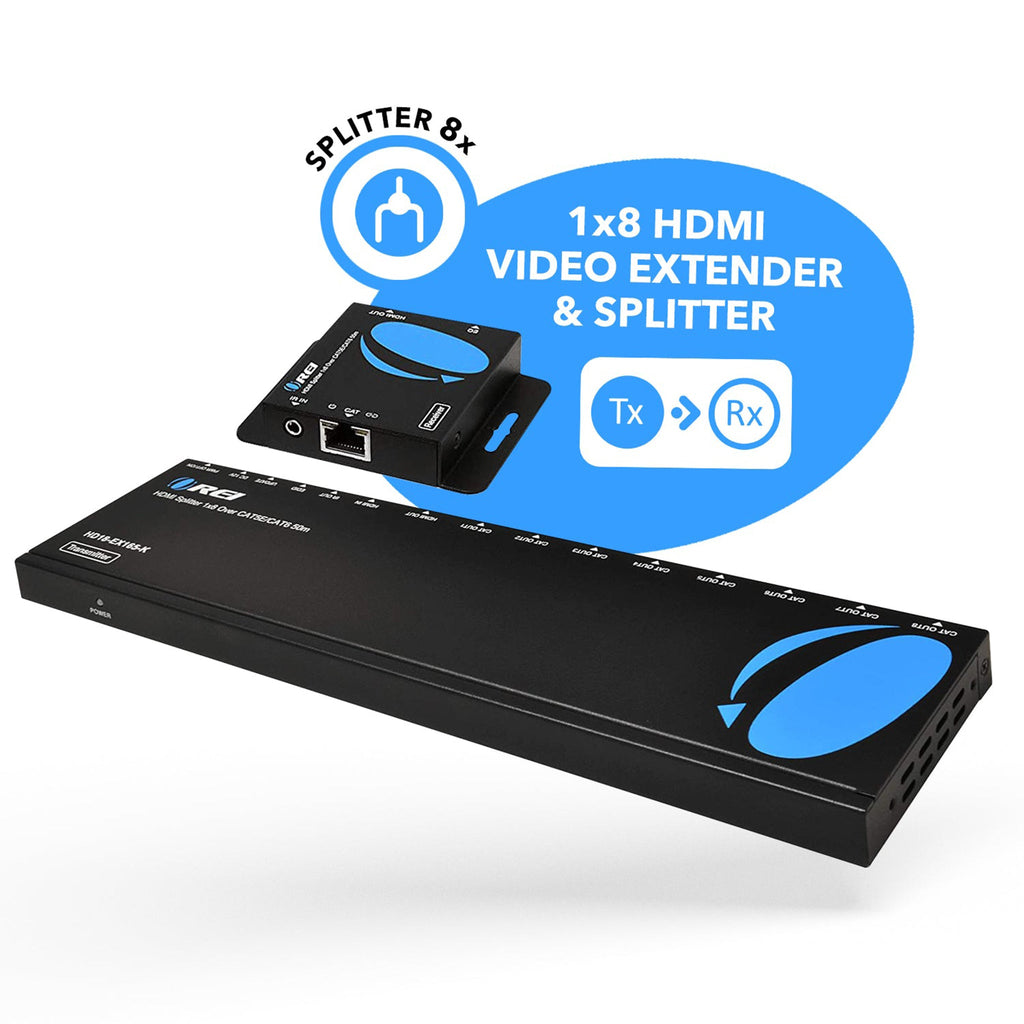

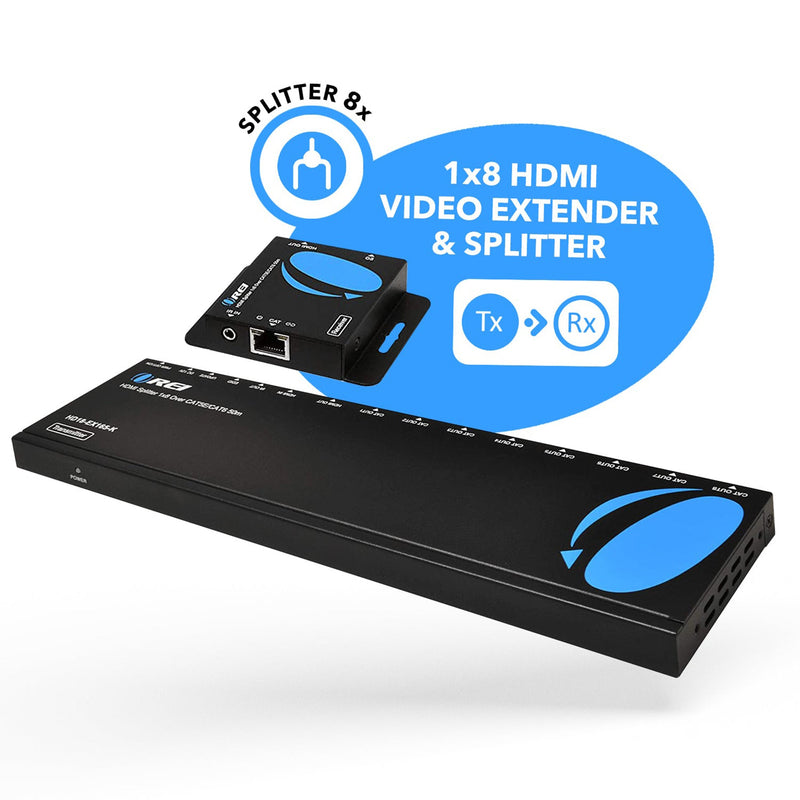

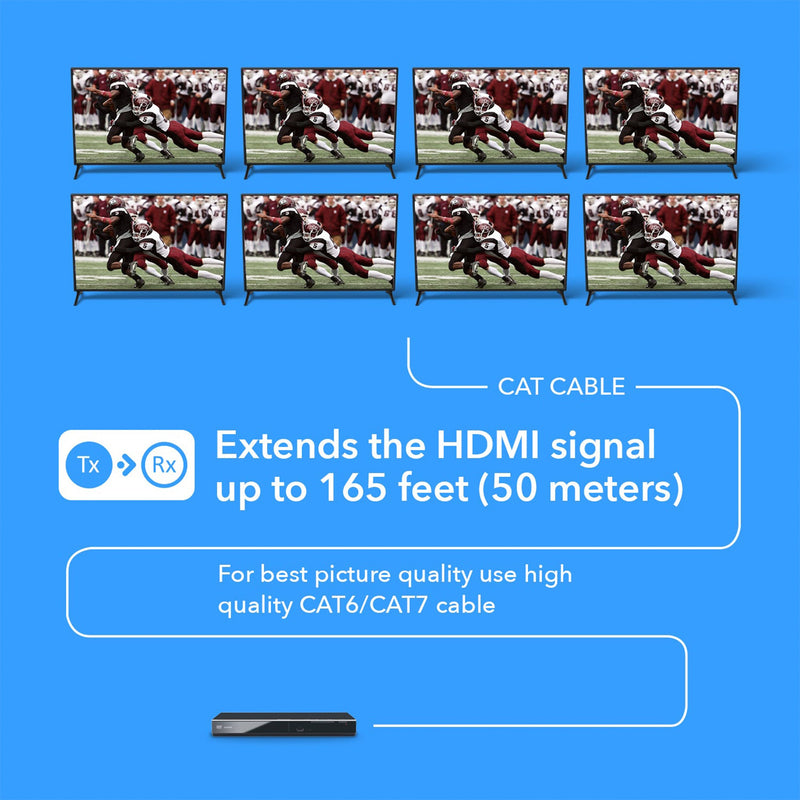

The HD18-EX165-K efficiently distributes one HDMI source signal to any eight display devices placed far away. It supports video resolutions up to 4K@30Hz and 1080p@60hz up to 165 feet over a CAT6/7 cable. The device is HDMI 1.4 and HDCP 1.4 compliant. It provides video bandwidth of 10.2Gbps while providing support for audio formats such as LPCM 7.1, Dolby True HD and DTS-HD Master Audio. The Transmitter features an HDMI loop out to connect a display near the source. The device also comes with unidirectional IR control from Receiver to the Transmitter and also support PoC requiring only one power adapter. This Extender Splitter is perfect for video distribution to 8 displays placed far away in any residential or commercial setups given its robust metal build and plug and play setup.

[shortdes]

1x8 Extender Splitter over CAT6
Video reoslutions up to 4K@30Hz and 1080p@60Hz
Unidirectional IR control

[/shortdes]

[tab]

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		8 x CAT [RJ45, 8-pin female]
	CONTROL:	1 × IR OUT [3.5mm Stereo Mini-jack]
		1 x SERVICE [Micro USB, Update port]
Receiver:	INPUT:	1 x CAT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
	CONTROL:	1 x IR IN [3.5mm Stereo Mini-jack]

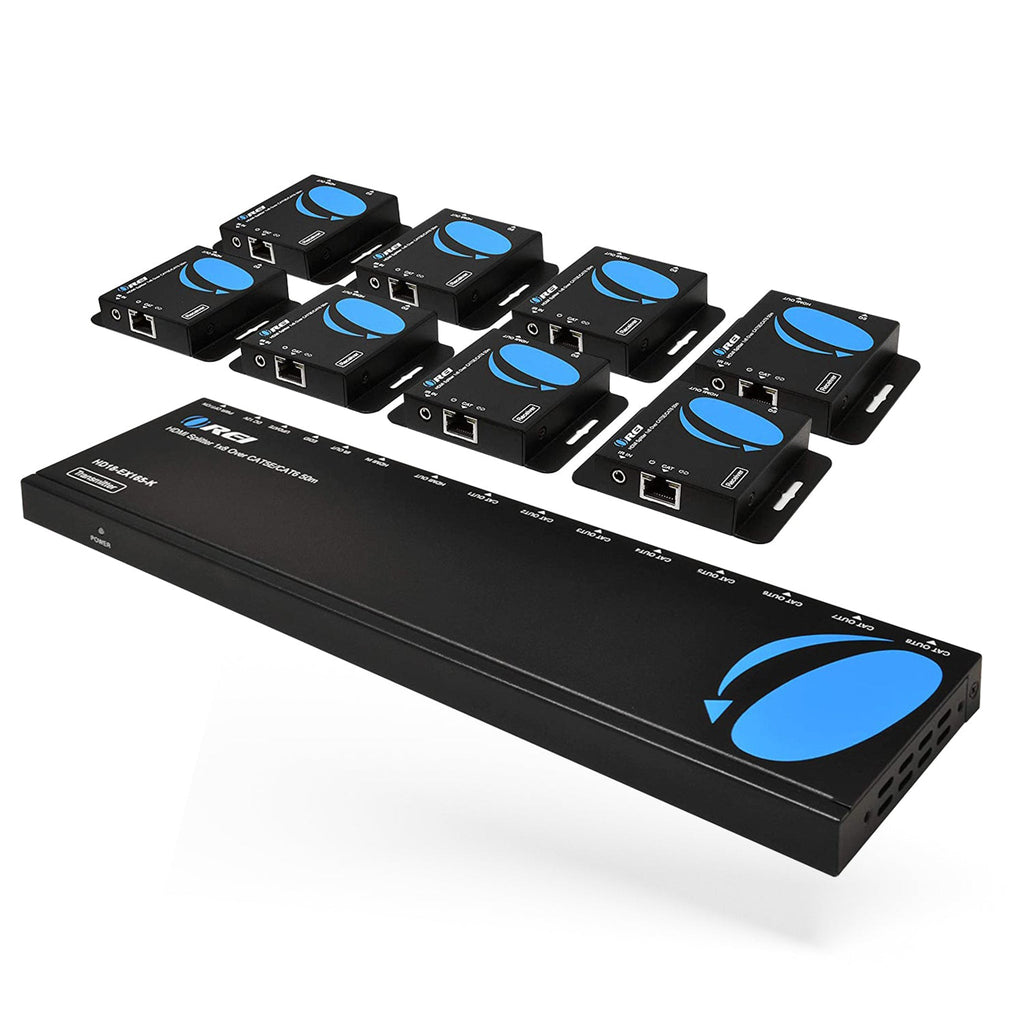

PACKAGE CONTENTS

1x Transmitter

8x Receivers

1x IR Blaster cable

8x IR Receiver cable

2x Mounting ear

8x Machine Screw (KM3*4)

1x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@30HZ:	130 Feet
1080P@60Hz:	230 Feet

VIDEO OUTPUT

Video Bandwidth:	10.2Gbps
Video Resolutions:	Up to 4K@30Hz

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	Yes
IR Control:	Yes
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO SUPPORT

HDMI Audio Formats:

LPCM 7.1, Dolby True HD, and DTS-HD Master Audio

COMPLIANCES

HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4

POWER

Power Consumption:	19.2W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 12V/2.5A

DIMENSIONS & WEIGHT

Transmitter:	Length:	295mm / 11.61in
	Width:	82mm / 3.23in
	Height:	18mm / 0.71in
	Weight:	628g / 1.38lbs
Receiver:	Length:	79.5mm / 3.13in
	Width:	69mm / 2.72in
	Height:	16.5mm / 0.65in
	Weight:	130g / 4.59oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
