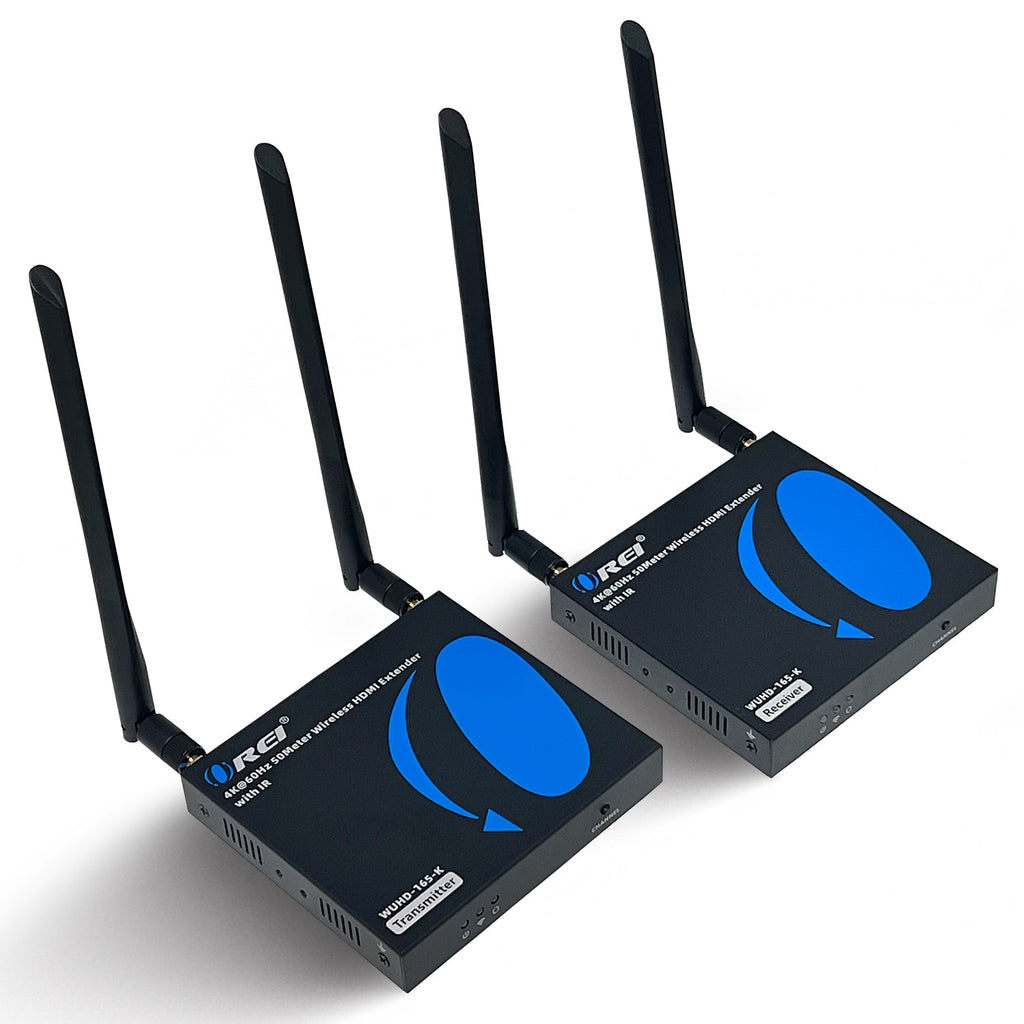

WUHD-165-K: 4K@60Hz Wireless HDMI Extender up to 165 feet with IR
Key Features:
HDMI 2.0 & HDCP1.1/2.2 Compliant
Video resolutions up to 4K@60Hz
Wireless transmission up to 50M/165Ft line of sight.
HDMI Loop out at the Transmitter to connect a display near the source.
SSID Pairing and Channel Switching to avoid interference with other nearby devices.

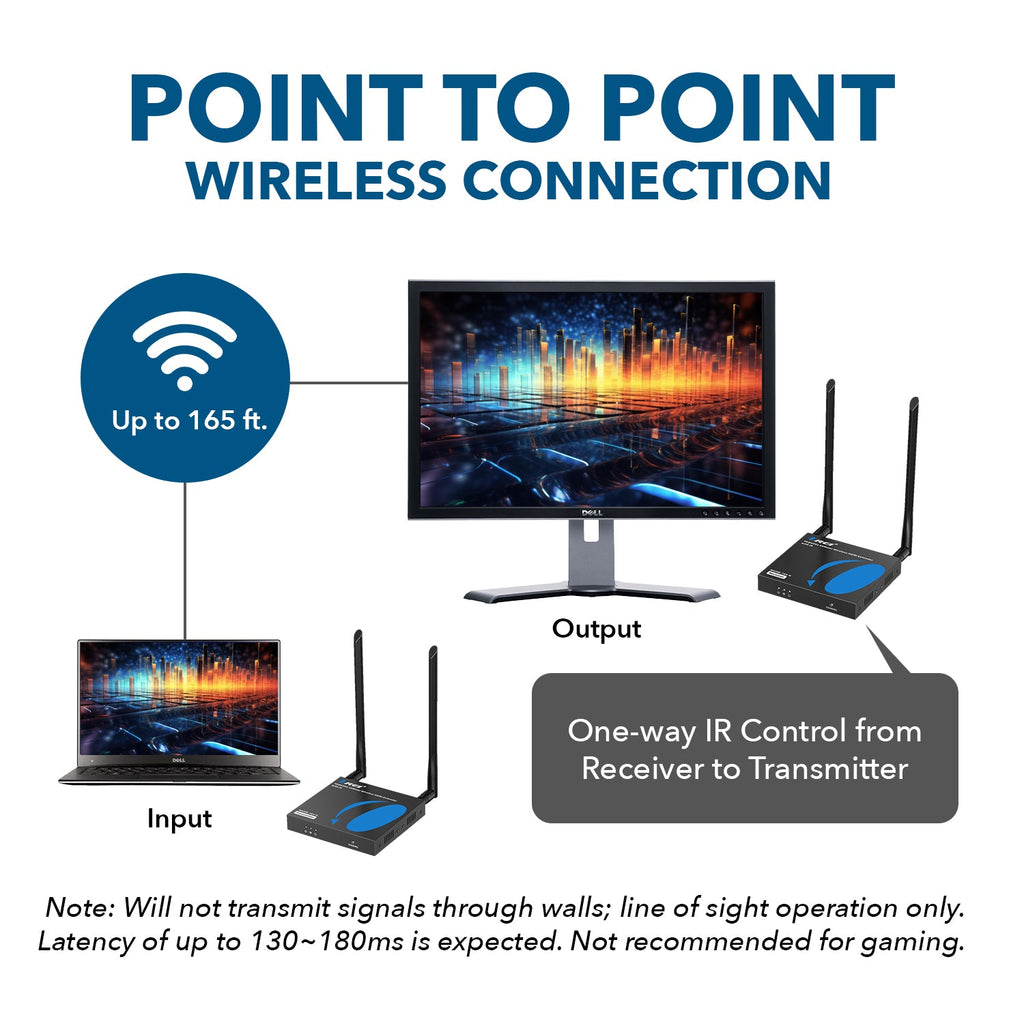

One-way IR Control from Receiver to Transmitter.
5G wireless frequency bands for strong anti-interference.

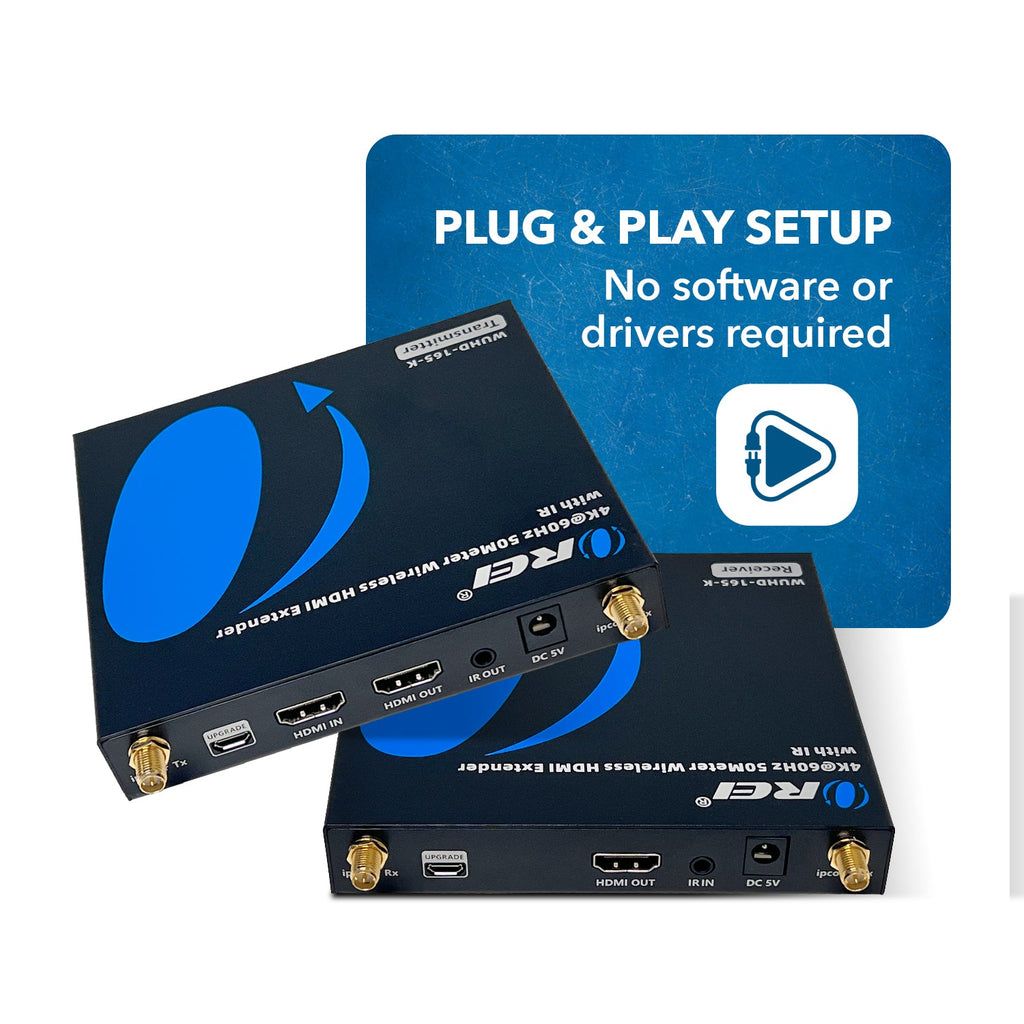

Plug & Play setup, no drivers or software required.

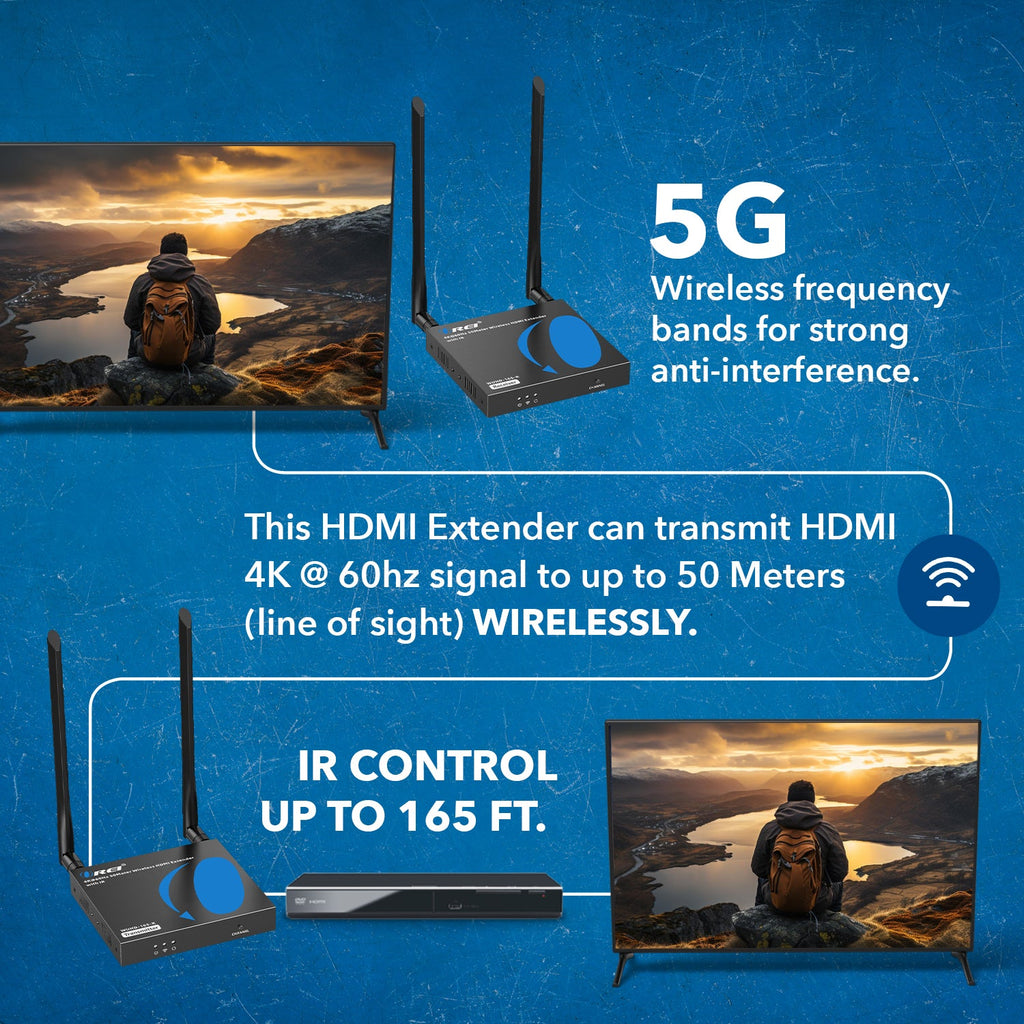

The WUHD-165-K Wireless HDMI Extender can extend an HDMI signal up to 165 feet(50m) with 4K@60Hz resolution. The device uses ipcolor STREAM Technology to deliver high-definition, low-latency video transmission. 5G wireless frequency bands provide several advantages over traditional 2.4GHz and 5GHz bands, including stability, speed, security, and anti-interference. The device features an HDMI loop output on the Transmitter to connect a display near the source. It supports 1-to-1 wireless transmission, effectively solving problems caused by complicated wiring. It's an ideal wireless video transmission solution for video conferences, home entertainment, multimedia education, etc.
[shortdes]
5g Wireless HDMI extender
Extends 4K@60Hz up to 165 feet line of sight
One-way IR control
[/shortdes]
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin Male]
1 x DC 5V [Micro-USB Power Input]
Receiver:
INPUT:
Input: 1 x DC 5V [Power Input]
OUTPUT:
1 × HDMI [Type A, 19-pin Male]

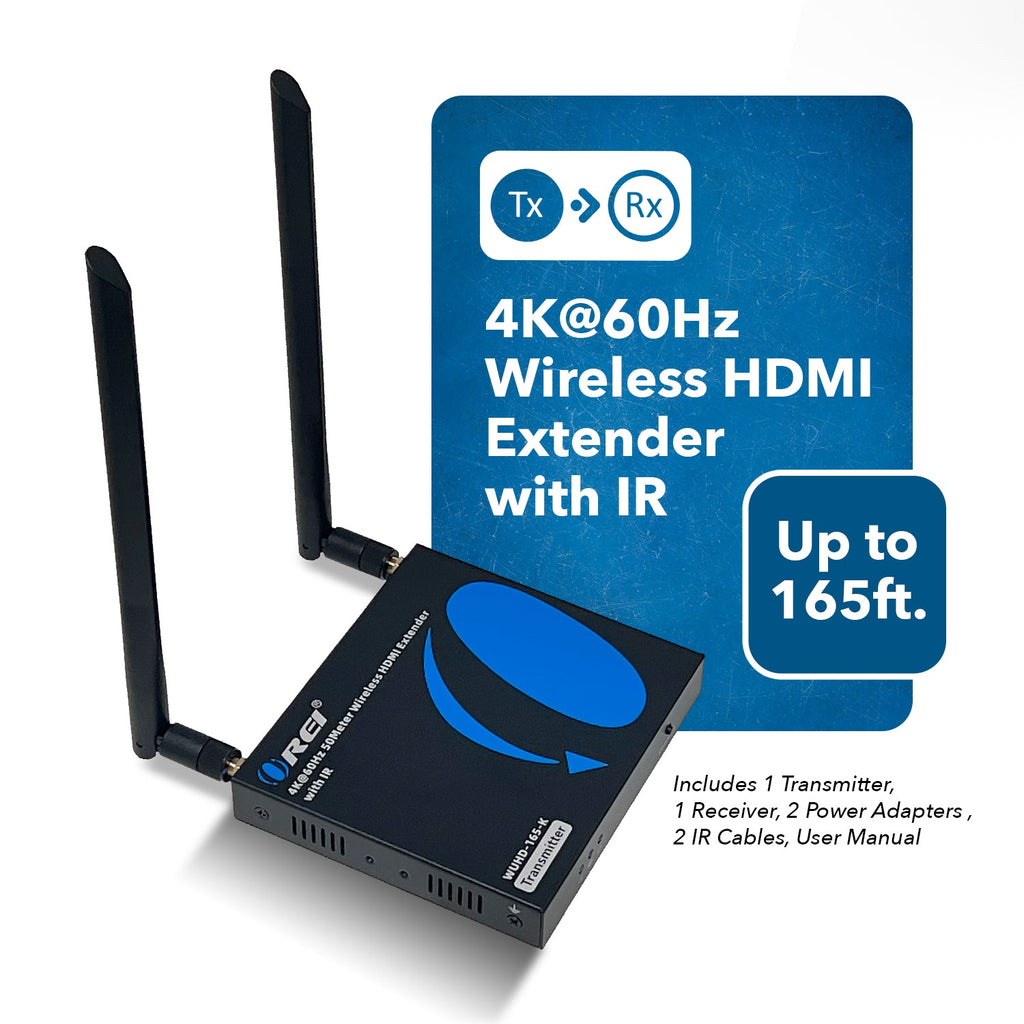

PACKAGE CONTENTS
1x Transmitter
1x Receiver
2x Micro USB cable
User Manual
EXTENDING DISTANCE
4K@60HZ:
165 feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
PCM
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
Transmitter 4.5W (Max) & Receiver 3.5W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

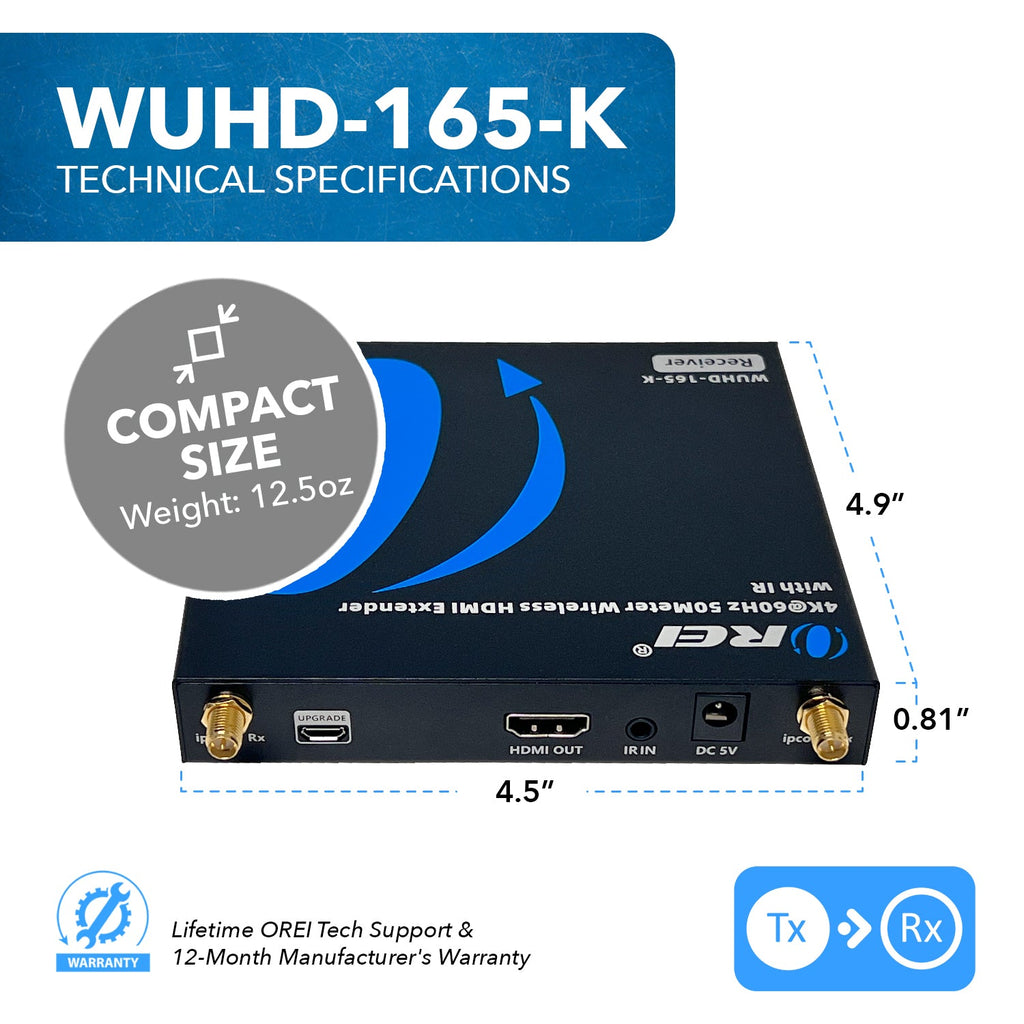

DIMENSIONS & WEIGHT
Transmitter:
Length:
230mm / 9.06in
Width:
40.2mm / 1.58in
Height:
15mm / 0.59in
Weight:
58g / 2.05oz
Receiver:
Length:
230mm / 9.06in
Width:
40.2mm / 1.58in
Height:
15mm / 0.59in
Weight:
54g / 1.91oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
Please try replacing your current HDMI cables with High-Quality HDMI cables.Please make sure that you dont have any other wireless devices such as wifi router nearby this extender.If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you can implement the daisy chain method.
We recommend you to use High-Quality HDMI cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[/tab1]
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The OREI WUHD-165-K supports resolutions up to 4K@60Hz and can wirelessly transmit the signal up to 165 feet (50m) line of sight.
Yes, the WUHD-165-K features one-way IR control, allowing control from the receiver to the transmitter.
The WUHD-165-K utilizes 5G wireless frequency bands for stable, high-speed, and anti-interference transmission.
Yes, the transmitter unit of the WUHD-165-K includes an HDMI loop-out port to connect a display near the source.
The WUHD-165-K uses SSID Pairing and Channel Switching, along with 5G wireless frequency bands, to minimize interference.
