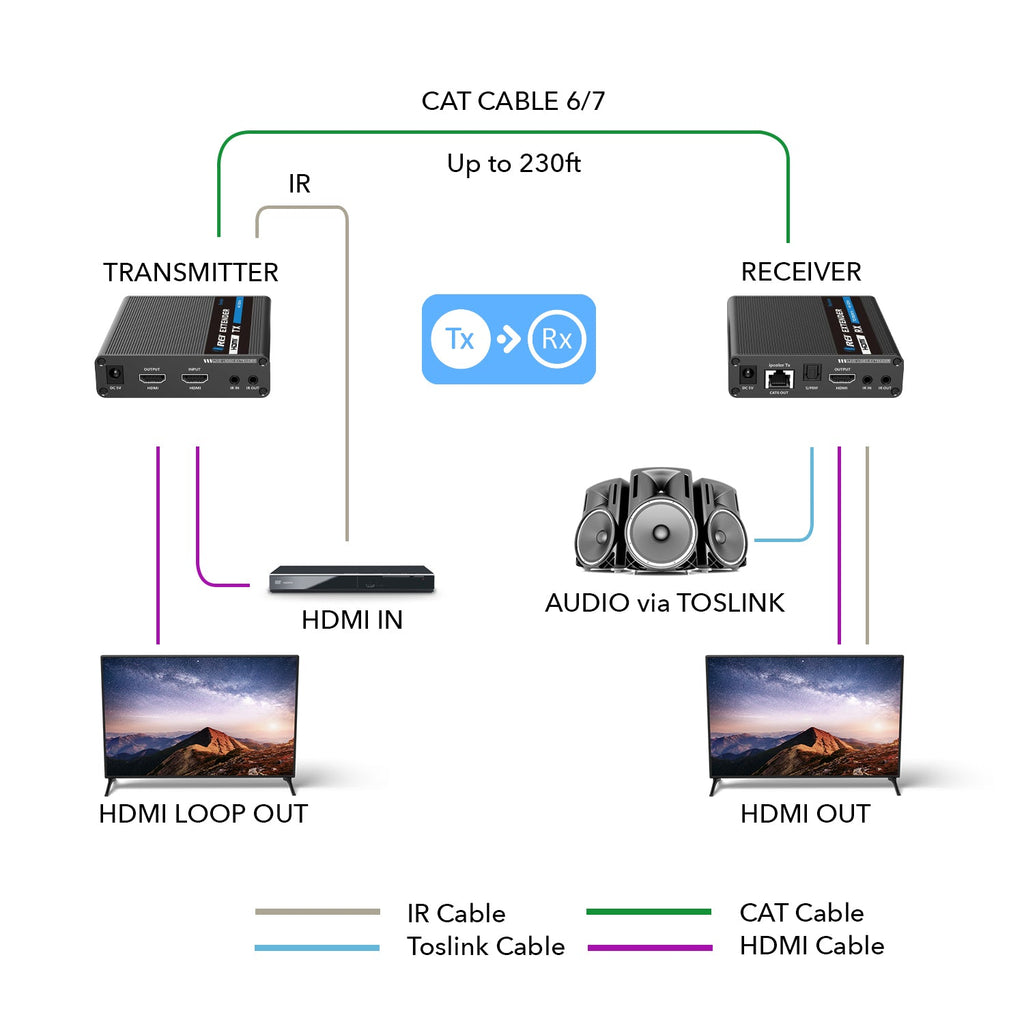

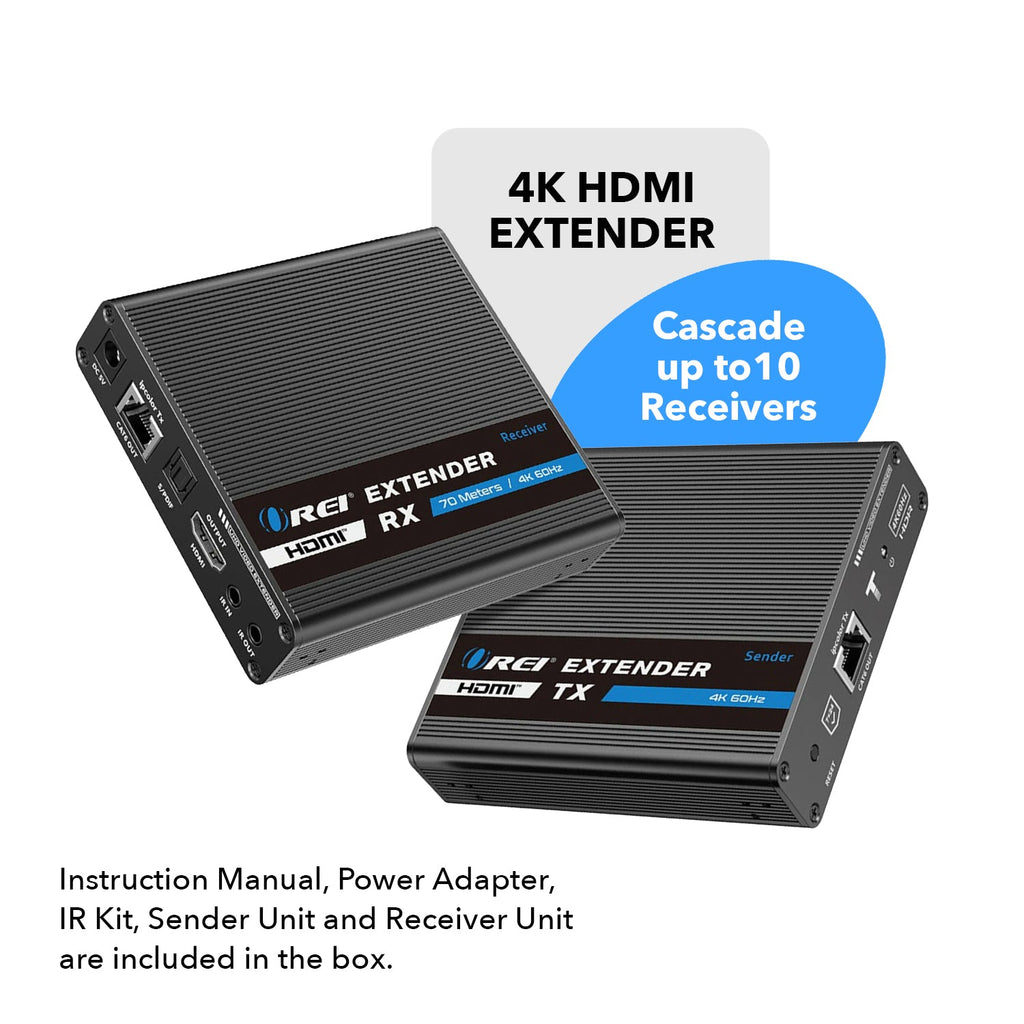

This HDMI Extender - UHD-IPC230-CS with HDMI loop out port can extend 4K@60Hz 4:4:4 HDMI signal over 230 feet via shielded CAT6 cable.
It supports EDID passthrough, auto downscaling & cascading up to 10 receivers (distance decreases to 165ft when cascading receivers). It also supports bi-directional IR control which allows you to easily control your DVD player at TV side or control your TV at DVD player side when using this extender. Besides, the receiver can extract the digital audio from the transmitter through the S/PDIF port.
[shortdes]

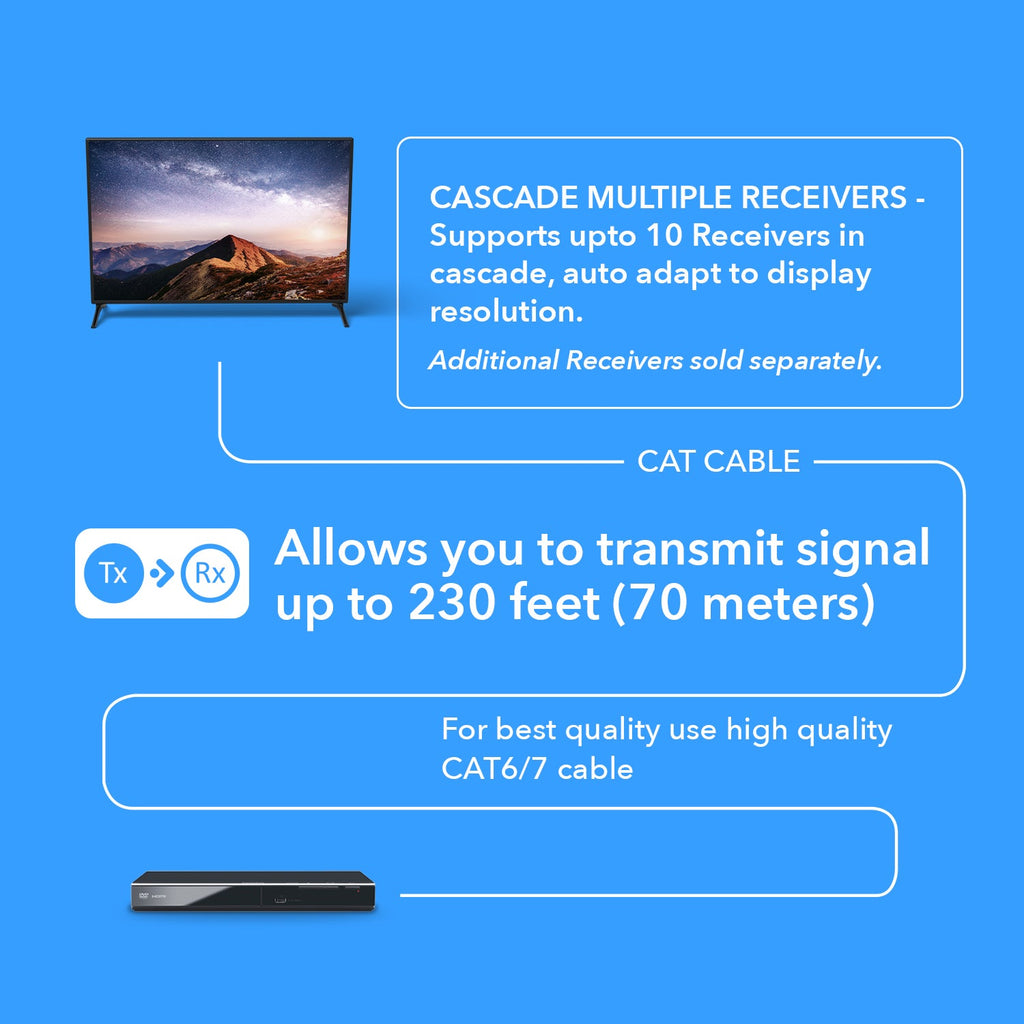

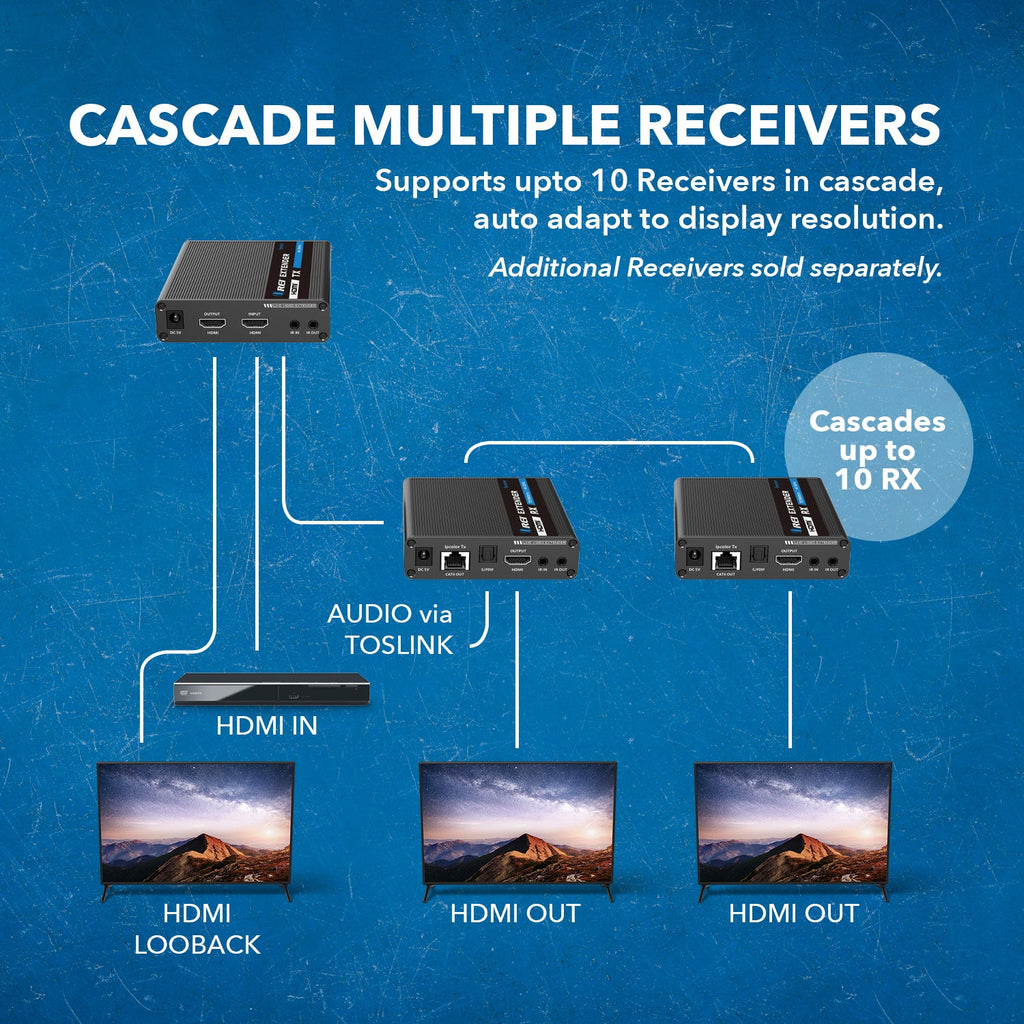

Supports up to 10 receivers in cascade
Auto adapt to display resolution
Support bi-directional IR, Dolby 5.1, 7.1Ch
[/shortdes]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
[/tab1]
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI Input
1x IR Input
OUTPUT PORTS:
1x HDMI Output
1x IR Out
1x RJ45 Out
Receiver:
INPUT PORTS:
1x IR Input
1x RJ45 Input
OUTPUT PORTS:
1x IR Output
1x RJ45 Output
1x Optical Output
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
