OREI 4K HDMI Extender over CAT 6/7 up to 165 feet with HDR, EDID, Uni-Directional IR & Power over Cable
Key Features:
HDMI 2.0 & HDCP 2.2 compliant
Video resolutions up to 4K@60Hz
18Gbps video bandwidth

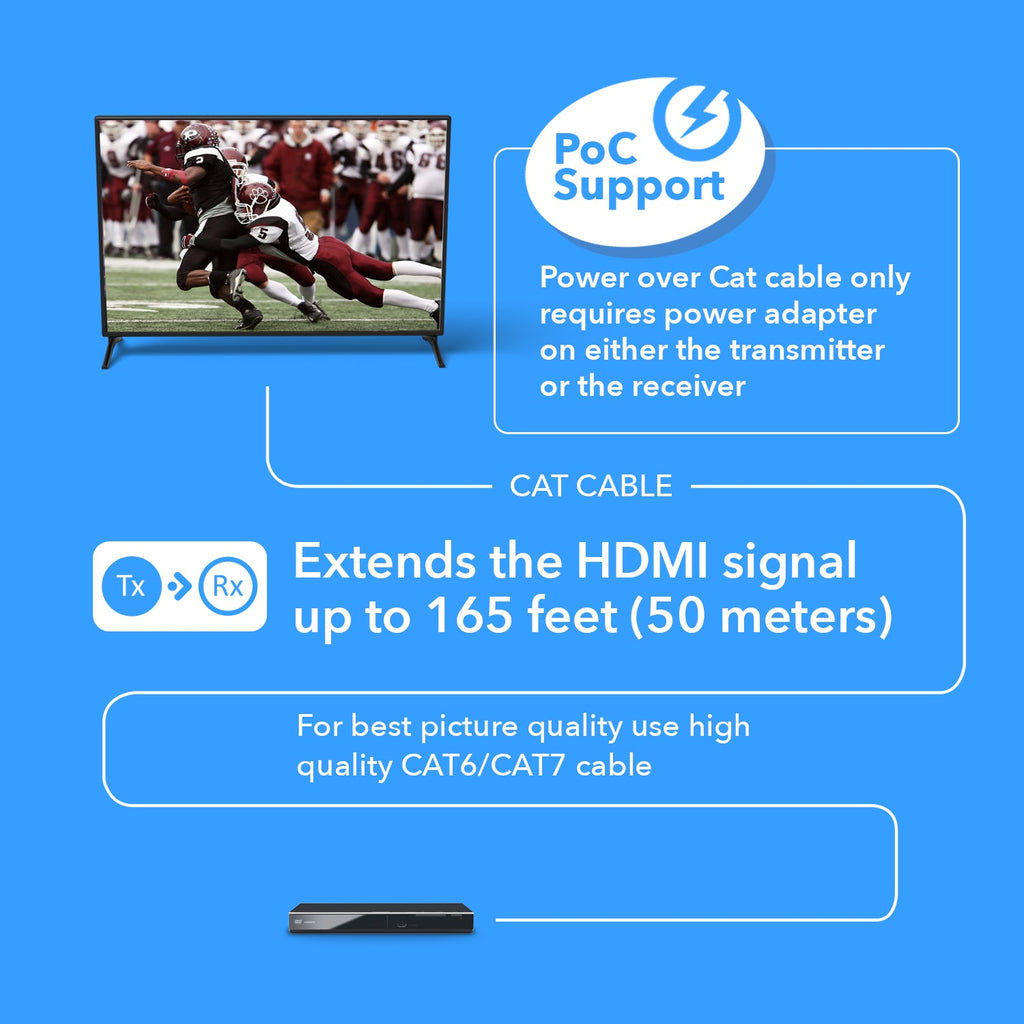

Signal transmission up to 165 feet over a CAT 6/7 cable
12-bit color depth and HDR (High Dynamic Range) support
HDMI loop output to connect a display near the source

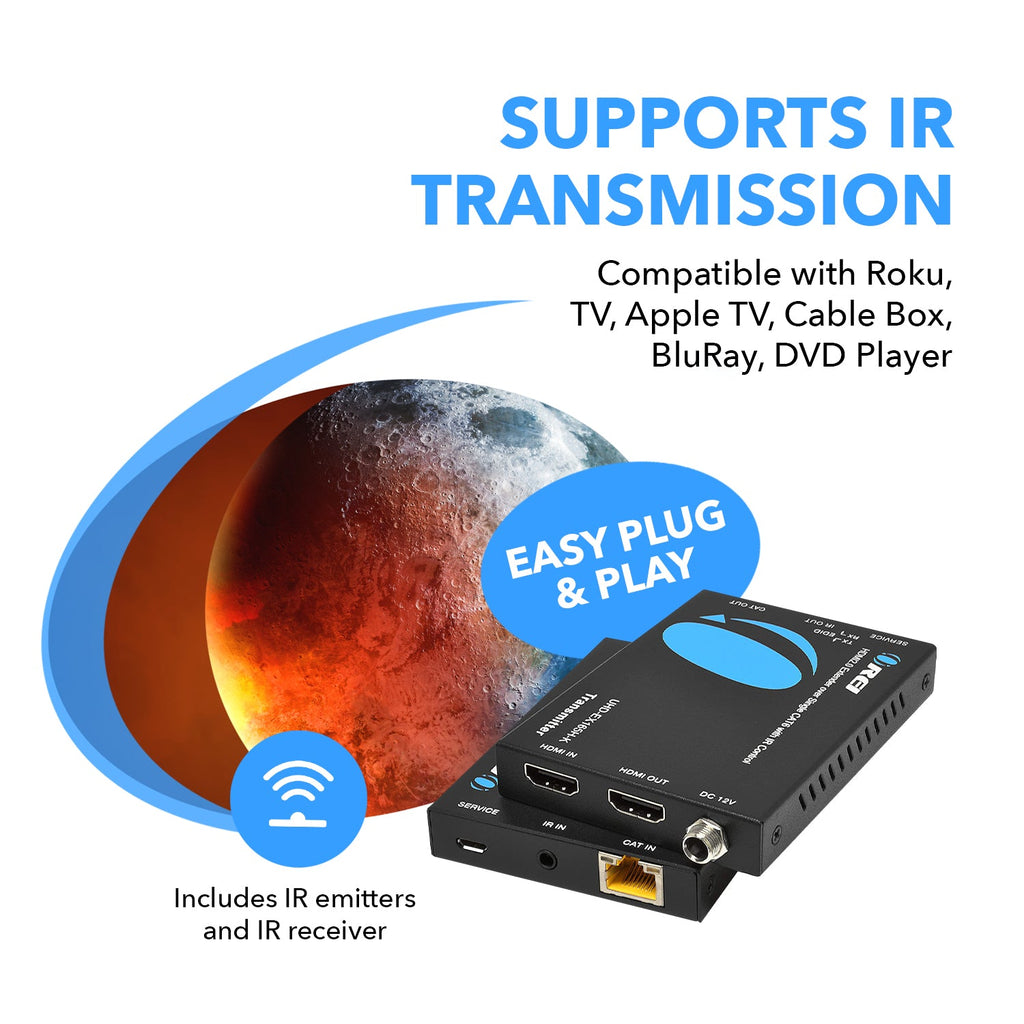

One-way IR control allows control of the source from the Receiver
Compact design & easy installation
Perfect for both personal and commercial uses
NOTE: Does not support 2K (2560x1440) resolution.

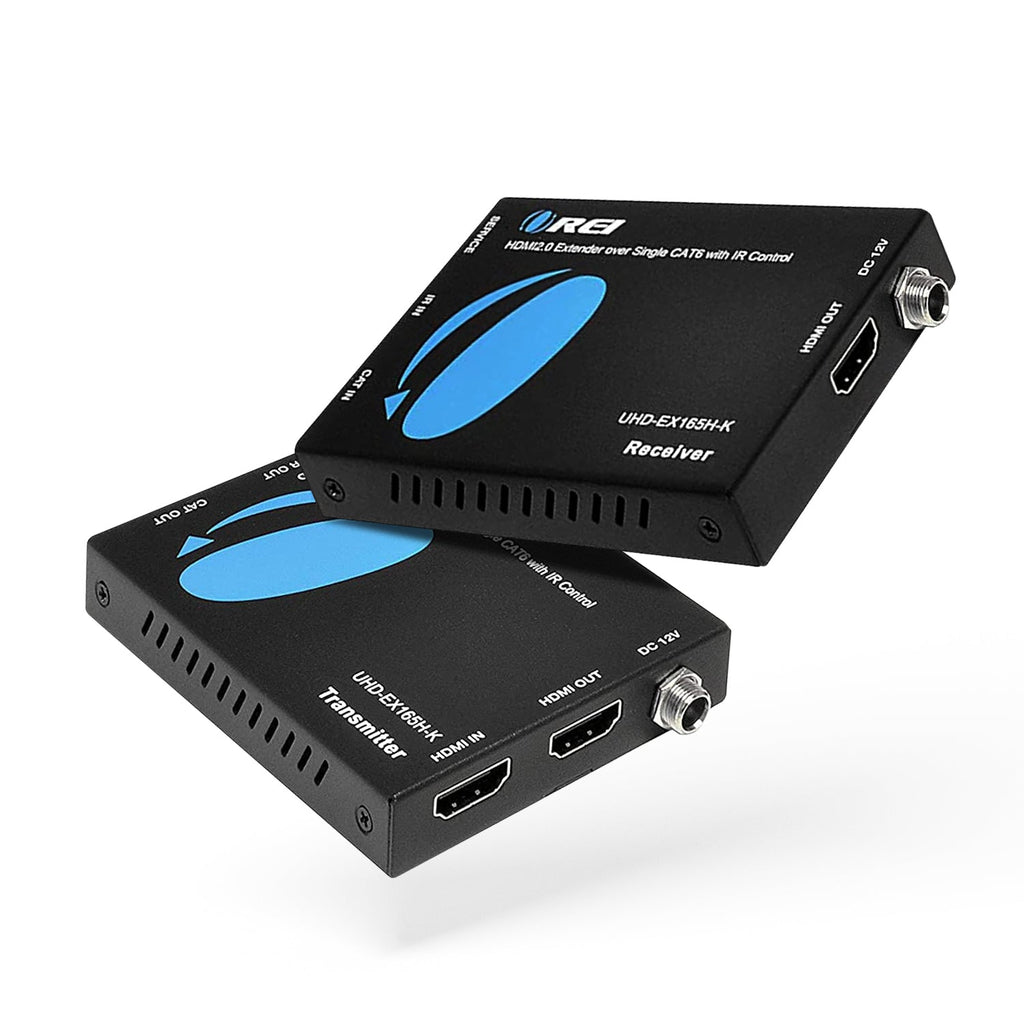

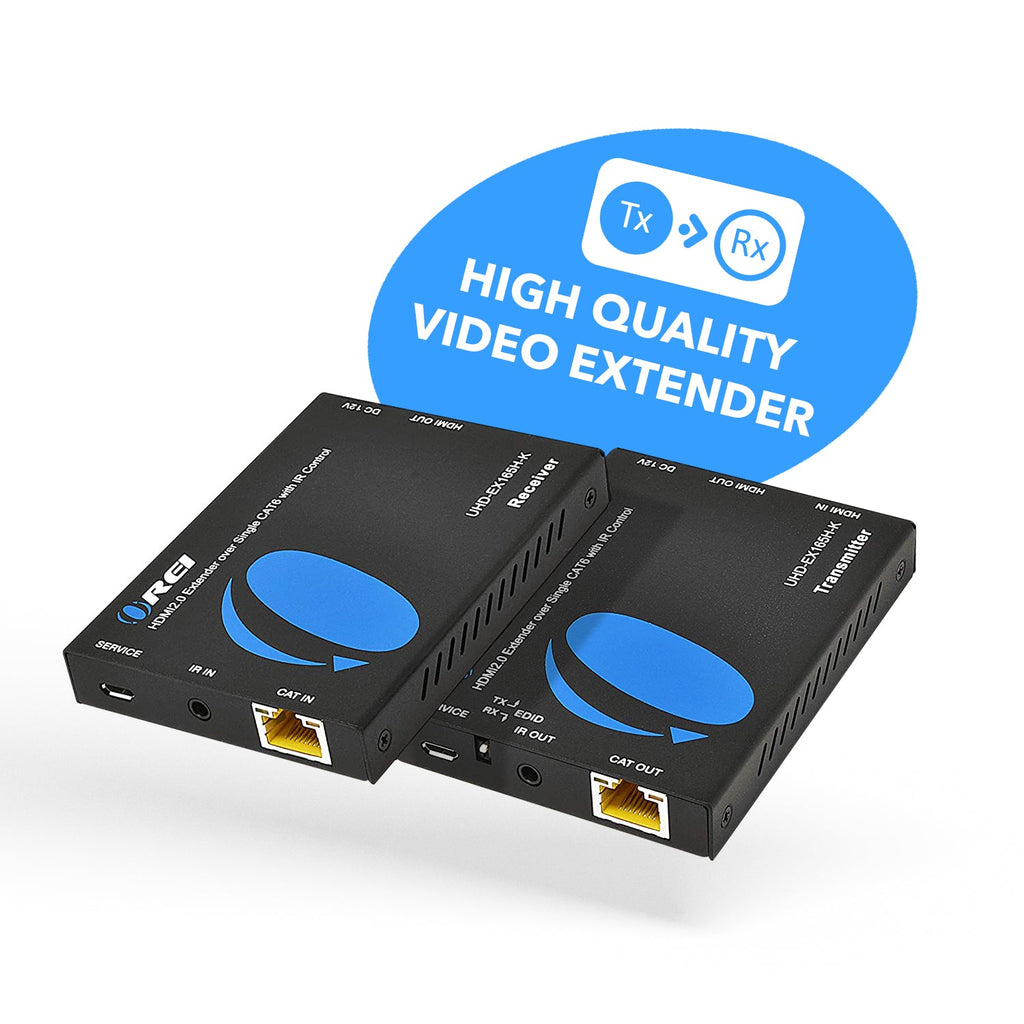

The UHD-EX165H-K is an HDMI extender that can extend HDMI signals up to 165 feet at 4K@60Hz and 2k@60Hz over a CAT cable. It is HDMI 2.0 and HDCP 2.2 compliant, with an 18 Gbps video bandwidth and HDR pass-through. The transmitter unit includes an HDMI loop output port to connect a display at the source. It supports HDMI audio pass-through for formats like LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master Audio, and DSD. The uni-directional IR (receiver to the transmitter) feature allows control of the source device from the receiver’s location. The device can copy EDID settings from the transmitter to the receiver. The power-over-cable feature enables powering up the setup with a single power adapter at the transmitter end. Robust build and a compact design. Perfect for both personal and commercial use.
[shortdes]
HDMI extender over ethernet up to 165 feet.
Video resolutions up to 4K@60Hz and 2k@60Hz
Featuring HDMI loop output, Uni-directional IR & PoC
[/shortdes]
[tab]
CONNECTIVITY

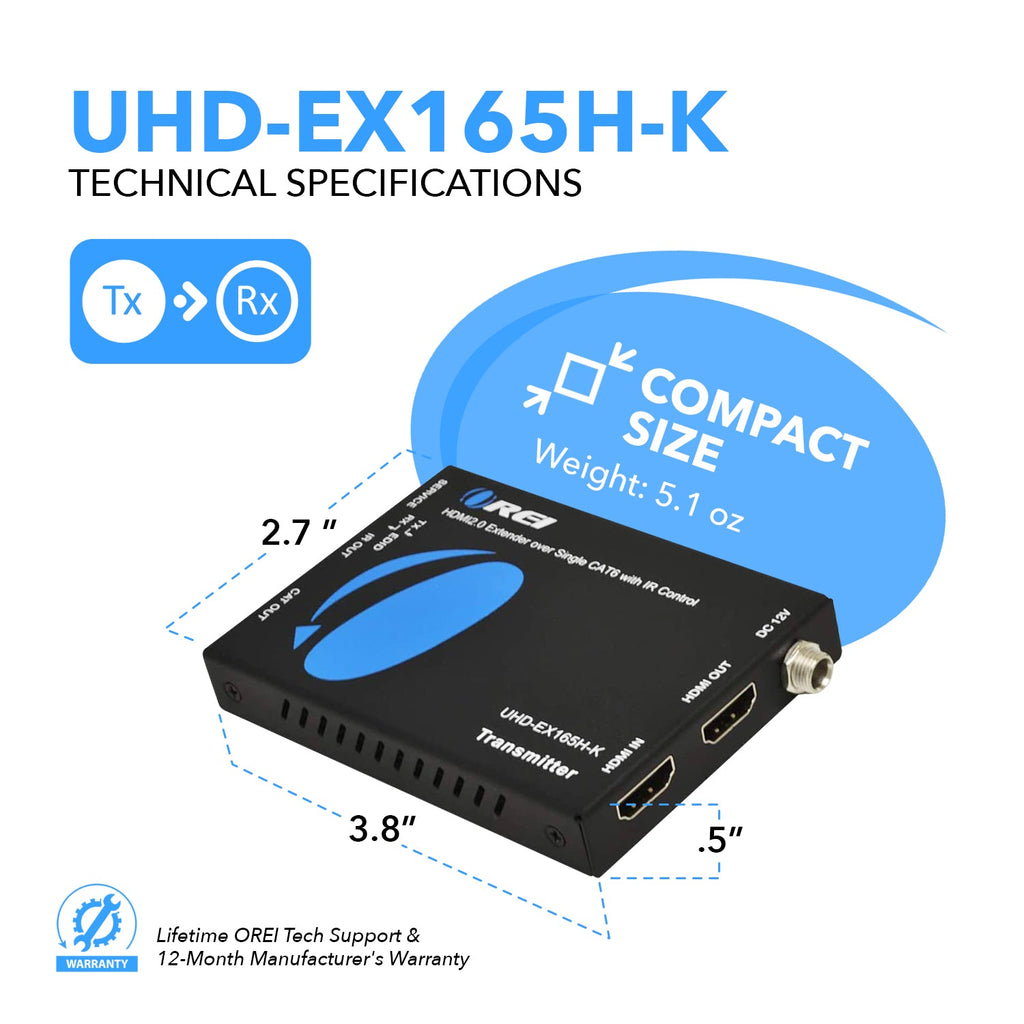

Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × CAT [RJ45, 8-pin female]
CONTROL:
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]
Receiver:
INPUT:
1 × CAT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]

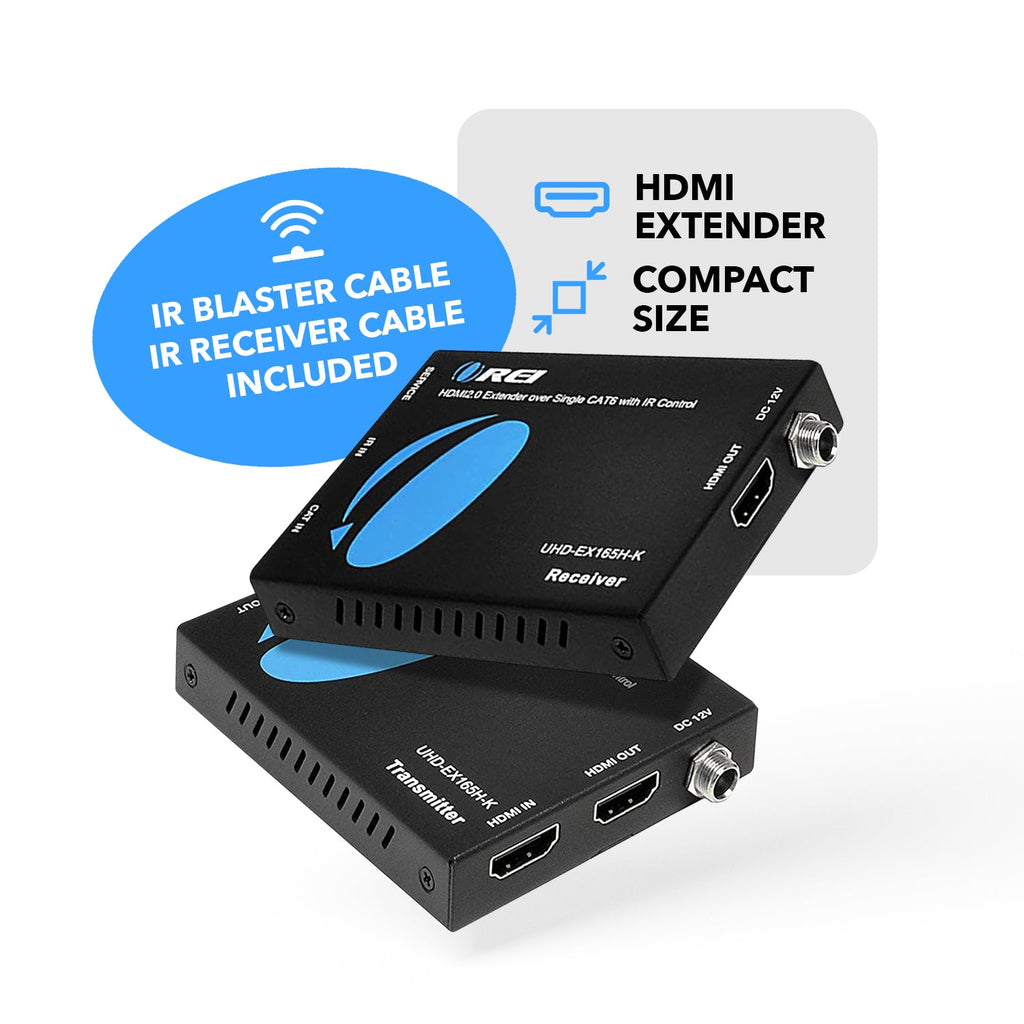

PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster cable
1x IR Receiver cable
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

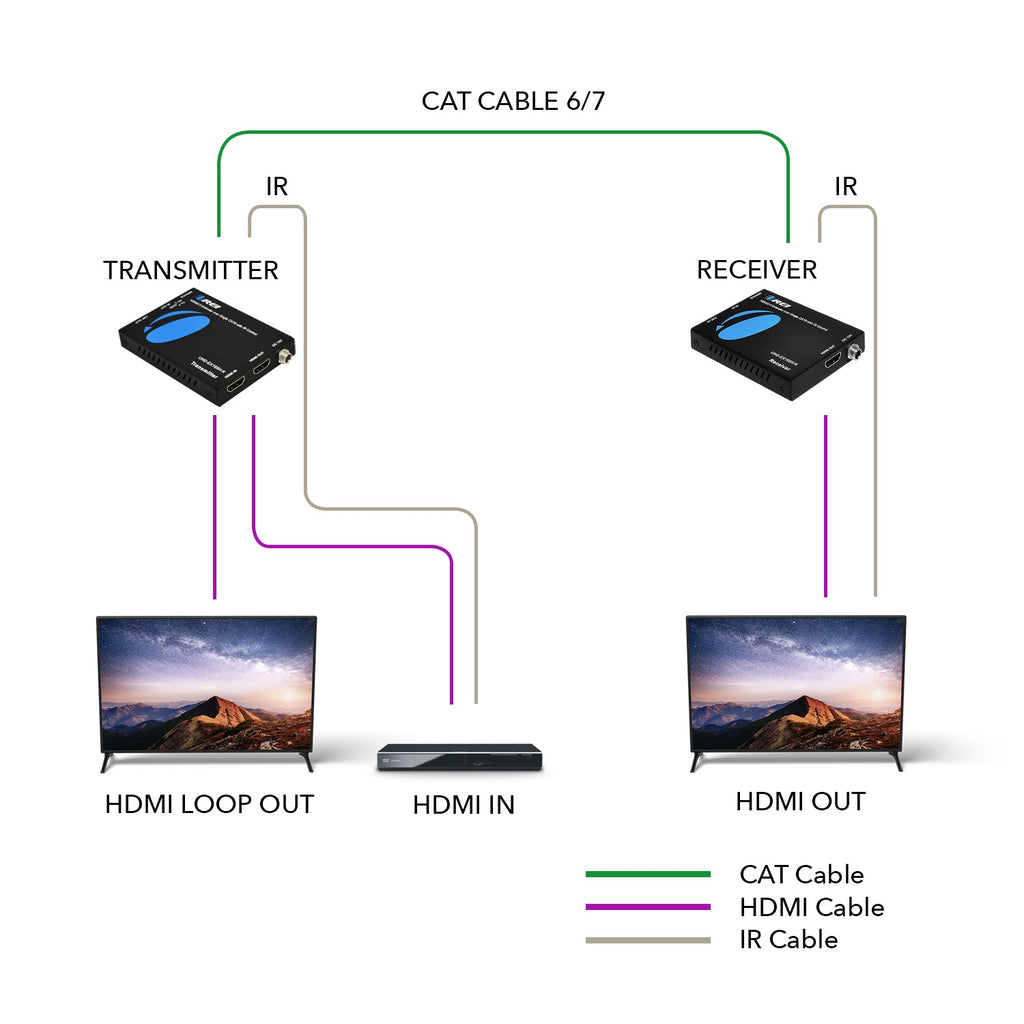

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
