OREI 1080p KVM Extender over Ethernet up to 230 feet - With Power over Cable
Key Features:
HDMI 1.4 & HDCP 1.4 Compliant
Features USB 2.0 Protocol
4K@30Hz and 1080p@60Hz transmission up to 130ft & 230ft respectively.
Zero latency transmission using CAT6/6A/7 cables.
KVM functionality to control a PC remotely.
HDR10 support

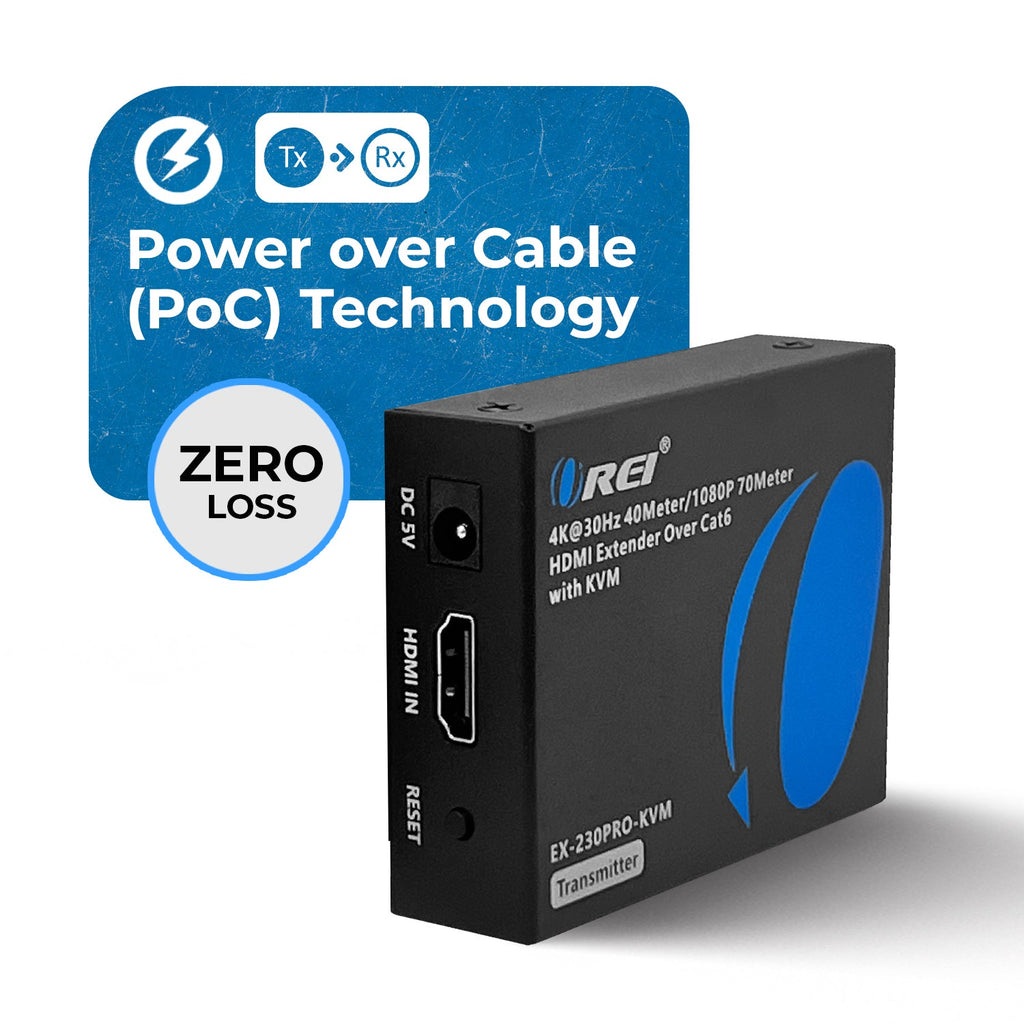

Power Over Cable functionality; only requires power at the Transmitter end.
Compact and robust build with easy plug and play installation

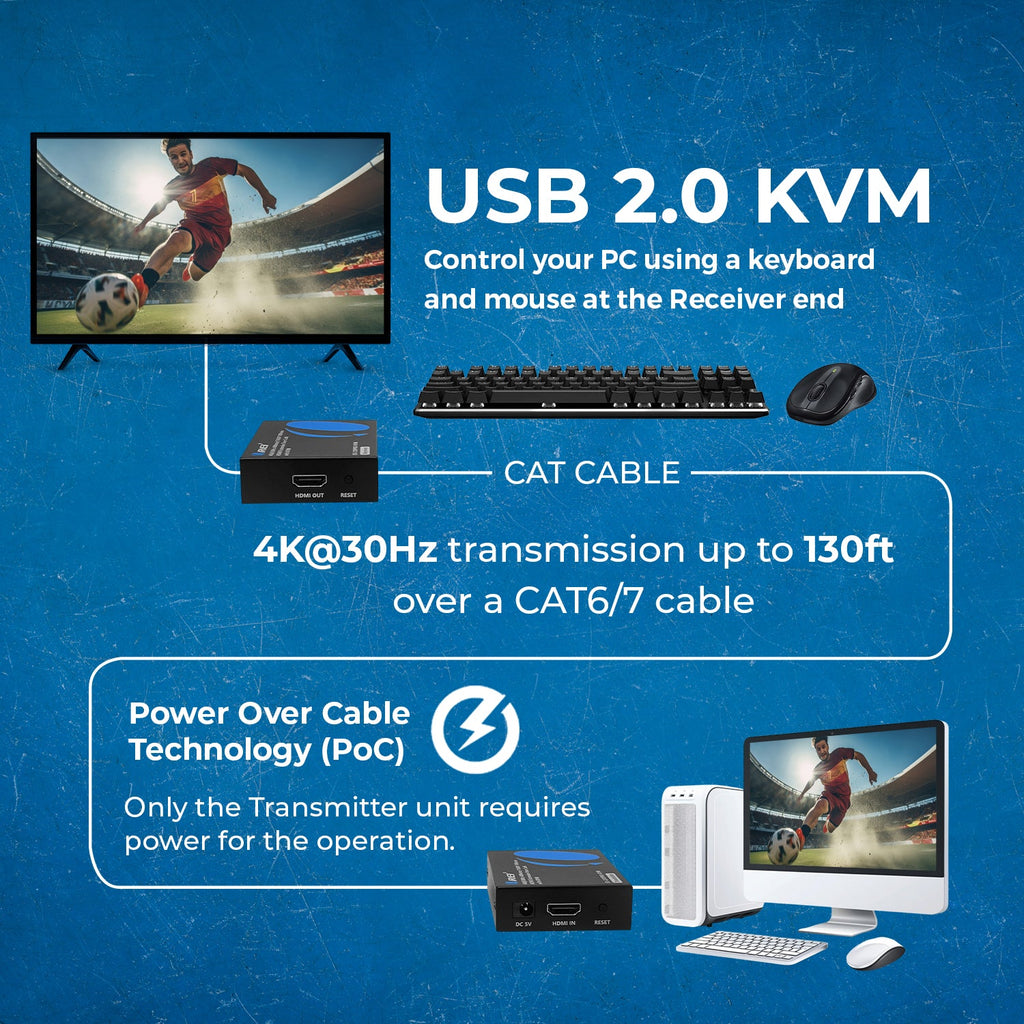

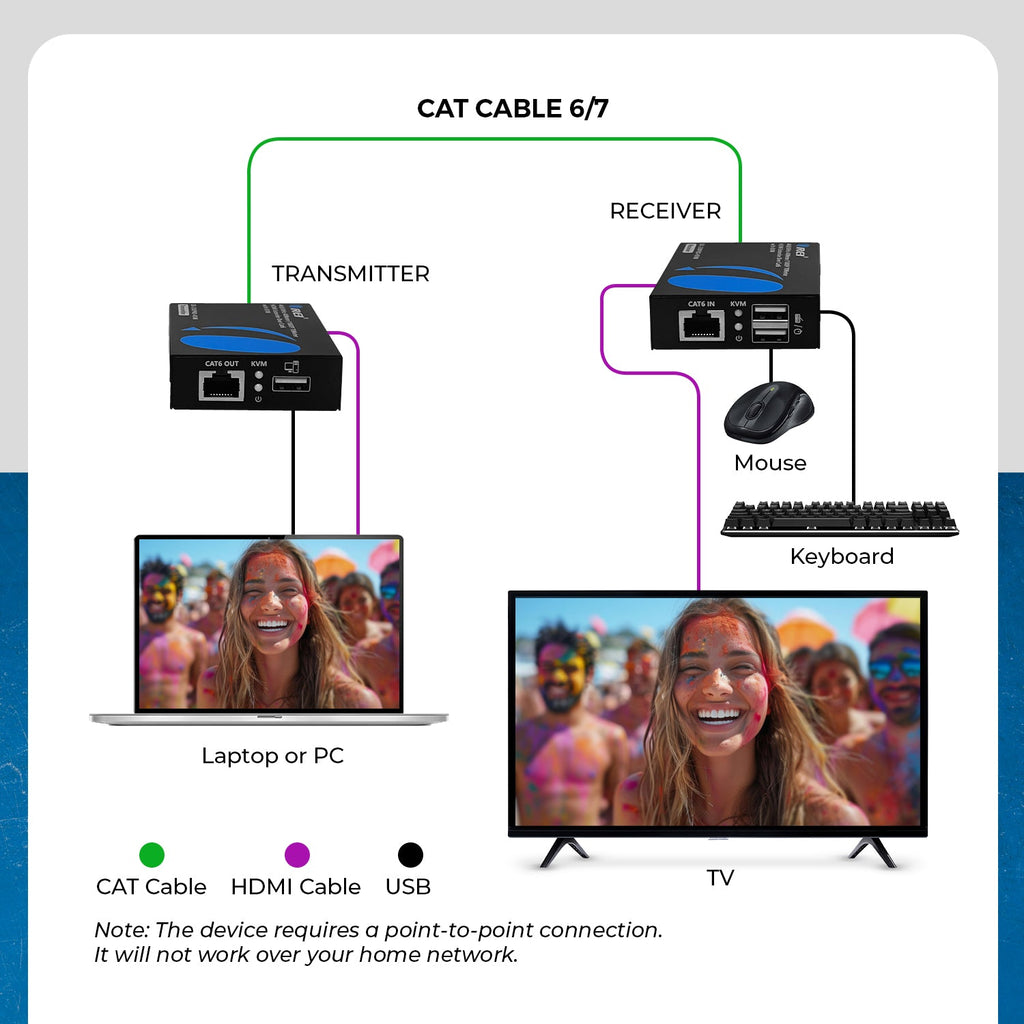

The EX-230PRO-KVM HDMI Extender features support for resolutions up to 4K@30Hz. It can extend an HDMI signal up to 40m/130ft at 4K@30Hz and 70m/230ft at 1080p@60Hz over a single CAT6/6A/7 cable. This device is HDMI1.4, HDCP 1.4 & USB 2.0 compliant. The device requires a point-to-point connection and also supports KVM functionality. KVM allows you to connect a keyboard and mouse at the Receiver end to control the PC or Laptop connected at the source. Power over cable technology; only requires a power adapter at the Transmitter end, giving more flexibility to the setup. The device features a robust metal build and compact size for easier installation. This plug-and-play device is perfect for outdoor advertising, monitoring systems, home office, conference, etc.
[shortdes]
KVM and HDMI extender
Video resolutions up to 4K@30Hz 4:4:4
Uni-directional Power over cable
[/shortdes]
[tab]

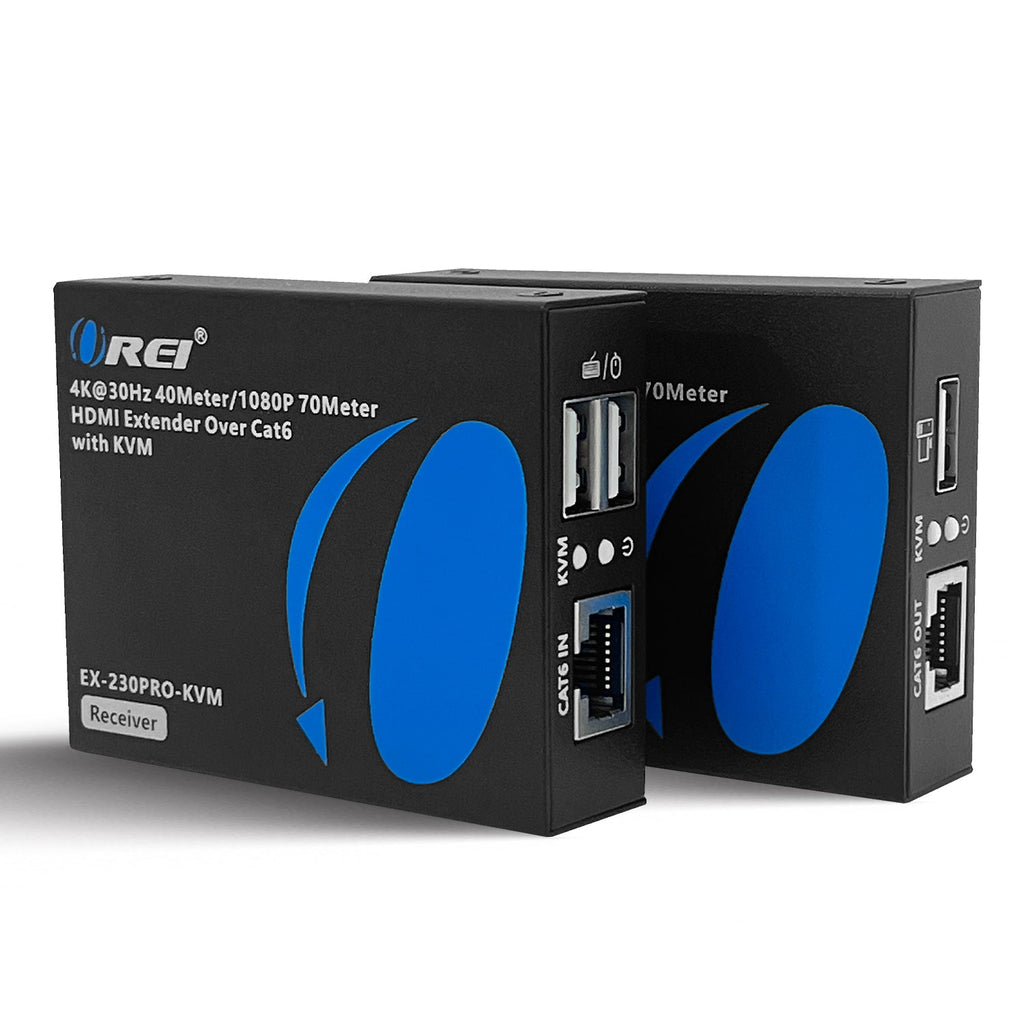

CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × CAT [RJ45, 8-pin female]
CONTROL:
1×USB [USB Type A]
Receiver:
INPUT:
1 × CAT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
2×USB [USB Type A]

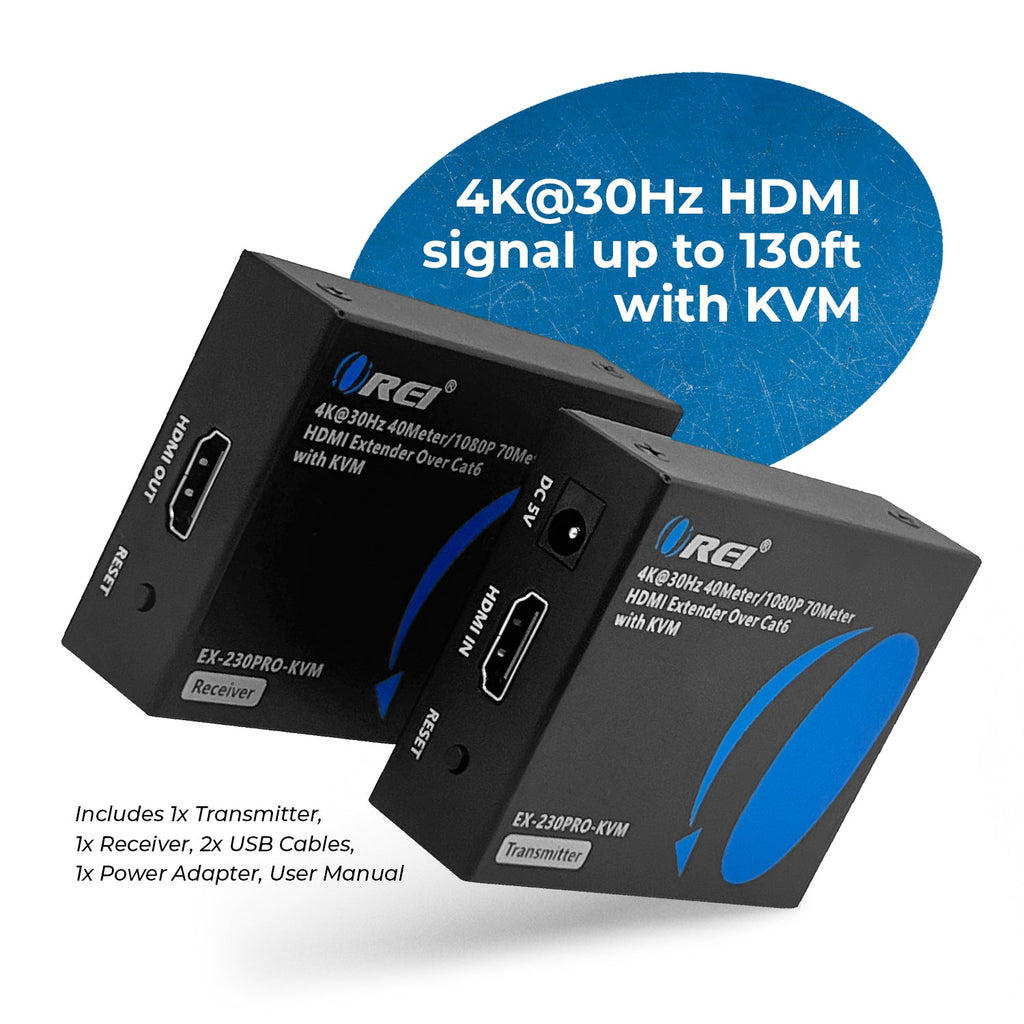

PACKAGE CONTENTS
1x Transmitter
1x Receiver
2x USB Cable
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
131 Feet
1080p@60Hz:
230 Feet
VIDEO OUTPUT
Video Bandwidth:
10.2Gbps
Video Resolutions:
Up to 4K@30Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
Yes
PoC/PoE:
Yes
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
DTS, DTS-HD, PCM, LPCM
COMPLIANCES
HDMI Compliance
HDMI 1.4
HDCP Compliance
HDCP 1.4
POWER
Power Consumption:
10W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/2A

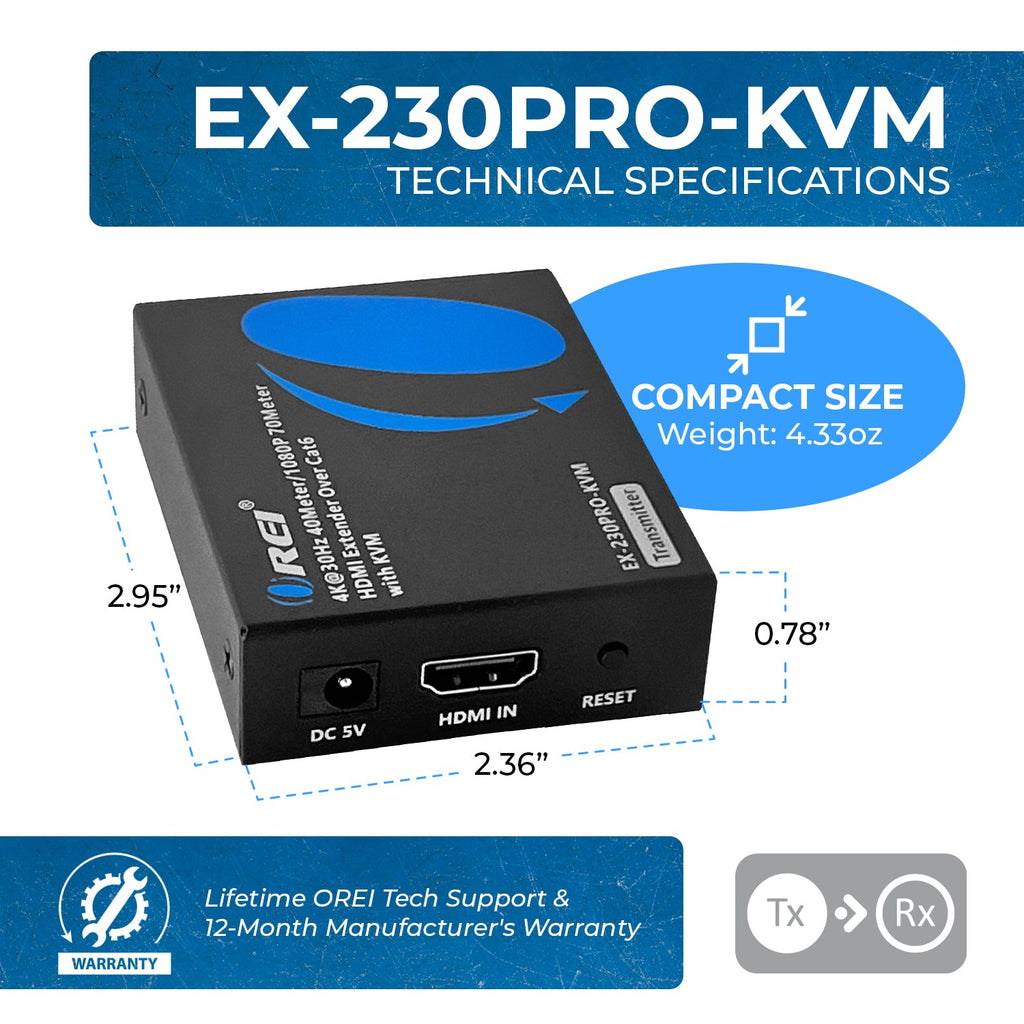

DIMENSIONS & WEIGHT
Transmitter:
Length:
75mm / 2.95in
Width:
60mm / 2.36in
Height:
20mm / 0.79in
Weight:
123g / 4.34oz
Receiver:
Length:
75mm / 2.95in
Width:
60mm / 2.36in
Height:
20mm / 0.79in
Weight:
123g / 4.34oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The OREI EX-230PRO-KVM supports up to 4K@30Hz resolution at a distance of 130 ft (40m) and 1080p@60Hz at a distance of 230 ft (70m) over a single CAT6/6A/7 cable.
Yes, the OREI EX-230PRO-KVM supports KVM functionality, allowing you to connect a keyboard and mouse at the receiver end to control the PC or laptop connected at the source.
No, the OREI EX-230PRO-KVM features Power Over Cable technology, meaning power is only required at the transmitter end, providing more flexibility in setup.
The OREI EX-230PRO-KVM supports the USB 2.0 protocol.
