Support digital audio format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
A super wideband IR control system, the IR transport channel can be forward or backward

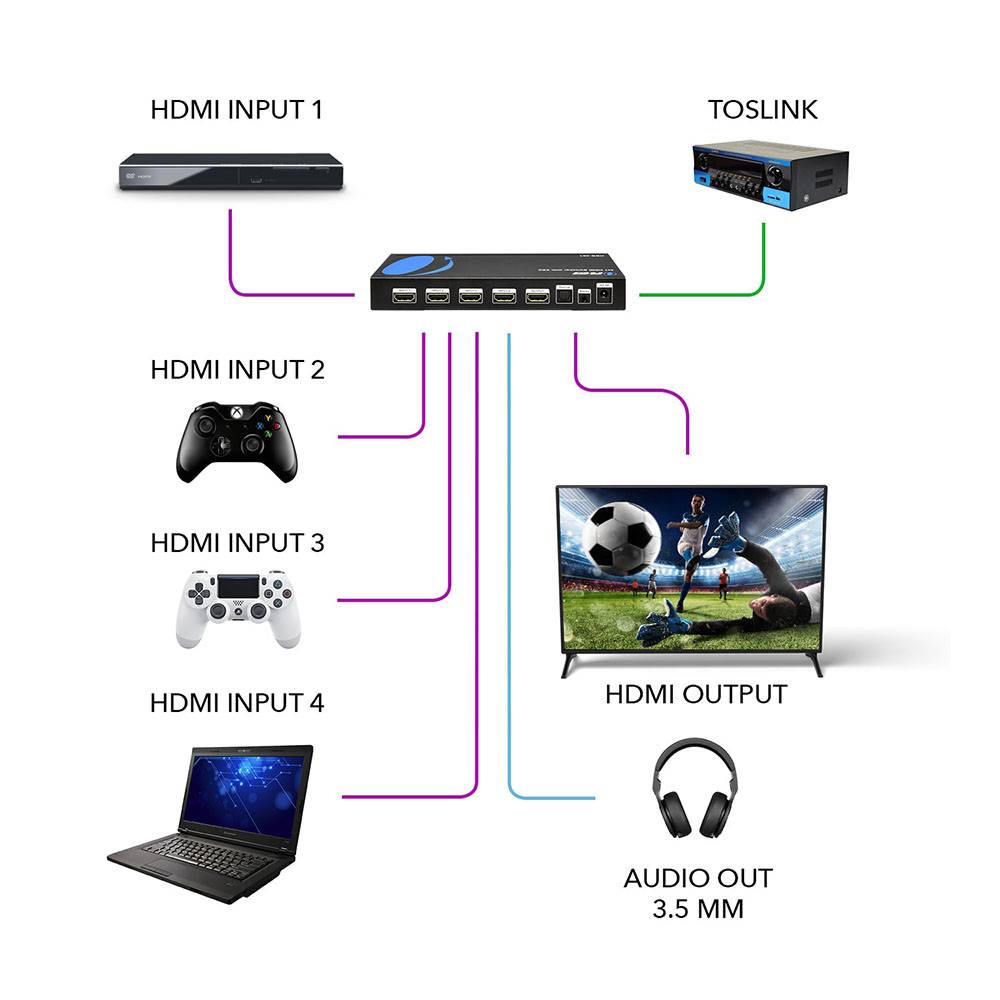

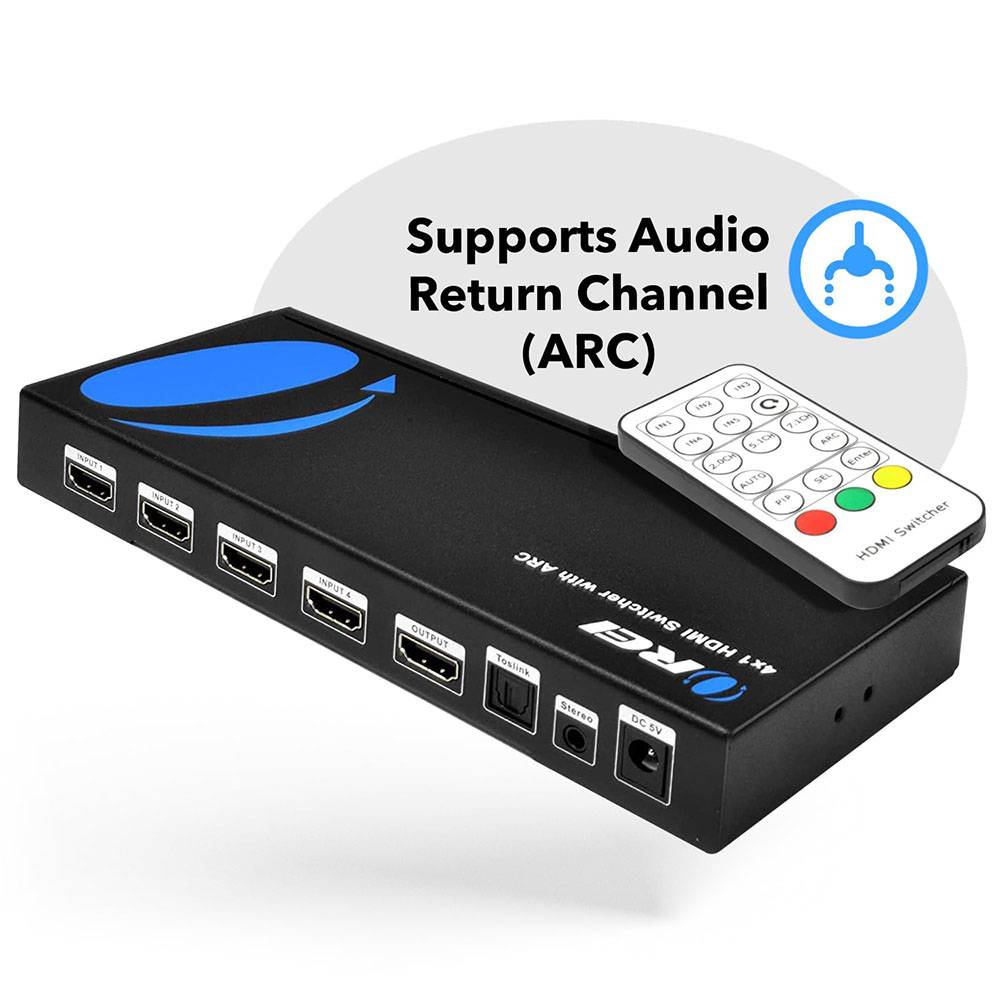

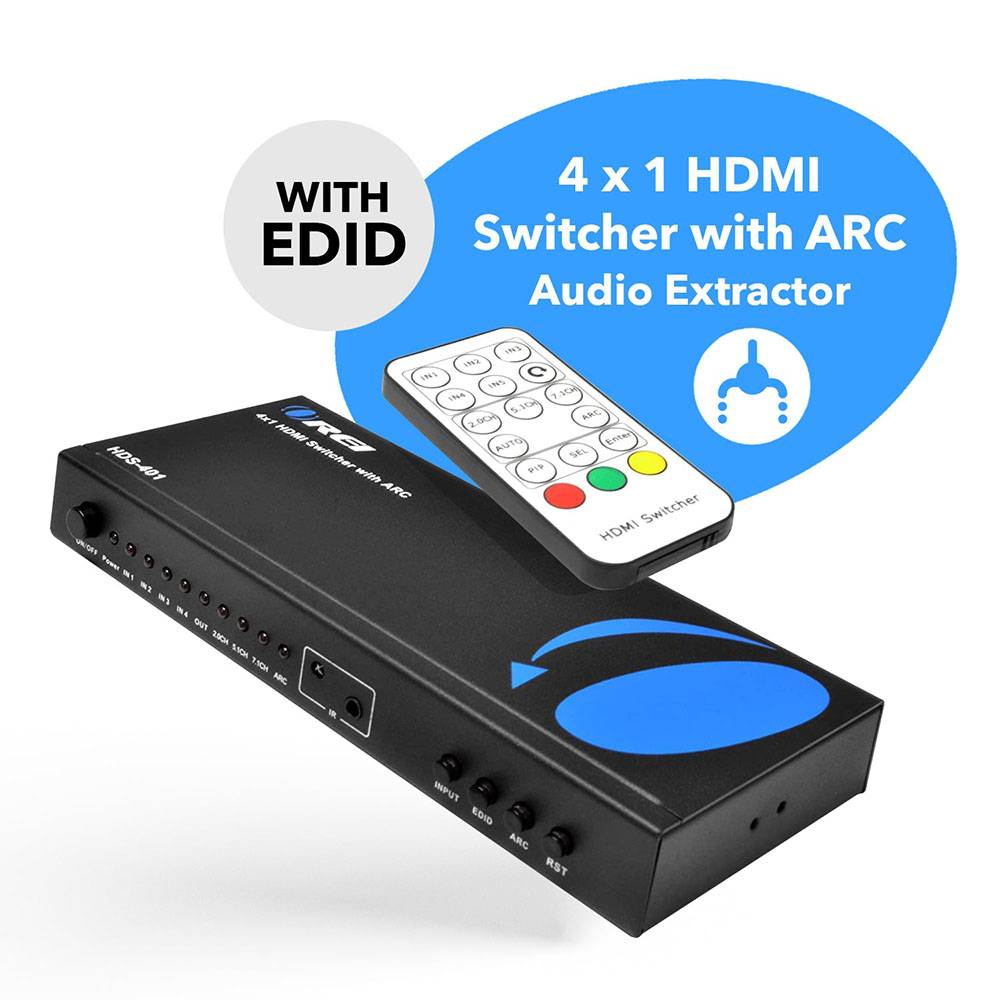

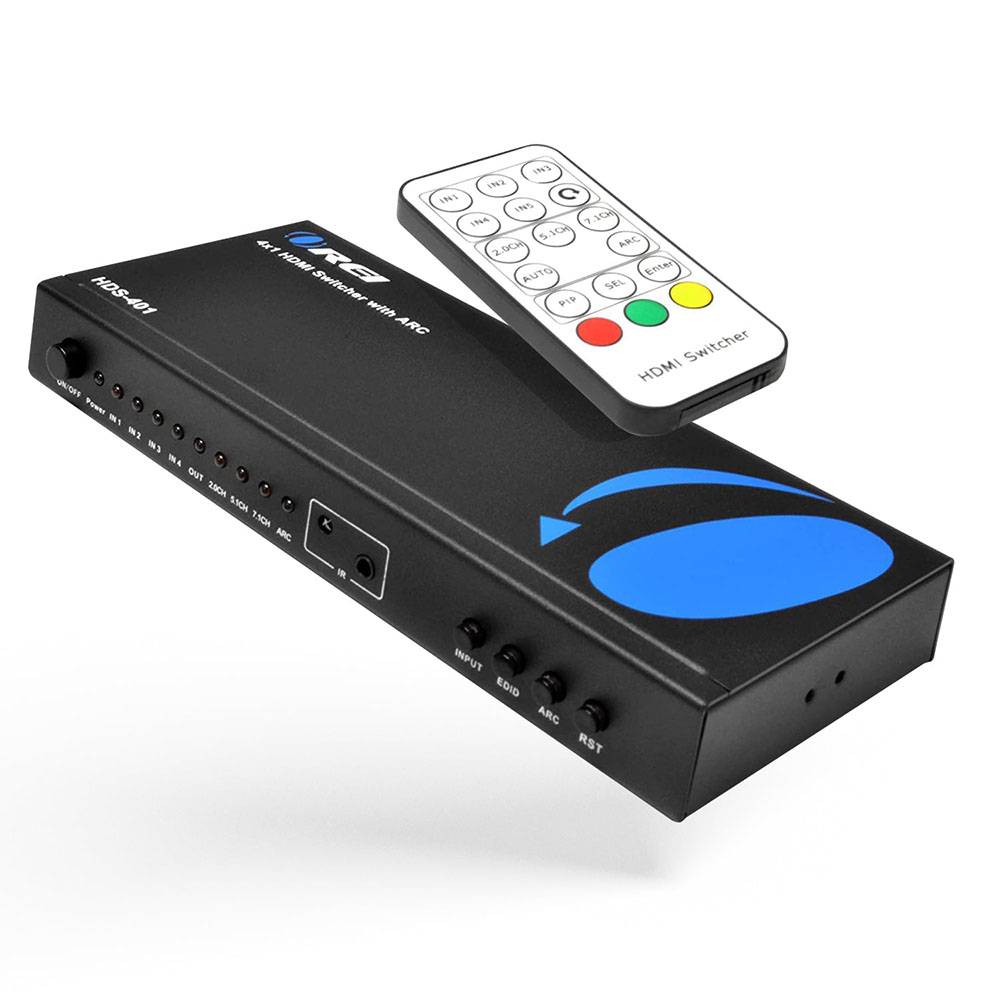

OREI HDS-401 4K x 2K HDMI 4 input into 1 output Switcher. It supports highest video resolution up to 4K x 2K at 30Hz), EDID bypass, full 3D and HDCP2.0 complaint. This HDMI Switcher provides a S/PDIF link and earphone to output the HDMI source audio. It supports PCM, Dolby True HD, DTS-HD Master Audio up to 2.1, 7.1 Ch. Digital and analog Audio output. Supports Audio Return Channel (ARC) through Optical Audio Out from a compatible ARC TV
[shortdes]
4 Inputs - 1 output HDMI switch
Video resolution up to 4Kx2K@30Hz
Supports Audio Extraction
Compliance: HDMI v1.4 - HDCP 2.0
[/shortdes]
[tab1]
FAQs
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
Yes, the included power adapter does support 220V
[/tab1] [tab]
AUDIO AND VIDEO
Input Ports:
4 × HDMI Type A(Female type)
Output Ports:
1 × HDMI Type A(Female type)
Video Bandwidth:
300MHz/10.2 Gbps
Video Resolution:
480i ~1080p50/60, 4Kx2K@24/30, VGA~UXGA
Digital Audio Formats:
DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
COMMUNICATION AND CONTROL
HDMI Compliance
HDMI v1.4
HDCP Compliance
HDCP 2.0
POWER
Power Supply:
5 V/1A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption:
1.5 W
CONTROL
CEC:
Pass through
ENVIRONMENTAL
Operating Temperature:
0 °C~40 °C/ 32 °F~104 °F
Storage Temperature:
−20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity:
20~90 % RH (non-condensing)
DIMENSIONS & WEIGHT
Height:
26 mm
Width:
82 mm
Depth:
190 mm
Weight:
430g
REGULATORY
Safety and Emission:
CE | FCC | RoHS
PACKAGE CONTENTS
1 × HDS-401 HDMI Switcher
1 × 5V/1A DC Power Adapter
1 × Remote Control
1 × 38KHz IR Receiver
1 × User Manual
Warranty
1 - Year Manufacturer's Warranty
