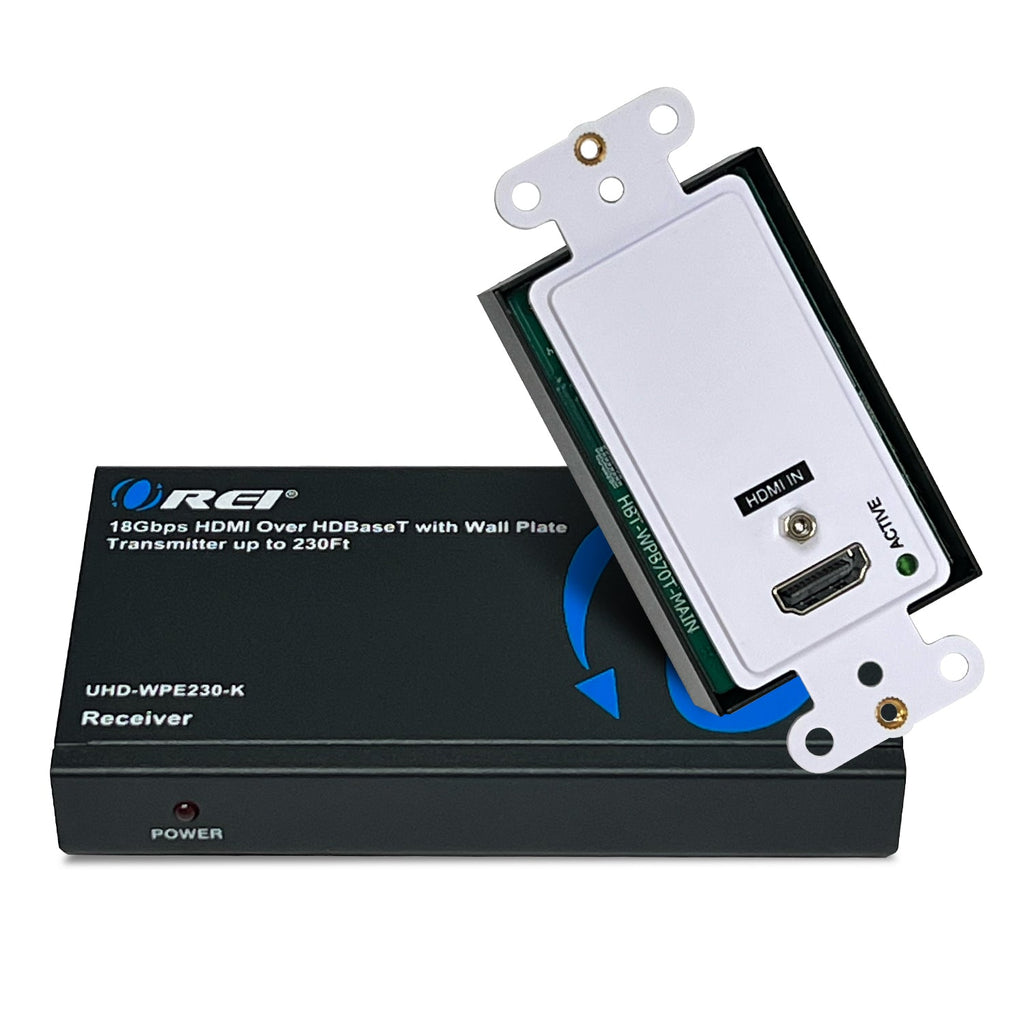

UHD-WPE230-K: 4K Wall Plate HDMI Extender over CAT 6/7 up to 230 feet with HDBaseT
Key Features:
HDMI 2.0b and HDCP 2.2 compliant
Video resolutions up to 4K@60Hz and 2K@60Hz
Extend audio/video signals up to 130 feet at 4K@60Hz and up to 230 feet at 1080p.
18Gbps video bandwidth
Features HDBaseT technology for lossless transmission

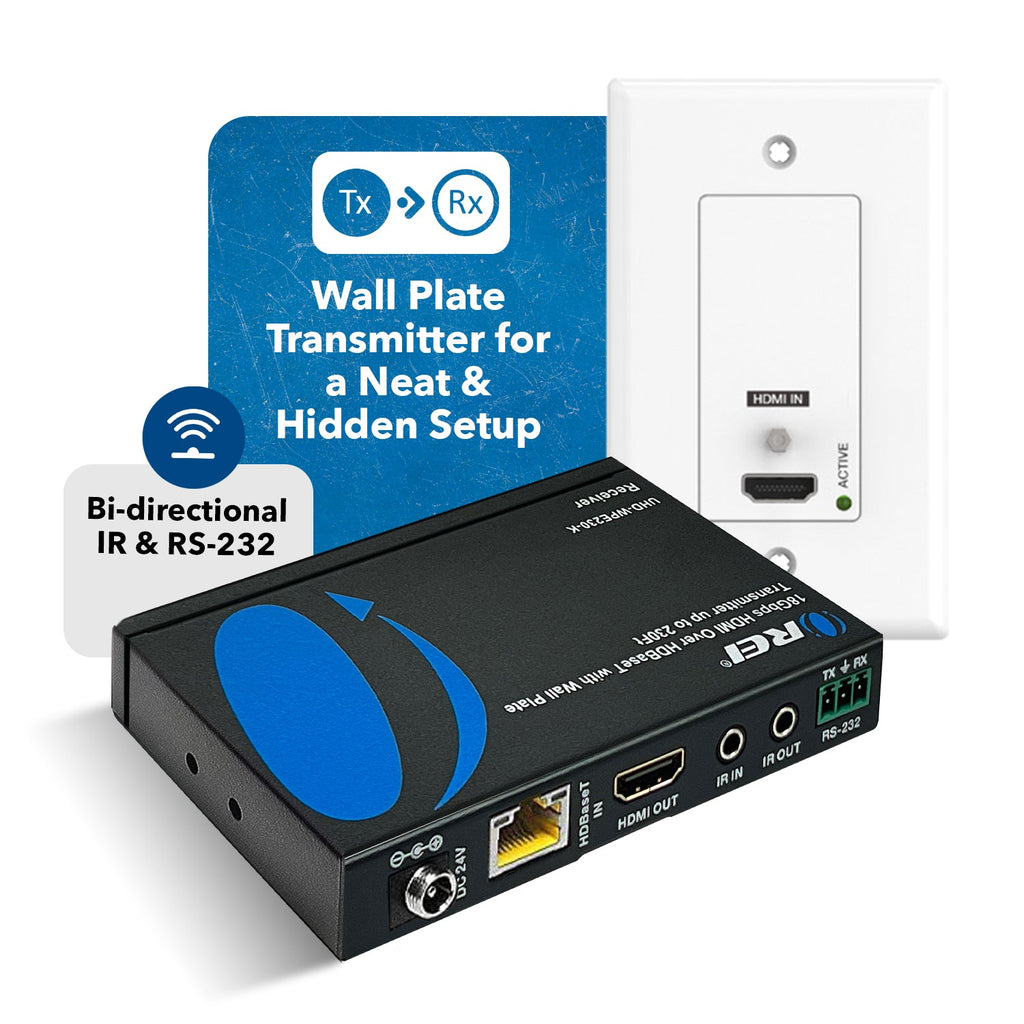

US Gang Decora Wall Plate Transmitter, fits into the wall providing easy integration

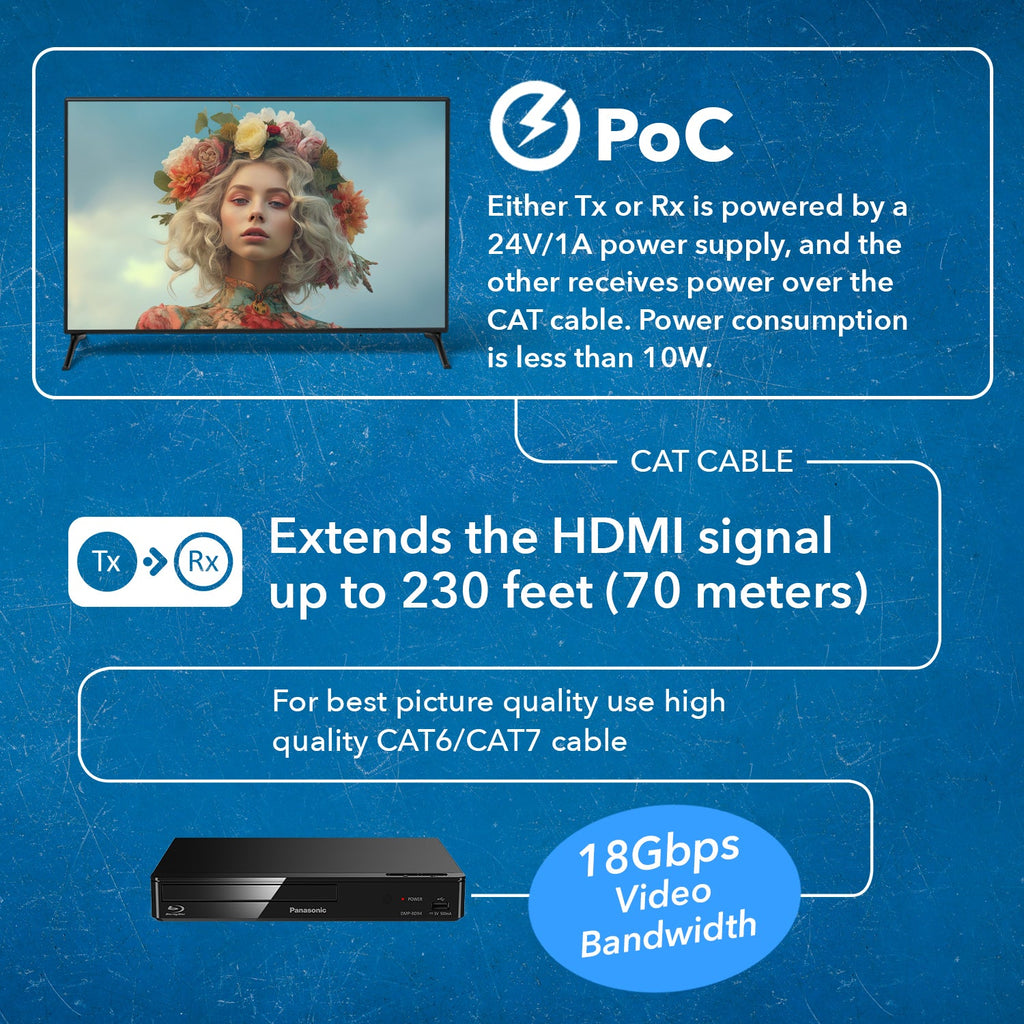

Power over Cable function; requires only one power adapter to be connected at either end.
Bi-directional IR pass-through & RS-232 control for enhanced control
Perfect for commercial and personal setups

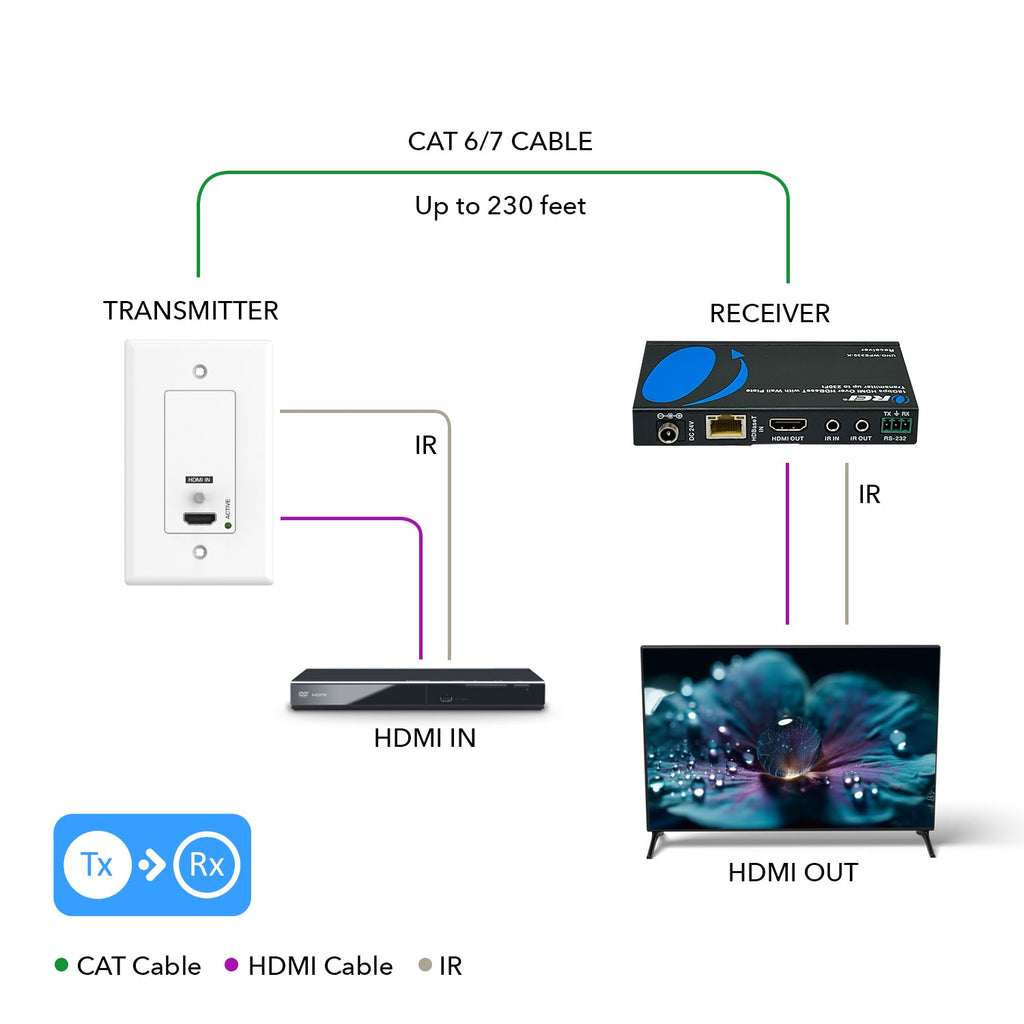

The UHD-WPE230-K HDBaseT Wall Plate Extender facilitates seamless video transmission, supporting up to 4K@60Hz (4:4:4) over a single CAT 6/6a/7 cable. Featuring a standard US wall plate transmitter, it integrates easily into home setups. It extends media at 4K@60Hz up to 130ft/40m or 1080p@60Hz up to 230ft/70m. With Power over Cable (PoC) functionality, it offers enhanced installation flexibility. It also enables two-way IR and RS-232 communication, providing comprehensive control capabilities. Ideal for streamlined video distribution and control in residential and commercial environments.
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDBT [RJ45, 8-pin female]
1 × IR IN / OUT [3-pin Phoenix connector]
CONTROL:
1 × RS-232 [3-pin Phoenix connector]
Receiver:
INPUT:
1 × HDBT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3-pin phoenix connector]

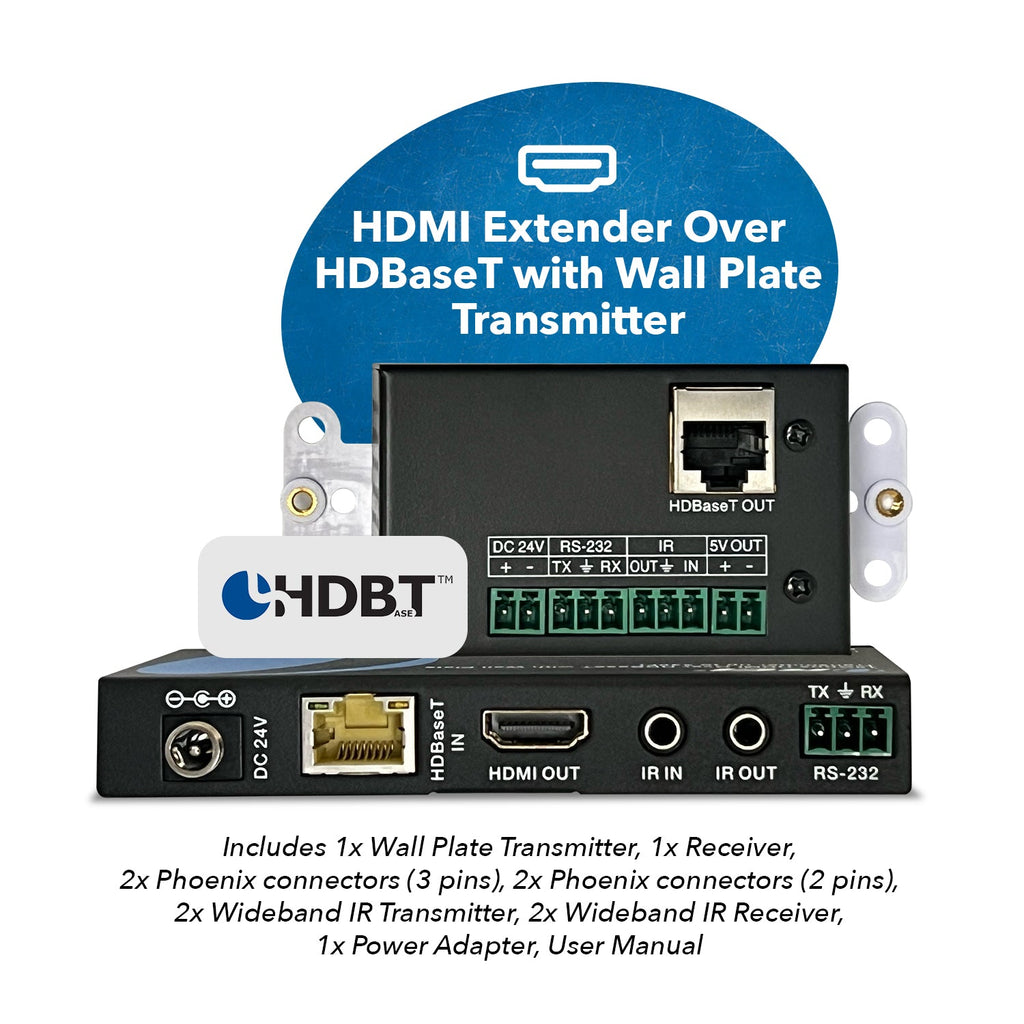

PACKAGE CONTENTS
1x Transmitter
1x Receiver
2x IR Blaster cable
2x IR Receiver cable
2x RS-232 2-pin Phoenix connector
2x RS-232 3-pin Phoenix connector
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
130 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz and 2K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
Yes
RS-232:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
9W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 24V/1A

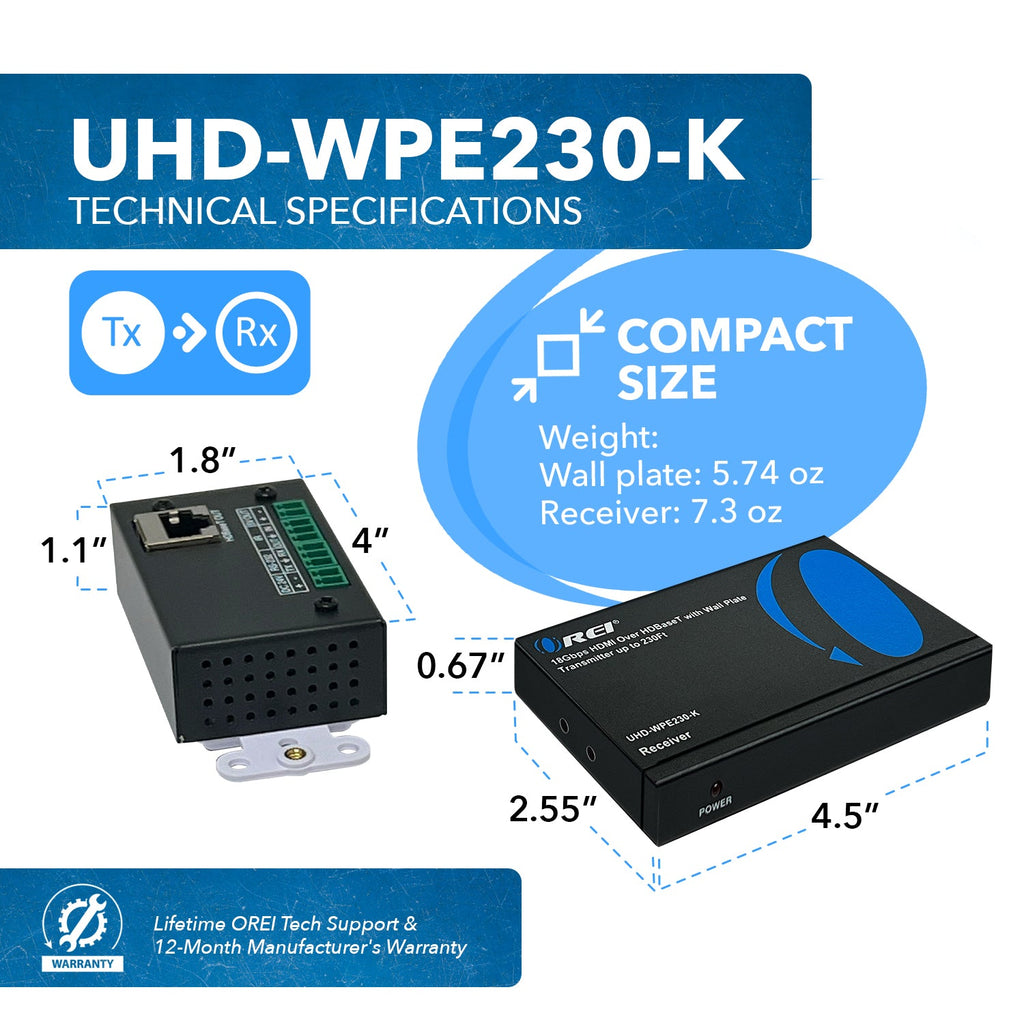

DIMENSIONS & WEIGHT
Transmitter:
Length:
103.5mm / 4.07in
Width:
46mm / 1.81in
Height:
30mm / 1.18in
Weight:
163g / 5.74oz
Receiver:
Length:
115mm / 4.52in
Width:
65mm / 2.55in
Height:
17mm / 0.6in
Weight:
207g / 7.3oz
PROPERTIES
Color:
Black (Receiver), White (Transmitter)
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
