BK-402A: 4x2 HDMI Matrix with Audio Extraction
Key Features:
- HDMI 2.1 & HDCP 2.3 Compliant
- 40Gbps Video Bandwidth
- Video resolutions up to 8K@60Hz 4:2:0 10bit
- Also supports 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), FVA (Fast VActive) Support

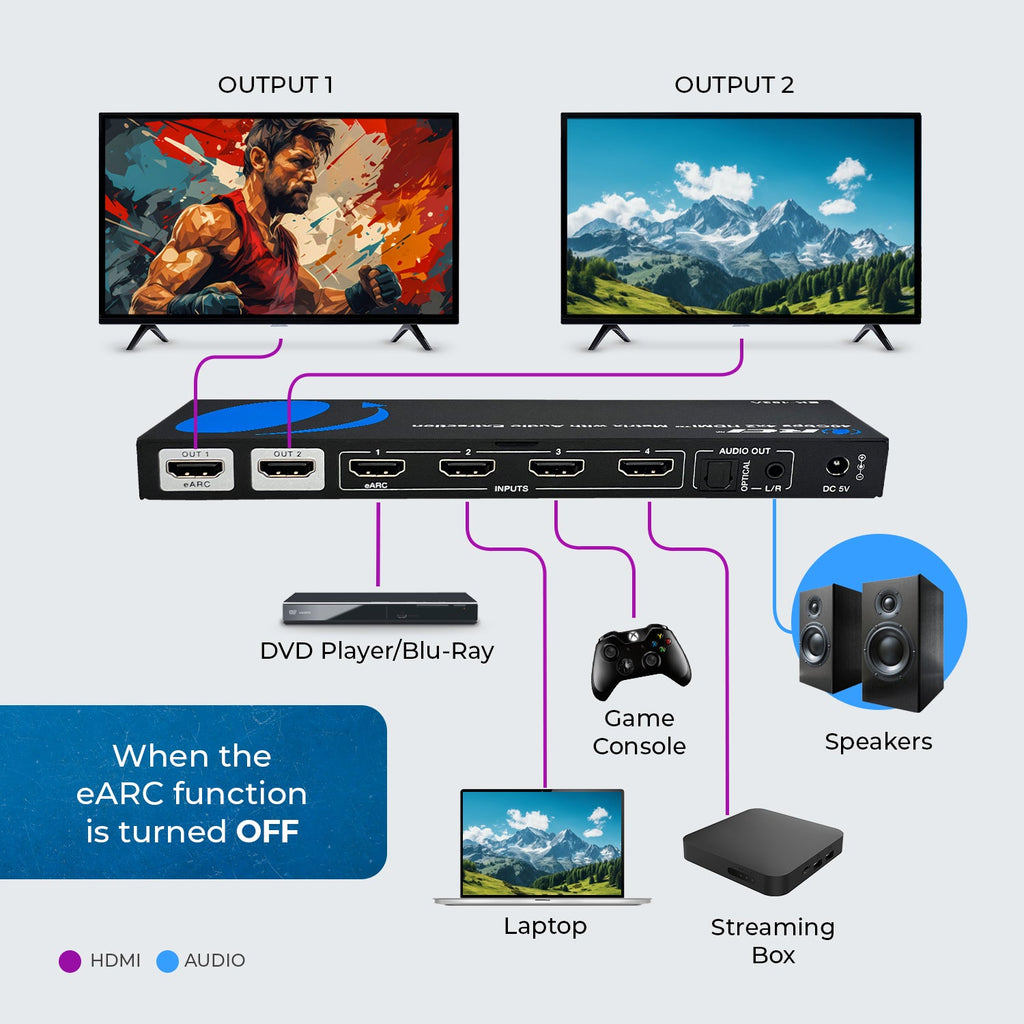

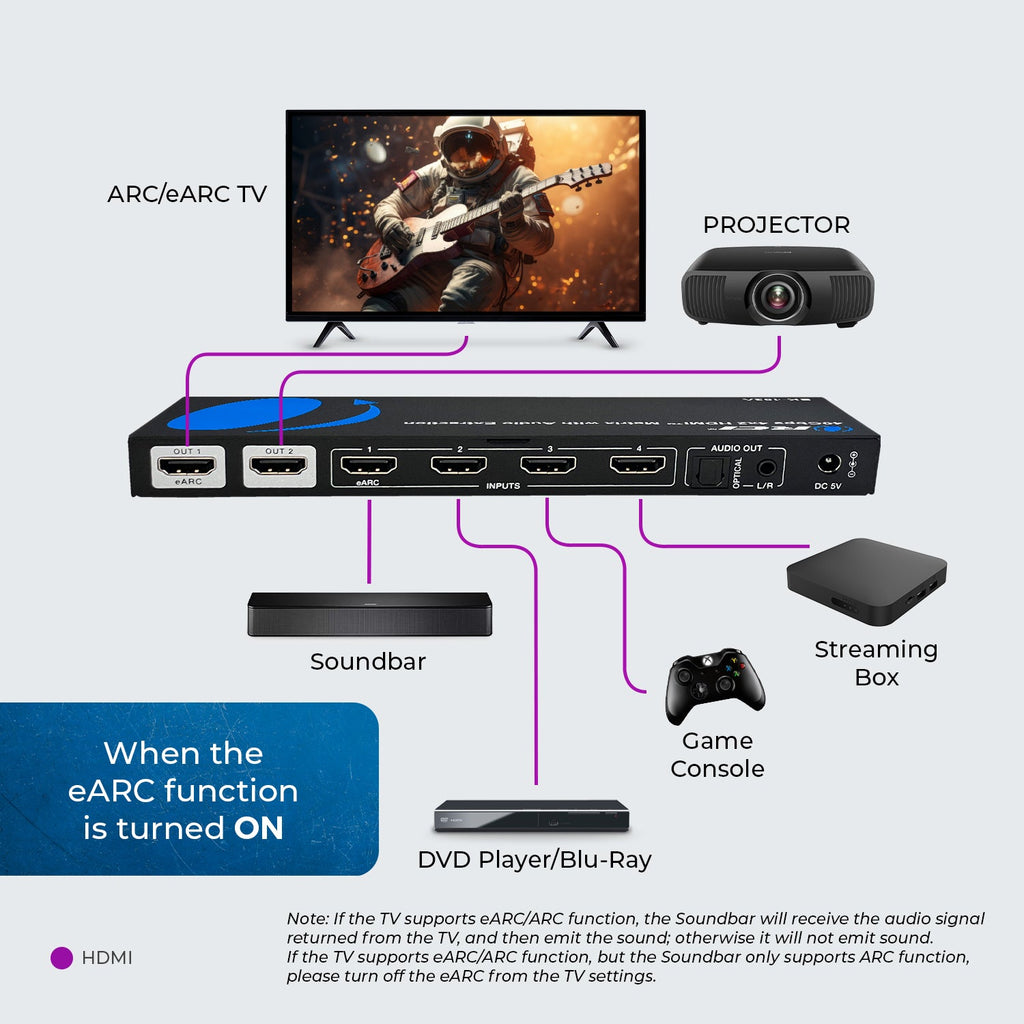

- eARC support between Input 1 and Output 1
- Audio Extraction through Optical and Analog 3.5mm ports
- 8K to 4K and 8K/4K to 1080p Downscale support

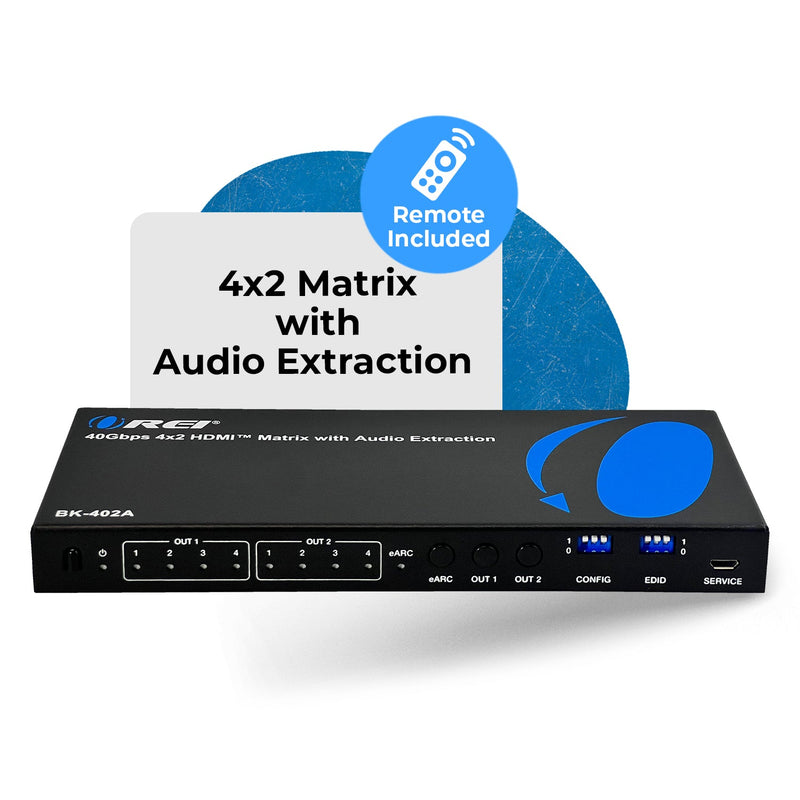

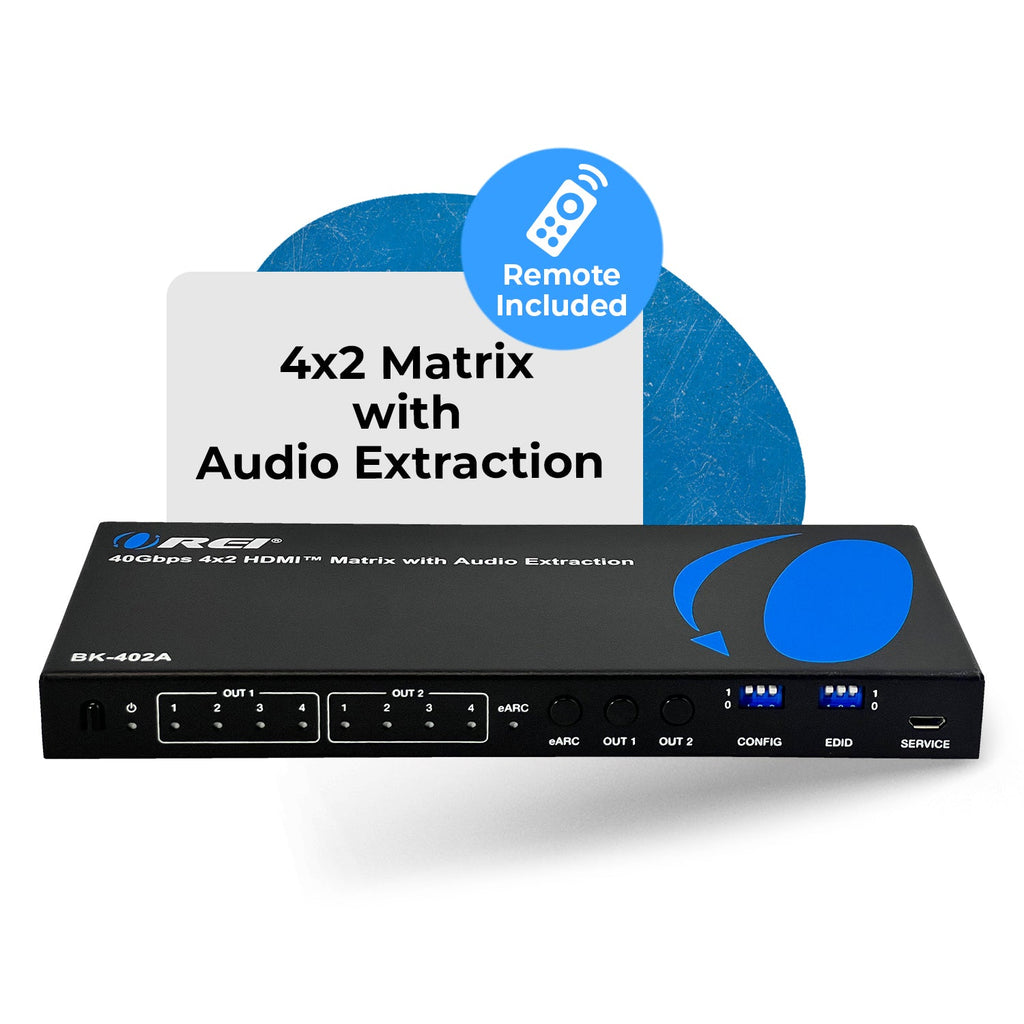

The BK-402A 4x2 Matrix is the perfect AV distribution solution to take multiple inputs to 2 outputs. The device features 4 HDMI Inputs and 2 HDMI Outputs. It can take 4 media sources and allow you to display them on 2 outputs at the same time with the option to have different media on different outputs at resolutions up to 8K@60Hz. The device features advanced EDID management through the dip switches on the front. Features Optical and Analog 3.5mm ports for audio extraction. Supports eARC between Input 1 and Output 1. Among other features, the device can also downscale from 8K to 4K and 8K/4K to 1080p. The BK-402A Matrix is the best device for various applications in home theatre, educational, or professional setups.
[shortdes]
- VRR, ALLM, and FVA support
- Video resolutions up to 8K@60Hz or 4K@120Hz
- Audio extraction through S/PDIF and L/R audio outputs
[/shortdes]
[tab]

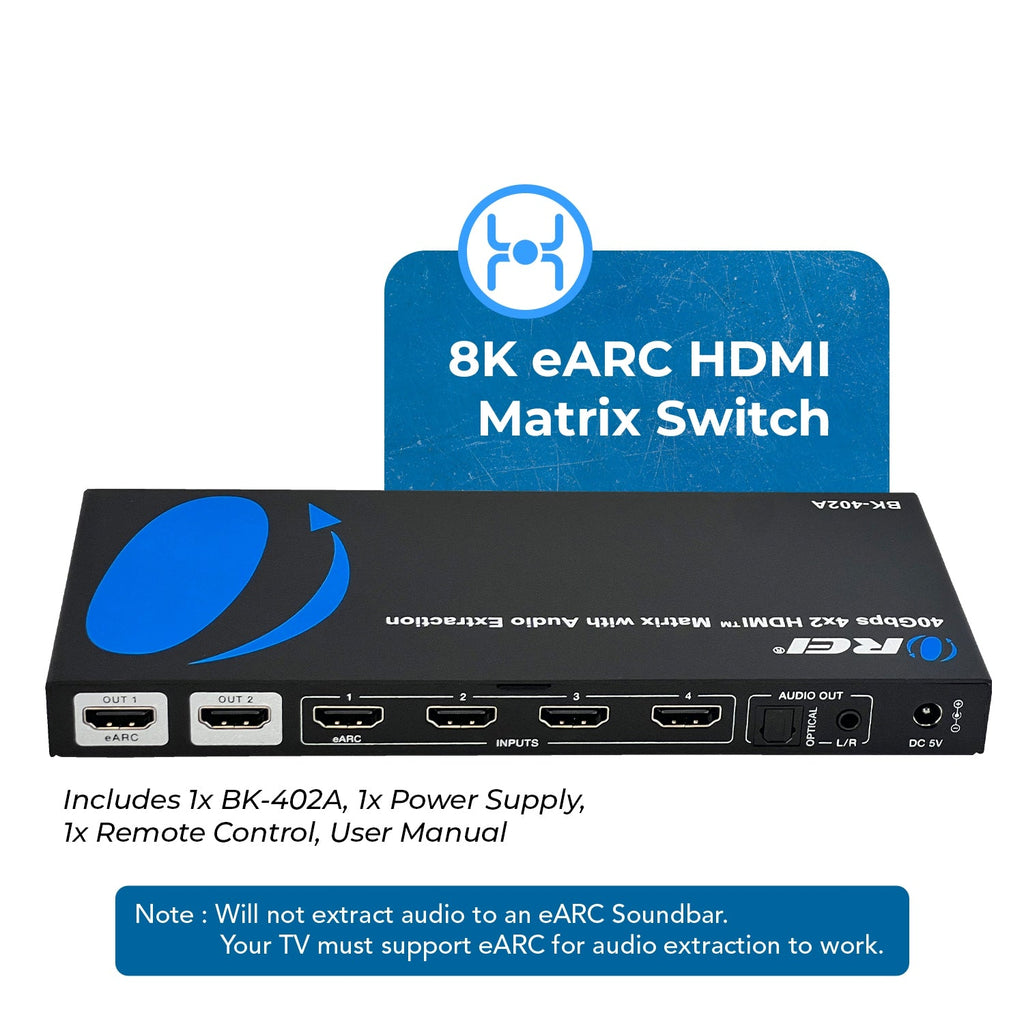

CONNECTIVITY
| INPUT: |
4 × HDMI [Type A, 19-pin female] |
|
| OUTPUT: |
2 × HDMI [Type A, 19-pin female] |
|
|
1 × OPTICAL [S/PDIF, female] |
|
|
1 × L/R [3.5mm Stereo mini-jack] |
|
| CONTROL: |
1 × SERVICE [Micro-USB, Update port] |
|
PACKAGE CONTENTS

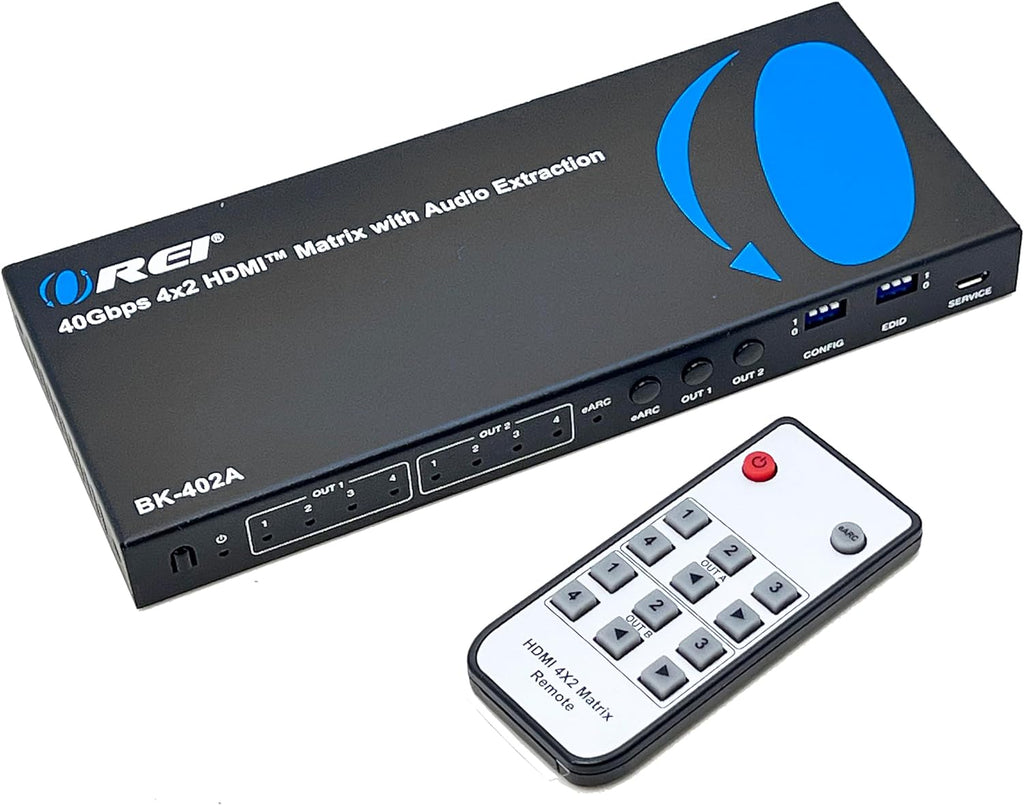

| 1x BK-402A |

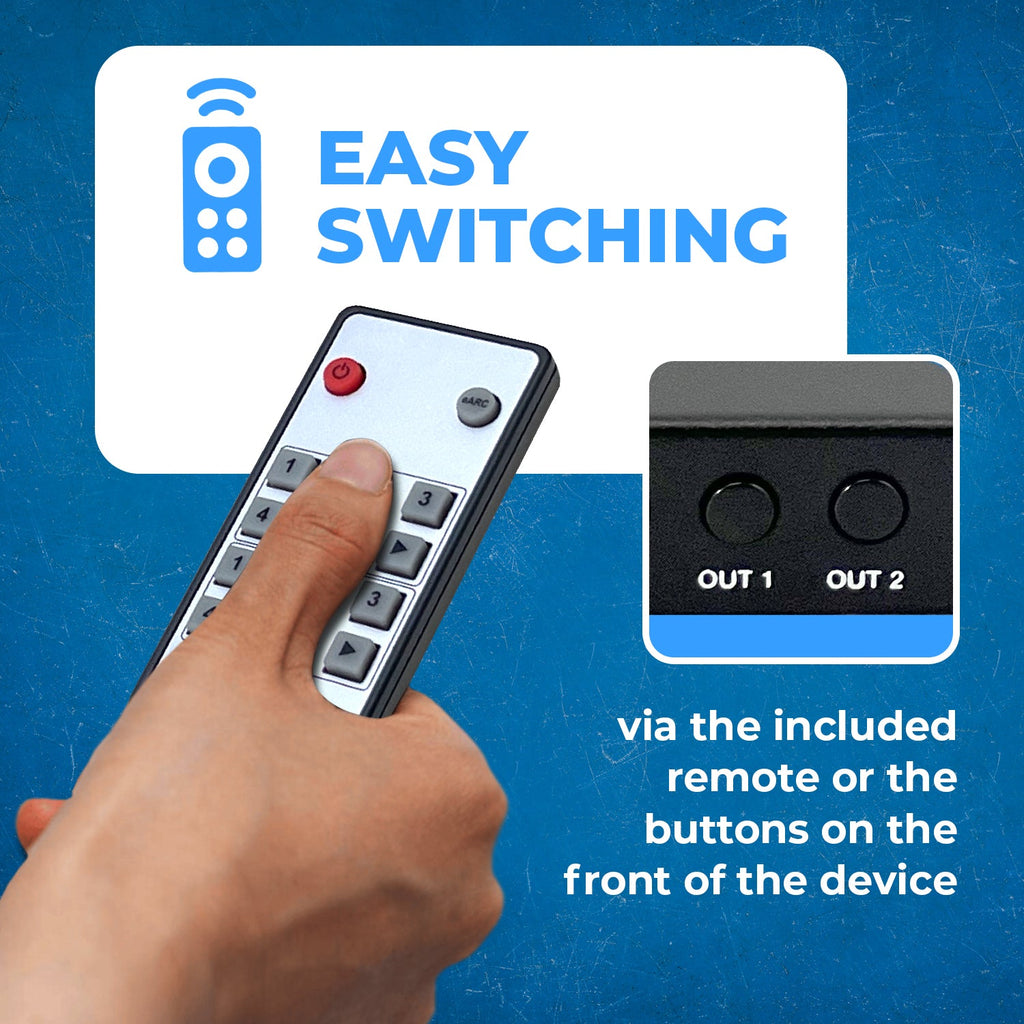

| 1x Remote |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 |
We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: |
10 Feet |
| 4K@60Hz: |
30 Feet |
VIDEO OUTPUT
| Video Bandwidth: |
40 Gbps |
| Video Resolutions: |
Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, 4K@60Hz, 2K@120Hz, 2K@60Hz
|
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
Yes |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
Yes |
| Downmix: |
No |
| Downscale: |
Yes |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| OPTICAL Audio Formats |
|
| 3.5mm Analog Audio Formats: |
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.1 |
| HDCP Compliance |
HDCP 2.3 |
POWER
| Power Consumption: |
2W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/2A |
|
DIMENSIONS & WEIGHT
| Length:
|
200mm / 7.87in |
|
| Width: |
85mm / 3.35in |
|
| Height:
|
21mm / 0.83in |
|
| Weight:
|
411g / 14.5oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
