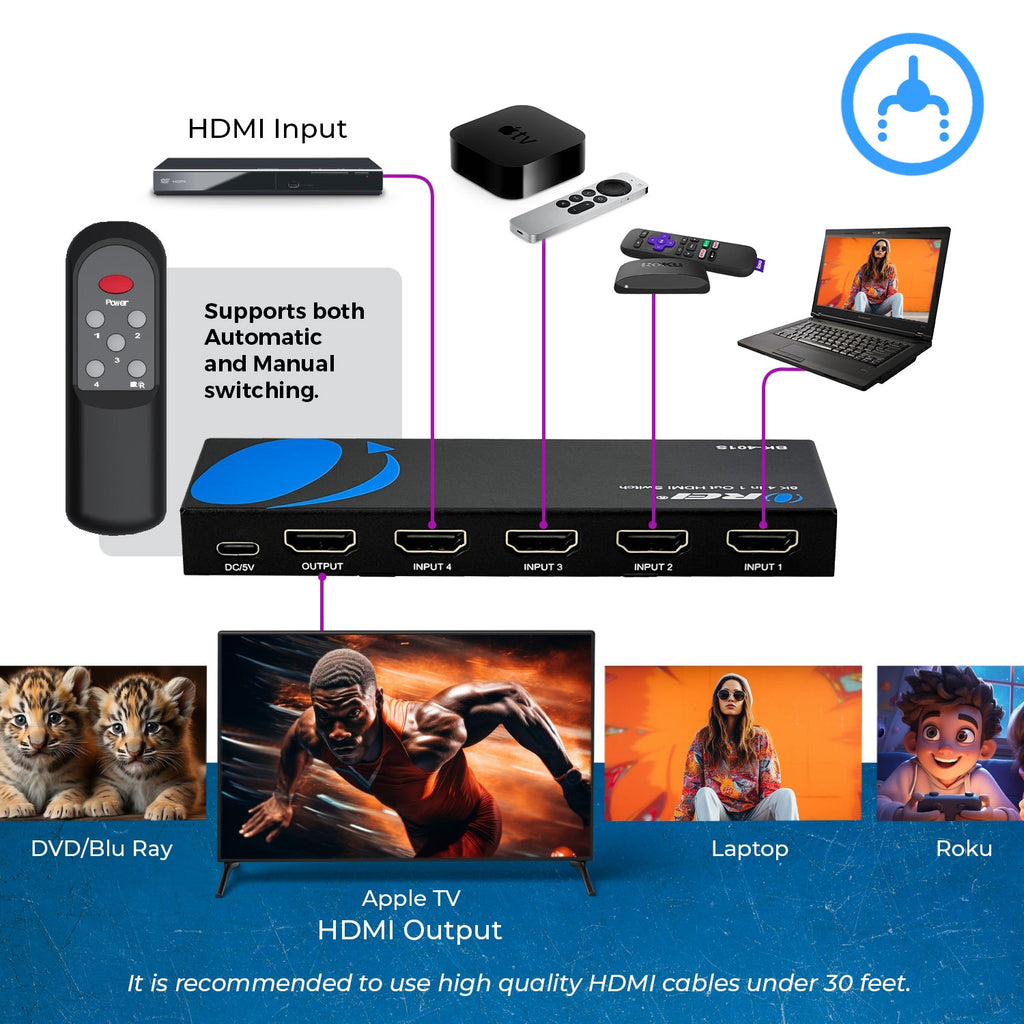

The OREI BK-401S HDMI Switch allows you to easily switch between 4 sources and output to one display. This switcher is designed to handle a maximum resolution of 8K@60Hz and also supports 4K@120Hz and 1080p@240Hz. It is HDMI 2.1, and HDCP 2.3 compliant. Experience exceptional video with HDR10+, Dolby Vision, and 48Gbps Video Bandwidth. The switch supports Automatic switching and Manual switching. Enhance your gaming experience with VRR (Variable Refresh Rate), ALLM (auto Low-Latency Mode), and QFT (Quick Frame Transport) functions. The BK-401S provides exceptional sound quality and supports audio formats such as LPCM, Dolby Digital, Dolby True HD, DTS, and DTS-HD Master Audio. It is the perfect device for home theatre or gaming setups.
[shortdes]

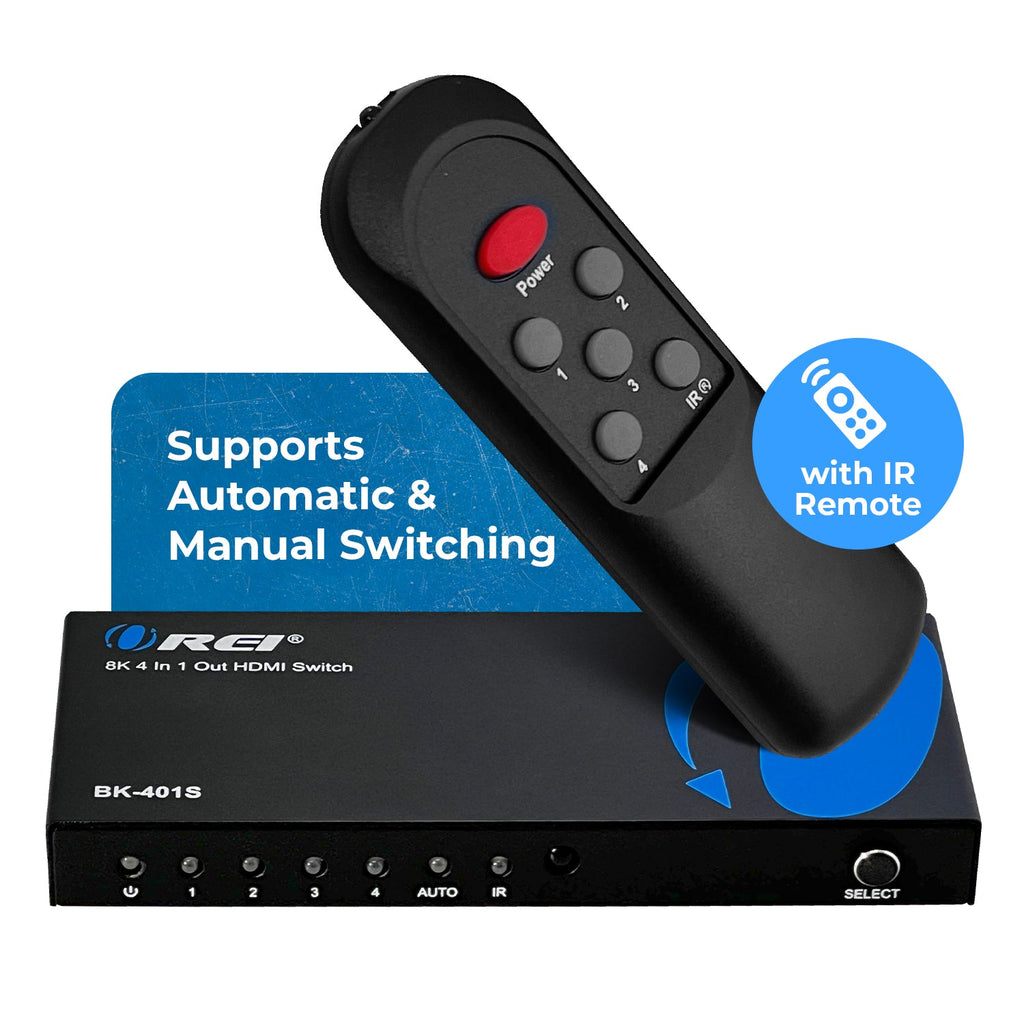

4x1 Switch with Auto-switching
Resolutions up to 8K@60Hz
CEC support
[/shortdes]
[tab]

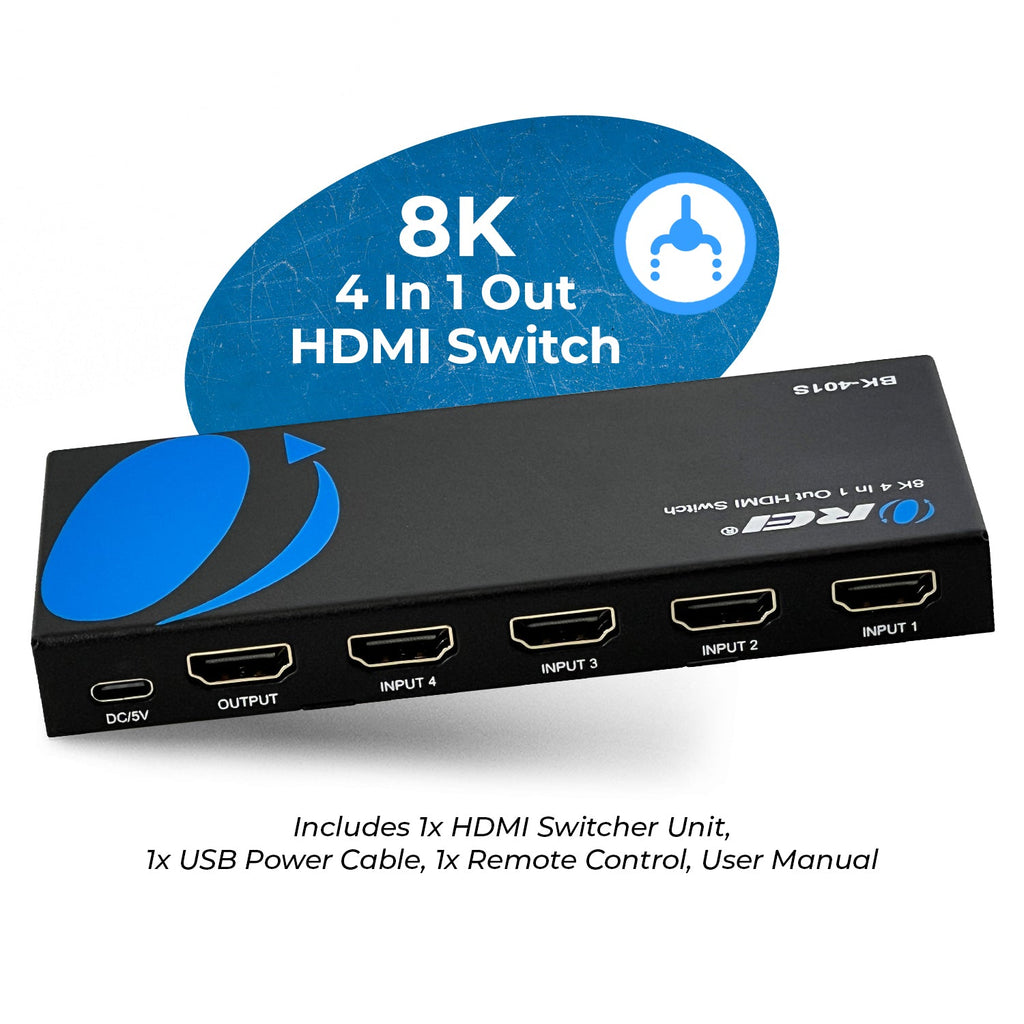

CONNECTIVITY
INPUT:
4 × HDMI IN [Type A, 19-pin female]
1 x USB-C [For Power]
OUTPUT:
1 × HDMI OUT [Type A, 19-pin female]

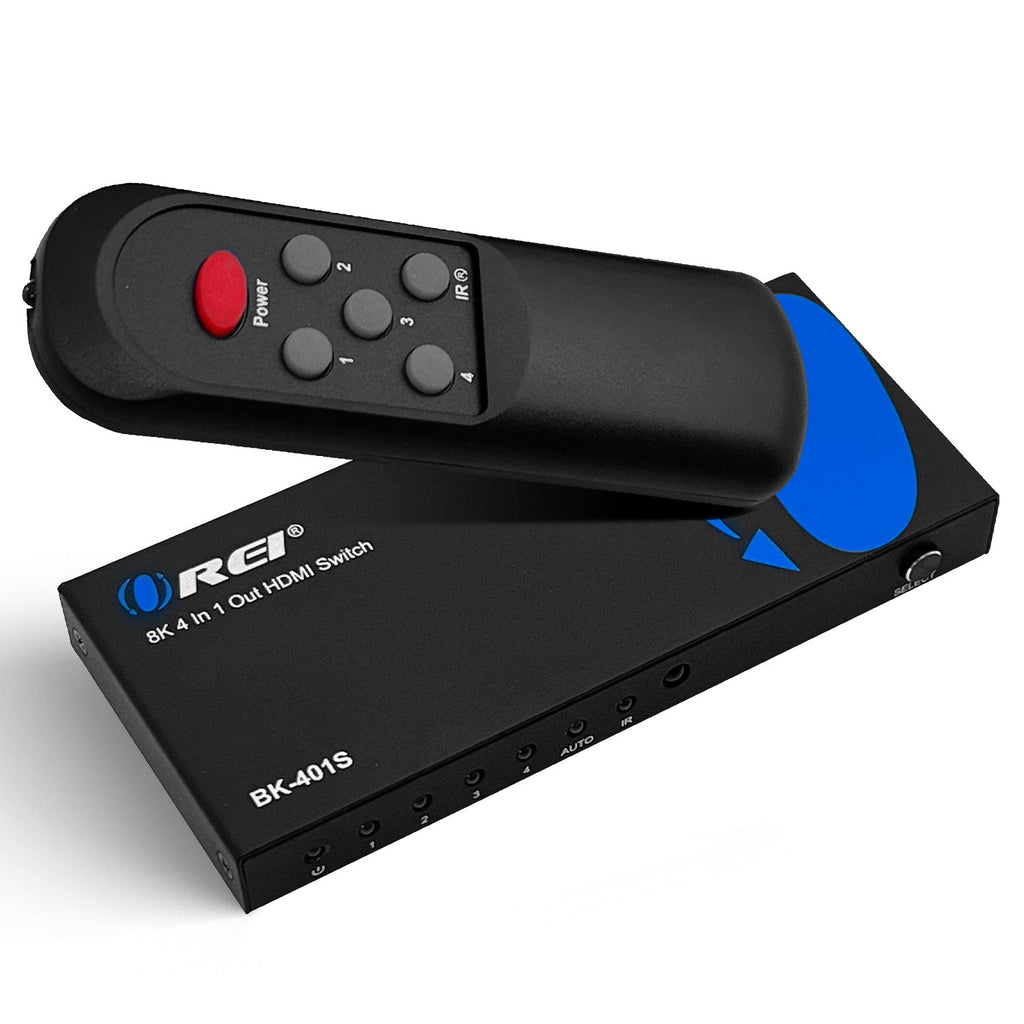

PACKAGE CONTENTS
1x BK-401S Switch

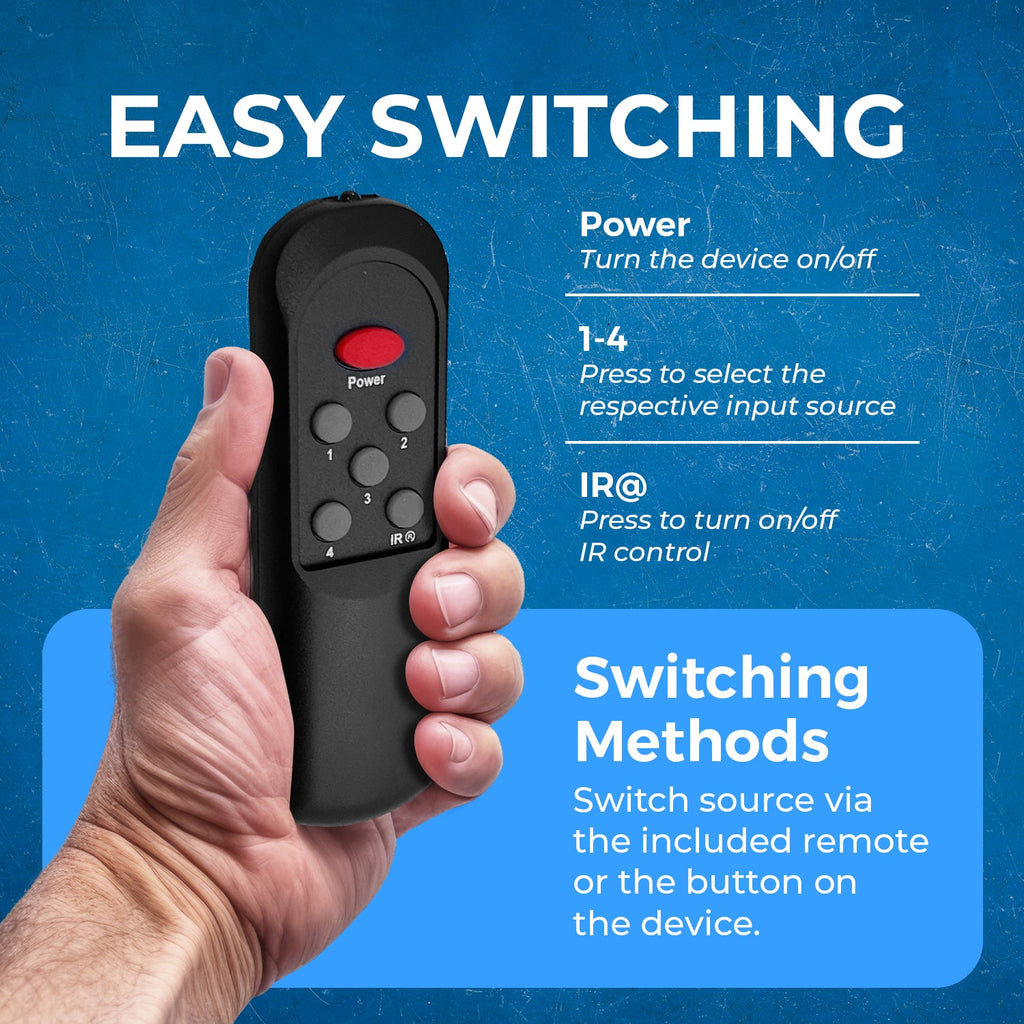

1x Remote Control
1x USB Power Cable
User Manual
SUPPORTED HDMI CABLES
HDMI 2.1
We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
8K@60Hz:
10 Feet
4K@60Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
48Gbps FRL and 18Gbps TMDS
Video Resolutions:
Up to 8K@60Hz
ADDITIONAL FEATURES
CEC:
Yes
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
LPCM, Dolby Digital, Dolby True HD, DTS, and DTS-HD
COMPLIANCES
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
POWER
Power Consumption:
5W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

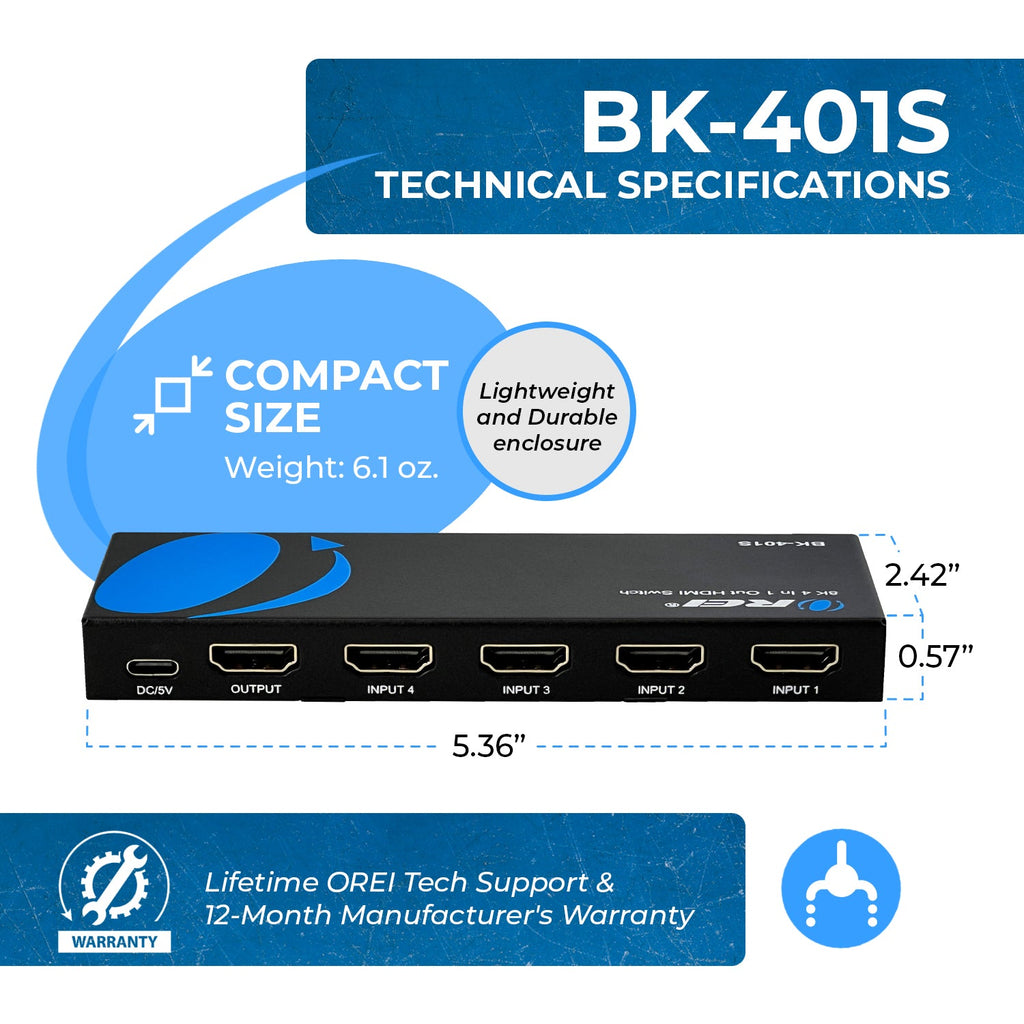

DIMENSIONS & WEIGHT
Length:
136.3mm / 5.37in
Width:
61.5mm / 2.42in
Height:
14.5mm / 0.57in
Weight:
173g / 6.1oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
