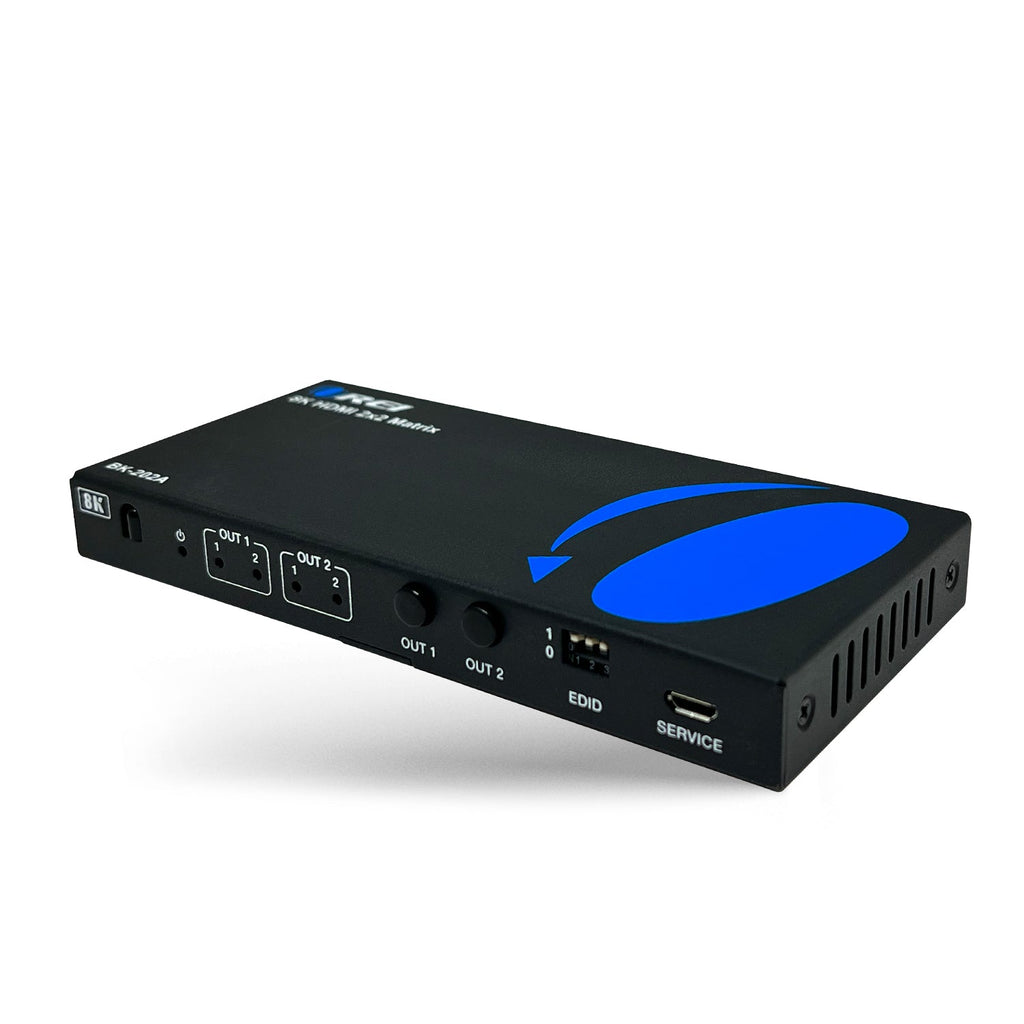

8K HDMI 2x2 Matrix Switcher with Audio Extraction (BK-202A)

Roll over image to zoom in Click on image to zoom

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

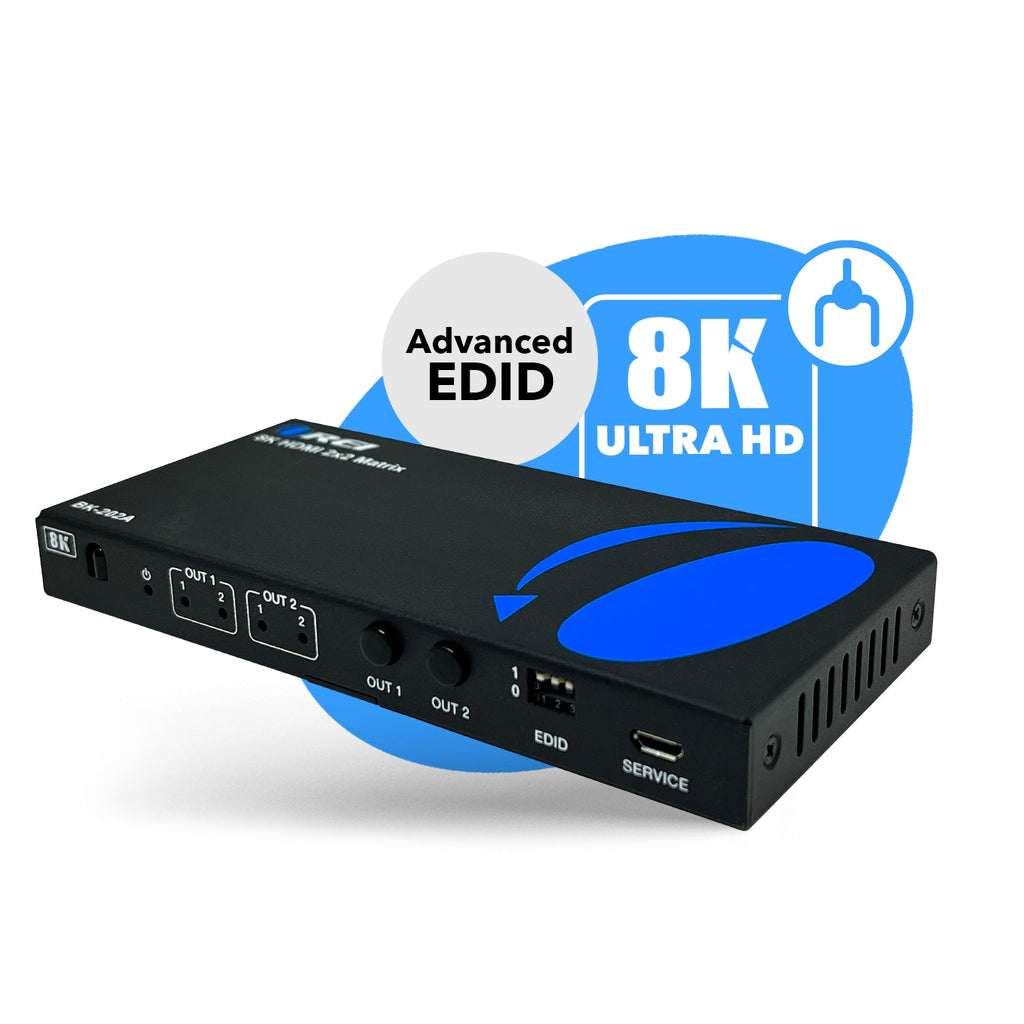

BK-202A: 8K HDMI 2x2 Matrix Switcher

Key Features:

HDMI 2.1, HDCP 2.3 compliant
Video resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz
40Gbps video bandwidth
HDR10+ and Dolby Vision pass through
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD support
VRR, ALLM and FVA support
Audio extraction through Optical and Analog outputs
Compact design and plug-and-play setup

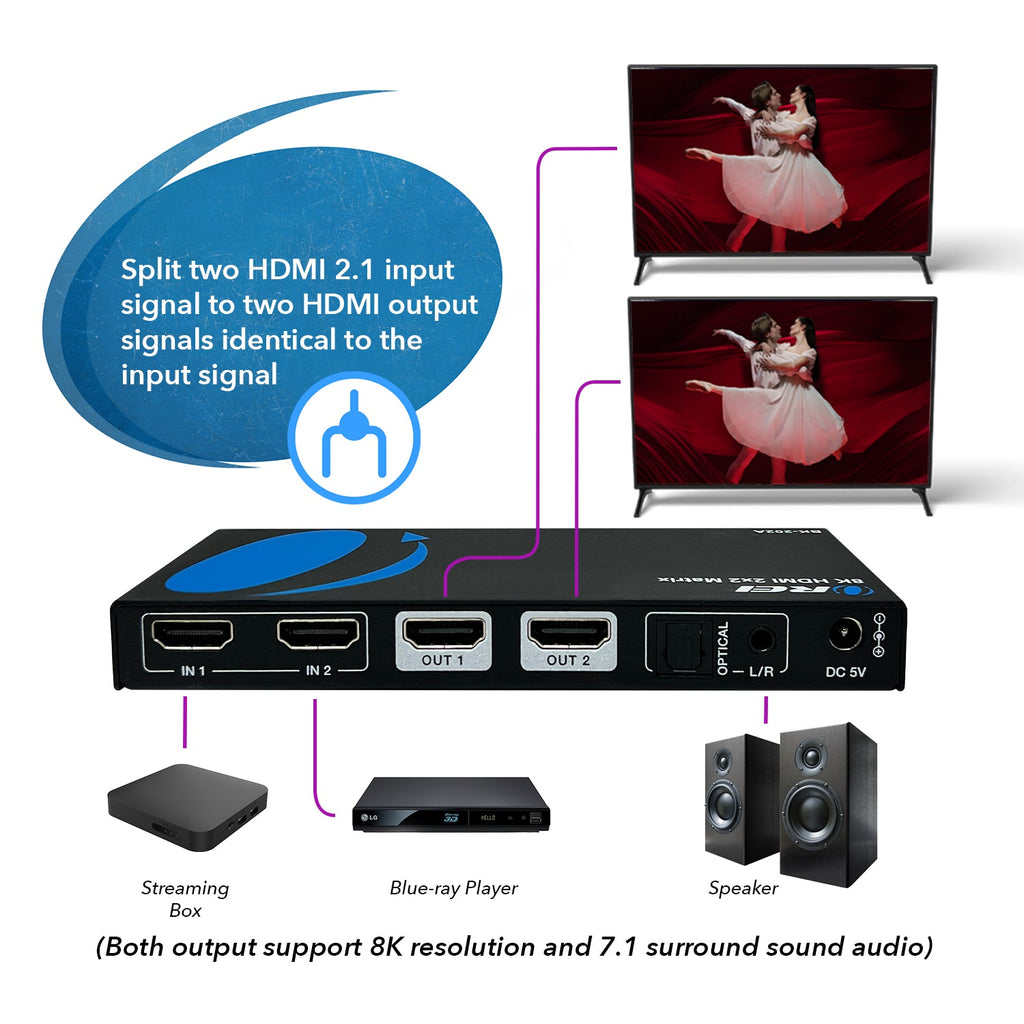

The BK-202A Matrix enables you to transmit media signals from two devices to two displays simultaneously. Supporting resolutions up to 8K@60Hz and 4K@120Hz, it complies with HDMI 2.1 and HDCP 2.3 standards. Boasting a 40Gbps video bandwidth, it also supports HDR10+. Audio can be extracted from any device and output through Optical or Analog Aux. The matrix supports protocols such as VRR, ALLM, and FVA. The BK-202A is ideal for any commercial or home theatre setup.

[shortdes]

HDR10+ & Dolby Vision pass through
Video resolutions up to 8K@60Hz
LPCM, Dolby Digital/Plus, Dolby True HD, DTS, DTS-EX, DTS-HD Master Audio, DSD support

[/shortdes]

[tab]

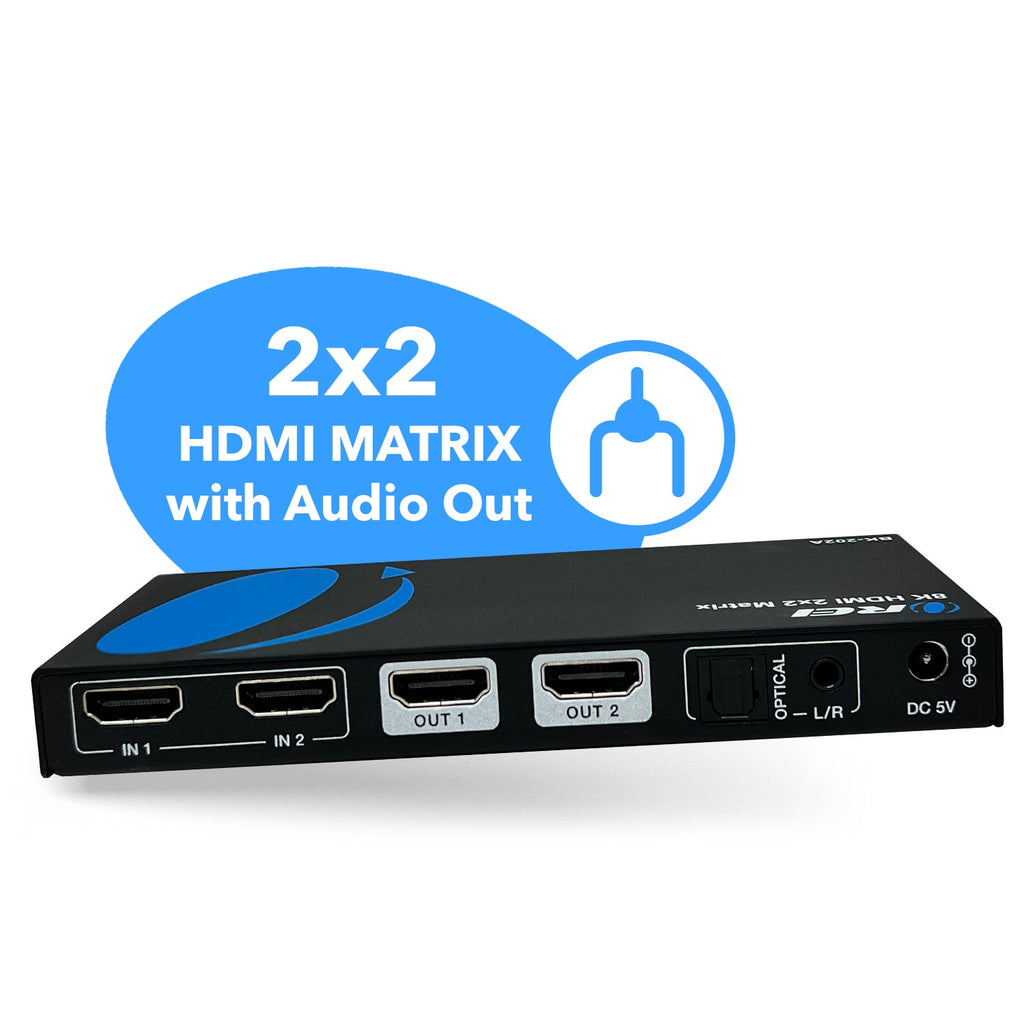

CONNECTIVITY

INPUT:	2 × HDMI [Type A, 19-pin female]
OUTPUT:	2 × HDMI [Type A, 19-pin female]
	1 x OPTICAL [S/PDIF, female]
	1 × L/R [3.5mm Stereo Mini-jack]
CONTROL:	1 × SERVICE [Micro USB, Update port]

PACKAGE CONTENTS

1x BK-202A

1x Remote

1x Power Adapter

User Manual

SUPPORTED HDMI CABLES

HDMI 2.1

We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

8K@60Hz 4:2:0:	10 Feet
4K@60Hz 4:4:4:	30 Feet

VIDEO OUTPUT

Video Bandwidth:	40 Gbps
Video Resolutions:	Up to 8K@60Hz, 4K@60Hz, 2K@120Hz, 2K@60Hz

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	Yes
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

LOOP-OUT / LOCAL PORTS

Has loop out port:	No
Number of Loop out ports:	0

AUDIO SUPPORT

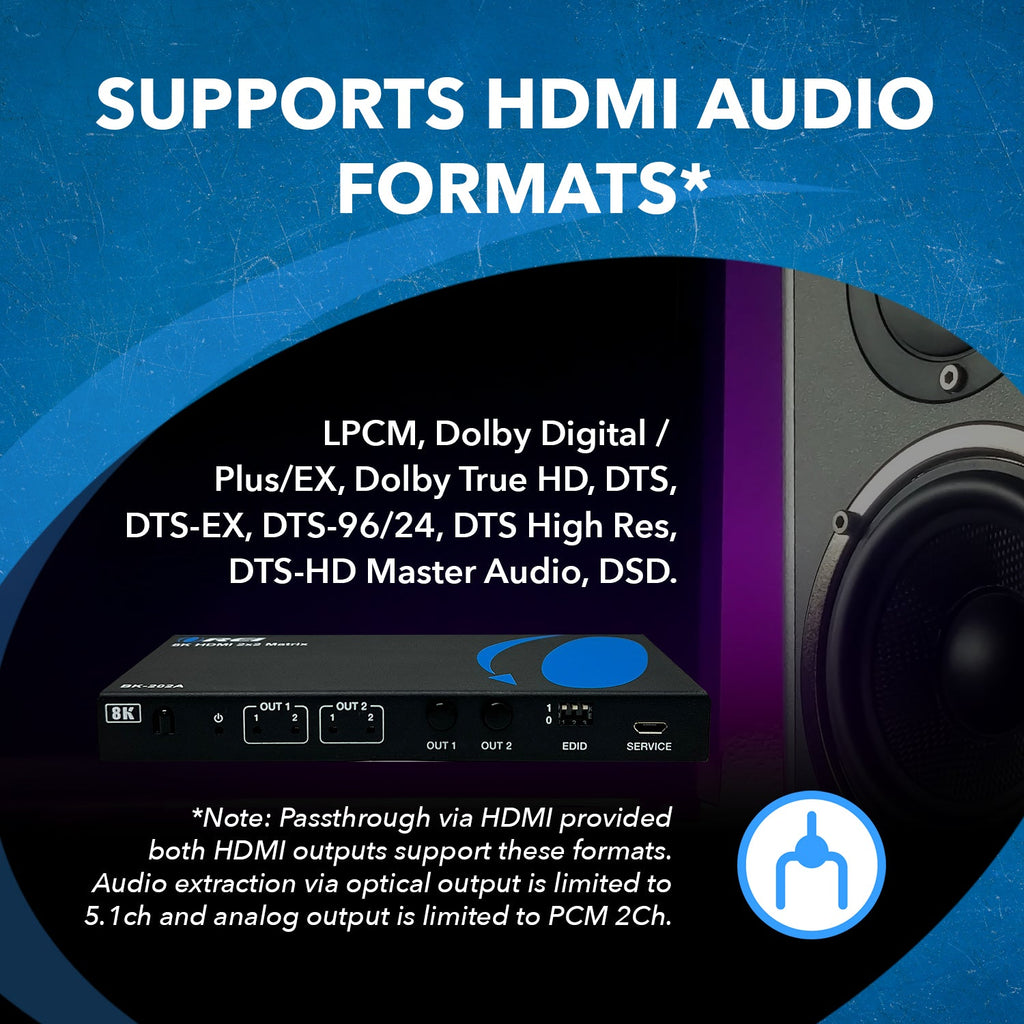

HDMI Audio Formats:	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Optical Audio Formats:	LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Analog Audio Formats:	PCM 2.0

COMPLIANCES

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3

POWER

Power Consumption:	6.2W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/2A

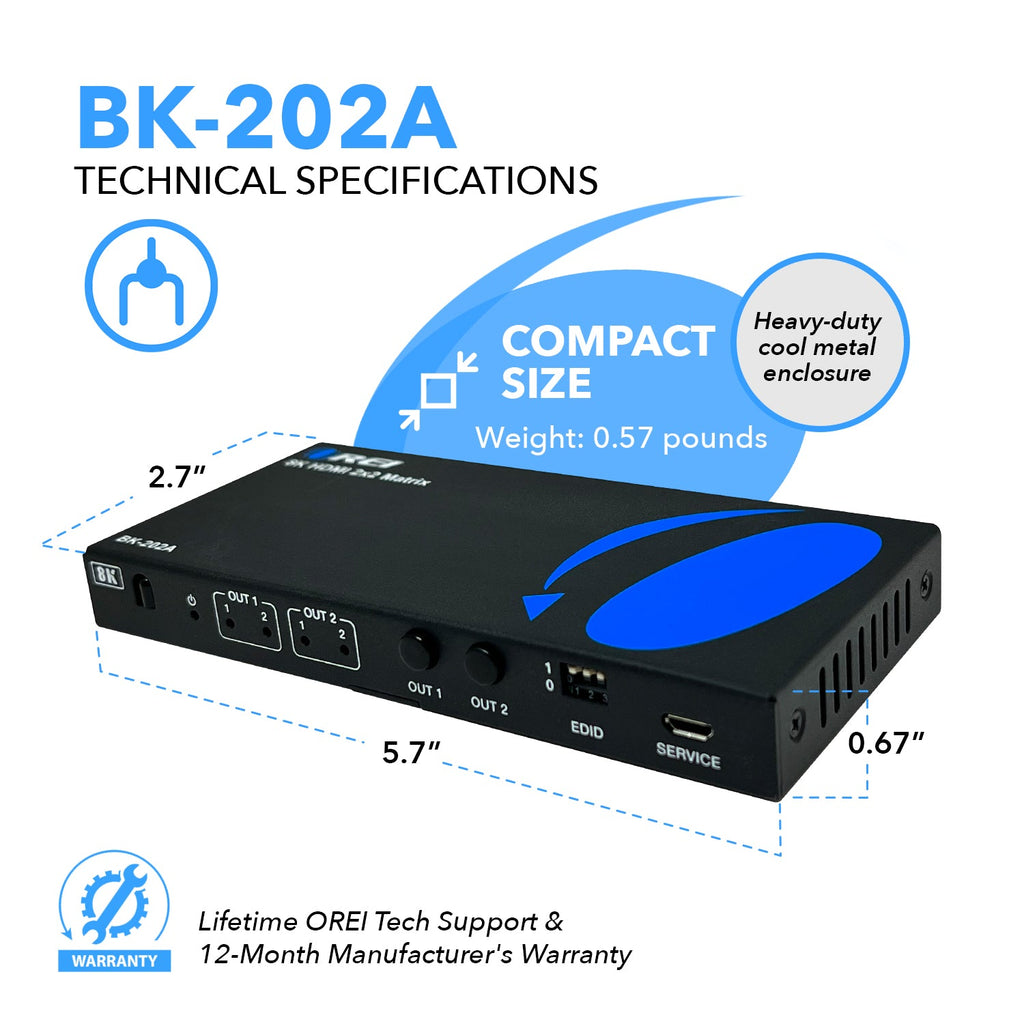

DIMENSIONS & WEIGHT

Length:	145mm / 5.71in
Width:	68mm / 2.68in
Height:	17mm / 0.67in
Weight:	268g / 9.45oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: 8K HDMI 2x2 Matrix Switcher with Audio Extraction (BK-202A)
Brand: OREI
SKU: BK-202A
Price: 129.99 USD
Availability: InStock

What is the maximum video resolution supported by the OREI BK-202A?

The OREI BK-202A supports video resolutions up to 8K@60Hz.

Does the BK-202A support HDR10+ and Dolby Vision?

Yes, the OREI BK-202A supports HDR10+ and Dolby Vision pass-through.

What audio formats are compatible with the BK-202A?

The BK-202A is compatible with LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD.

Can the BK-202A extract audio separately?

Yes, audio can be extracted from any device and output through Optical or Analog Aux outputs on the BK-202A.

What gaming features does the BK-202A support?

The OREI BK-202A supports VRR, ALLM, and FVA.
