Acopower 100w mono kitAll Black 600w 50A

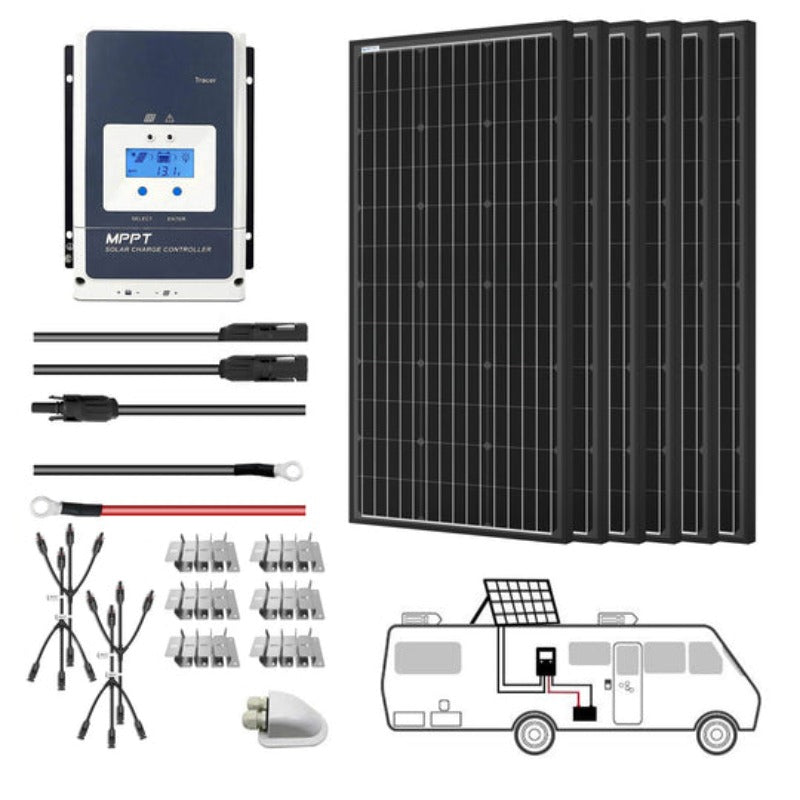

The ACOPOWER 600W Solar Panel System Set is a comprehensive and efficient off-grid solar solution, featuring six 100W mono solar panels paired with a 50A MPPT waterproof solar charge controller. This kit is thoughtfully designed to enhance convenience with included components such as a 30ft 10AWG solar adaptor kit, 8ft 10AWG tray cable, and a cable entry housing. Its user-friendly design ensures ease of installation, making it a portable and convenient energy solution for various applications.
The high-performance ACOPOWER 100Watt mono Solar Panel is equipped with grade A+ solar cells, boasting a remarkable 22% energy storage efficiency. This translates to faster and more efficient charging, making it an excellent choice for those seeking optimal solar energy utilization. The solar panel's design prioritizes reliability and energy efficiency, making it a versatile and dependable power source.
Solar charging protection is a paramount feature of this system, facilitated by the 50A MPPT solar charge controller. With high tracking efficiency and an ultra-fast tracking speed, this controller accurately recognizes and tracks multiple power points. The 3-stage charge control technology prevents issues such as overcharging, overvoltage, discharge, short circuits, and reversed polarity. It is compatible with a variety of battery types, including Li-ion, LiFePO4, LTO, gel, AGM, and more, ensuring adaptability to different energy storage needs.

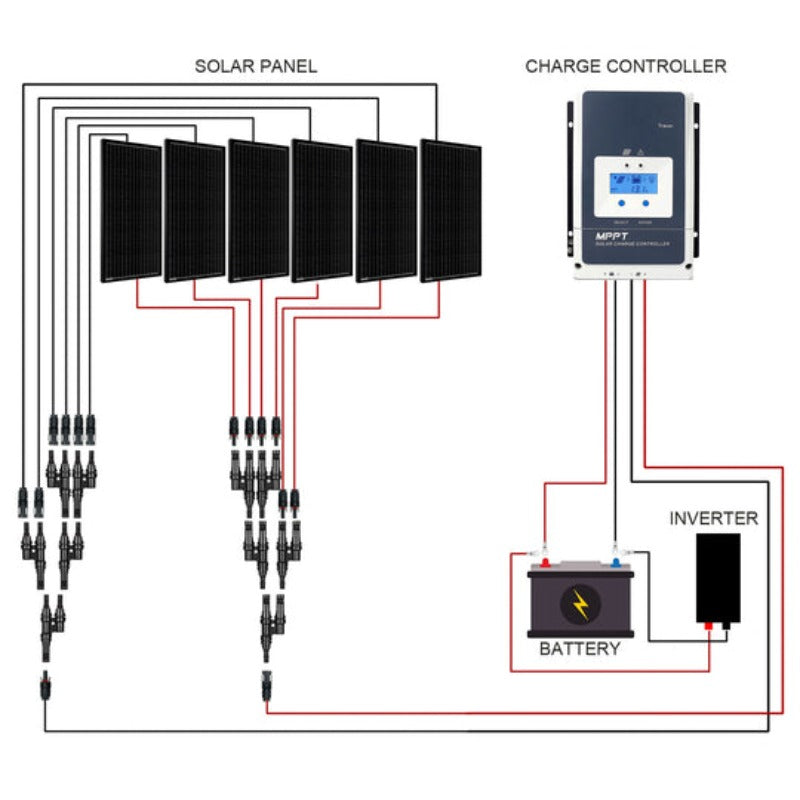

Designed for wide-ranging applications, this solar panel equipment kit is suitable for use in RVs, cabins, homes, boats, and for back-up and remote power needs. Its compact size is particularly popular with RVs and campers. Multiple 100-watt solar panels can be connected in parallel to create a 12V solar panel system or in series to form a 24V solar panel system, providing flexibility to accommodate diverse setups. Whether you're looking for a portable energy solution or a reliable off-grid power source, the ACOPOWER 600W Solar Panel System Set is a versatile and efficient choice.
Features:
- Easy installation
- Hight Efficiency
- Sturdy
- MPPT Technology
- Safe Operation
- Reliable Performance
- Green Solar System
Specifications:

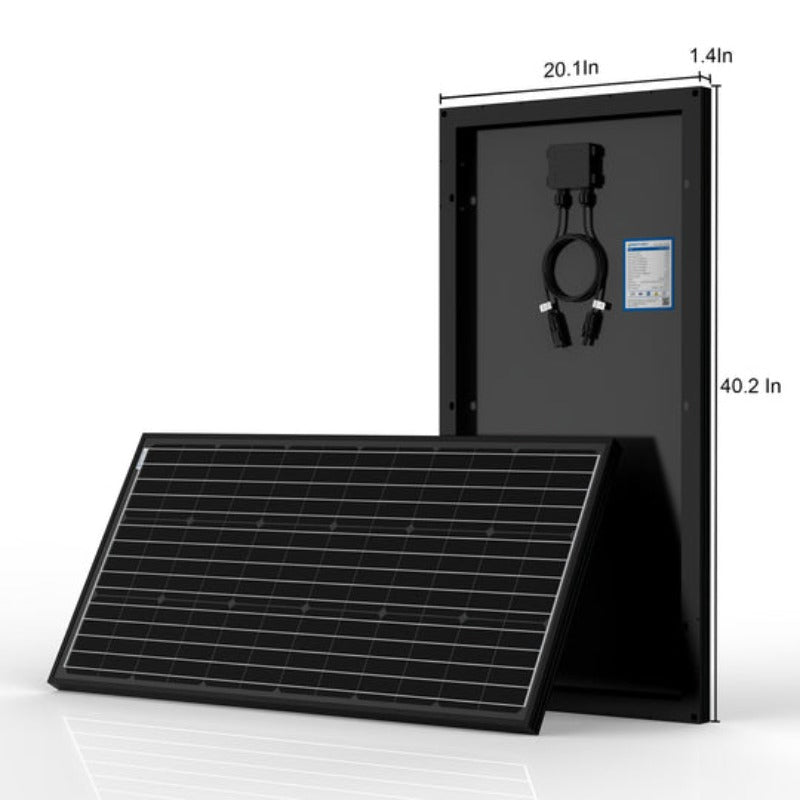

Acopwoer 100 Watts Mono Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.14A
- Maximum Operating Current (Imp): 5.71A
- Operating Temperature: -40ºC to 85ºC
- Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
- Weight: 5.8kg / 12.78 lbs

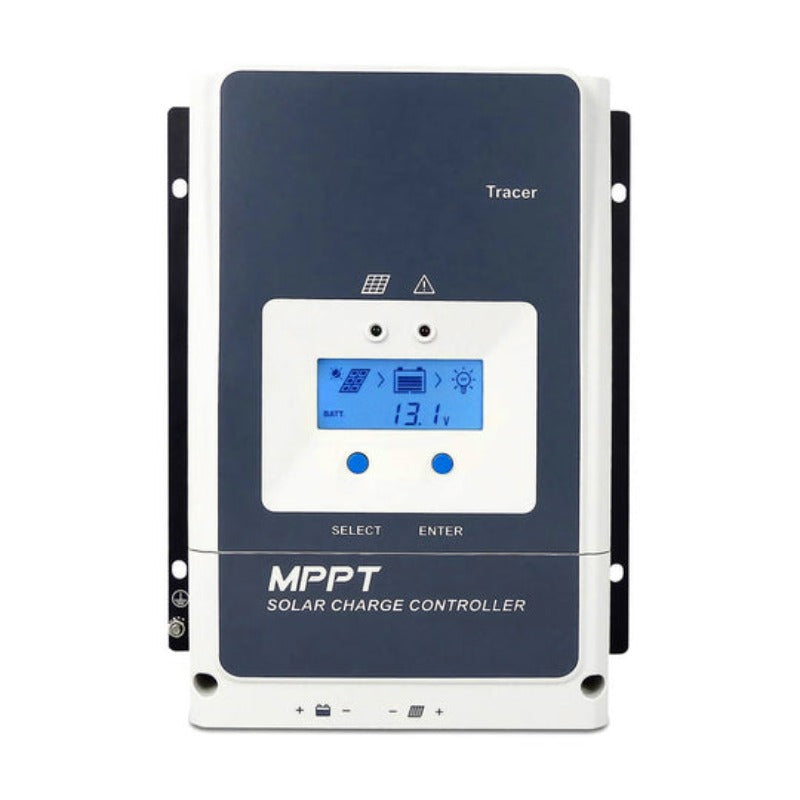

Acopower 50 A MPPT Solar Charge Controller
- Nominal System Voltage: 12v/24v/36v/48v DC
- Auto work Grounding: Common negative
- Rated Charge Current: 50A
- Battery Input Voltage Range: 8V～32V
- Max. PV Open Circuit Voltage: 150V/138V
- MPP voltage range:V(BAT)+2V～108V
- Max. PV input power: 937.5 W/12V, 1875W/24V, 2812.5W/36V, 3750W/48V
- Rated Charge Power : 624W/12V, 1250W/24V, 1875W/36V ,2500W/48V
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- RS485 Interface: 5VDC/200mA(RJ45)

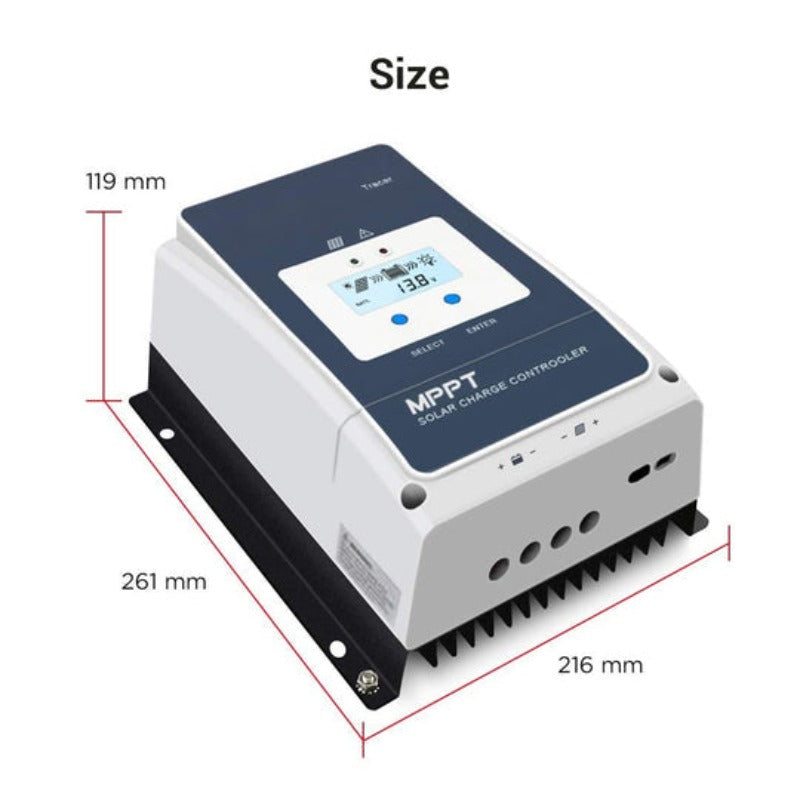

- Dimension:261*216*119mm Installion
- Notes: First connect the battery; Then connect the load; Finally connect the solar panel.
What's in the Box:
- 6 x Mono Solar Panel
- 1 x 50A MPPT Charge Controller

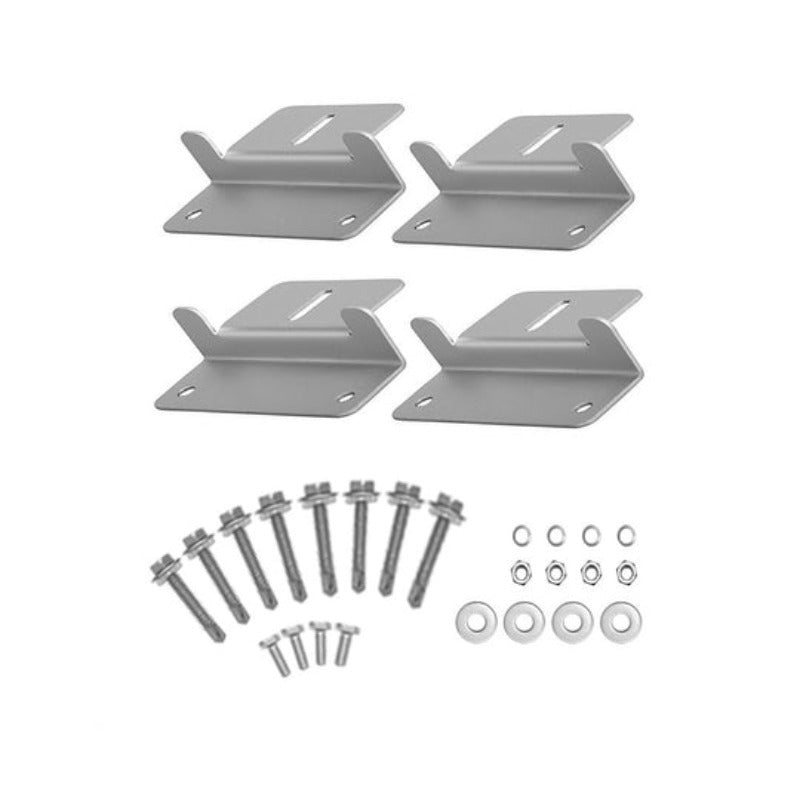

- 6 x Mounting Z Bracket
- 1 x 30ft 12AWG PV Cable

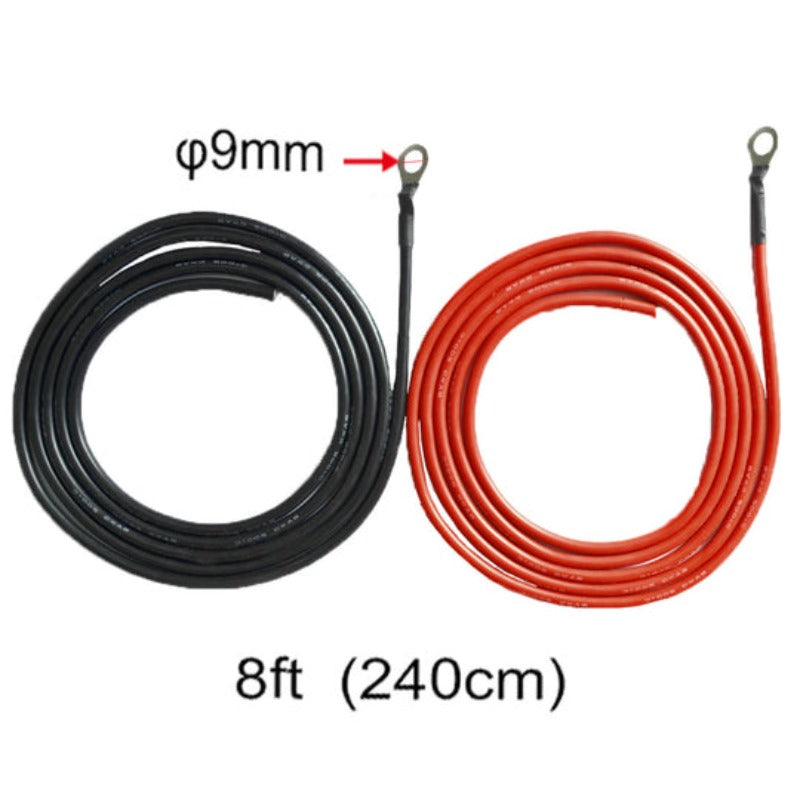

- 1 x 8FT 8AWG Tray Cable

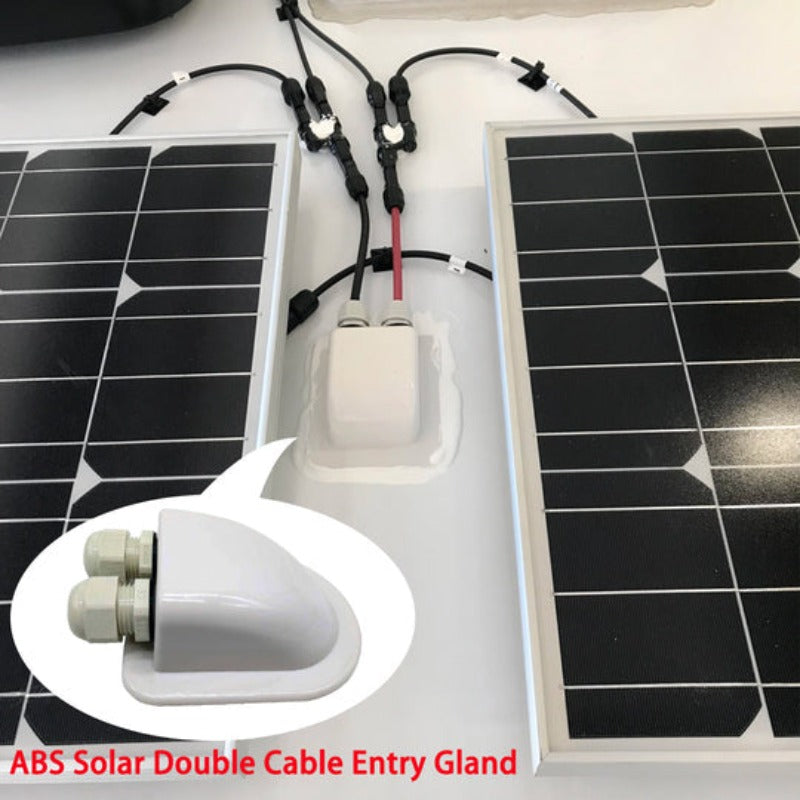

- 1 x Cable Entry Housing
- 2 x Pairs 1Y3 Branch Connectors
