ACOPOWER 400W 12V Poly Solar RV Kits, 40A MPPT Charge Controller

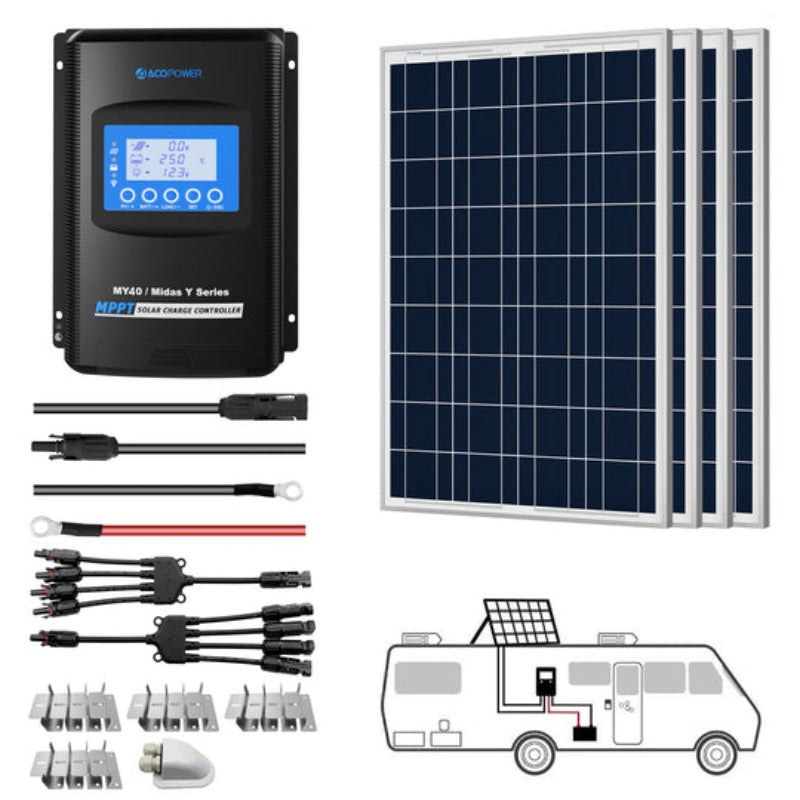

This cost-effective and user-friendly kit is designed for straightforward installation, equipped with 4 100W solar panels, a 40A charge controller, and essential wiring. It's an ideal solution to power your RV, boat, camper, and various outdoor appliances, providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.
Features:
- Easy installation
- Height Efficiency
-
MPPT Technology
- Green Solar System
-
Common Negative grounding design
- Warranty
- Multiple packages
Specifications:

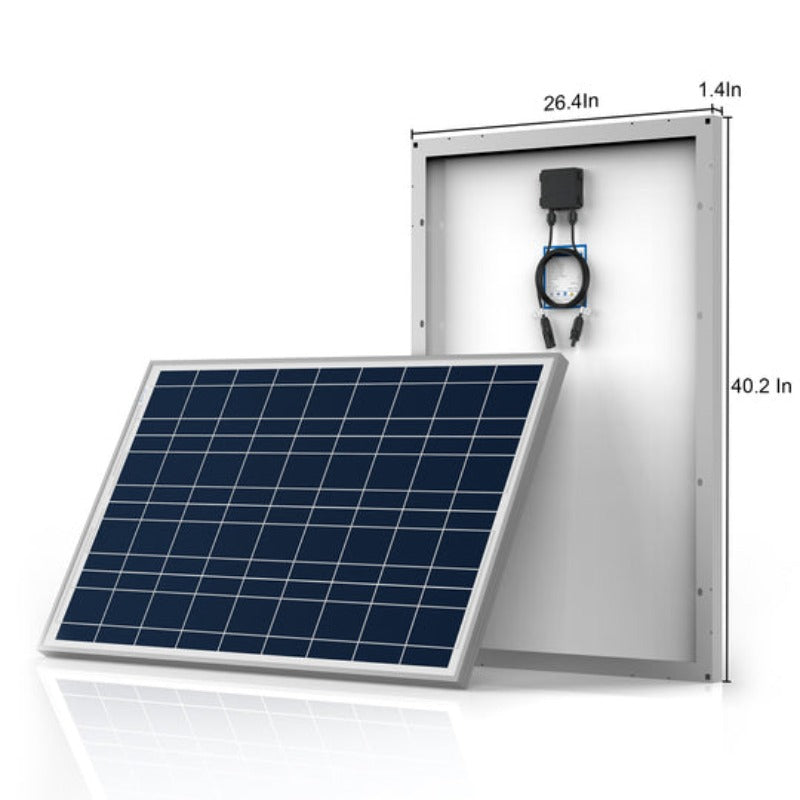

Acopower 100 Watts Poly Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.21A
- Maximum Operating Current (Imp): 5.72A
- Operating Temperature: -40ºC to 85ºC
- Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
- Weight: 9.5kg / 20.6 lbs

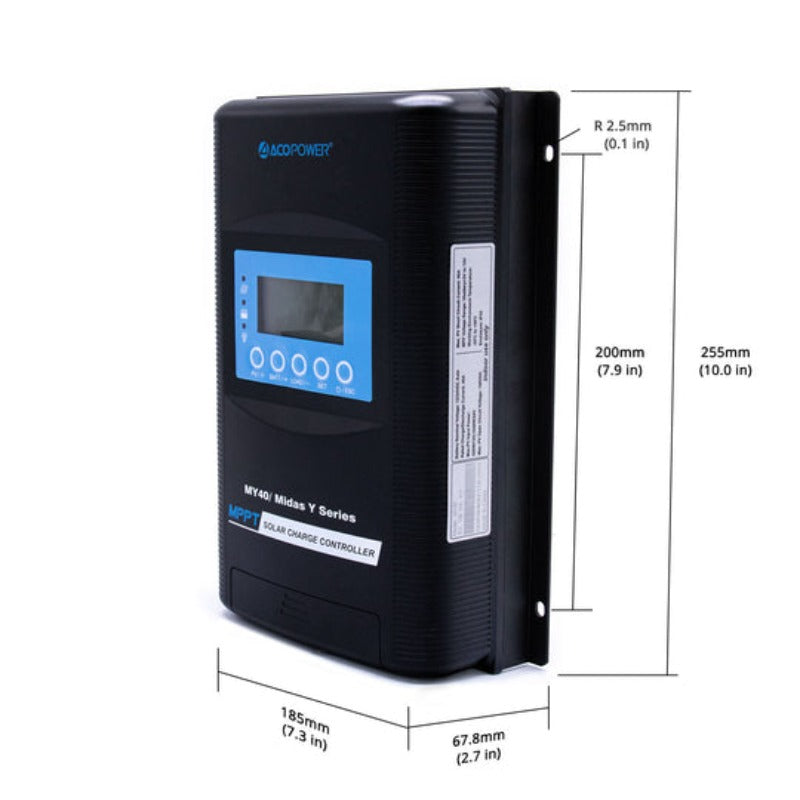

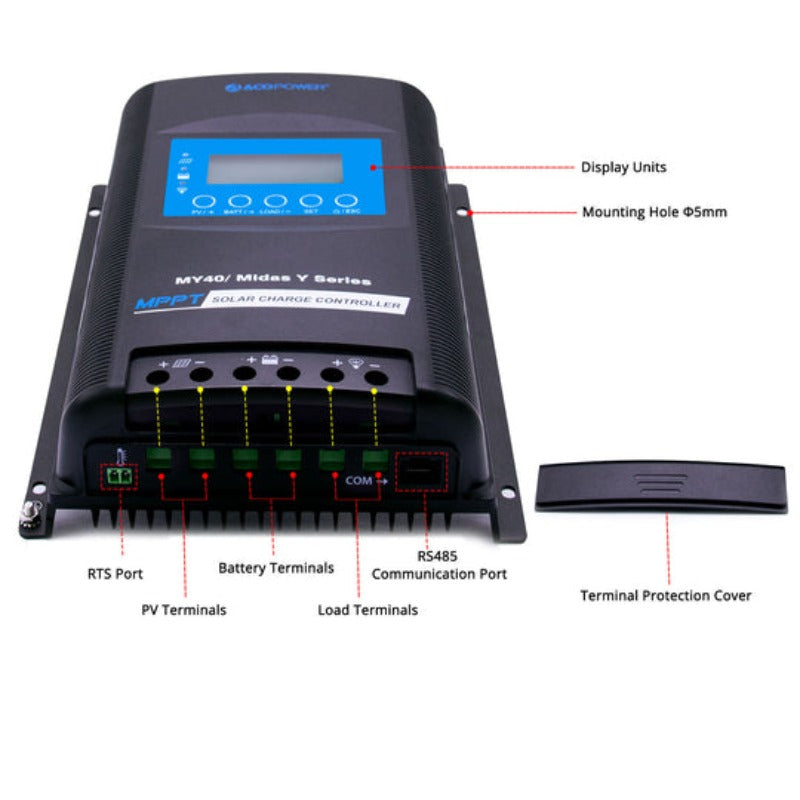

Acopower MIDAS 40 A MPPT Solar Charge Controller
- Nominal System Voltage: 12/24VDC
- Auto Grounding: Common negative
- Rated Charge Current: 40A
- Battery Input Voltage Range: 8V～32V
- Max. PV Open Circuit Voltage: 100V (1) 92V (2)
- Rated charge Power: 520W/12V 1040W/24V
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- RS485 Interface: 5VDC/200mA(RJ45)
- Working temperature: -25℃～+50℃
- Storage temperature: -20℃～+70℃
- Terminals: Up to 6 AWG
- Enclosure: IP33
- Dimension: 10x7.28x2.67 in / 255×185×67.8mm
- Weight: 3.75lbs / 1.7kg
What's in the Box:
-
4 x 100W Polycrystalline Solar Panel
- 1 x 40A MPPT Charge Controller

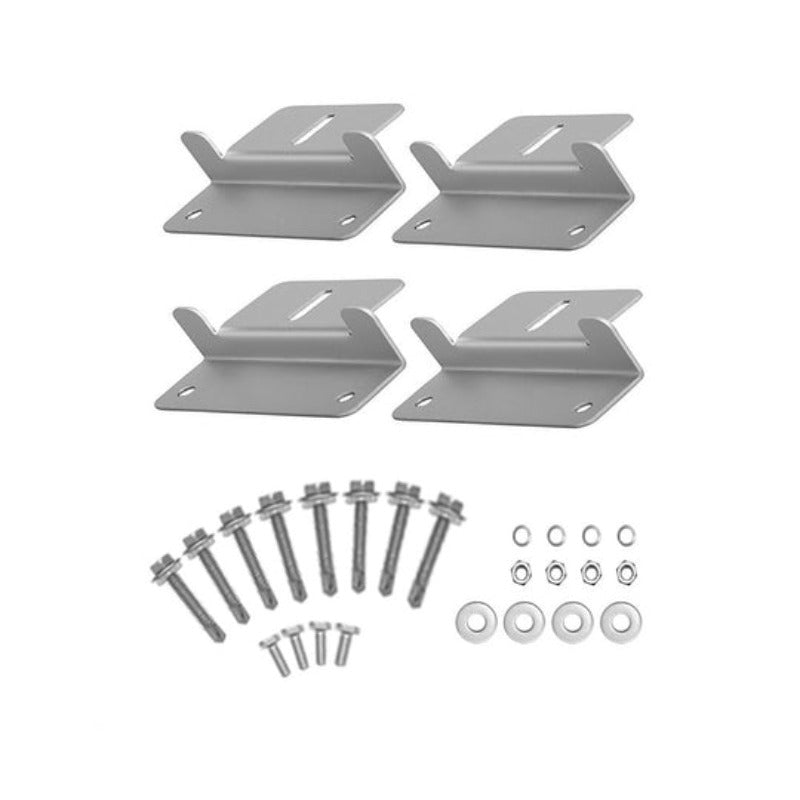

- 3 x Sets Mounting Z Bracket

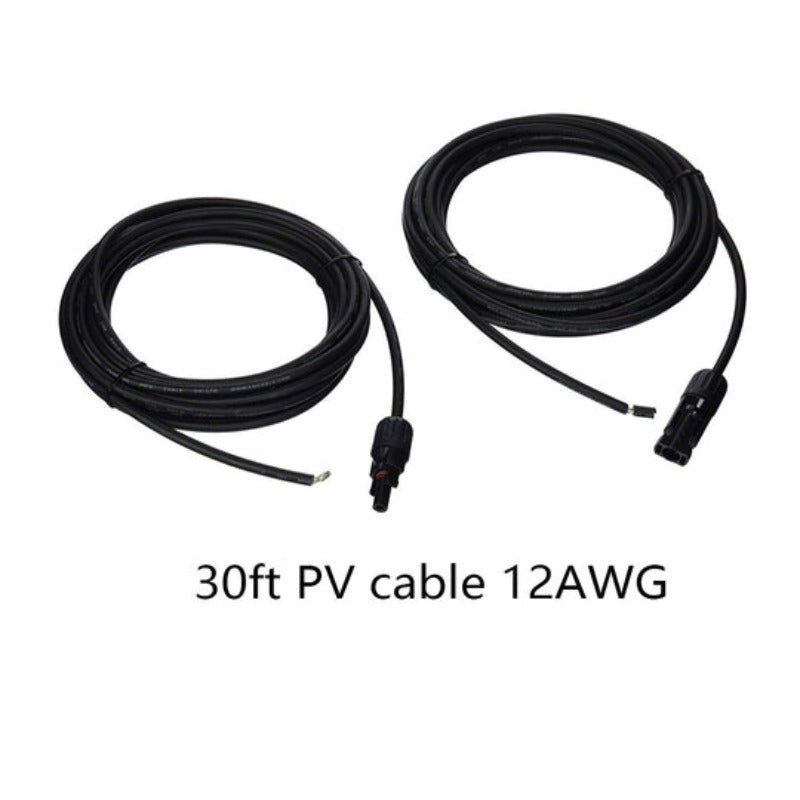

- 1 x 30ft 12AWG PV Cable

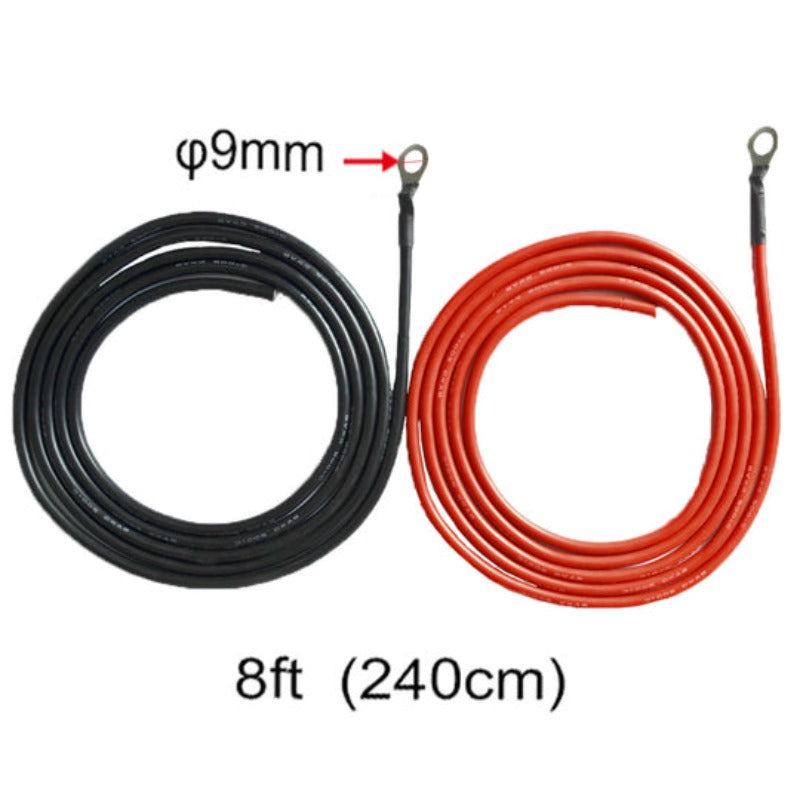

- 1 x 8FT 8AWG Tray Cable
- 1 x Cable Entry Housing

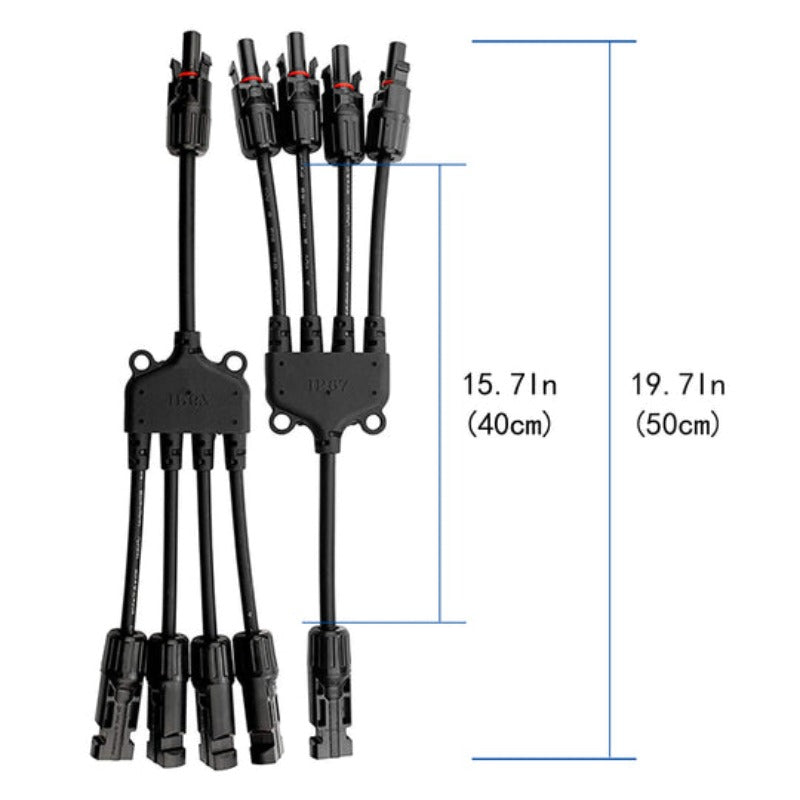

- 1 x Pair 1Y4 Branch Connector
