ACOPOWER 600W 12V Poly Solar RV Kits, 50A MPPT Charge Controller (6x100W 50A)
mbark on your off-grid journey with the ACOPower 600W Polycrystalline Solar Panel RV Kit featuring a 50A MPPT Charge Controller. This cost-effective and user-friendly kit is designed for straightforward installation, equipped with six100W solar panels, a 50A charge controller, and essential wiring. It's an ideal solution to power your RV, boat, camper, and various outdoor appliances, providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.
Features:
- Easy installation
- Height Efficiency
-
MPPT Technology
- Green Solar System
-
Common Negative grounding design
- Warranty
- Multiple packages
Specifications:

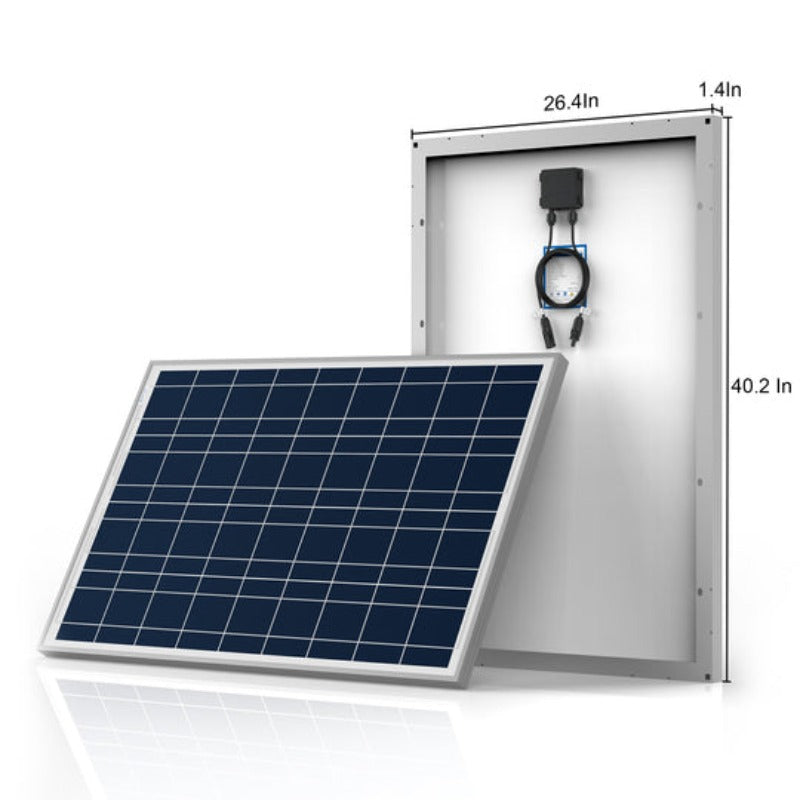

Acopower 100 Watts Poly Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.21A
- Maximum Operating Current (Imp): 5.72A
- Operating Temperature: -40ºC to 85ºC
- Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
- Weight: 9.5kg / 20.6 lbs

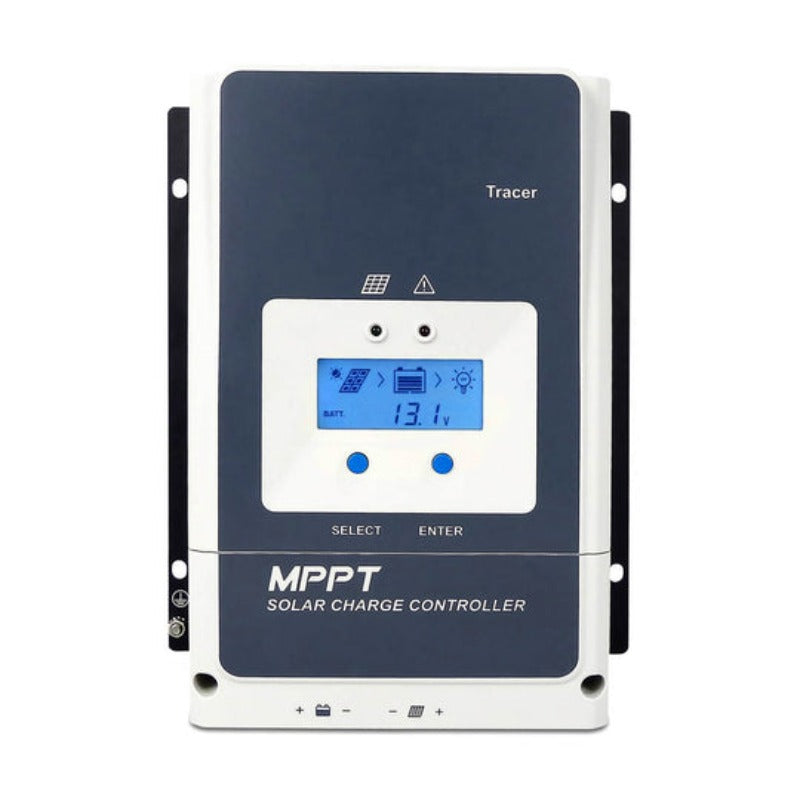

Acopower 50 A MPPT Solar Charge Controller
- Nominal System Voltage: 12v/24v/36v/48v DC
- Auto Grounding: Common negative Design
- Rated Charge Current: 50A
- Battery Input Voltage Range: 8V～68V
- Max. PV Open Circuit Voltage: 150V/138V
- Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
- MPP Voltage Range: V(BAT)+2V～108V
- Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
- Working temperature: -25℃～+50℃
- Storage temperature: -20℃～+70℃
- RS485 Interface: RS485(RJ45)
- Enclosure: IP33
- Dimension: 261*216*119mm
- Terminals: 16mm2/6AWG

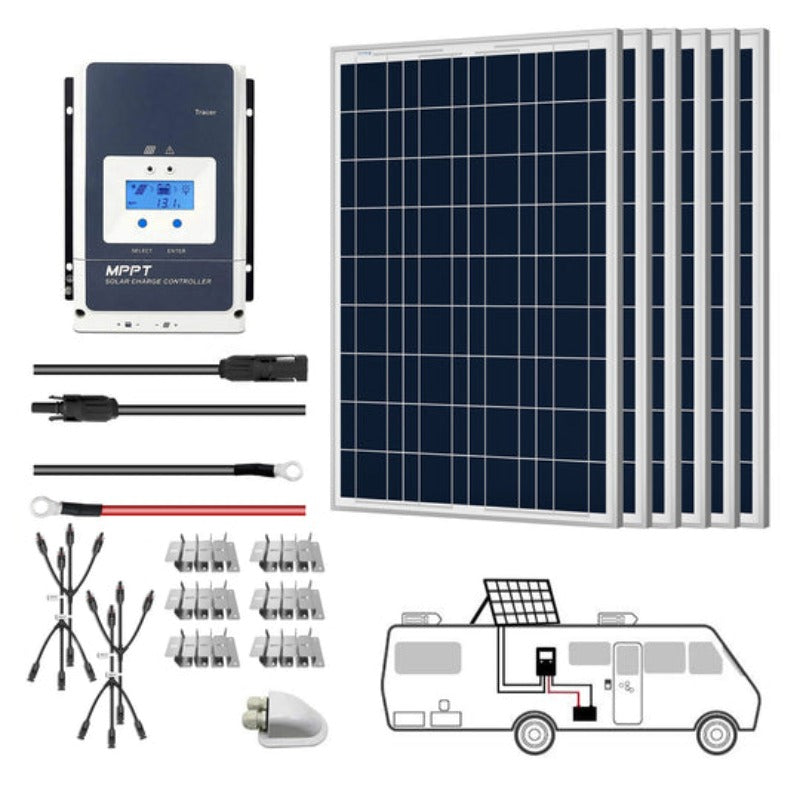

What's in the Box:
-
6 x 100W Poly Solar Panel
- 1 x 50A MPPT Charge Controller

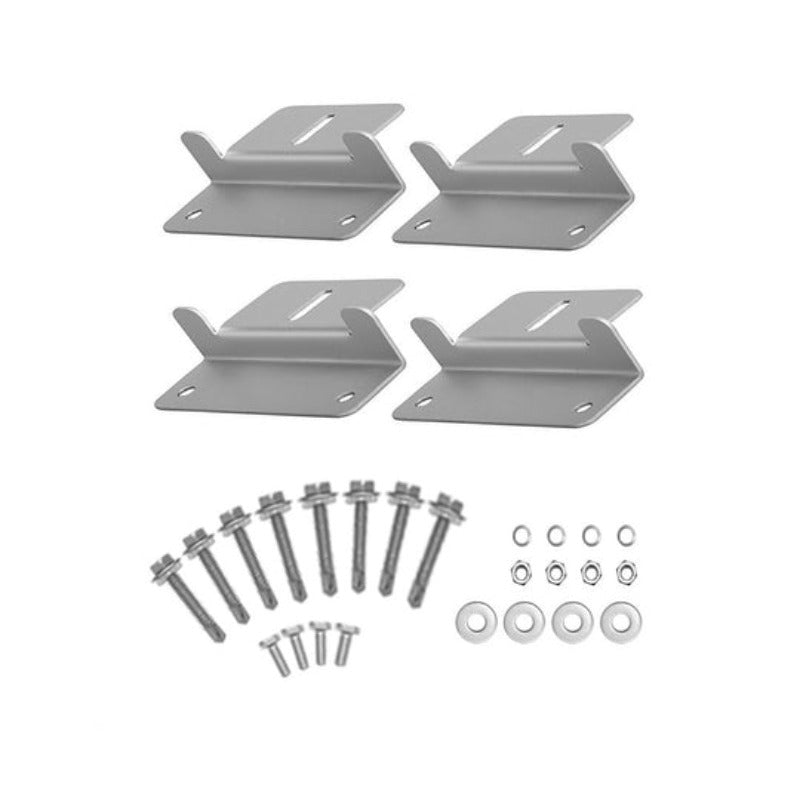

- 6 x Sets Mounting Z Bracket

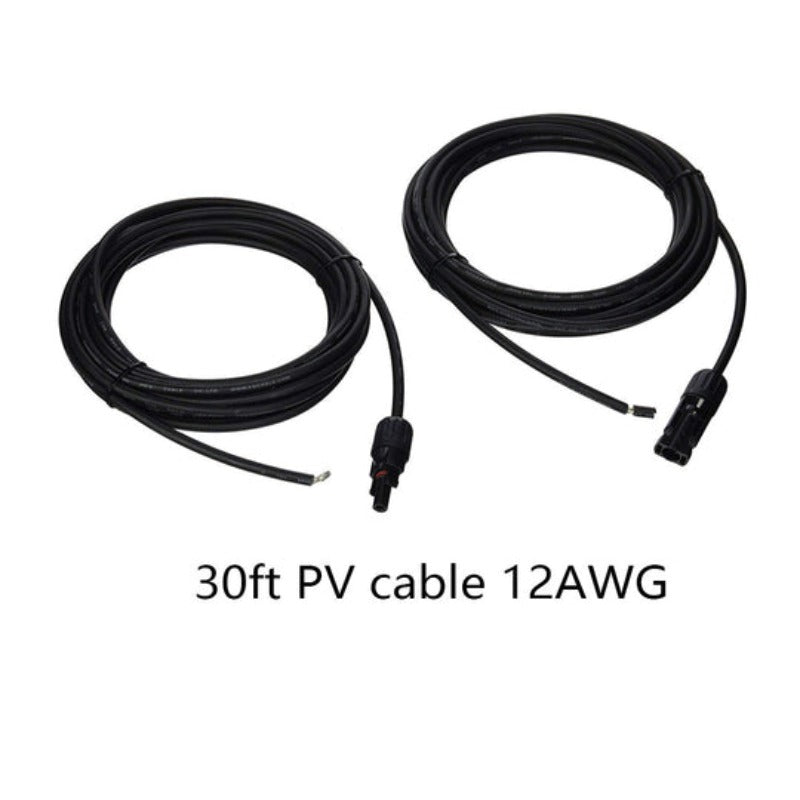

- 1 x 30ft 12AWG PV Cable

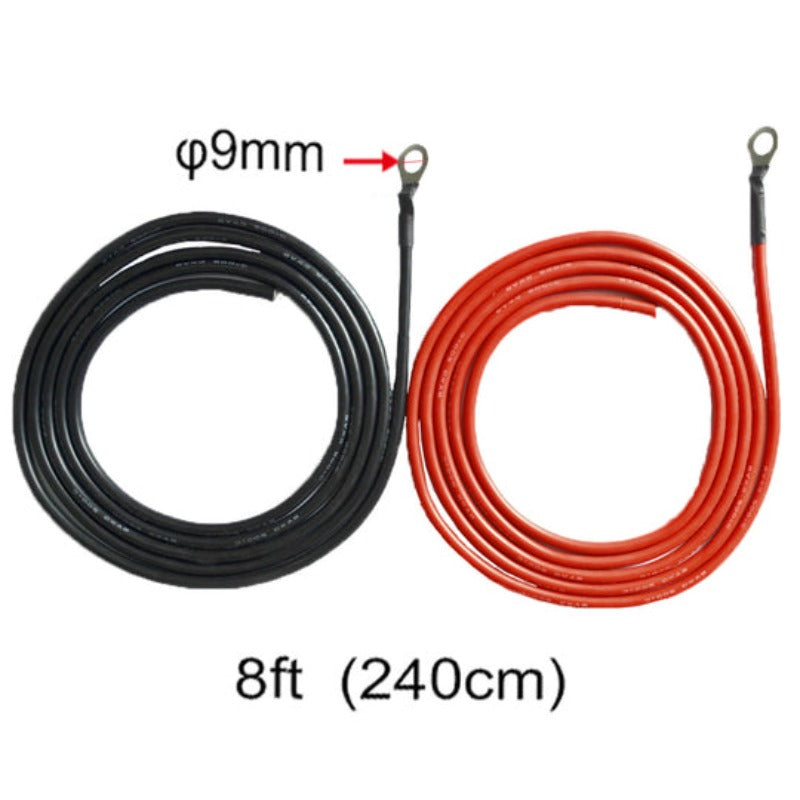

- 1 x 8FT 8AWG Tray Cable
- 1 x Cable Entry Housing

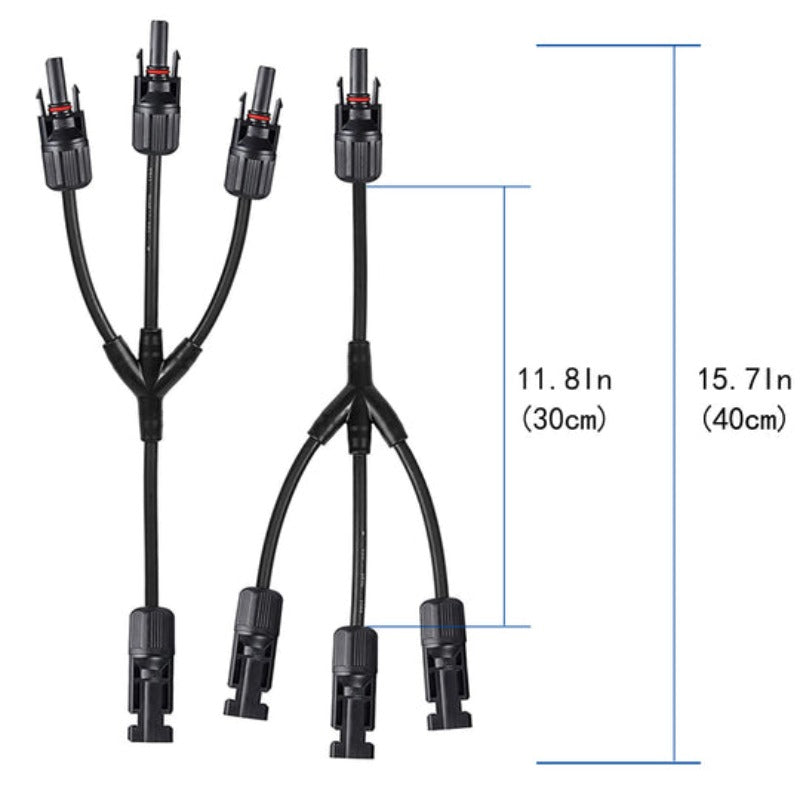

- 2 x Pair 1Y3 Branch Connector
