Name: ACOPOWER 8x100W 12V Poly Solar RV Kits, 60A MPPT Charge Controller (800W 60A)
Brand: Acopower
SKU: HY-SPKP-800W60A
Price: 1198.05 USD
Availability: InStock

ACOPOWER 8x100W 12V Poly Solar RV Kits, 60A MPPT Charge Controller (800W 60A)

Roll over image to zoom in Click on image to zoom

Get $10 OFF with code NEW10

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

ACOPOWER 8x100W 12V Poly Solar RV Kits, 60A MPPT Charge Controller (800W 60A)

Embark on your off-grid journey with the ACOPower 800W Polycrystalline Solar Panel RV Kit featuring a 60A MPPT Charge Controller. This cost-effective and user-friendly kit is designed for straightforward installation, equipped with eight 100W solar panels, a 60A charge controller, and essential wiring. It's an ideal solution to power your RV, boat, camper, and various outdoor appliances, providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.

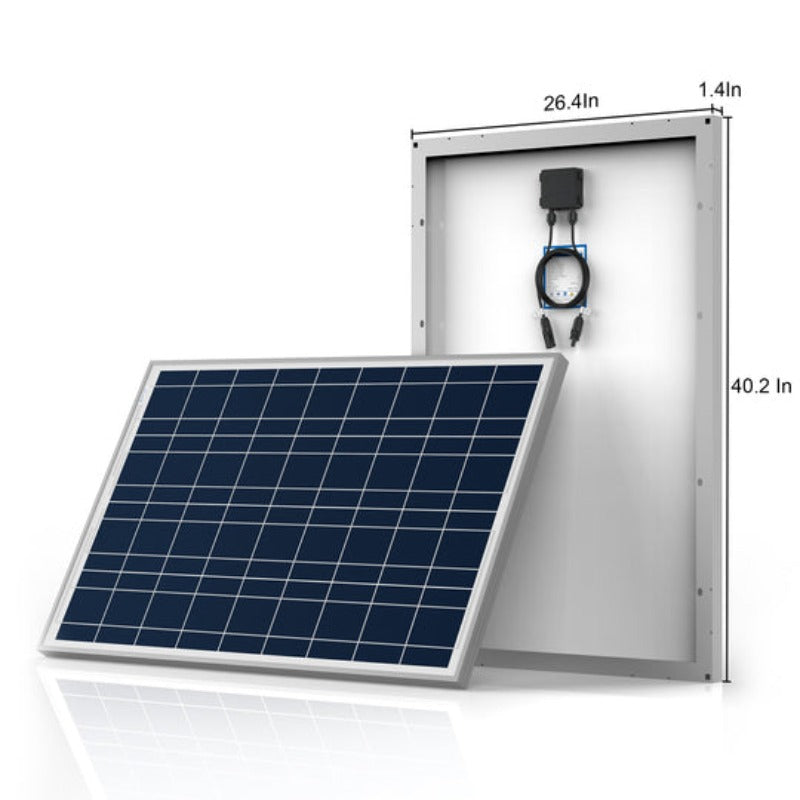

ACOPower 100W 12V Polycrystalline Solar Panel

Tailored for home, RV, van life, and various applications, this solar panel is a reliable source for charging 12-volt batteries and portable power stations. Engineered for easy installation on structures or vehicles, the panel boasts a durable construction featuring tempered glass with an anti-reflective coating, two layers of EVA film, a TPT backsheet, and an anodized aluminum frame designed to withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box ensures water resistance with an IP65 rating. Equipped with a 3.2-foot, 16 AWG cable with male and female quick connectors, this solar panel is ready to harness renewable energy efficiently.

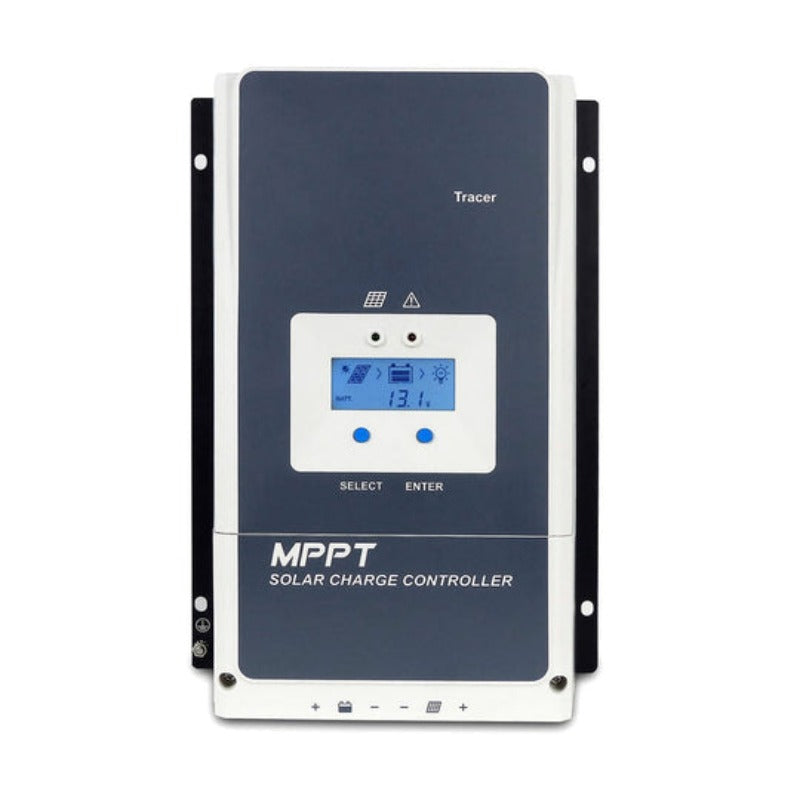

ACOPower 60A MPPT Solar Charge Controller

Maximize the potential of your solar panels with the ACOPower 60A MPPT Solar Charge Controller. This advanced controller allows you to safely and efficiently recharge 12, 24, 36, or 48V batteries, catering to a range of power needs. With a negative-ground configuration, the controller achieves an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types, including flooded, sealed, gel, and li-ion batteries, it offers versatility in energy storage.

The user-friendly design of this plug-and-play controller simplifies the solar charging process. It automatically detects the solar panel voltage and employs bulk, boost, float, and equalization charging modes to optimize the battery charging cycle. Whether you are powering your RV, cabin, or off-grid system, the ACOPower 60A MPPT Solar Charge Controller ensures a seamless and effective solar energy utilization experience.

Features:

Easy installation
Height Efficiency
MPPT Technology
Green Solar System
Common Negative grounding design
Warranty
Multiple packages

Specifications:

Acopower 100 Watts Poly Solar Panel

Maximum Power at STC (Pmax): 100W
Open-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48V
Short-Circuit Current (Isc): 6.21A
Maximum Operating Current (Imp): 5.72A
Operating Temperature: -40ºC to 85ºC
Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
Weight: 9.5kg / 20.6 lbs

Acopower 60 a Mppt Solar Charge Controller

Nominal System Voltage: 12v/24v/36v/48v
DC Auto Grounding: Common negative Design
Rated Charge Current: 60A
Battery Input Voltage Range: 8V～68V
Max. PV Open Circuit Voltage: 150V/138V
Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
MPP Voltage Range: V(BAT)+2V～108V
Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
Working temperature: -25℃～+50℃
Storage temperature: -20℃～+70℃
RS485 Interface: RS485(RJ45)
Enclosure: IP33
Dimension: 261*216*119mm
Terminals: 16mm2/6AWG

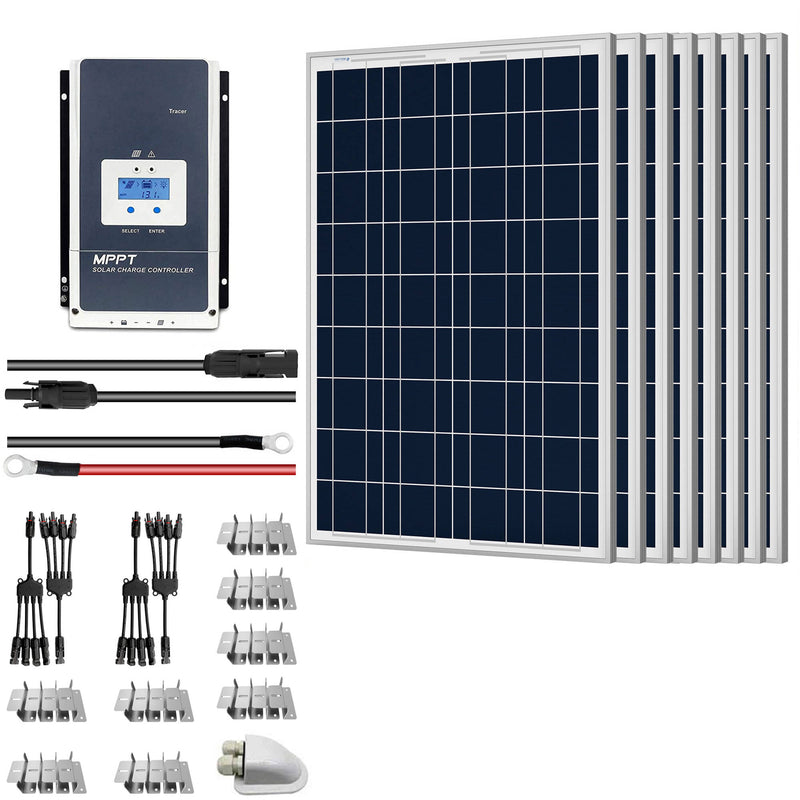

What's in the Box:

8 x ACOPower 100-Watt Polycrystalline Solar Panel, 12V
1 x ACOPower 60A MPPT Solar Charge Controller

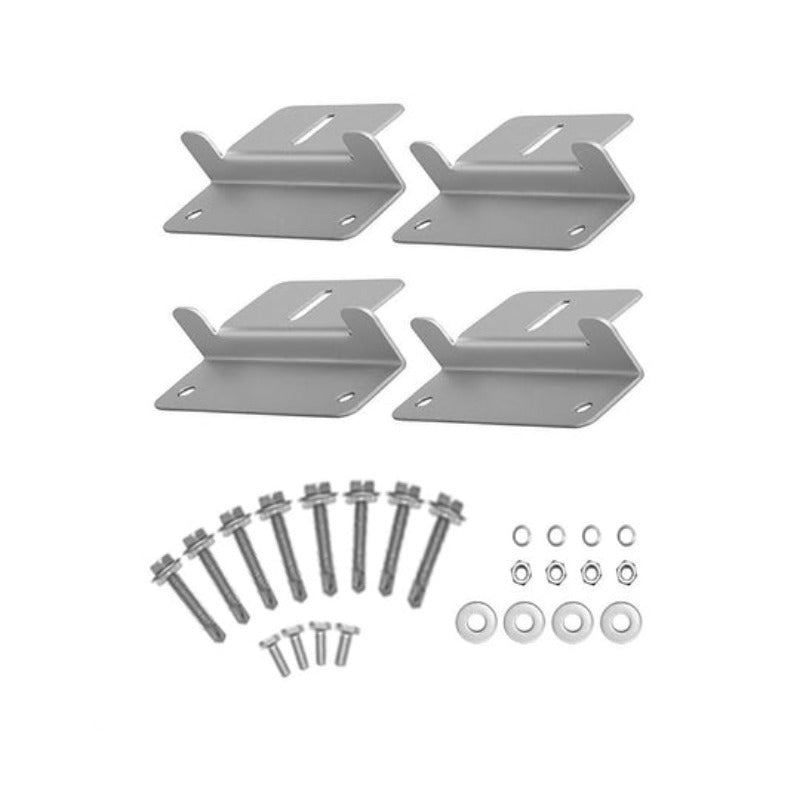

8 x ACOPower Mounting Z Bracket

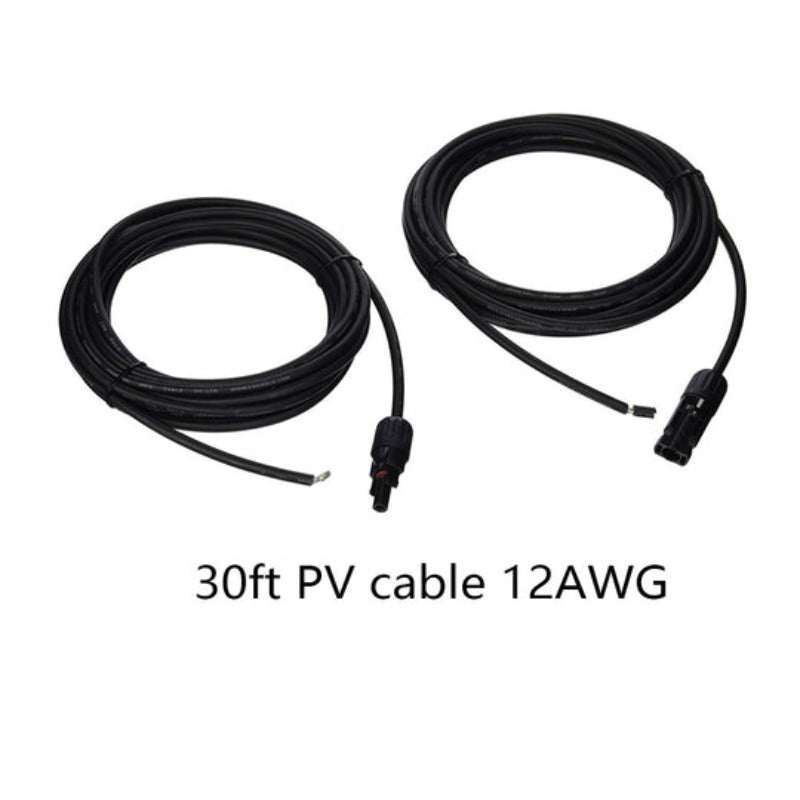

1 x ACOPower 12 AWG PV Cable (30')

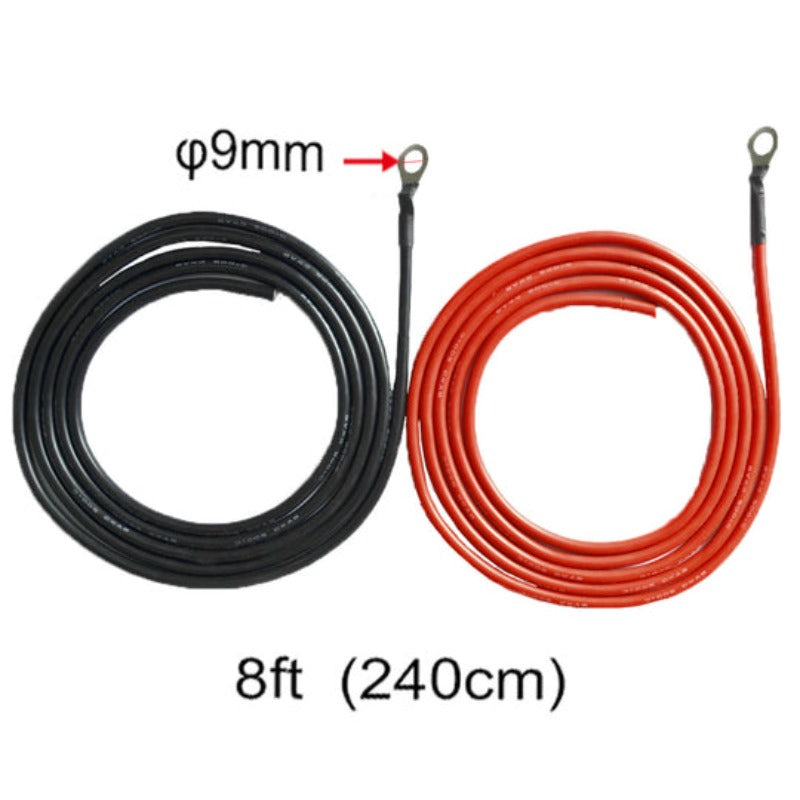

1 x ACOPower 8 AWG Tray Cable (8')
1 x ACOPower Waterproof Cable Entry Gland Box

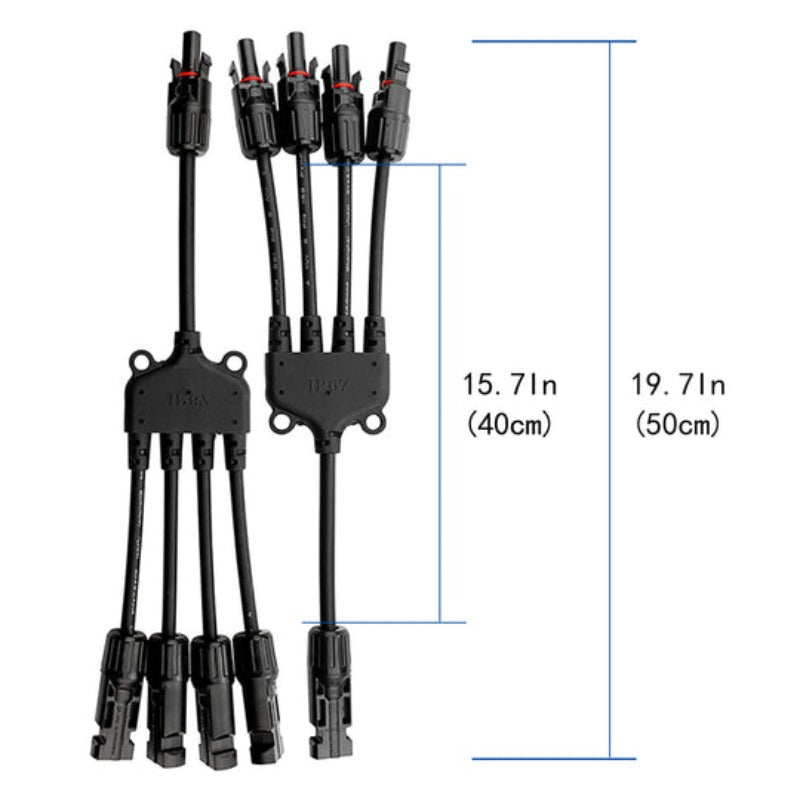

2 x ACOPower 1Y4 Branch Parallel Connector
Limited 5-Year Manufacturer Warranty (Panels Only)
Limited 1-Year Manufacturer Warranty (Controller & Accessories)
