Algolaser Rotary Chuck
An essential companion for any laser engraving machine, the Algolaser Honeycomb Plate is designed to ensure cleaner cuts, better ventilation, and improved engraving precision.
Crafted from durable metal alloy, its honeycomb structure allows smoke and debris to dissipate quickly, reducing burn marks and heat accumulation on materials. This ensures cleaner edges and greater detail, especially important when working with wood, acrylic, leather, or other sensitive materials. The protective aluminum frame adds rigidity while keeping your work stable, and the included metal base plate offers added protection for your desktop or workbench.
Whether you're a hobbyist or a professional, the Algolaser honeycomb board provides a flat, breathable, and reliable surface that enhances every project.
Highlights:

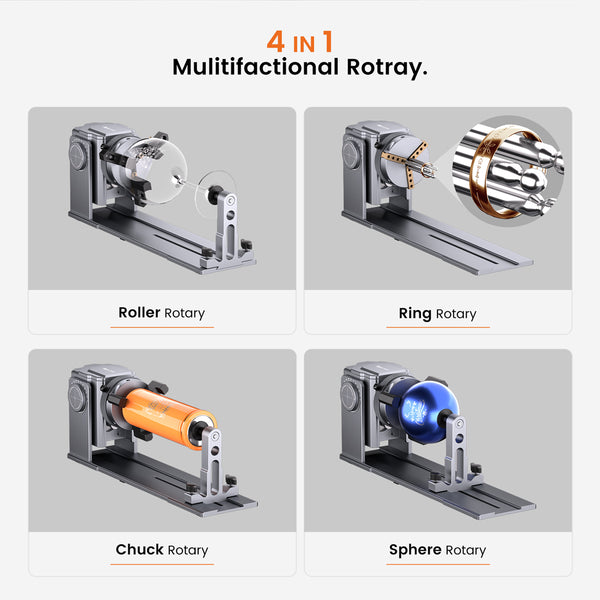

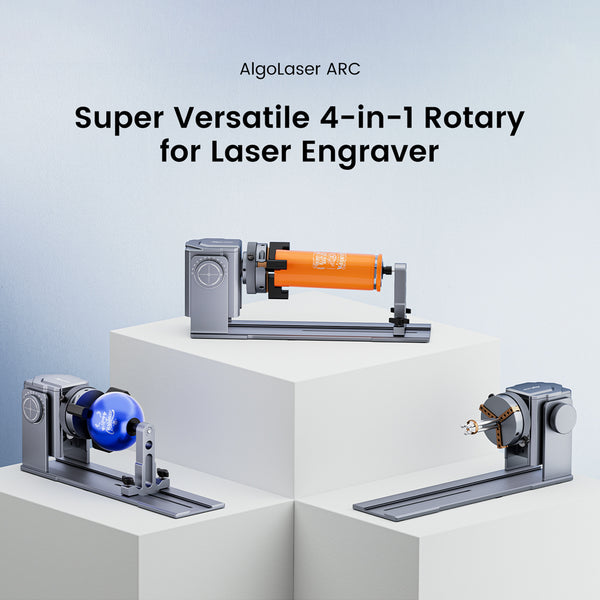

• Super versatile 4-in-1 rotary for laser engraver
• Roller rotary, ring rotary, chuck rotary, sphere rotary

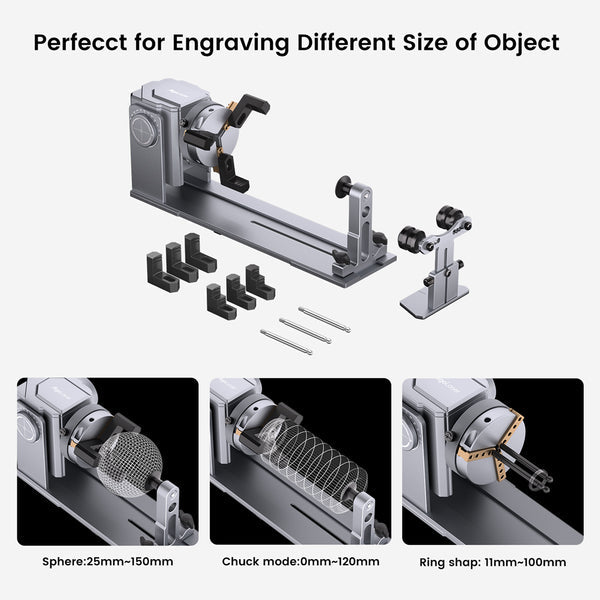

• Perfect for engraving different sizes of objects

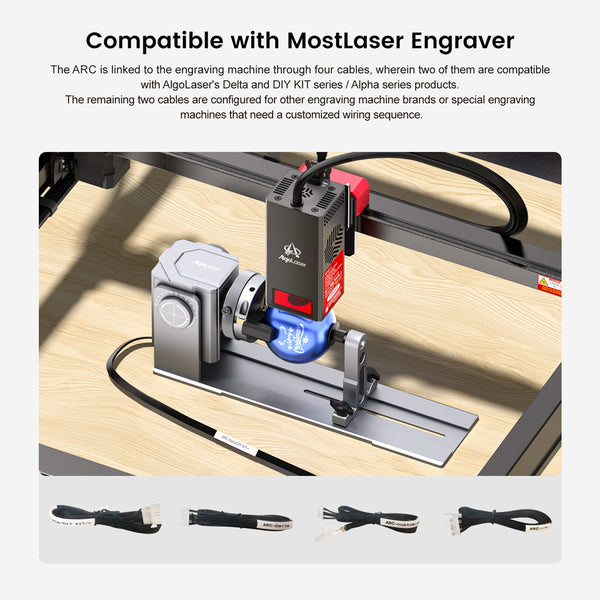

• Compatible with most laser engravers

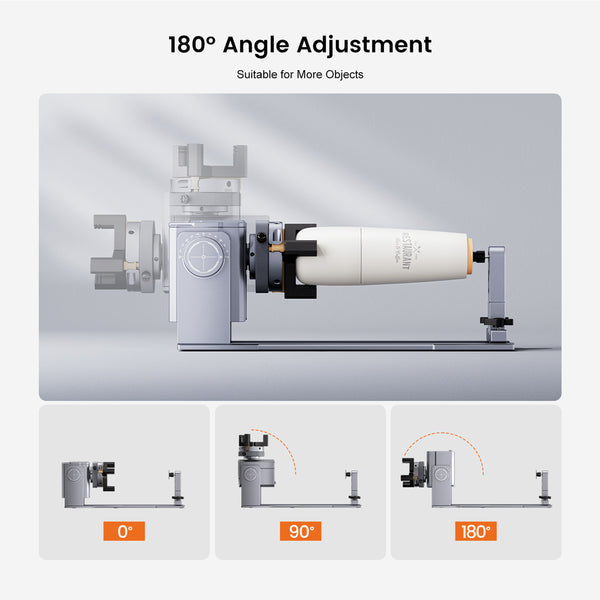

• 180° Angle adjustment
• Meets all of daily use
• Plug-and-play design
Specifications:
Product Name: Algolaser Rotary Chuck
Material: Aluminum Alloy + Stainless Steel Components
Chuck Type: Self-centering 3-Jaw Chuck
Compatible Object Types: Cylindrical, Round, Conical, and Irregular Surfaces
Gripping Diameter Range: Approx. 1 mm – 100 mm (varies by model)
Maximum Object Length: Up to 300 mm (approx.)
Motor Type: High-torque Stepper Motor
Power Input: 24V DC
Rotation Speed: Adjustable via Laser Control Software
Weight: Approx. 1.5 – 2.2 kg
Dimensions: ~220 x 80 x 90 mm (may vary slightly)
Compatibility: Compatible with Algolaser engraving machines
Connection Interface: 4-pin aviation plug or direct rotary port (model-based)

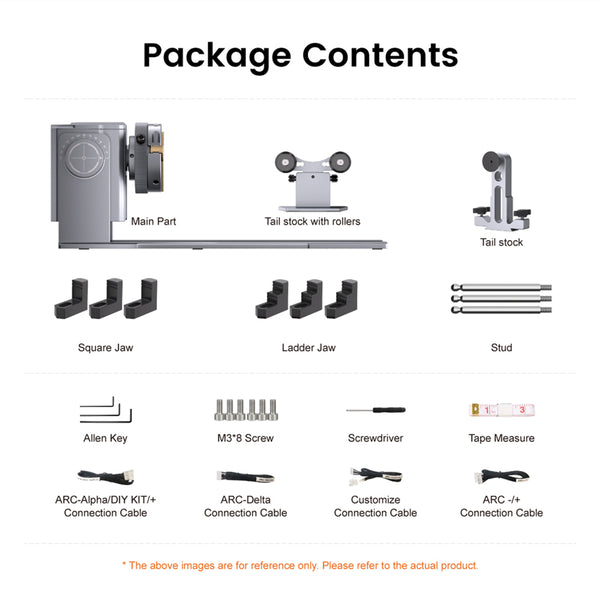

What’s in the Box:
1 × Algolaser Rotary Chuck Unit
1 x Tail Stock with Rollers
3 x Square Jaw
3 x Ladder Jaw
3 x Stud
1 x ARC-Alpha/DIY Kit/+ Connection Cable
1 x ARC-Delta Connection Cable
1 x Customize Connection Cable (compatible with Algolaser machines)
1 × Set of Rubber Pads / Gripping Sleeves (for delicate objects)
6 x M3*8 Screws
1 x Screwdriver
1 × Allen Key / Adjustment Tool
1 × Quick Start Guide / User Manual
