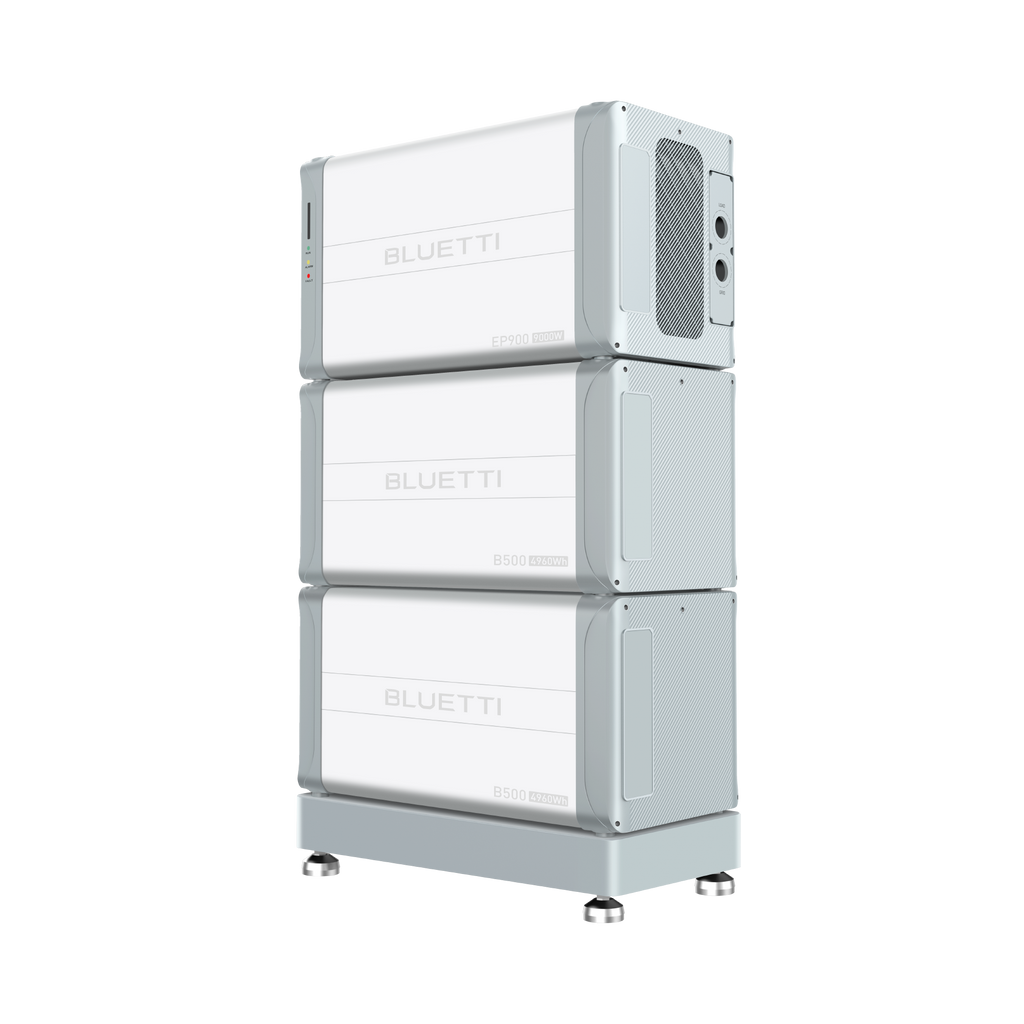

BLUETTI EP900+B500 Home Battery Backup

BLUETTI EP900+B500 Home Battery Backup

Introducing the BLUETTI EP900+B500, a home battery backup system that redefines the way you experience power. Engineered with cutting-edge technology and designed for maximum efficiency, this powerhouse ensures your home stays energized, even in the face of outages.

1. Whopping Ability for High-Powered Devices: With an astounding capacity of up to 9,000W, the BLUETTI EP900+B500 is your go-to solution for powering essential 120V/240V devices in your home. Whether it's emergency backup or daily use, this system delivers uncompromising performance.

2. Expandable Capacity for Versatility: Tailor the system to your energy needs with expandable capacity ranging from 9,920Wh to 19,840Wh. Enjoy the flexibility to scale your power storage as your requirements evolve, ensuring your home is always prepared for any situation.

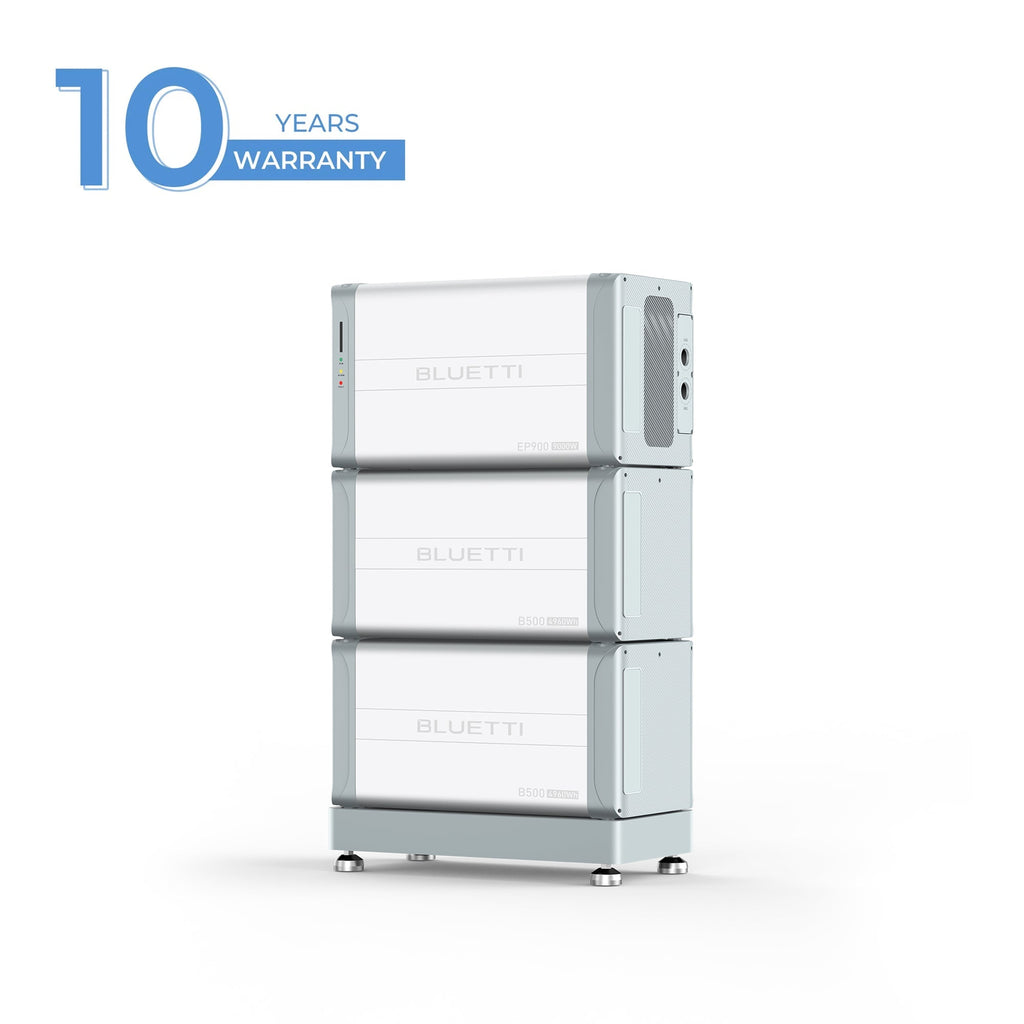

3. Industry-Leading 10-Year Warranty: Invest with confidence knowing your BLUETTI EP900+B500 comes with an industry-leading 10-year warranty. This extensive coverage reflects our commitment to delivering a reliable and durable energy storage solution for your home.

4. Unparalleled Safety with LiFePO₄ Battery: Prioritize safety with the advanced LiFePO₄ battery technology integrated into the BLUETTI EP900+B500. This chemistry not only provides enhanced stability but also ensures a longer lifespan for your home battery system.

5. Perfect Compatibility with Solar Systems: Incorporate the BLUETTI EP900+B500 into your existing or new solar setup. Harness the power of the sun to keep your home running efficiently, reduce your dependence on the grid, and contribute to a sustainable energy future.

6. IP65 Water-Resistant for Indoor and Outdoor Installation: Enjoy the flexibility of indoor or outdoor installation with the IP65 water-resistant design. Whether mounted in your garage, on an exterior wall, or in a dedicated solar shed, the BLUETTI EP900+B500 thrives in various environments.

7. Efficient & Effective Grid Interaction: Take control of your energy usage and even sell excess electricity back to the grid. The BLUETTI EP900+B500 empowers you to make efficient choices, maximizing your energy savings and contributing to a more sustainable and eco-friendly lifestyle.

Features:

• Whopping ability - for up to 9,000W, 120V/240V devices

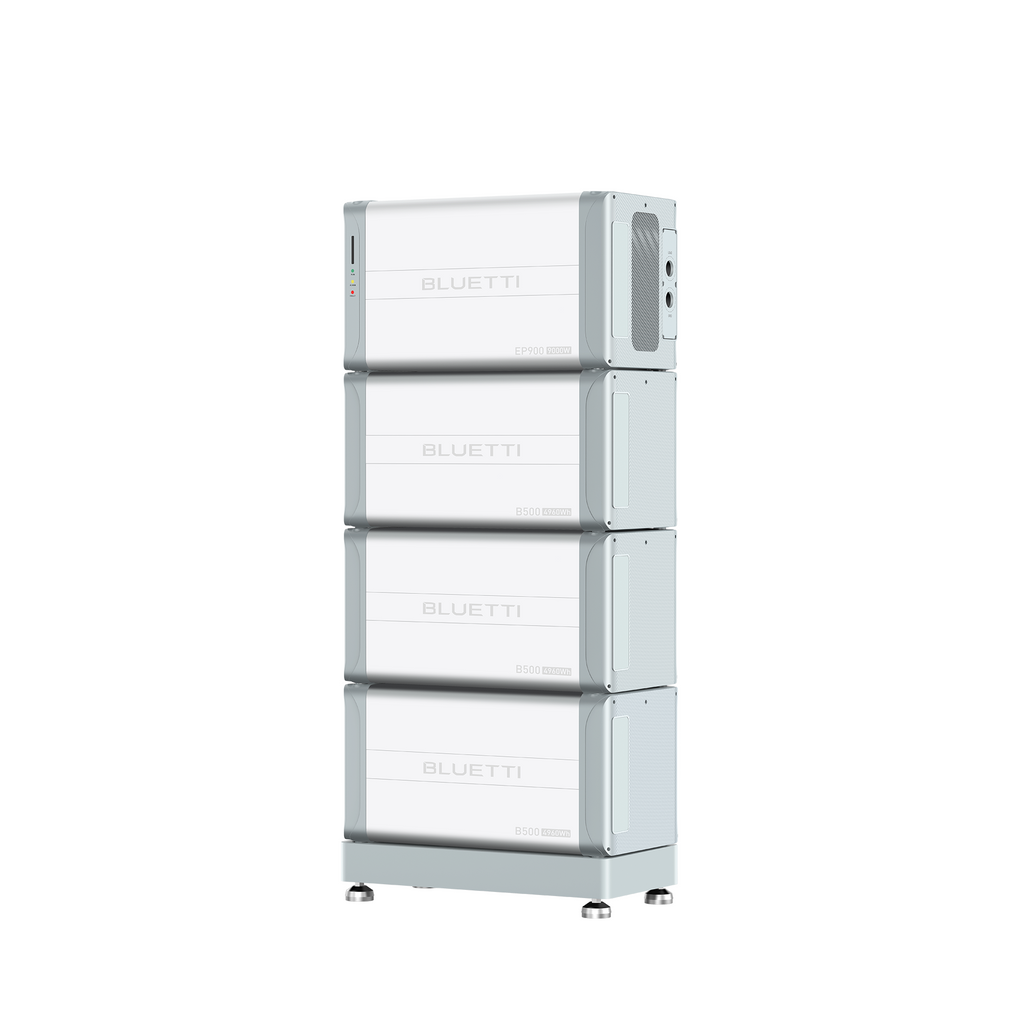

• Expandable capacity - 9,920Wh~19,840Wh
• Industry-leading warranty - 10-year coverage
• Unparalleled safety - LiFePO₄ battery
• Perfect compatibility - works with existing/new solar system
• IP65 Water-resistant - in/outdoor installation
• Efficient & effective - sell electricity back to the grid

Specifications:

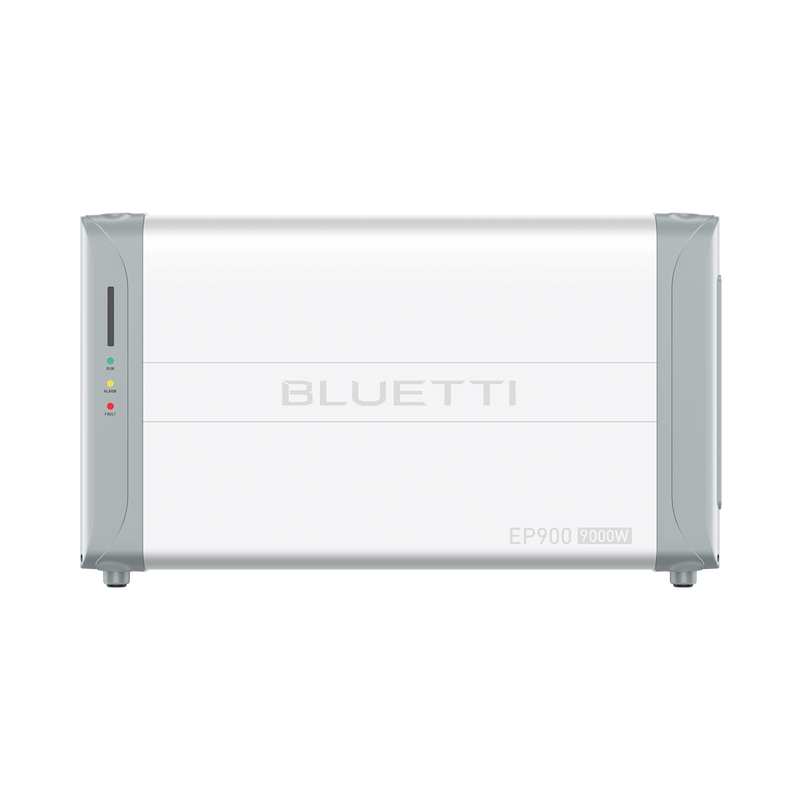

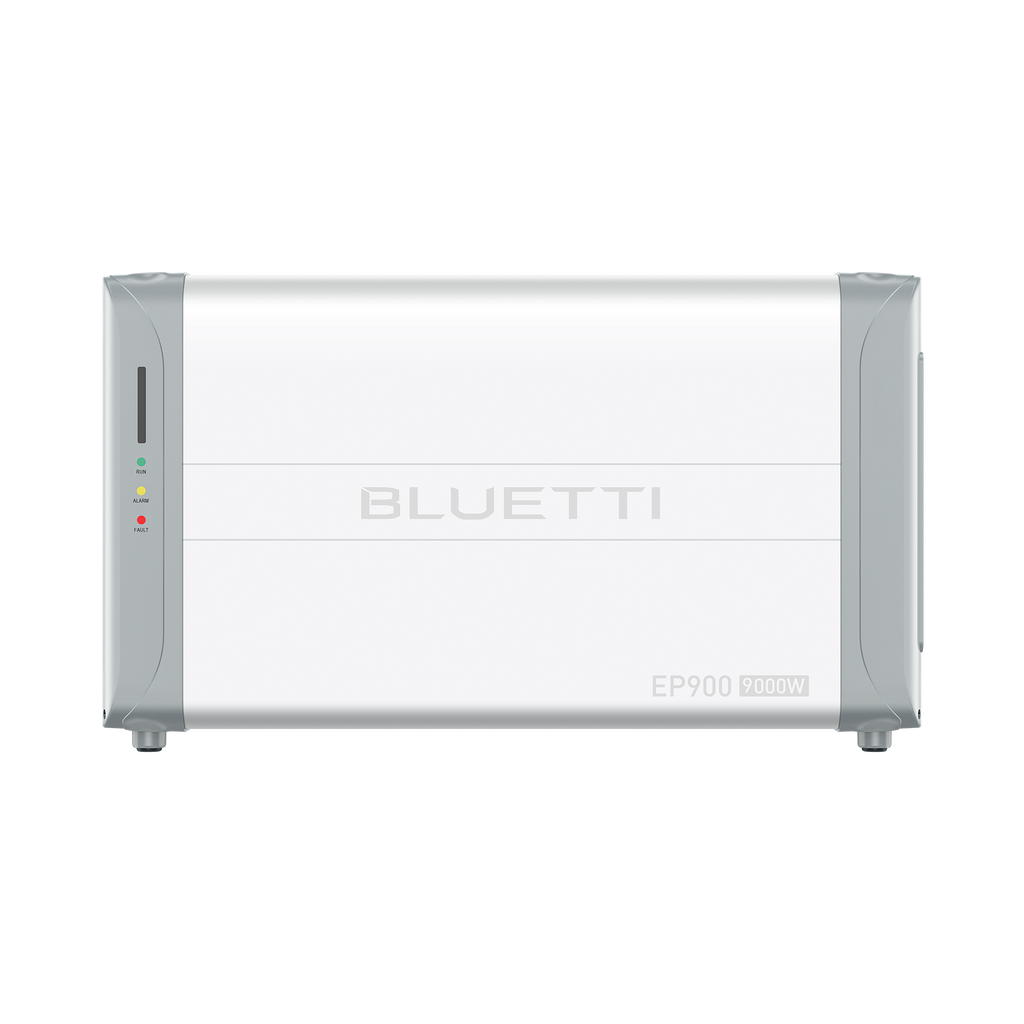

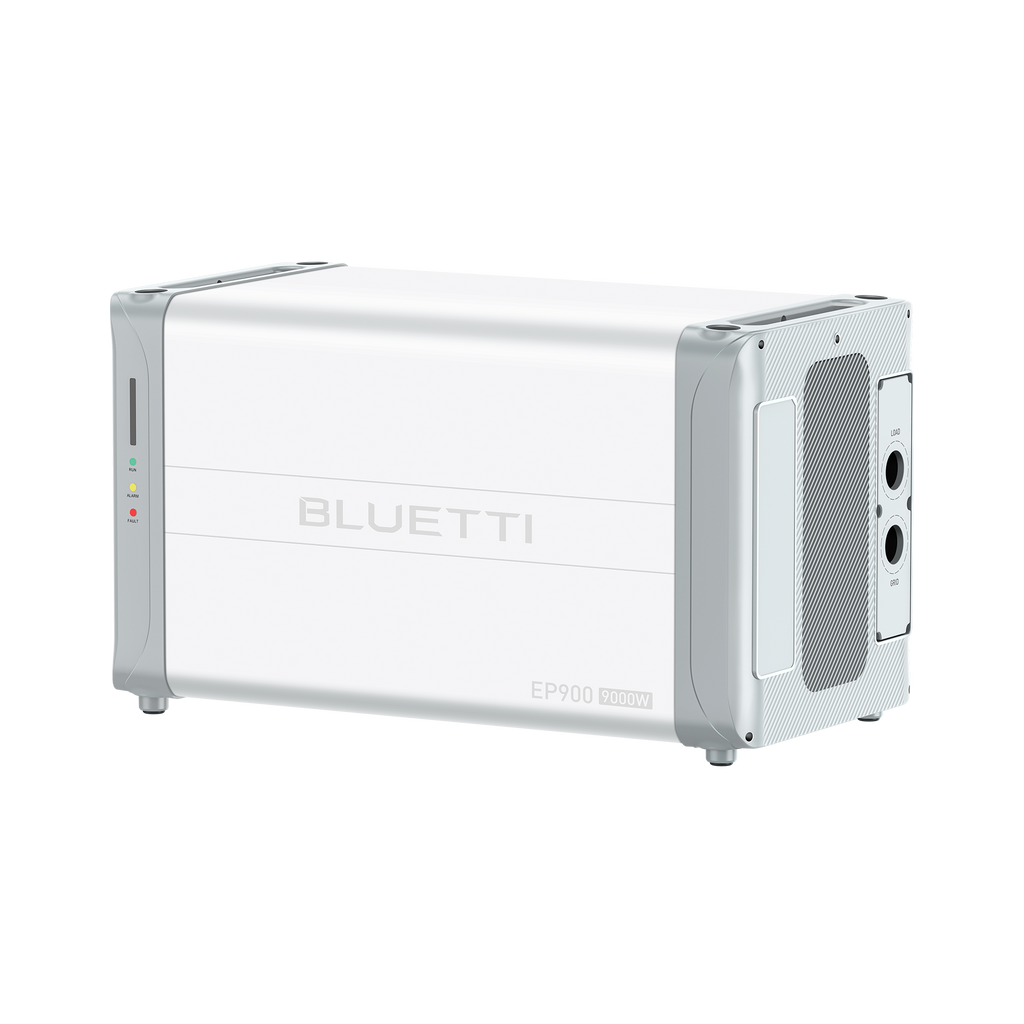

EP900 Specifications
General

• Scalability: With 2~4 B500's (From 9.9KWh~19.8KWh) App Control: BLUETTI APP via WiFi or Bluetooth Warranty: 10 Years Protection Grade: IP65 Noise: ≤50 dB (A)
• Working Temperature: -4℉~122℉ / -20℃~50℃ Relative Humidity: 5%~95%

AC (Grid-Tied)

• Output Power (240V): 9kW Wiring: L1 / L2 / N / G Voltage: 120VAC / 240VAC Output Current: 37.5A × 2 Input Frequency: 60Hz On and Off-grid Switching Time: <10ms Protection: Anti-islanding Protection, Output Overcurrent Protection, Short-circuit Protection, Over-temperature Derating, Over-temperature Shutdown
• Note: The PV system is installed on the battery side and has no residual current detection.

AC (Off-Grid)

• Output Power (240V): 9kW Note: 7.6kW with 2 B500 Output Voltage: 120VAC / 240VAC Output Current: 37.5A × 2 Input Frequency: 60Hz Protection: Output Overcurrent Protection, Output Short-circuit Protection, Over Temperature Protection

PV Input

• Maximum Input Power: 9kW with 4 B500, 7.5kW with 3 B500, 5kW with 2 B500 MPPT Channels: 2 (3000W + 6000W) Array In Series: 1/2 (3000W + 6000W) Maximum Input Voltage: 550V MPPT Voltage Range / Rated: 150V~500V / 360V Single MPPT Maximum Input Current: 12.5A / 25A Single MPPT Maximum short circuit current: 15A/30A MPPT Efficiency: 99.90% PV Inversion Efficiency: 97.0% Max. Protection: Reverse Polarity Protection, Insulation Resistance Detection, Arcing Detection

B500 General Specifications

• Protection Grade: IP65 Noise: <25dB Operating Temperature: Charging: 32℉~104℉ / 0℃~40℃ Storage Temperature: -4℉~104℉ / -20℃~40℃/ At least one charge cycle per month. 32℉~95℉/ 0℃~35℃ / At least one charge cycle every six months. Working Humidity: 5%-95% Working Altitude: <2000m

B500 Battery

• Battery Type: Lithium Iron Phosphate Cells (LiFePO4) Rated Capacity: 4960Wh Usable Capacity: 4464Wh Temperature Adaptive Function: Yes Short-circuit Protection: Yes
