Bluetti to Puerto Rico - AT1

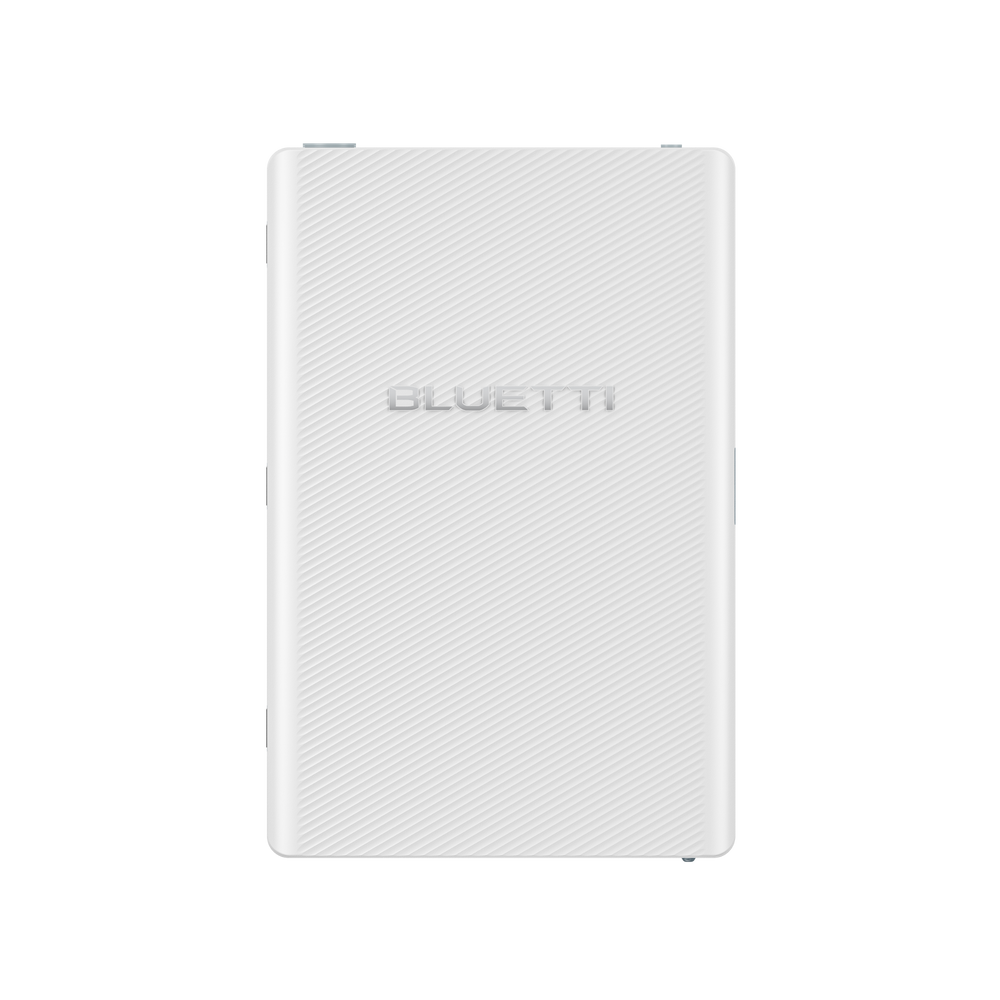

BLUETTI AT1 Smart Distribution Panel is basically BLUETTI’s smart home power control panel for whole-home backup systems. It works with systems like the Apex 300 and EnergyPro setups to automatically manage power between:
Grid power
Solar panels / microinverters
Generator input
BLUETTI battery systems
Key Features:
- Automatic transfer switch (switches to battery during outages)
- Whole-home or partial-home backup
- Smart energy management through the BLUETTI app
- Peak shaving / time-of-use energy control
- AC-coupled solar support
- Generator integration
Specifications:
Operating Temperature: -4°F to 122°F
Communication:
General: Bluetooth/Wi-Fi/Ethernet/4G;
EV: RS485
Protection Grade: NEMA 3R
Warranty: 10 years
Dimensions: 21.7 × 6.4 × 31.5 in
Net Weight:56.44 lbs
Compatibility: EnergyPro 6K/EnergyPro 13K/Apex 300
Electrical: Coupling AC-Coupling
Split Phase: L1/L2/N/G
Current Rating: 200 A
Rated Voltage: 120 V/240 V
Rated Frequency: 60 Hz
UPS Time: ＜20ms
Grid/Backup Current: 160 A Continuous (200 A Max.)
ESS Current: 2 × 80 A Continuous (2 × 100 A Max.)
Generator Current: 64 A Continuous (80 A Max.)
Solar Current (Microinverters): 64 A Continuous (80 A Max.)
Smart-Load Current: 64 A Continuous (80 A Max.)
What's in the Box:
1 x AT1 Smart Distribution Panel
1 x Ethernet cable (10m / 32.8 ft)
4 x Expansion bolts
4 x Phillips hex washer self-tapping screws
1 x User manual
1 x Warranty card
1 x QC certificate
