BougeRV Li 30Amp 12V/24V PWM Solar Charge Controller (Negative Ground)
BougeRV's new 30A PWM Solar Charge Controller has a negative ground design, making it compatible with more vehicle systems and eliminating the need to worry about polarity. This solar panel regulator cycles PV input current and battery voltage in real-time to constantly regulate, resolve and optimize the charging process.
From waking up dormant lithium-ion battery to auto shut off load features, your dream for green energy is effectively attained with BougeRV’s new controller. Designed to suit 12V/24V lithium batteries, this compact and durable 30A solar charge controller with negative ground with BougeRV trust is a one-stop-solution to your solar power needs.
System Voltage: 12V/24V
Rated Charge Current: 30A
Rated Discharge Current: 30A
Maximum PV Input Voltage: <50V

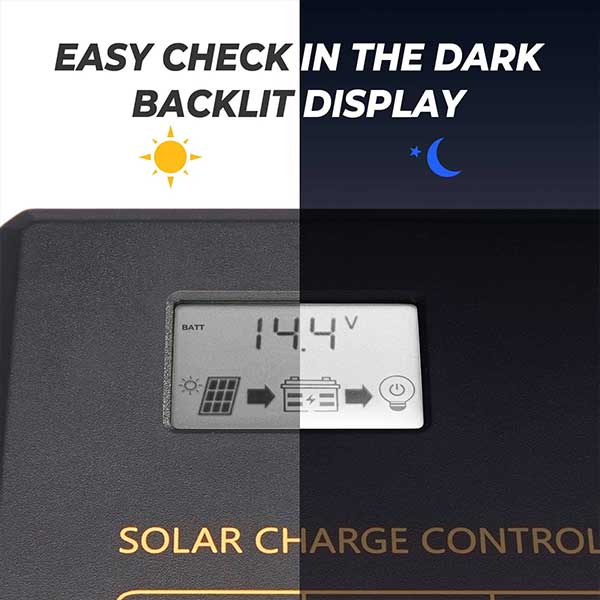

Backlight Display Time: 15s off without operation
No-load Loss: <8mA
The maximum allowable voltage of battery terminal: <32V
Working Temperature: -31°F～140°F
USB Output: 5V/2A
Temperature Compensation: -3mV/°C/2V
Light Control Delay: 1 minute
Protection Level: IP32
Net weight: 290g 0.64 lbs/10.23 ounces
Dimensions: 159×100×39(mm) 6.26*3.94*1.53 inches
Installation size: 147×80(mm)
Installation aperture: φ4.5(mm)
What's in the Box:

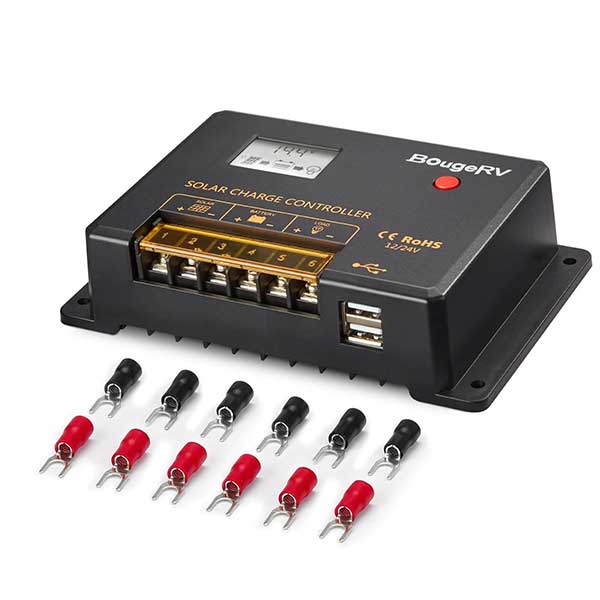

1 x Li 30Amp 12V/24V PWM Solar Charge Controller
1 x 10Amp PWM Solar Charge Controller
