BougeRV Solar Connectors kits (6Pairs Male/Female &1 pair of spanners)

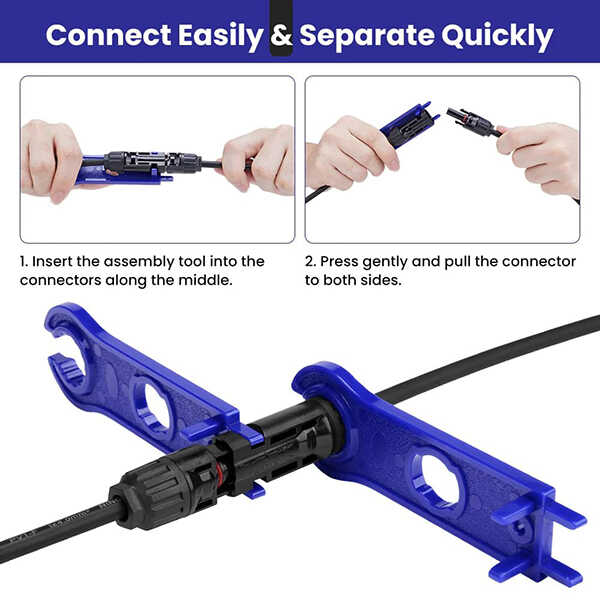

A 6 pair solar connector kit with spanners to put them in place, the BougeRV Solar Connectors Kits is a perfect addition to your solar system. Simple to assemble and unplug, the connectors and spanners are made of highest quality materials for long-term durability.
The built-in shrink ring combined with IP67 waterproofing tightly seals the contraption arresting even the tiniest bit of leakage of power.
Rated Current: 20A (4mm²）
Rated Voltage: DC1000V
Contact Resistance: ≤5mΩ
Insulation Resistance: >500mΩ
Operating Temperature range: -40℃ until+90℃
Degree of Protection: IP67
Flame Class: UL94-V0
Safety Degree: Ⅱ
Adapter Wire: OD 5mm-7mm
Insertion Force: <=50N
Withdrawal Force: >=50N
Suitable Cable: AWG 14/13/12/11/10
Connector Conductor Material: Copper, Tin
What's in the Box:
6 x Male Solar Connectors (with solar connector pins)
6 x Female Solar Connectors (with solar connector pins)

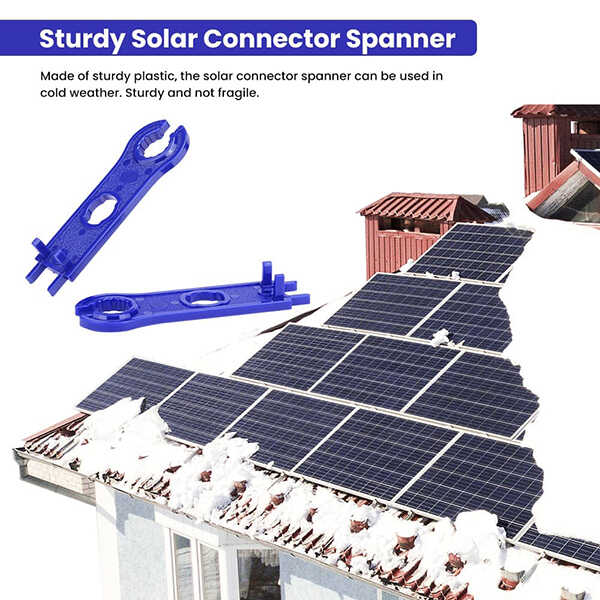

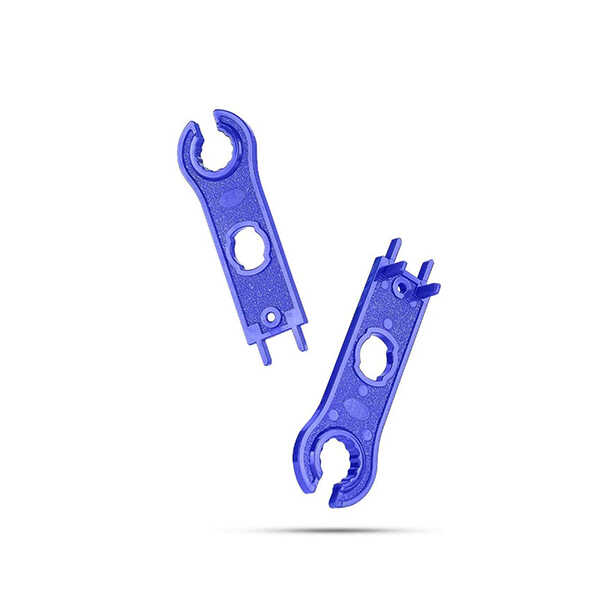

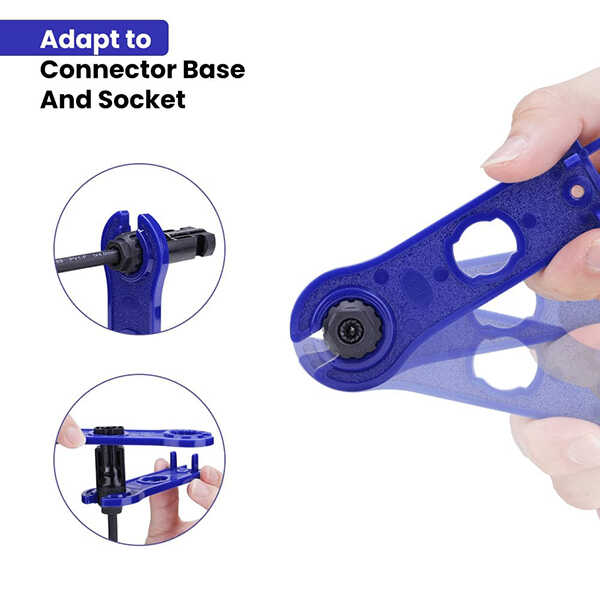

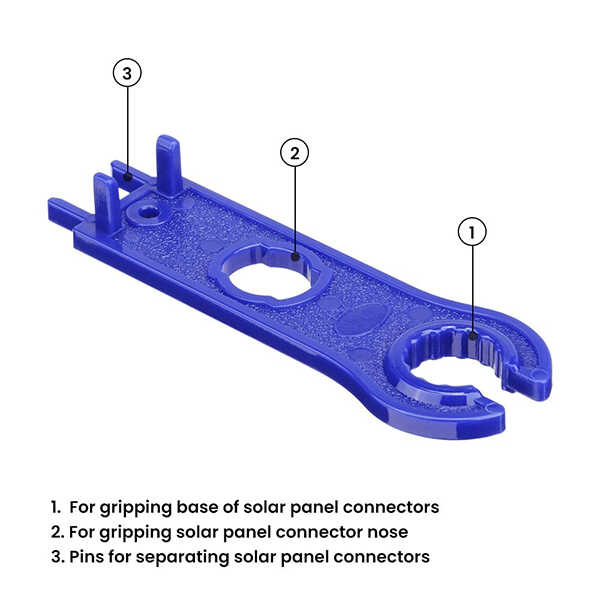

2 x Solar Connector Spanners
