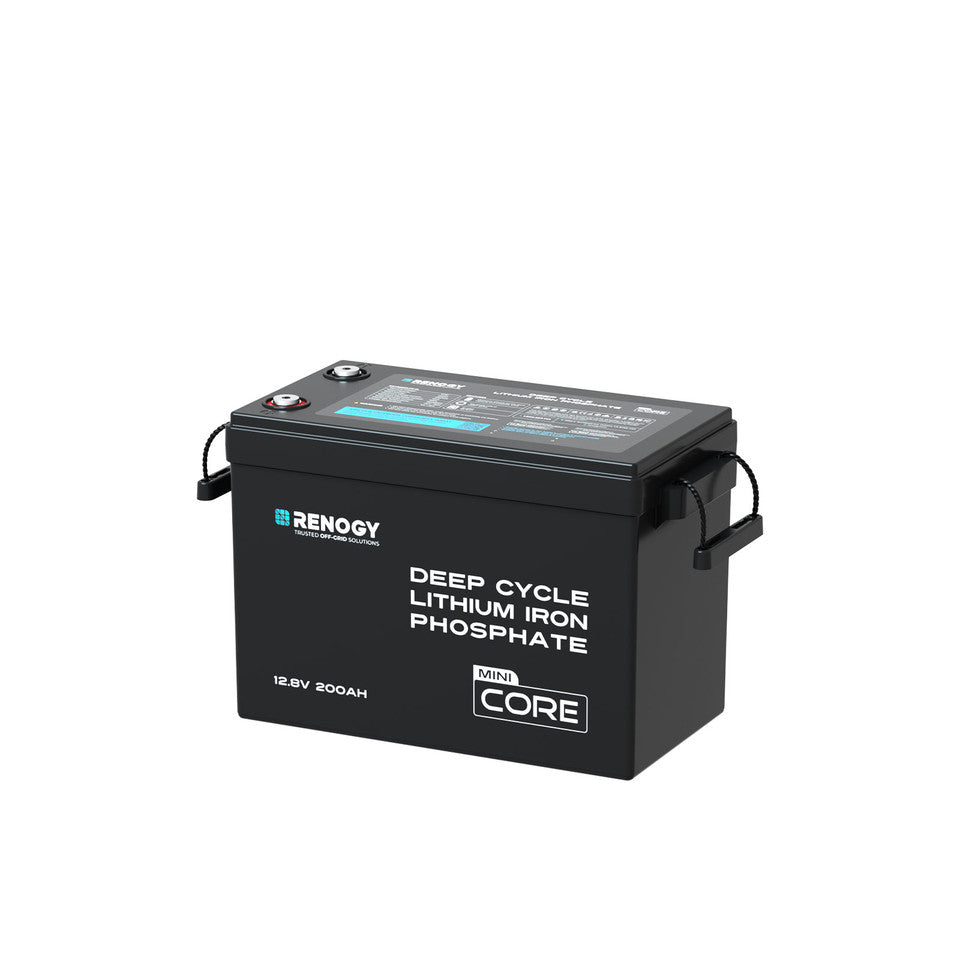

Core Mini - 12.8V 200Ah LiFePO4 Battery w/ Low-Temperature Protection

The Core Mini 12.8V 200Ah LiFePO4 Battery packs serious energy into a space-saving, lightweight design that’s ready to go wherever your power needs take you. Ideal for RVs, boats, off-grid homes, and backup systems, it delivers 2560Wh of reliable energy with the added intelligence of low-temperature protection, allowing safe charging below 32°F and discharging down to -4°F.

Built with Grade-A prismatic LiFePO4 cells, this powerhouse offers over 5000 cycles at 80% depth of discharge, giving you years of performance with minimal maintenance. The advanced 100A BMS ensures smooth, secure operation with protection against overcharging, overheating, and more—so you can power up with confidence, even in tough conditions.

Backed by multiple certifications including FCC, CE, RoHS, and UKCA, and a solid 5-year warranty, the Core Mini 200Ah delivers serious capability in a compact, efficient form. Whether you're chasing horizons or prepping for outages, this battery is the smart, long-lasting energy solution that won’t weigh you down.

Highlights:

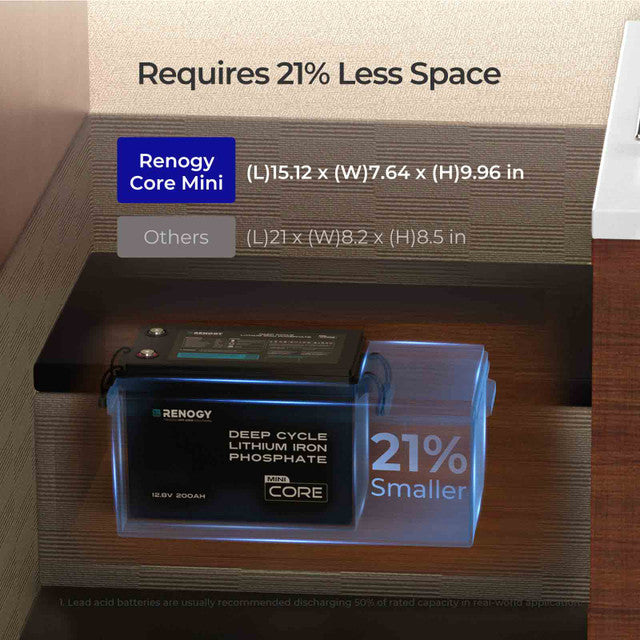

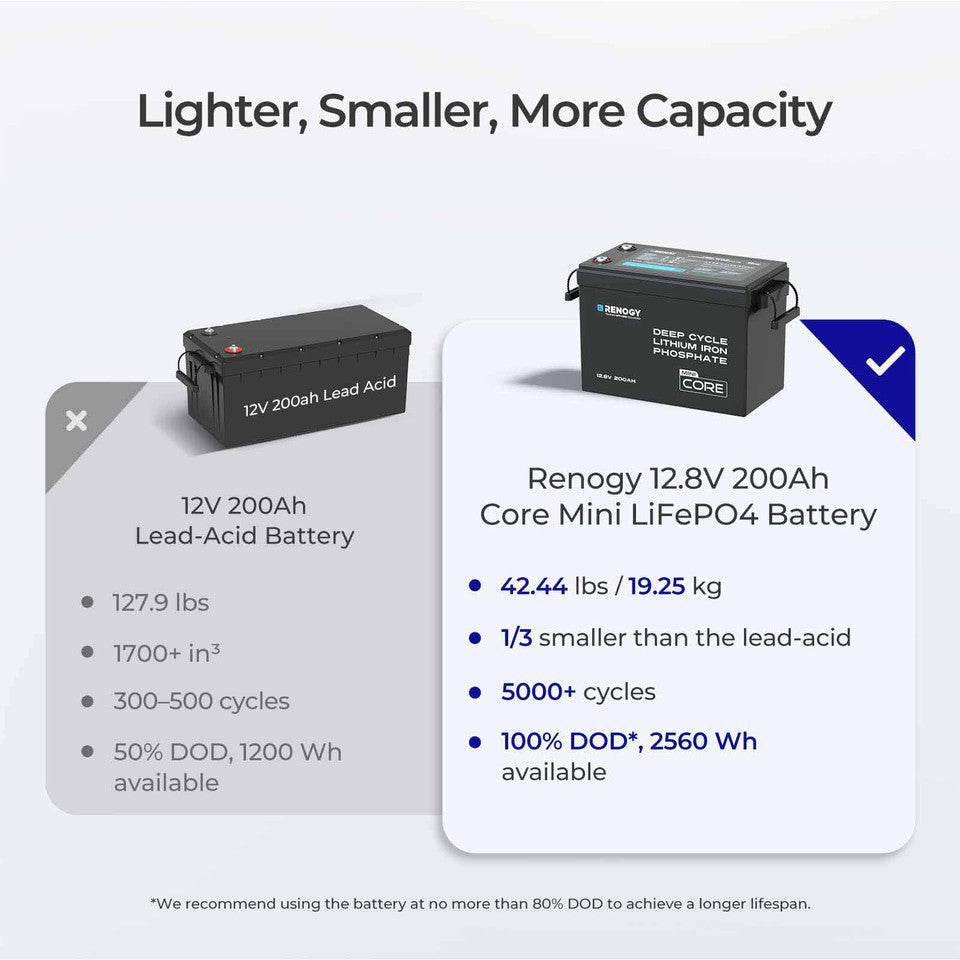

•    1/3 smaller than 12V 200Ah lead-acid.
•    A 200A BMS, more robust than a 100A.

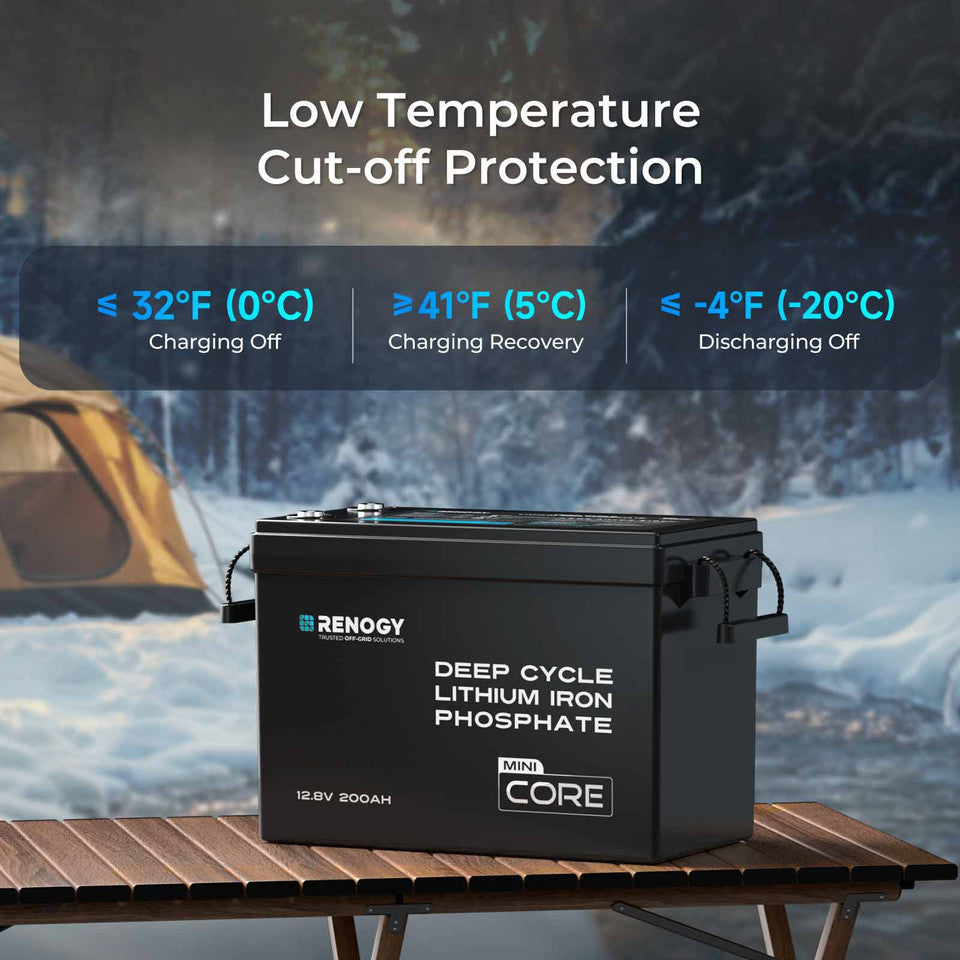

•    Low-temp cut-off (charge & discharge).

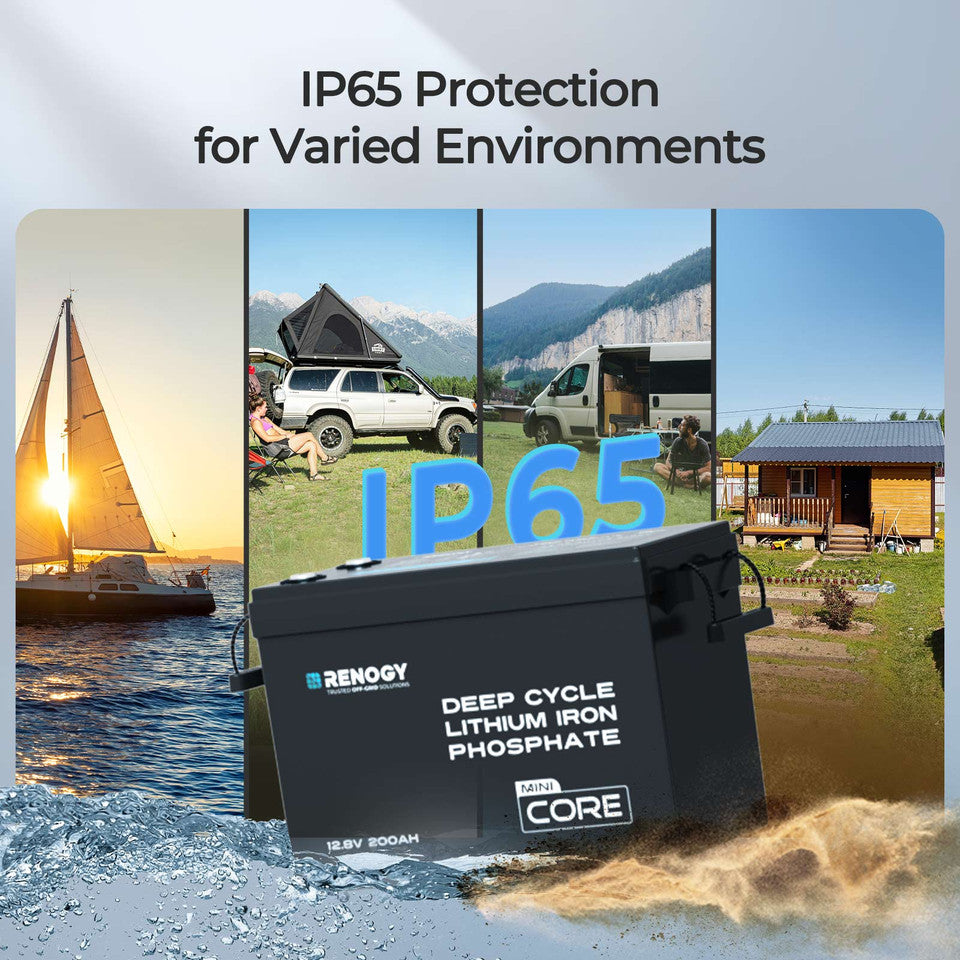

•    IP65 waterproof & vibration-resistant for enhanced outdoor performance.
•    Certified by FCC, UN38.3, ROHS, UKCA and more.
•    5-Year warranty.

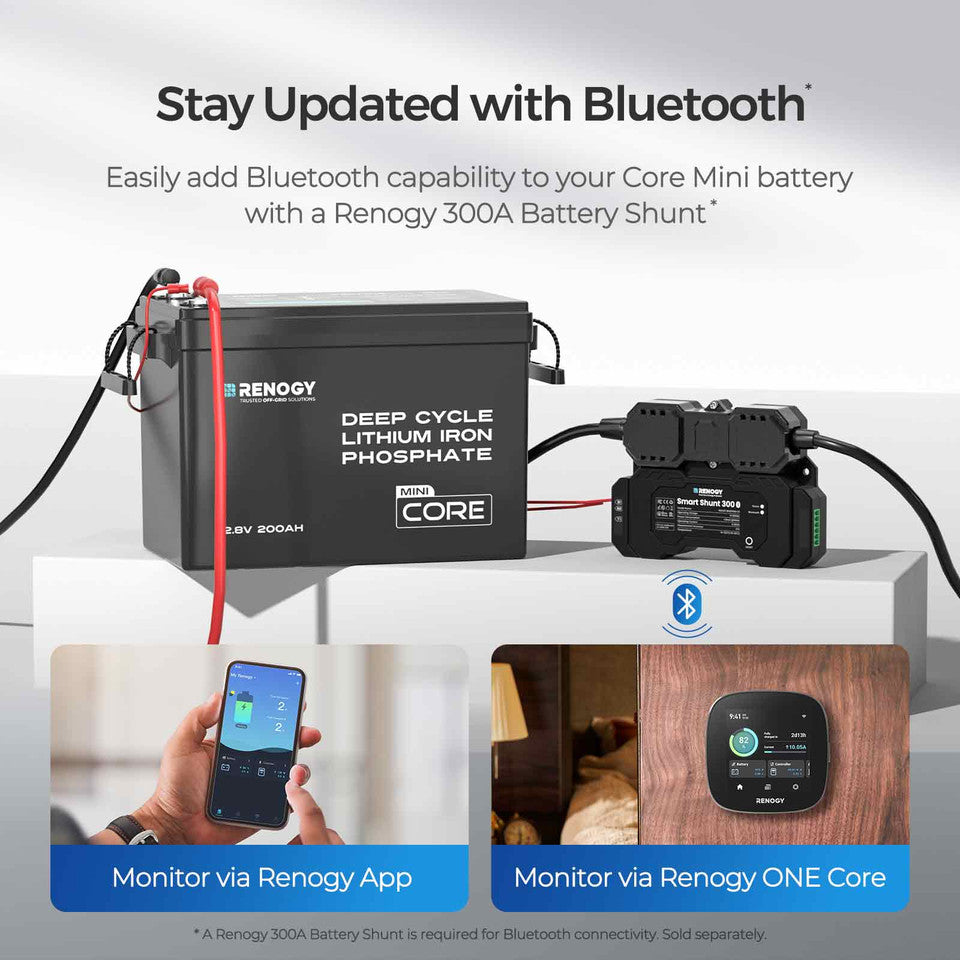

•    Works with a Renogy 300A Battery shunt for remote monitoring.

SPECIFICATIONS:

Electrical Specifications
Rated Capacity: 200Ah (0.5C, 25℃)
Voltage: 12.8V
Energy: 2560Wh
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Temperature Parameters
Operation Temperature Range: Charge: 32°F to 131°F (0°C to 55°C); Discharge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
Operation Relative Humidity: 5% to 95%

Charging Parameters
Voltage Range: 10V to 14.6V
Maximum Continuous Charge Current: 100A

Discharging Parameters
Maximum Continuous Discharge Current: 200A
Peak Discharge Current: 380A@10s

General Specification
Dimension (L x W x H): 15.12×7.64×9.96 in/384×194×253 mm
Weight: 42.44 lbs / 19.25 kg
Terminal Bolt Size: M8×1.25×12 mm & M8×1.25×16 mm
Protection Rating: IP65

Warranty
5-year material warranty: Yes

Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA: Yes

WHAT’S IN THE BOX:

1 x Core Mini - 12.8V 200Ah Lithium Iron Phosphate Battery

2 x Long Terminal Bolts

2 x Terminal Bolts

1 x User Manual
